Completing squares reveals the geometry of the sheared quartic double-well gradient flow:The critical points satisfy $2(x+y)=0$ and $4x^3-2x+2y=0$, so they are $(0,0)$, $(1,-1)$ and $(-1,1)$. The Hessian matrix isAt the origin its determinant is $-8$, so $(0,0)$ is a saddle point, with $V=0$. At either other critical point, the determinant is $16$ and the upper-left entry is $10$, so it is a positive-definite matrix. They are strict local minima; the completed squares show that both are global minima, with $V=-1$.

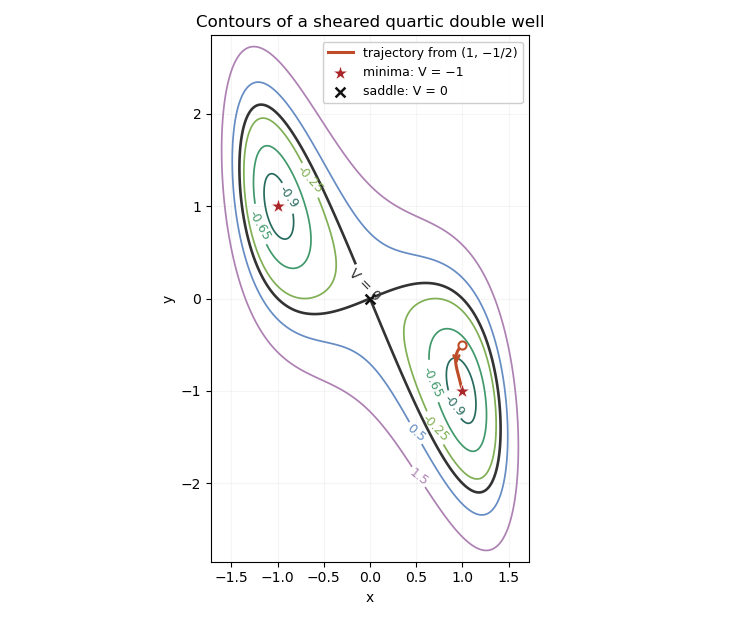

A contour at level $c$ obeysThere are no contours for $c<-1$, two isolated minimum points for $c=-1$, and two separate closed ovals for $-1<c<0$. At $c=0$ the two lobes meet at the saddle point; near the origin their tangents are $y=(-1\pm \sqrt{2})x$. For $c>0$ one closed contour surrounds both minima.

Along the gradient flow, the gradient-flow dissipation identity isAt the stated initial point, $V(1,-1/2)=-3/4$. Its trajectory stays in the invariant sublevel set $V\le -3/4$. This set is compact because $V$ is a coercive function. It also excludes every point with $x=0$, where $V=y^2\ge 0$; continuity therefore keeps the trajectory in its positive-$x$ component.

To justify its limit rather than merely infer it from the sketch, integrate the dissipation identity: ${\int }_0^{\infty }\Vert \nabla V{\Vert }^{2}dt$ is finite. On this compact set the gradient and its time derivative are bounded, so $\Vert \nabla V{\Vert }^2$ is uniformly continuous. A nonnegative uniformly continuous function with finite integral tends to zero: otherwise separated intervals of a fixed positive height and width would force an infinite integral. Every accumulation point is consequently a critical point. In the positive-$x$ component below this energy level the only one is $(1,-1)$. Compactness then implies convergence, andThis is a compact gradient-flow trapping criterion; the drawn trajectory illustrates, rather than replaces, the convergence proof.
