Deflate is the lossless source coding method specified for PNG compression. It can describe repeated stretches of earlier data, going beyond the single-value repetitions of run-length encoding.^[ref]

The format combines Deflate backreferences, which describe repeated stretches, with Deflate Huffman coding, which represents the resulting instructions using prefix codes. Deflate block framing tells the decoder which codes apply and where decoding stops. RFC 1951, DEFLATE Compressed Data Format Specification version 1.3 (May 1996), defines the format; different encoders can choose different instructions for the same input.^[ref]

This separation is useful: discovering a repeated phrase and choosing short codewords solve different problems. A repeated phrase can contain many distinct bytes, while unequal codeword lengths can help even when no phrase repeats. Neither mechanism removes Deflate compression overhead or guarantees a saving on every input.

Short inputs can spend much of their size on Deflate block framing, the end-of-block symbol and, for dynamic blocks, Deflate Huffman coding descriptions. A repeated phrase is useful only if its Deflate backreference costs less than the Deflate literal bytes it replaces. Huffman coding adapts instruction costs; it does not make either references or code descriptions free.

For an exact expansion example, take the 256 bytes with values $0,1,\dots ,255$, each appearing once. A single fixed block containing only Deflate literal bytes costs $144\cdot 8+112\cdot 9+7+3=2170$ bits, or 272 bytes after final packing. One stored block starting at a byte boundary instead costs five overhead bytes plus the 256 data bytes, or 261 bytes. Both exceed the 256-byte input; these counts follow the specified layouts and are not measurements of an encoder's automatic choice. The example illustrates universal lossless shortening is impossible.^[ref]

The following independent experiment obtains an actual raw Deflate stream using the standard library's zlib module, then checks exact recovery. Negative wbits selects raw framing; the three lines of compressed-data handling make no assumptions about which Deflate backreferences the library selects.^[ref]The printed bytes describe this library run. Exact roundtrip recovery is the check; a particular compressed length or instruction choice is not a guarantee for other inputs or library versions.

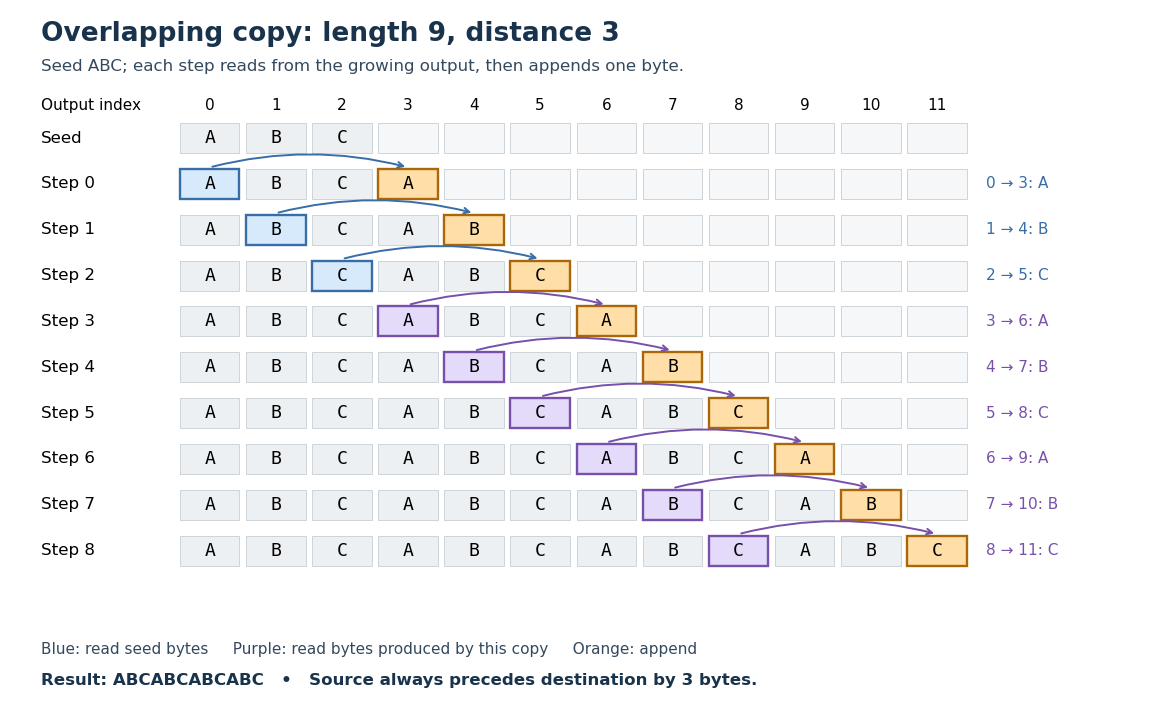

In a Deflate overlapping copy, $\ell >d$: some source bytes are created by the very copy being decoded. For each step $i=0,\dots ,\ell -1$, read the current output at index $n+i-d$ and append that byte at index $n+i$. Because $d\ge 1$, the source index is always smaller than the destination index, so the needed byte exists when it is read.^[ref]

For ABC followed by $(9,3)$, the source indices are $0,1,2,3,4,5,6,7,8$ and the destination indices are $3,4,5,6,7,8,9,10,11$. Steps 0 through 2 copy the original ABC; steps 3 through 5 copy the ABC just appended; steps 6 through 8 copy the next newly appended ABC. Thus the final output is exactly ABCABCABCABC. Taking a snapshot of the original three-byte source slice would produce only three bytes; that operation does not implement the specified nine-byte copy.

The reusable idea is a short description of periodic continuation: the decoder repeatedly looks a fixed distance behind its growing output. A Deflate backreference can also reach across a Deflate block framing boundary. Changing the block's Huffman codes does not by itself erase the decoded history.^[ref]
