Write $\zeta =(\nabla \times \mathbf{u})\cdot {\mathbf{e}}_z$ and $q=\zeta -f\eta /h_0$, so the PDF's vector potential vorticity is $\mathbf{Q}=q{\mathbf{e}}_z$. The local TeX loses some of this boldface. Taking the vertical curl of the momentum equation gives ${\zeta }_t=-f\nabla \cdot \mathbf{u}$, while mass conservation gives ${\eta }_t=-h_0\nabla \cdot \mathbf{u}$. ThusThis is the linear perturbation of shallow-water potential vorticity, scaled by $h_0$; it should not be confused with the full nonlinear conserved ratio $(f+\zeta )/h$.

Since $\nabla \cdot ({\mathbf{e}}_z\times \mathbf{u})=-\zeta$, taking the divergence of momentum gives $(\nabla \cdot \mathbf{u}{)}_t=f\zeta -g{\nabla }^2\eta$. Differentiate mass conservation and use $\zeta =q+f\eta /h_0$ to obtainFor $\mathbf{Q}=0$, substitution of the stated plane wave gives the linear rotating shallow-water dispersion relation, with $c=\sqrt{g{h}_0}$:The two even branches approach $\pm c|k|$ at large $|k|$ and have values $\pm |f|$ at $k=0$. The original dispersion diagram below also compares the speed magnitudes.

For $k\ne 0$, the phase velocity and group velocity magnitudes areThe printed convention $e^{i(kx+\omega t)}$ means the signed phase velocity is $-\omega /k$ and the signed group velocity is $-d\omega /dk$. The speed magnitudes above are independent of that sign convention.

For $f\ne 0$, longer wavelengths have greater phase velocity but smaller group velocity: individual crests and wave packets therefore answer “faster or slower” differently. At long wavelength, $|k|\ll |f|/c$, the frequency is nearly the inertial frequency $|f|$, $|c_p|\sim |f|/|k|$, and $|c_g|\sim c^2|k|/|f|$. Rotation has its largest relative effect here, and the waves are strongly dispersive. At short wavelength, $|k|\gg |f|/c$, both speeds tend to $c$ and rotation gives only a small, weakly dispersive correction. If $f=0$, the gravity waves are nondispersive, with speed $c$; at $k=0$ the phase velocity formula is undefined.

For the equatorial Kelvin wave, set $\hat{V}=0$. The zonal momentum and mass equations give ${\omega }^2=k^2{c}^2$. Meridional trapping selects the eastward branchfor whichThe westward algebraic branch would grow away from the equator and is rejected.

For $\hat{V}\ne 0$, let $D={\omega }^2-k^2{c}^2$. The zonal momentum and mass equations giveSubstitution in meridional geostrophic balance and use of the stated Hermite differential equation gives the trapped Equatorial Rossby-wave dispersion relationFor $n=1$, define $L_e=(c/\beta {)}^{1/2}$, $Y=y/L_e$, and takeThen

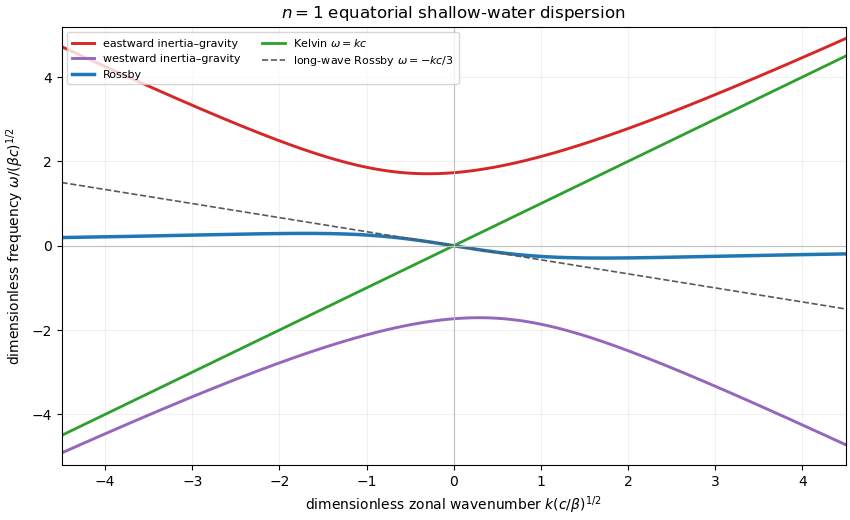

Without imposing meridional geostrophic balance, the equatorial shallow-water modes satisfy the Matsuno cubicA dispersion diagram therefore contains high-frequency eastward and westward equatorial inertia--gravity waves as well as westward equatorial Rossby waves, plus the separate straight equatorial Kelvin wave branch $\omega =kc$. The Rossby curves approach $-kc/(2n+1)$ only in the long-wave limit and bend toward zero like $-\beta /k$ at short wavelength. The geostrophic model retains the Kelvin and long-wave Rossby lines but filters the inertia--gravity modes and misses Rossby-wave dispersion at larger $|k|$.
