Interpreter arithmetic trace

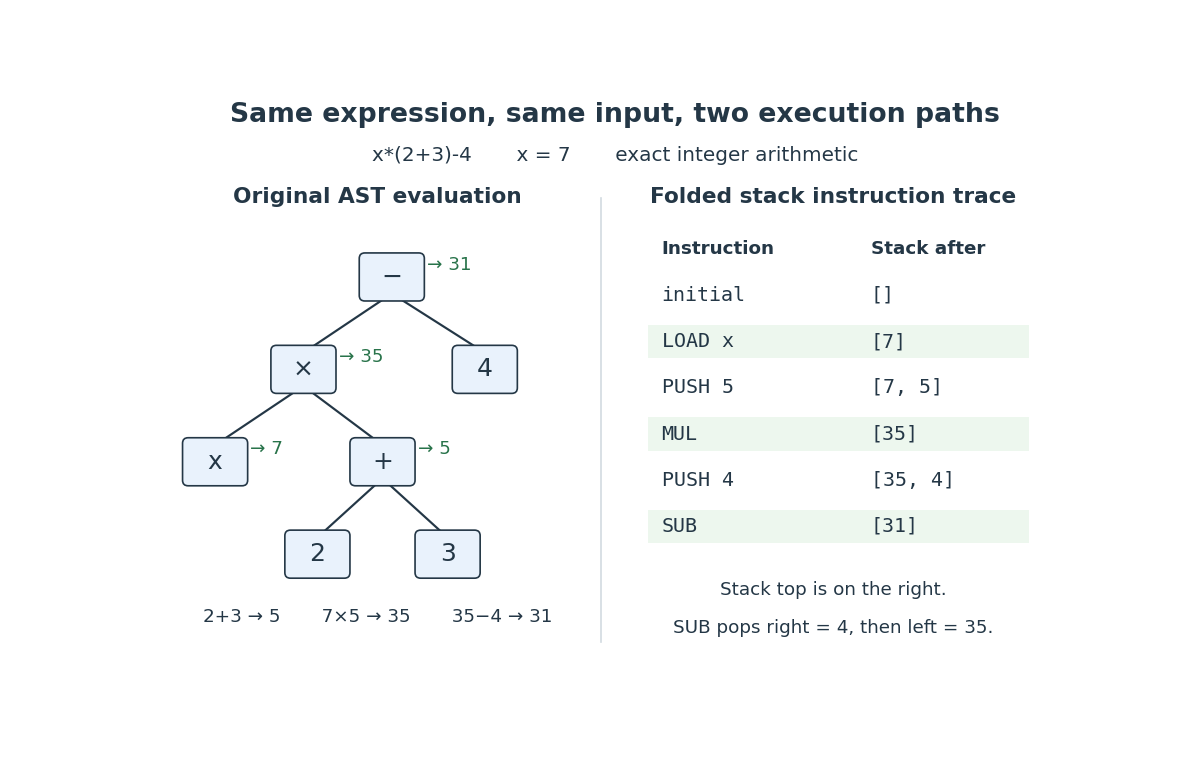

Use the compilation arithmetic example with input $x=7$. An abstract syntax tree interpreter first reads x, obtains $2+3=5$, forms $7\cdot 5=35$, and finally computes $35-4=31$. Interpreting the folded abstract syntax tree skips the addition but gives the same result. The compiled stack machine instructions instead produce the following trace; the top of the stack is written on the right:

instruction    stack after instruction
initial        []
LOAD x         [7]
PUSH 5         [7, 5]
MUL            [35]
PUSH 4         [35, 4]
SUB            [31]

The order in SUB is essential: reversing its two popped operands would give $4-35=-31$. The same stored instruction sequence works for input $x=-2$, yielding $(-2)\cdot 5-4=-14$, without repeating parsing or constant folding. An abstract syntax tree interpreter can likewise reuse its already-parsed tree. Reusing a representation is therefore useful to both approaches; it does not itself distinguish compilation from interpretation.

The pleasing part is that a nested rooted tree and a flat instruction sequence express the same computation. The structural induction in the compilation arithmetic example connects them by a precise stack property. This tiny language always terminates and has no side effects; richer programming language semantics require a correctness argument that also accounts for failures, externally visible actions, and possible nontermination.
