The Lyman-alpha forest is the multitude of foreground Lyman-alpha absorption features in a distant quasar's spectrum, at wavelengths shorter than its own redshifted Lyman-alpha emission. The quasar supplies a bright background; intervening neutral hydrogen atoms remove photons near their local Lyman-alpha line resonance. Many dips can therefore come from one atomic transition encountered at different redshifts, rather than from many different chemical elements. Some features are instead transitions of other ions, so a dip alone does not identify Lyman-alpha absorption. This makes faint foreground gas detectable through the light it removes, even when its own emission would be difficult to see. ^[ref].

Ignoring peculiar velocity for the moment, an absorber at cosmological redshift $z_a$ puts its Lyman-alpha line atThe rest wavelength is in the ultraviolet; at $z_a=2$ it appears at $3647.01\text{A˚}$ in the optical spectrum. In a toy sightline to a quasar at $z_Q=3$, absorbers at $z_a=2,2.35,2.7$ appear at $3647.01,4072.4945,4497.979\text{A˚}$, all shortward of the quasar's Lyman-alpha emission position $4862.68\text{A˚}$. The absorbing atoms see the selected photons at their own resonance; the observed dip's redshift belongs to the foreground gas. Peculiar velocity adds a Doppler shift, so the inferred $z_a$ is not a pure distance coordinate. The rest wavelength and resonance interpretation are given in Rauch (1998), section 1.

The diagram uses invented optical depths and 26 Doppler cores; three selected foreground regions are marked. Their drawn positions and sizes are schematic. The dashed comparison imposes a uniform optical depth $\tau =2$, giving transmission $e^{-2}\simeq 0.135$ throughout the chosen foreground band. It is an idealized smooth-absorption model, not a measured spectrum or a prediction of the actual intergalactic medium.

The smooth comparison explains the Gunn-Peterson effect: neutral hydrogen distributed throughout an expanding intergalactic medium can absorb continuously over a wavelength interval, because different parts of the path resonate with different observed wavelengths. The resolved Lyman-alpha forest instead has strong transmission fluctuations and distinguishable absorption lines. These need not represent isolated compact clouds: diffuse sheets and filaments in the cosmic web can generate peaks in optical depth along one line of sight. A continuously varying gas distribution can look like a collection of lines. ^[ref]. ^[ref].

An early observation makes the identification concrete. Lynds's 1971 paper analyzed six spectrograms of the quasar 4C 05.34, with emission redshift $2.877$, taken in spring 1970 using an image-tube spectrograph on Kitt Peak's 84-inch telescope. Five covered $3200$–$7500\text{A˚}$ with approximately $10\text{A˚}$ resolution; the most informative covered about $3500$–$6000\text{A˚}$ at $5\text{A˚}$ resolution. Its reproduced spectrogram shows the strong Lyman-alpha emission flanked mostly on the short-wavelength side by numerous absorption lines. Lynds tabulated their wavelengths and estimated strengths, identified five absorption redshift systems, and proposed that many remaining unidentified lines were the same Lyman-alpha line at additional redshifts. He explicitly warned about blending, an incomplete census of weak lines, and wavelength errors around $0.5$–$1\text{A˚}$. The result established a striking spectral pattern; the paper's proposed interpretation did not measure a separate physical cloud for every dip. ^[ref].

A contrasting observation demonstrates smooth, very strong absorption. Becker and collaborators (2001) used the Echelle Spectrograph and Imager on Keck II to observe the quasar SDSSp J103027.10+052455.0 at $z_Q=6.28$. Sky lines gave an instrumental full width at half maximum of about $1.8\text{A˚}$ near $8500\text{A˚}$, or spectral resolving power $R\simeq 4700$. After sky subtraction and flux calibration, the mean continuum-normalized transmission over $8450$–$8710\text{A˚}$ was $0.0038\pm 0.0026$, consistent with zero; this corresponds to absorption redshifts approximately $5.95$–$6.16$. They identified a Gunn-Peterson trough. Crucially, resonant Lyman-alpha absorption is so sensitive that even a small neutral fraction can make transmission undetectable: the trough alone does not establish a mostly neutral intergalactic medium or uniquely date reionization. ^[ref].

What a spectrum constrains is a radiative transfer problem. For an ideal foreground screen with negligible emission into the observed beam, the intrinsic continuum-normalized transmission isHere $F$ is spectral radiative flux, $F_{\mathrm{cont}}$ is its unabsorbed continuum, $\tau$ is optical depth, $n_{\mathrm{HI}}$ is neutral hydrogen number density, and $N_{\mathrm{HI}}$ is neutral hydrogen column density along proper path length $\ell$. A Voigt profile model constrains redshift, column density and a velocity width together. A nearly black line has lost much of its sensitivity to further increases in optical depth; blending and an uncertain continuum can also admit different fitted components. Finite spectral resolving power and noise limit which widths and weak features can be measured. ^[ref]. ^[ref].

For a purely thermal Doppler core, use the velocity convention $\tau (v)\propto \exp [-(v-v_0{)}^2/b^2]$. The Maxwell-Boltzmann velocity distribution then giveswhere $k_B$ is the Boltzmann constant, $T$ is temperature and $m_{\mathrm{H}}$ is a hydrogen atom's mass. This $b$ is $\sqrt{2}$ times the Gaussian distribution's standard deviation. Higher temperature spreads the same column density over more velocities. An instrument also broadens a line: locally, for a nearly flat continuum, the recorded transmission is approximately the convolution of $\mathcal{T}$ with the normalized instrumental response, not the exponential of a convolved optical depth. A Gaussian response with full width at half maximum $c/R$ has standard deviation $c/[R\sqrt{8\log 2}]$, where $c$ is the speed of light and $R$ the spectral resolving power.

The upper model fixes the integral $\int \tau (v)dv$, hence the neutral hydrogen column density for this transition, while changing temperature. A cooler line blurred by an instrument resembles a warmer intrinsic line. The lower model has two equal Doppler cores separated by $24\mathrm{km}{\mathrm{s}}^{-1}$: reducing spectral resolving power merges them into one apparent feature. Both panels use invented profiles, Gaussian instrumental responses, and no noise or damping wings. They illustrate an inverse problem, rather than measurements of temperature or a universal relation between a dip and a cloud.

Better observations provide the inputs to that inverse problem. Kim, Cristiani and D'Odorico (2001) analyzed three quasars with the VLT's UVES spectrograph. For HE2217–2818, Table 1 records $z_Q=2.413$ and $16200\mathrm{s}$ of exposure in the $3050$–$3860\text{A˚}$ setup in October 1999. Isolated thorium-argon lamp lines measured $R\simeq 45000$; the data were resampled into $0.05\text{A˚}$ bins, with signal-to-noise ratios about $45$–$50$ per pixel over $3550$–$4050\text{A˚}$. They fitted a local polynomial continuum, fitted Voigt profiles, and compared statistics of the transmitted flux. Their analysis excluded the region near the quasar to avoid the quasar proximity effect and used the interval between its Lyman-beta and Lyman-alpha emission to reduce confusion with other Lyman-series absorption. Features below $N_{\mathrm{HI}}=10^{12.5}\mathrm{c}{\mathrm{m}}^{-2}$ became confused with noise, setting their adopted lower column density limit. Figure 1 shows the measured spectrum, fitted profiles and residuals. This was a calibrated absorption measurement, with explicit selection limits. ^[ref].

Even after instrumental correction, a width need not be purely thermal Doppler broadening. Hubble flow across extended gas, peculiar velocity structure and unresolved blends can contribute. If an isolated line's intrinsic width obeys $b^2=b_{\mathrm{th}}^2+b_{\mathrm{nt}}^2$ with an independent Gaussian nonthermal contribution $b_{\mathrm{nt}}^2\ge 0$, then $T\le m_{\mathrm{H}}{b}^2/(2k_B)$; $b=25\mathrm{km}{\mathrm{s}}^{-1}$ gives a computed upper bound about $3.79\times 10^4\mathrm{K}$. A complex blend need not satisfy this single-component model. Noise can also bias the fitted widths of weak lines. This is why the thermal cutoff of Lyman-alpha line widths, calibrated against gas models, is more informative than assigning a temperature to every dip. ^[ref].

Finally, neutral hydrogen column density is not total gas mass density. In a pure hydrogen approximation, with gas optically thin to ionizing radiation and nearly fully ionized in photoionization equilibrium, the Lyman-alpha forest photoionization scaling giveswhere $n_{\mathrm{H}}$ counts all hydrogen nuclei, $\Gamma$ is the photoionization rate, $\alpha (T)$ is the radiative recombination coefficient and $x_{\mathrm{HI}}=n_{\mathrm{HI}}/n_{\mathrm{H}}$ is the neutral fraction. At fixed temperature and $\Gamma$, doubling $n_{\mathrm{H}}$ quadruples $n_{\mathrm{HI}}$; doubling $\Gamma$ halves it. These computed examples explain both the sensitivity to density contrast and the ambiguity: stronger absorption can mean denser gas, weaker ionizing radiation, a different temperature, or more path length. The Jeans-length ionization correction for the Lyman-alpha forest adds a size model rather than an independently measured depth. Optically thick Lyman limit systems and damped Lyman-alpha systems require different treatment. ^[ref]. ^[ref].

The beauty of the Lyman-alpha forest is that a spectrum converts otherwise faint foreground gas into a sequence of markers through cosmic time. With a model of radiative transfer, velocities, ionizing radiation and the temperature-density relation of photoionized intergalactic gas, its transmission statistics probe the cosmic web and gas thermal history. A single line of sight remains one narrow sample, not a unique three-dimensional density map. ^[ref].

For instantaneous complete hydrogen reionization, take $n_{e0}={\Omega }_b{\rho }_{\mathrm{crit},0}/(m_p{c}^2)=3{\Omega }_b{H}_0^2/(8\pi G{m}_p)$ and $n_e(z)=n_{e0}(1+z{)}^3$. Helium or incomplete ionization would multiply this by the appropriate free-electron count per baryon. In the matter-plus-curvature model,The reionization optical depth in an open matter universe is thereforeSet $u=\sqrt{1+{\Omega }_{m}z}$ and ${\beta }^2=1-{\Omega }_m$. The integral is $2{\Omega }_m^{-2}[u^3/3-{\beta }^{2}u{]}_1^{u_{\mathrm{re}}}$, givingAt high redshift where matter dominates over curvature, this approaches $\kappa \simeq {\Omega }_b{C}_H(1+z_{\mathrm{re}}{)}^{3/2}/\sqrt{{\Omega }_m}$. The exact expression should be retained when ${\Omega }_m{z}_{\mathrm{re}}$ is not large.

For ${\Omega }_m=1$ the preceding result reduces to $\kappa ={\Omega }_b{C}_H[(1+z_{\mathrm{re}}{)}^{3/2}-1]$. Using $C_H=0.032$ and ${\Omega }_b=0.05$ givesAt fixed $H_0$ and ${\Omega }_b$, a lower matter density lowers $H(z)$ relative to the flat dust value at positive redshift. The same electron density then persists for a longer scattering time, increasing the optical depth. Hence the reionization redshift giving unit depth is lower in an open universe.

In the high-redshift matter regime the scaling is $1+z_{\mathrm{re}}\propto {\Omega }_m^{1/3}$ at fixed optical depth; for ${\Omega }_m=0.3$ this suggests a redshift near fifty rather than seventy. This comparison holds the baryon density fixed, not the baryon fraction ${\Omega }_b/{\Omega }_m$, and is not an estimate of the actual observed reionization epoch.

Thomson scattering generates linear Cosmic microwave background polarization when the incident radiation has a photon quadrupole. The cross-section prefers electric fields perpendicular to the scattering direction. Contributions from an isotropic field cancel, and a dipole alone does not supply the required spin-two angular pattern. Schematically the outgoing Stokes combination is proportional towhich selects the incident quadrupolar angular dependence. Tight coupling nearly isotropizes the radiation, making the quadrupole small; it develops when the photon mean free path becomes finite near decoupling. At leading tight-coupling order its size scales as $(k/\dot{\kappa })v_{\gamma }$.

The polarization is therefore weaker than the temperature anisotropy: a characteristic amplitude is of order a few percent to roughly ten percent of the temperature signal, or several microkelvin compared with temperature fluctuations of several tens of microkelvin on acoustic scales. This is an order-of-magnitude comparison, not a scale-independent ratio of every power-spectrum multipole.

The photon monopole follows the acoustic displacement, approximately $\cos (k{r}_s)$; the velocity sourcing the quadrupole follows $\sin (k{r}_s)$. Hence polarization maxima occur near displacement zeros, between the main temperature peaks. In the leading coherent-oscillator approximation the shift is half the peak spacing, $\Delta \ell /2$, although projection and gravitational driving modify exact locations. Scalar perturbations generate E-mode polarization at linear order, not B-mode polarization. Tensor perturbations and lensing can give B modes, and reionization generates an additional large-angle polarization feature.

Work in natural units $k_B=\hslash =c=1$, initially neglecting helium and excited hydrogen states. The reaction $p+e^{-}\leftrightarrow H+\gamma$ is in chemical equilibrium when ${\mu }_p+{\mu }_e={\mu }_H$, since equilibrium photons have zero chemical potential. Substitution of the nonrelativistic Maxwell-Boltzmann distribution for the three densities givesFor ground-state hydrogen use $g_e=g_p=2$, $g_H=4$, and $m_H\simeq m_p$ in the translational prefactor. Writing its Hydrogen binding energy as $I$, this becomes $(m_{e}T/(2\pi ){)}^{3/2}{e}^{-I/T}$. Charge neutrality gives $n_p=n_e=X_e{n}_B$, while baryon conservation gives $n_H=(1-X_e)n_B$. Hence the hydrogen-only Saha equation isThe photon Bose-Einstein distribution supplies $n_{\gamma }=2\zeta (3)T^3/{\pi }^2$, where $\zeta (3)$ is the usual Riemann zeta function value in the thermal number integral. With baryon-to-photon ratio ${\eta }_{\gamma }=n_B/n_{\gamma }$, substitution yieldsThis reproduces the requested numerical coefficient, with the printed $\xi (3)$ interpreted as the thermal $\zeta (3)$ value. There is a normalization ambiguity in the PDF: it writes $\eta =n_B/s$ without defining $s$. To reproduce this coefficient, $s$ must mean photon number density. If $s$ has its usual entropy density meaning, the Saha baryon-abundance normalization instead givesThe two forms agree through ${\eta }_{\gamma }=[{\pi }^4{g}_{\ast s}/(45\zeta (3))]{\eta }_s$, with the entropy sector specified. A baryon-to-entropy ratio cannot simply be inserted into the photon-normalized expression.

As the universe cools, the Boltzmann factor favors neutral atoms and cosmological recombination sharply lowers $X_e$. For an order-one ionized fraction the photon-normalized equation gives the balanceup to an order-one ionization-fraction factor. The small baryon abundance means that there are very many photons per baryon: even a small high-energy photon tail can ionize most atoms. Thus the recombination temperature is far below the microscopic binding scale $I\simeq 13.6\mathrm{eV}$, typically a few tenths of an eV for the standard abundance, rather than of order $I$.

Photon decoupling is a related but distinct kinetic event. The Thomson scattering rate $n_e{\sigma }_T$ falls relative to $H$ as free electrons disappear, and photons begin free streaming. The precise last-scattering epoch depends on integrated optical depth, not only the local equality of rates. At still lower density the effective recombination rate per electron also drops below the expansion rate. Residual electron freeze-out leaves a small nonzero ionized fraction, larger than the vanishingly small equilibrium Saha prediction; radiative atomic bottlenecks mean the entire history cannot be obtained from equilibrium alone.

The temperature comparison in the last request needs an interpretation. If “reionisation temperature” means the microscopic thermal ionization scale, the large photon-to-baryon ratio explains why cosmological recombination requires $T\ll I$. If it means later cosmic reionization, there is no universal thermal threshold: stars or other sources supply ionizing photons and can reheat gas. The cosmological photon background is actually colder at that later epoch, because $T_{\gamma }\propto a^{-1}$. Its temperature therefore cannot literally be higher than the background temperature at recombination merely because hydrogen is reionized.

For a fixed column density or rest-equivalent-width threshold, the number of ordinary Lyman-alpha forest features per unit redshift generally increases towards higher redshift. Over much of $z\sim 1$–$4$, a rough description is $d\mathcal{N}/dz\propto (1+z{)}^{\gamma }$ with an index of order $2$–$3$, dependent on selection; the evolution is much slower at low redshift. Near reionization, blending and widespread opacity make a decomposition into individually detected lines increasingly inappropriate.

First separate physical evolution from geometrical path length. For comoving absorber density $n_c$ and proper interception area ${\sigma }_p$, absorber incidence and comoving number density givesEven a non-evolving population is not constant per unit redshift. Using absorption distance removes this particular geometrical effect.

The remaining redshift evolution of the Lyman-alpha forest reflects several competing processes. Cosmic expansion dilutes the gas; at fixed overdensity, photoionization equilibrium gives $n_{\mathrm{HI}}\propto \alpha (T)(1+z{)}^6/\Gamma$, so dilution can move many features below a fixed threshold. The cosmic ionizing background evolves as quasars, stellar sources and ionizing-photon absorption evolve; a decline of its intensity at late times partly offsets dilution. Photoheating changes temperature and radiative recombination, while gravitational instability redistributes gas into denser structures and hot shocked phases and changes its velocity field. Thus evolving line counts are not a direct count of conserved clouds; the density, thermal state, radiation field, geometry and observational selection must all be accounted for. The high-redshift increase and its physical interpretation are documented in the forest observations and models.

The Lyman-alpha forest is the multitude of Lyman-alpha absorption lines blueward of the broad emission line in a distant quasar spectrum. Neutral hydrogen along the line of sight absorbs at its rest wavelength ${\lambda }_{\alpha }\simeq 1216\mathring{\mathrm{A}}$, so each absorber appears at ${\lambda }_{\mathrm{obs}}=(1+z_c){\lambda }_{\alpha }$. Much of the ordinary forest traces modest overdensities in the mostly ionized intergalactic medium, rather than compact objects made primarily of neutral gas. Strong self-shielded systems form a distinct absorption regime. Line strengths constrain neutral-hydrogen column density, while line widths contain thermal and velocity information.

The redshift evolution of the Lyman-alpha forest is normally described, for a fixed line selection, by an incidence $d\mathcal{N}/dz=A(1+z{)}^{\gamma }$. At redshifts of a few the line incidence and mean absorption increase rapidly with redshift; typical selected populations have $\gamma$ of order $2$–$3$, not a universal exponent. Low-redshift evolution is appreciably flatter. Geometry alone cannot explain the full change: for a fixed comoving abundance and fixed proper cross section one obtains $d\mathcal{N}/dz\propto (1+z{)}^2/H(z)$, only $(1+z{)}^{1/2}$ in matter domination. Density evolution, thermal evolution and the cosmic ionizing background change how many structures exceed the chosen absorption threshold. In optically thin photoionization equilibrium,so for roughly fixed overdensity the rising cosmic density alone makes $n_{\mathrm{HI}}$ scale approximately as $\alpha (T)(1+z{)}^6/{\Gamma }_{\mathrm{HI}}$. At low redshift, the declining ionizing radiation partly offsets the decrease in gas density. Near the end of reionization the forest becomes very opaque and the simple individual-line description ceases to suffice.

The quasar proximity effect is the statistically reduced absorption near the quasar's own redshift, contrary to the general increase of absorption towards higher redshift. It results from additional ionizing radiation from the nearby quasar. At fixed density and temperature the local photoionization rate becomes ${\Gamma }_{\mathrm{bg}}+{\Gamma }_Q$. Accordinglywhere $N_{\mathrm{HI}}^{(0)}$ is the value with the background alone. Lines weaken and some fall below the detection threshold; the absorbers need not have been physically removed. This gives the proximity-effect estimator of the ionizing background.

For an approximately isotropic quasar and a nearby cloud at proper distance $d$, calculate its flux from $F_{\nu ,Q}\simeq L_{\nu ,Q}/(4\pi d^2)$, allowing for absorption and relative redshift if necessary. The quasar and isotropic background ionization rates arewhere ${\nu }_0$ is the hydrogen ionization threshold, $h_P$ is the Planck constant and $J_{\nu }$ is the background specific intensity. Establish the ordinary absorption statistics far from quasars, then fit their reduction as a function of distance and known quasar luminosity. The scale at which $\omega \sim 1$ gives the background rate; an assumed spectral shape converts this to an intensity near the ionization threshold. For matching spectral shapes, $\omega \simeq L_{{\nu }_0,Q}/(16{\pi }^2{d}^2{J}_{{\nu }_0})$. A column-density distribution proportional to $N^{-p}$ gives a line-incidence suppression $(1+\omega {)}^{1-p}$ above a fixed threshold, by shifting that threshold to $(1+\omega )N_{\min }$ in the unperturbed distribution. This is the physical measurement principle established in adsabs.harvard.edu/pdf/1988ApJ...327..570B .

The inference is statistical. Quasars live in overdense environments, which enhance absorption and can mask extra ionization. Emission-redshift errors smear the effect, as part (iii) demonstrates. Finite source lifetimes, anisotropic emission, variability and departures from ionization equilibrium can also alter the radial profile. These effects must be modeled rather than attributed entirely to the cosmic ionizing background.

The background is produced mainly by ionizing radiation from accretion-powered quasars and hot massive stars in star-forming galaxies. Their relative importance changes with redshift. Quasars have hard spectra and can ionize helium as well as hydrogen; stellar photons depend strongly on their ionizing photon escape fraction from galaxies. Integrating source luminosities over the luminosity function and propagating radiation through absorbing gas gives the background. At high redshift the observed quasar population alone need not supply the required hydrogen ionization, so star-forming galaxies can be essential, as discussed in arxiv.org/abs/0807.4177 . Diffuse recombination radiation can contribute, but a residual primordial radiation field is not an adequate ionizing source.

The ionizing background is produced mainly by hot stars in star-forming galaxies and by accretion-powered quasars. The stellar contribution depends on star formation and the ionizing photon escape fraction; the quasar contribution depends on its evolving luminosity function. Radiative transfer through the intergalactic medium, including absorption, recombination emission, and cosmological redshifting, determines the radiation actually available for photoionization.

In the picture relevant to this 2009 paper, increasingly rare quasars cannot by themselves explain the high-redshift hydrogen ionizing field, so galaxies become especially important above $z\sim 3$. Harder quasar radiation is important for doubly ionizing helium around $z\sim 3$. Hydrogen reionization must be largely accomplished by $z\sim 6$. At lower redshift the evolution reflects declining source emissivity together with the increasing propagation distance of ionizing photons; near reionization, short absorption lengths and spatially uneven ionized regions prevent a simple uniform-background description. The background rate need not follow the quasar population alone: a roughly flat hydrogen photoionization rate over $2\lesssim z\lesssim 4$ is compatible with a changing mixture of galaxies and quasars. Faucher-Giguère and collaborators' 2009 background calculation and their preceding opacity analysis give this interpretation. These redshifts describe the broad historical picture, rather than precise universal transition times.

Let $\delta =(\rho -\bar{\rho })/\bar{\rho }$ and define the cosmological density power spectrum by $⟨{\delta }_{\mathbf{k}}{\delta }_{{\mathbf{k}}^{\prime }}^{\ast }⟩=(2\pi {)}^3{\delta }_{\mathrm{D}}(\mathbf{k}-{\mathbf{k}}^{\prime })P(k)$. The contribution per logarithmic wave-number interval is the dimensionless cosmological power spectrum ${\Delta }^2(k)=k^{3}P(k)/(2{\pi }^2)$. The linear cosmological mass variance on mass scale $M$ iswith $R$ a comoving smoothing radius and $W$ the top-hat filter in Fourier space. On halo scales the observed spectrum is consistent with greater variance at smaller masses. Growth therefore brings smaller objects to the collapse threshold earlier, statistically; larger structures assemble by accretion and dark-matter halo mergers. This statistical growth from smaller bound systems to larger ones is hierarchical galaxy formation. It is an ordering of dark-matter assembly, not a rule that every small visible galaxy must precede every large visible galaxy.

For linear modes the linear growth factor gives $P(k,z)=D^2(z)P(k,0)$. During matter domination $D\propto a$, so $P\propto a^2$ and the characteristic nonlinear mass increases. Once modes become nonlinear, coupling between scales and halo formation change the shape, so the same multiplication cannot be used for the entire late-time spectrum. At low redshift accelerated expansion suppresses linear growth. Galaxy clustering traces the matter spectrum with galaxy bias; it should not be equated directly with an unbiased matter measurement.

The broad linear shape was set by the cosmological transfer function before and around matter-radiation equality, with baryonic acoustic structure also imprinted before recombination. A nearly scale-invariant primordial curvature spectrum has ${\mathcal{P}}_{\mathcal{R}}(k)\propto k^{n_s-1}$, with $n_s$ close to one. After converting curvature perturbations to matter-density perturbations,Thus nearly scale-invariant primordial curvature does not mean a constant density $P(k)$. Modes with $k\ll k_{\mathrm{eq}}$ enter the horizon after equality and have $T\simeq 1$. Modes with $k\gg k_{\mathrm{eq}}$ enter during radiation domination, when radiation controls the expansion and cold-matter perturbations grow only slowly. The cold-dark-matter transfer function behaves approximately as $T\propto \ln (k/k_{\mathrm{eq}})/(k/k_{\mathrm{eq}}{)}^2$ at large $k$. Hence the density spectrum turns over near $k_{\mathrm{eq}}=a_{\mathrm{eq}}{H}_{\mathrm{eq}}/c$:The turnover records the equality horizon, while the late nonlinear excess records gravitational clustering. On galactic scales the effective slope is greater than $-3$, giving the growing small-scale variance needed for hierarchical galaxy formation.

Cold dark matter has negligible primordial thermal velocities and a very short collisionless free streaming length on galactic scales. Warm dark matter has appreciable residual velocities while structure is being seeded; particles stream across small fluctuations and reduce their contrast. Its cosmological transfer function is consequently cut off below a characteristic length, suppressing low-mass halos and delaying their formation. Above that cutoff its assembly can still be hierarchical. The important distinction is the free-streaming scale, rather than the present temperature or an arbitrary particle-mass label.

Linear evolution assumes $|\delta |\ll 1$. When $\delta$ becomes of order unity, overdense regions depart strongly from the Hubble flow and can turn around and collapse. Collisionless dark matter develops multistream motion after trajectories cross; gravitational mixing redistributes energy and produces a bound dark matter halo. The formal infinite-density collapse of an ideal spherical pressureless solution is not the physical endpoint. A roughly virialized halo has $2K+W\simeq 0$ and a characteristic virial velocity $V_{\mathrm{vir}}^2=G{M}_h/r_{\mathrm{vir}}$. Its gas virial temperature is conventionallyIt measures the thermal energy associated with the gravitational potential; the numerical factor depends on the velocity-dispersion convention. It does not imply that the collisionless dark matter has a thermodynamic gas temperature.

The unheaded request about baryon conversion efficiency of a halo is also answered here. Define $f_{\ast }=M_{\mathrm{stars}}/(f_b{M}_h)$ using the cosmic baryon fraction $f_b$. In small halos, shallow potentials let stellar feedback drive outflows or repeatedly heat star-forming gas; supernova energy per stellar mass is roughly fixed while binding energy per gas mass scales as $V_{\mathrm{vir}}^2$. Photoheating during reionization also prevents very small halos from retaining or accreting cool gas. Molecular/atomic cooling thresholds further reduce star formation in the smallest systems. These effects make $f_{\ast }$ fall toward low mass.

Near $M_h\sim 10^{12}{M}_{\odot }$, gas can cool efficiently and the potential is deep enough to retain more of it, while a long-lived hot atmosphere and maintenance heating are less effective than in larger systems. At high mass, higher virial temperature and lower cooling efficiency let a substantial hot atmosphere persist. Active-galactic-nucleus feedback can prevent that atmosphere from supplying cold gas and can expel some gas; the cooling-time bottleneck alone is not an adequate explanation for the low stellar fractions of massive groups and clusters. The peak reflects a competition between gas supply/cooling and feedback, rather than complete conversion of all baryons at a sharply universal mass. Its exact location and height depend on epoch, metallicity, gas history and the stellar population included.

In the Lambda-CDM model, nearly Gaussian primordial density contrasts grow under gravity within an expanding universe containing cold dark matter, ordinary baryons and a cosmological constant. The cold dark matter is effectively collisionless and has negligible pressure on galactic scales. Before recombination, baryons are coupled to the photon fluid: radiation pressure and acoustic oscillations prevent their perturbations from behaving like pressureless matter. After recombination they can fall into the gravitational potentials already established by dark matter, subject to gas pressure and the Jeans mass.

For small density contrasts, evolution is linear. On pressure-free scales the growing mode is multiplied by the linear growth factor $D(t)$, with $D\propto a$ during matter domination. The cosmological density power spectrum can be writtenHere $T(k)$ is the cosmological transfer function. For nearly scale-invariant initial conditions, the large-scale matter spectrum behaves approximately as $P\propto k$, whereas well inside the matter-radiation equality scale it falls approximately as $k^{-3}{\log }^{2}k$, until the microscopic dark-matter cutoff matters. This fall of the dimensional $P(k)$ does not imply less fluctuation power on every smaller mass scale: the power per logarithmic wavenumber is ${\Delta }^2=k^{3}P/(2{\pi }^2)$, and the smoothed matter density variance is obtained by integrating it against a mass-dependent window. Over the relevant cold-dark-matter hierarchy, smaller mass windows generally have larger variance.

The hierarchical galaxy formation picture follows: fluctuations on small mass scales typically reach the nonlinear collapse threshold first, while larger objects assemble later through accretion and dark-matter halo mergers. It is a statistical ordering, not a claim that every small object precedes every large rare peak. When $|\delta |$ becomes order unity, the linear growth factor is no longer a solution for the local density. Collisionless dark matter develops multistream regions and bound dark matter halos; phase mixing and violent relaxation redistribute orbital energies, and virialized structures approximately obey the virial theorem.

Baryons have an additional nonlinear route. Infall and shocks convert bulk kinetic energy into thermal energy, with characteristic virial temperatureUnlike collisionless dark matter, the gas can lose this energy through radiative cooling. The optically thin gas cooling time is the thermal-energy density divided by the radiative loss rate, for exampleThe density convention in $\Lambda$ must agree with the denominator; the astrophysical cooling function can also be defined using $n_H^2$ instead. The cooling criterion for galaxy formation compares this time with the collapse or supply time. Rapidly cooling gas loses pressure support, contracts and can form stars. Slowly cooling gas remains in a hot atmosphere. Stable virial shocks are not obligatory in every low-mass system: gas can also arrive in cold streams and cool while being accreted.

Angular momentum prevents indefinite radial contraction. Tidal torque theory supplies an initial halo spin, and later mergers change it. If gas radiates energy while retaining much of its specific angular momentum, it settles into a rotationally supported galactic disk rather than reaching the centre. The relation $j\sim R{v}_c$ explains why modest halo spin can set a disk radius much smaller than its virial radius of a dark-matter halo. Torques, bars and gravitational encounters can transport angular momentum outwards and feed central concentrations; radiative cooling alone does not remove it.

Galaxy mergers alter stellar structure as well as assembling mass. A major galaxy merger can strongly disturb or destroy an existing galactic disk, randomizing stellar orbits and creating a spheroid through violent relaxation. A gas-rich galaxy merger also permits dissipation, inflow and a burst of star formation; gas left over or accreted afterwards can rebuild a galactic disk. Minor galaxy mergers add stars to outer components, thicken disks and grow bulges. Dry galaxy mergers add stellar mass and can increase size without much new star formation. Halo merging therefore does not imply instantaneous merging of its galaxies: satellite orbital decay requires Chandrasekhar dynamical friction and can take a substantial time.

The atomic and molecular cooling thresholds for galaxy formation supply a lower characteristic scale. Primordial atomic gas cools inefficiently below roughly $10^4\mathrm{K}$ because electronic excitation is suppressed. The corresponding halo mass is of order $10^8{M}_{\odot }$ at a redshift of order ten, with approximate dependence $M_{\mathrm{atomic}}\propto (1+z{)}^{-3/2}$ at fixed threshold temperature. Molecular hydrogen can cool gas at hundreds of kelvin and permit smaller early objects, provided it forms and survives dissociating radiation. Metal-line cooling changes these thresholds after enrichment. Thus the atomic threshold is not an absolute minimum mass for all stellar systems.

At the other end, sufficiently massive dark matter halos have high virial temperatures and low-density hot gas. Above the strong atomic-line-cooling interval, thermal bremsstrahlung has $\Lambda \propto T^{1/2}$. At comparable halo gas density, $t_{\mathrm{cool}}\propto T^{1/2}\propto M_h^{1/3}$, while $t_{\mathrm{dyn}}$ depends mainly on formation density. Cooling therefore becomes less able to condense all the gas within the available time. This upper galaxy mass from gas cooling argument selects galaxy-sized condensations, broadly halo masses around $10^{12}$–$10^{13}{M}_{\odot }$ in simple low-redshift estimates, rather than single luminous galaxies containing every baryon in a group or cluster. Its numerical scale depends on epoch, metallicity and gas profile. Subsequent galaxy mergers can build larger stellar systems; cooling is not an absolute upper bound on their final mass.

Finally, a Press-Schechter halo mass function has many low-mass objects and a steep high-mass cutoff, while the luminosity function of galaxies also has a faint component and a bright cutoff, often described by a Schechter function. The two shapes are related through the halo-to-galaxy luminosity mapping, not by identifying luminosity with total halo mass. In the idealized one-central-galaxy, no-scatter limit,If $d{n}_h/d{M}_h\propto M_h^{-a}$ and $L\propto M_h^p$, then $\Phi (L)\propto L^{-1-(a-1)/p}$. A constant conversion gives similar shapes. Actual stellar feedback, inefficient low-temperature cooling and reionization suppress faint galaxies relative to small haloes, while long cooling times and active-galactic-nucleus feedback suppress luminosity at large halo masses. Satellites, scatter, stellar populations and dust further affect the correspondence. The halo hierarchy supplies the gravitational framework; cooling, angular momentum and feedback determine which parts become luminous galaxies.

Along the zeroth-order photon path, set $Y=\Theta +\psi$ and $\mathcal{S}=(3/4)\int d\hat{\mathbf{m}}\Theta (\hat{\mathbf{m}})[1+(\mathbf{e}\cdot \hat{\mathbf{m}}{)}^2]/(4\pi )$. The scalar photon energy redshift and the Photon Boltzmann equation with Thomson scattering giveThe integrating factor is $e^{-\tau }$, because ${\tau }^{\prime }<0$ in this convention. HenceTight coupling before decoupling makes the incident distribution nearly isotropic in the baryon frame. Neglecting its quadrupole, the angular kernel integrates to $\mathcal{S}={\Theta }_0$, since $(3/4)⟨1+(\mathbf{e}\cdot \hat{\mathbf{m}}{)}^2⟩=1$. The primordial term at the optically thick lower endpoint is erased. With instantaneous last scattering, no later scattering and $g=\delta (\eta -{\eta }_{\ast })$, the line-of-sight solution isThe approximation is linear, uses an unperturbed ray, neglects the scattering quadrupole and polarization feedback, and idealizes the cosmological visibility function as a delta function. It also excludes reionization or any other post-recombination opacity.

The photon monopole ${\Theta }_0$ is the intrinsic emission-temperature perturbation. The emission potential ${\psi }_{\ast }$ gives gravitational redshift on leaving the potential well; together they form the Sachs-Wolfe combination. The baryon peculiar velocity supplies the Doppler CMB anisotropy. The integral is the Integrated Sachs-Wolfe effect, from changes in gravitational potentials during travel. The observer potential is a direction-independent endpoint shift absorbed into the observed monopole. An observer peculiar velocity, if included, contributes an additional kinematic dipole; the stated observer is coordinate-comoving.

For $\mathbf{k}=k\hat{\mathbf{z}}$, scalar axisymmetry leaves only $m=0$ in the photon quadrupole: ${\Theta }_{20}=-\sqrt{4\pi /5}{\Theta }_2$ with the normalization used above. The two spin-weighted spherical harmonics satisfy ${}_{+2}{Y}_{20}={}_{-2}{Y}_{20}\propto {\sin }^2\theta$. Translation from last scattering supplies $e^{-ik{\chi }_{\ast }\mu }$. Thus the two helicity combinations have the same scalar source:where $\mathcal{C}$ is a common normalization constant independent of $\mu$. In this meridian polarization basis the scalar contribution has $U=0$; this does not mean that every rotated polarization basis has zero $U$.

Apply the spin-raising and lowering operators to an axisymmetric scalar potential $f$. The first action is $-{\partial }_{\theta }f$. In the second action, the intermediate spin is respectively $+1$ or $-1$; both giveIt follows thatSubtracting the two equations gives $P_B^{\prime \prime }=0$. The possible affine $P_B=A+B\mu$ consists solely of the unobservable $\ell =0,1$ kernel of the twice-applied spin operators. Defining polarization potentials to have no such components sets the physical scalar B mode to zero, $\boxed{P_B=0}$. This is the low-multipole kernel of polarization potentials, not a physical dipole polarization.

For $x\ne 0$ the remaining equation integrates to $P_E=-\mathcal{C}{\Theta }_2{e}^{-ix\mu }/x^2+A_E+B_E\mu$. Remove the same monopole/dipole kernel and use the plane-wave expansion. Thus the scalar E-mode radial projection isThe overall minus sign is absorbed in the stated proportionality constant. Although the unprojected antiderivative has $x^{-2}$, its divergent monopole and dipole pieces are discarded; the physical $\ell \ge 2$ limit is finite because $j_{\ell }(x)=O(x^{\ell })$.

The temperature-only tight-coupling quadrupole is suppressed by $k/{\Gamma }_T$. For regular superhorizon scalar modes, the photon dipole is itself proportional to $k$, so the recombination quadrupole and the resulting polarization are especially small at large angular scales. Last-scattering polarization is generated by the small departure from perfect tight coupling, not by an isotropic monopole. Reionization can generate a separate large-angle signal after recombination and is absent from the instantaneous-last-scattering approximation here. The no-B-mode conclusion applies to linear scalar sources; it does not include tensor sources or conversion by lensing.

To first order, propagate along the unperturbed ray $\mathbf{x}(\eta )={\mathbf{x}}_0-({\eta }_0-\eta )\mathbf{e}$ and keep its orthonormal tetrad direction fixed. Corrections to direction or trajectory multiply an already first-order temperature source and are second order. Define the angular scattering sourceUsing the photon energy redshift from a tensor metric perturbation, the Photon Boltzmann equation with Thomson scattering along this ray becomesMultiply by the survival probability $e^{-\tau }$. The cosmological visibility function is $g(\eta )=-\dot{\tau }{e}^{-\tau }$, so integration givesEvery source here is evaluated on the same ray, and $\tau ({\eta }_0)=0$.

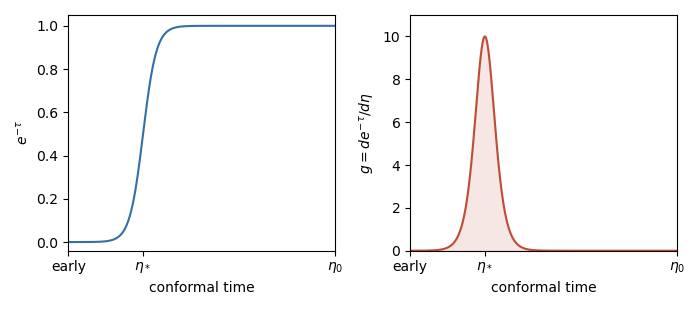

The instantaneous-visibility approximation makes $e^{-\tau }$ a step from zero to one at ${\eta }_{\ast }$. It suppresses the early boundary term and localizes the scattering source to $S_{\ast }$. To obtain only the requested tensor CMB line-of-sight source, additionally neglect this last-scattering angular source: in leading tight coupling, the tensor-induced incident quadrupole is small, and a tensor mode has no scalar monopole or dipole. Ignore later reionization and its scattering as well. ThenInstantaneous visibility alone would leave the term $S_{\ast }$; neglect of that term is an additional approximation. The time derivative on $h$ is essential and is present in the PDF, although it was lost in the extracted TeX.

Write $S_{\ast }(\mathbf{x})=({\Theta }_0+\psi )({\eta }_{\ast },\mathbf{x})$ and $E=e^{-{\tau }_{\mathrm{re}}}$. Under the stated matter-era growing-mode approximation, $\dot{\varphi }+\dot{\psi }=0$, and ignoring velocities removes the Doppler CMB anisotropy. The two peaks of the cosmological visibility function give the Cosmic microwave background line-of-sight solutionApply the same solution with observation time ${\eta }_{\mathrm{re}}$, just before the thin reionization screen. Between recombination and that screen there is no further scattering, so free propagation givesA direction-independent potential commutes with the angular average. Thus the incoming photon monopole plus the potential at the screen isSubstitution givesThis derivation inherits the neglected scattering quadrupole and polarization assumptions of part (ii); the screen is an idealized isotropizing approximation.

For a plane Fourier mode $S_{\ast }(\mathbf{x})=S_{\mathbf{k}}{e}^{i\mathbf{k}\cdot \mathbf{x}}$, the angular average is explicit:where $j_0$ is the zeroth Spherical Bessel function. The mode's observed transfer isIf $k\Delta \chi \gg 1$, the rescattered monopole is suppressed by at least $1/(k\Delta \chi )$, because the incoming directions sample incoherent phases. If $k\Delta \chi \ll 1$, $j_0=1+O((k\Delta \chi {)}^2)$ and the two propagation phases agree to leading order. The two weights then sum to one. ConsequentlyThese are the small-scale damping and large-scale coherence limits of reionization damping of cosmic microwave background temperature anisotropy.

Each small-scale primary temperature amplitude is multiplied by $e^{-{\tau }_{\mathrm{re}}}$, so its Cosmic microwave background power spectrum is multiplied by $e^{-2{\tau }_{\mathrm{re}}}$. Holding transfer parameters fixed,Many measured high-$\ell$ modes determine this combination accurately. Their derivatives $\partial \log C_{\ell }/\partial \log A_s=1$ and $\partial \log C_{\ell }/\partial {\tau }_{\mathrm{re}}=-2$ are degenerate: a change $d\log A_s=2d{\tau }_{\mathrm{re}}$ leaves the leading temperature spectrum unchanged. The undamped large-scale modes can distinguish the parameters, but there are few of them and cosmic variance gives fractional full-sky uncertainty $\sqrt{2/(2\ell +1)}$ per multipole. This explains the primordial-amplitude–optical-depth degeneracy. Polarization from reionization, lensing, and more complete late-time effects partly break it. The TeX's final ${\tau }_e$ is a transcription mismatch; the PDF uses ${\tau }_{\mathrm{re}}$ consistently.

Put $\Gamma (\eta )=a{\bar{n}}_e{\sigma }_T\ge 0$, the Thomson scattering rate per unit conformal time. The cosmological optical depth is the integrated scattering rate from emission time to observation, so a Poisson scattering process has survival probabilitySince $\dot{\tau }=-\Gamma$, the cosmological visibility function isA photon scatters in an interval $d\eta$ with rate factor $\Gamma d\eta$ and then reaches us without another scattering with probability $E$, so $gd\eta$ is its probability of last scattering in that interval. For an optically thick initial epoch,If the initial optical depth is finite, the missing weight represents photons that have already stopped scattering before ${\eta }_i$.

Before cosmological recombination, the optical depth to the present is enormous: $E\simeq 0$, and $g$ is also small because almost every scattering is followed by another. Through photon decoupling, $E$ rises rapidly and $g$ has its dominant positive peak. After decoupling, without reionization, $E$ is close to one and reaches exactly one at ${\eta }_0$, while $g$ is small because the remaining electron density and scattering rate are small. Residual ionization can give a weak tail; there is no second reionization peak. The peak marks the Cosmic microwave background last-scattering surface.

The cosmic microwave background is relic thermal radiation from the hot early universe. Its temperature anisotropy is expanded in spherical harmonics, with angular power spectrum $C_{\ell }^{TT}$. Thomson scattering of a local radiation quadrupole generates linear polarization around last scattering and again during reionization. Polarization maps are decomposed into E-mode polarization and B-mode polarization, giving spectra such as $EE$, $TE$ and $BB$ in addition to temperature information.

Cosmic microwave background acoustic peak positions compare the sound horizon with the angular-diameter distance to last scattering, constraining geometry and expansion history. Relative peak heights constrain baryon loading and matter-radiation equality; the damping tail constrains diffusion and other early-universe physics. The scalar spectral index and primordial scalar amplitude constrain inflationary perturbations. Coherent acoustic structure and temperature-polarization correlations support predominantly adiabatic initial perturbations. Large-angle E-mode polarization measures the reionization optical depth, helping break its degeneracy with the scalar amplitude inferred from small-scale temperature anisotropy.

Under a specified cosmological model, these data constrain ordinary and cold dark matter densities, the Hubble constant, spatial curvature and cosmic age. Complementary distance information helps break the geometrical degeneracy: temperature peaks alone do not uniquely establish a cosmological constant. The Planck 2013 parameter analysis used Planck temperature data and, in important combinations, WMAP low-multipole polarization; it should not be described as a full Planck polarization release.^[ref]

Linear scalar cosmological perturbations generate E-mode polarization but no primordial B-mode polarization in the simplest treatment. tensor cosmological perturbations can generate B-mode polarization, making them a possible probe of inflationary gravitational waves. gravitational lensing converts some E-mode power into B-mode polarization, however, and Galactic dust and synchrotron radiation also contribute polarized foregrounds. Multifrequency observations, foreground modelling, beam calibration and control of temperature-to-polarization leakage are therefore necessary. Polarization does not by itself establish a primordial tensor signal. temperature and polarization jointly test the expansion history and primordial perturbations, while complementary data and foreground control determine how uniquely parameters can be inferred.

The cosmic microwave background has an almost perfect blackbody spectrum at about $2.725\mathrm{K}$. This is strong evidence for an earlier hot, dense phase in which radiation thermalized, followed by expansion that redshifted the photon spectrum while preserving its Planck form. COBE FIRAS compared the sky with a precision reference blackbody; instrument temperature, gain, foregrounds and calibrator emissivity were crucial controls. Agreement with a blackbody constrains substantial late energy injection or photon-production distortions.^[ref]

After subtracting the dominant dipole associated mainly with observer motion, anisotropies at the level of roughly $10^{-5}$ reveal primordial structure. COBE DMR established large-angular-scale anisotropy; multifrequency measurements and independent maps were needed to distinguish it from Galactic emission and instrumental artifacts.^[ref] Approximate isotropy supports a homogeneous background model under the usual cosmological assumptions, but isotropy at one observing position is not alone a proof of spatial homogeneity everywhere.

The temperature CMB angular power spectrum has multiple acoustic peaks. Their coherent pattern follows oscillations in the pre-recombination photon-baryon fluid. Peak positions compare the sound horizon with angular diameter distance and hence constrain geometry together with expansion parameters. Relative peak heights test baryon inertia, matter–radiation equality and gravitational-potential evolution, motivating both baryonic and nonbaryonic matter. Cosmic microwave background diffusion damping suppresses small-scale power. Cosmic microwave background polarization and temperature–polarization correlations provide further tests of scattering, acoustic phase and reionization; gravitational lensing remaps the observed pattern and probes intervening structure.

By the time of this examination, the Planck 2013 temperature and lensing analysis supported a spatially flat six-parameter model with cold dark matter and a cosmological constant. This is a joint fit within an explicit model, not an inference that each peak uniquely measures one parameter.^[ref] Foreground separation requires frequency coverage, sky masks, beam and noise characterization, and consistency across instruments. The primary microwave background has geometric and other parameter degeneracies, so acoustic-ruler, supernova and structure observations are valuable complements. The spectrum establishes a thermal hot-universe history; anisotropy and polarization constrain its geometry, contents and primordial perturbations. None of these observations by itself demonstrates a unique cosmic inflation mechanism.

The primary small-scale Cosmic microwave background power spectrum measures the amplitude $A_s{e}^{-2{\tau }_{\mathrm{re}}}$, because reionization damps each temperature amplitude once. The unaffected large-scale temperature modes are few and limited by cosmic variance. Polarization and gravitational lensing provide additional information that partly breaks this degeneracy.

Ignoring velocities and evolving potentials, a thin reionization screen transmits the primary Cosmic microwave background anisotropy with amplitude $e^{-{\tau }_{\mathrm{re}}}$ and adds a direction-averaged source. A plane wave propagating a distance $\Delta \chi$ from recombination to the screen has monopole factor $j_0(k\Delta \chi )=\sin (k\Delta \chi )/(k\Delta \chi )$. This suppresses the rescattered source at $k\Delta \chi \gg 1$, while coherent large-scale modes are unchanged to leading order.

For full hydrogen ionization after instantaneous reionization, $n_{e0}=3{\Omega }_b{H}_0^2/(8\pi G{m}_p)$ and $H(z)=H_0(1+z)\sqrt{1+{\Omega }_{m}z}$. Integrating Thomson scattering givesFor ${\Omega }_m=1$, $\kappa ={\Omega }_b{C}_H[(1+z_{\mathrm{re}}{)}^{3/2}-1]$. At fixed baryon density and redshift, lowering the matter density reduces the expansion rate and increases the optical depth.
