The scalar potential is a positive sum of squared commutators of the six adjoint scalar fields. It vanishes precisely when they commute. For a compact gauge group, simultaneous conjugation puts a commuting tuple in a Cartan subalgebra. Its arbitrary $6r$ real coordinates are classical flat directions of a scalar potential, with residual identification by the Weyl group. For $SU(N)$ the simultaneous eigenvalue vectors also obey the tracelessness constraint. Generic values break the gauge group to its maximal torus.

For one canonical chiral field at $W^{\prime }(v)=0$, the quadratic scalar potential is $|W^{\prime \prime }(v){|}^2|\delta \phi {|}^2$. Writing $\delta \phi =(a+ib)/\sqrt{2}$ gives two canonically normalized real scalars with squared mass $|W^{\prime \prime }(v){|}^2$. The chiral-superfield fermion mass matrix has the same physical mass. A complex bilinear coefficient or its algebraic square is not itself a signed physical squared mass.

Consider two real scalar fields $\mathbf{\varphi }=({\varphi }_1,{\varphi }_2)$ with positive $\lambda ,v$, standard kinetic terms, and the displayed scalar potential. At $h=0$, the circle group rotates one field into the other: this is a global symmetry in field theory, with the same rotation at every point in space. The vacuum manifold is the circle ${\mathbf{\varphi }}^2=v^2$. Choose $(v,0)$ and differentiate the scalar potential twice:The scalar mass matrix assigns a restoring force to the radial displacement, whereas its tangent is one of the Goldstone directions in the scalar mass matrix. Moving around the circle costs no potential energy; moving between neighbouring points in space can still cost gradient energy. Flat angular potential energy therefore means a soft collective excitation, not that every spatial pattern is free.

A positive source $h$ explicitly selects the positive ${\varphi }_1$ direction. The minimum is $(w,0)$, where $w>v$ is the positive solution of $\lambda w(w^2-v^2)=h$. The two eigenvalues of the scalar mass matrix there areFor example, $\lambda =v=1$ and $h=0.15$ give $w\simeq 1.06792$, $m_{\mathrm{radial}}^2\simeq 2.42138$ and $m_{\mathrm{angular}}^2\simeq 0.140459$. The light angular excitation becomes a Goldstone boson as $h\downarrow 0$, while the radial mass stays finite. The source changes both the preferred direction and the radius; expanding about the old point $(v,0)$ at nonzero $h$ would miss that shift.

Under a superpotential critical-point shift, $m\mapsto M=m+gs$ and the linear coefficient vanishes, while $M^2=\Delta$ is unchanged. At either supersymmetric root $v$, the complex fermion mass parameter is $W^{\prime \prime }(v)=\pm \sqrt{\Delta }$. The physical scalar and fermion masses are both $\sqrt{|\Delta |}$, independent of the additive superpotential constant. A repeated critical point has a massless multiplet and a quartic leading scalar potential.

A local minimum of the scalar potential that has higher energy than a global minimum. It can be stable against infinitesimal classical fluctuations but metastable to a transition to a lower-energy vacuum, including quantum tunnelling. The stability of a cubic-quartic scalar potential gives an elementary example distinguishing local curvature from global stability.

In vacuum analysis, an exact flat direction of a scalar potential is a nonconstant continuous family of degenerate stationary vacua. The scalar potential stays constant along this family and its gradient vanishes there. An ordinary level set does not suffice: $V(x,y)=x^2+y^2$ is constant on every circle, but its vacuum at the origin has no flat direction. A vanishing eigenvalue of the quadratic Hessian matrix also does not suffice: $V(x)=x^4$ has zero quadratic mass at zero but no family of nearby vacua. Exact flat directions can be lifted by corrections absent from the classical scalar potential.

For a smooth invariant scalar potential, differentiating ${\partial }_{I}V(i{t}^a\varphi {)}^I=0$ at a classical vacuum gives $M^2(i{t}^a{\varphi }_0)=0$. The symmetry tangent space has dimension $\dim G-\dim H_0$, where $H_0$ is the full stabilizer subgroup. With a positive nonsingular scalar kinetic term, these are massless directions of the quadratic theory. Further zero eigenvalues are possible unless the Hessian matrix is positive on the normal complement.

For ${\mu }_h^2>0$ and $\lambda >0$, the minimum has ${\varphi }^{†}\varphi =v^2/2$ with $v^2={\mu }_h^2/\lambda$. In unitary gauge, $\varphi =(0,v+H{)}^T/\sqrt{2}$ gives $V=\text{constant}+\lambda v^2{H}^2+\lambda v{H}^3+\lambda H^4/4$. The canonically normalized Higgs boson therefore has $m_H^2=2\lambda v^2$. The angular modes produce the Goldstone bosons absorbed in the Higgs mechanism.

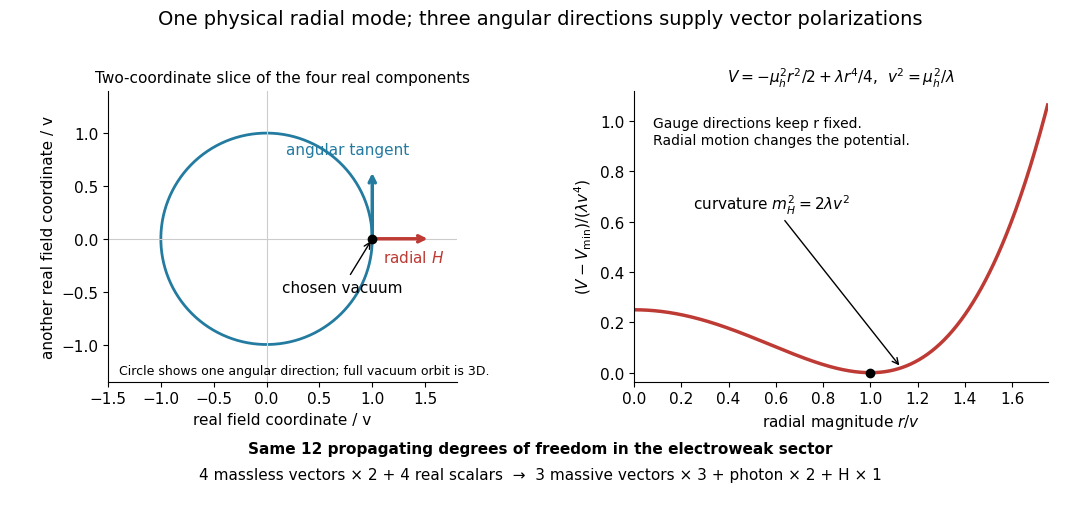

Set $r=\sqrt{2{\varphi }^{†}\varphi }$. The same Higgs potential becomesThe origin has negative radial curvature, while $r=v$ minimizes the scalar potential. Changing the field's angular coordinates at fixed $r$ costs no potential energy; changing its radial magnitude does. This geometric distinction explains why the surviving physical scalar field has a mass even though the angular directions are flat in the scalar potential. Local angular variations still enter the gauge-covariant kinetic term.

For a chosen model, not fitted physical constants, take $v=240\mathrm{GeV}$ and $\lambda =1/8$ in units $\hslash =c=1$. Then ${\mu }_h^2=7200{\mathrm{GeV}}^2$ and $m_H=120\mathrm{GeV}$. Direct expansion gives a quadratic coefficient $7200{\mathrm{GeV}}^2$, cubic coefficient $30\mathrm{GeV}$ and quartic coefficient $1/32$. The quadratic coefficient is $m_H^2/2$, not $m_H^2$. Keeping the same named $\lambda$ in the Higgs radial mass for a half-normalized quartic potential would instead give $m_H^2=7200{\mathrm{GeV}}^2$; these are different potentials. The shifted quartic Higgs potential normalization agrees with this section when $\kappa =\lambda$.

For a spatially homogeneous minimally coupled scalar field with zero scalar potential, the stress-energy tensor has $\rho =P={\dot{\varphi }}^2/2$. Its field equation is $\ddot{\varphi }+3H\dot{\varphi }=0$, so $a^3\dot{\varphi }$ is constant and its energy density decreases as $a^{-6}$. Thus its homogeneous stress is precisely that of a stiff fluid. Spatial gradients would introduce directional stresses, so this equivalence requires homogeneity.

Adding a holomorphic function $f$ and its conjugate does not change the Kähler metric. In global supersymmetry, these terms integrate to zero in the D-term action. In Planck-unit supergravity, the simultaneous transformation $W\mapsto e^{-f}W$ leaves the scalar potential invariant; shifting $K$ while holding $W$ fixed generally does not.

A real scalar field is minimally coupled to a metric tensor when its kinetic term uses the metric contraction of first derivatives and its scalar potential depends only on the field, without an explicit scalar curvature coupling. For metric signature $(-,+,+,+)$ the displayed Lagrangian and volume density $\sqrt{-g}$ give $\square \varphi -V^{\prime }(\varphi )=0$. Its stress-energy tensor is $T_{ab}={\nabla }_a\varphi {\nabla }_b\varphi -g_{ab}[\frac{1}{2}(\nabla \varphi {)}^2+V]$. The scalar stress-energy divergence identity explains its conservation on the field equation.

Yoichiro Nambu's superconductivity work led to the spontaneous symmetry breaking ideas recognized by his share of the 2008 Nobel Prize in Physics.^[ref] His 1960 treatment made the Meissner effect response consistent with gauge invariance by including collective pair contributions alongside the quasiparticles. The resulting Ward identity relates the interaction correction to the current and the self-energy; retaining the quasiparticles alone omits part of the response.^[ref]

The individual Nobel lecture explains the bridge to particle: the superconductivity gap suggested a dynamically generated fermion mass, and the accompanying collective excitation suggested a light pion. It also notes that the long-range Coulomb interaction turns the charged phase response into a plasmon. A neutral global phase mode and a charged material therefore need different low-momentum descriptions.^[ref]

In 1961, Yoichiro Nambu and Giovanni Jona-Lasinio supplied a four-fermion model with a self-consistent mass and a massless pseudoscalar bound state: an idealized pion. Their original constituents were nucleon fields. Their introduction explicitly distinguishes the zero-mass neutral collective excitation from its charged plasma counterpart and allows approximate chiral symmetry as the explanation of a nonzero pion mass. This is a model of dynamical symmetry breaking, rather than a microscopic derivation of Quantum chromodynamics.^[ref]

In the modern two-light-quark account, chiral symmetry breaking leaves isospin intact and produces three Goldstone bosons in the exact non-anomalous chiral limit. Small quark masses explicitly break that chiral symmetry, so the observed pions are pseudo-Goldstone bosons. The chiral protection of a fermion mass identifies the distinct obstruction to inserting an explicit fermion mass into a chirally symmetric equation. The useful lesson is that massive individual excitations and much lighter collective excitations can coexist because they describe different motions of an interacting state.

A concrete experimental motivation for treating the electromagnetic response carefully is the Field-cooled Meissner experiment. MIT's realization cools lead in a solenoid field using helium gas. A nearby thermometer follows the cooling; a test coil feeds an integrator and oscilloscope. Expulsion gives a pulse, warming reverses it, and switching off the field while the sample is normal checks its sign. A change in alternating-field response alone can reflect normal electrical conductivity. This readout tests magnetic flux expulsion, not the spectrum or existence of a neutral Goldstone boson.^[ref]

For a global symmetry in field theory, different orientations can be physically distinct states. A local gauge symmetry instead includes redundant descriptions of the same physical state. A gauge-dependent field expectation alone is consequently insufficient as a physical criterion for spontaneous symmetry breaking. The Higgs mechanism changes the physical mode content when the gauge field is dynamical; the global Goldstone theorem alone does not prove that mechanism. In particular, the massless direction of a gauge-fixed scalar potential need not appear as a separately observable massless particle.

If a no-scale supergravity scalar potential has the displayed form with $y>0$ and nonnegative $A,B$ independent of the volume coordinate $y$, every point with $A+B>0$ has a direction of strictly decreasing potential. Thus a finite stationary vacuum requires $A=B=0$. If that common zero set is empty, the potential has infimum zero along $y\to \infty$ but no finite minimum. If the common zero set is nonempty, varying $y$ on it is a flat direction of a scalar potential. This distinguishes an attained zero-energy vacuum from a decompactification runaway.

The unbroken group is the stabilizer subgroup of the chosen vacuum expectation value:Its Lie algebra consists of generators $T$ with $T{\varphi }_0=0$. The vacuum manifold is the orbit $G{\varphi }_0\simeq G/H$ under the stated transitivity assumption. Its tangent space is the image of $T\mapsto T{\varphi }_0$, so its dimension is $r=\dim G-\dim H$.

Let $K_{ij}={\partial }_i{\partial }_{j}V({\varphi }_0)$ be the scalar mass matrix, with canonical scalar kinetic terms. Invariance of the scalar potential gives $({\partial }_{i}V)(T_a\varphi {)}_i=0$ for every $\varphi$. Differentiate with respect to ${\varphi }_j$ and evaluate at the minimum, where ${\partial }_{i}V=0$:Thus every independent tangent direction is a zero eigenvector of $K$. These are the Goldstone directions in the scalar mass matrix; for a global symmetry they are $r$ physical massless Goldstone bosons. For a generic nondegenerate minimum transverse to the orbit, they are precisely all the zero eigenvalues. Without that nondegeneracy assumption, additional massless scalars are possible.

For a local gauge group, use the orthogonal unitary-gauge slice near a scalar vacuum. Since ${\varphi }_0^T{T}_a{\varphi }_0=0$ by antisymmetry, the proposed condition is equivalent toIt sets the gauge-orbit components of the scalar fluctuation to zero. This is an admissible local unitary gauge: on a basis of independent broken tangent vectors $v_a=T_a{\varphi }_0$, the variation of these conditions under the broken gauge parameters is $v_a^T{v}_b$. This Gram matrix is invertible on that basis, so the implicit function theorem selects the required gauge transformation near the vacuum. Unbroken transformations remain as a residual $H$ gauge symmetry; no global gauge slice through zeros of the scalar field is being asserted.

Write $\varphi ={\varphi }_0+h$. To quadratic order, the covariant kinetic term containsThe middle term vanishes in this unitary gauge. The gauge-boson mass rank from a real scalar vacuum is therefore determined byThese are squared masses: the physical gauge boson masses are square roots of the matrix's nonzero eigenvalues after diagonalization. For real $c_a$,Its kernel consists exactly of the unbroken generators. With $g\ne 0$, the rank is $r$, so exactly $\dim G-\dim H$ gauge-field combinations become massive. Each removed scalar Goldstone mode supplies the extra longitudinal polarization of a massive gauge boson.

The remaining physical scalar fluctuations lie in the orthogonal complement of the orbit tangent space. They have no massless modes if $K$ is positive definite on that complement. The unconditional absence of massless scalars does not follow from the printed assumptions. For a concrete counterexample, take a real doublet, $G=SO(2)$ andIts entire minimum set is one circle orbit, as required, but its Hessian matrix vanishes at the minimum. Gauging the rotation gives one vector of squared mass $g^2{v}^2$ and removes the angular scalar. The radial scalar remains massless at quadratic order, since its potential starts at fourth order in the radial fluctuation. This is an accidental massless radial mode beyond Goldstone modes. Thus the intended no-massless-scalar conclusion needs nonzero transverse curvature.

In the Standard Model, the Higgs doublet contains four real components and breaks $SU(2{)}_L\times U(1{)}_Y$ to $U(1{)}_{\mathrm{em}}$. Three Goldstone bosons become the longitudinal components of $W^{\pm }$ and $Z$, while the photon remains massless. The remaining radial Higgs boson is massive for the ordinary quartic potential with positive curvature. With $⟨H⟩=(0,v_{\mathrm{EW}}/\sqrt{2}{)}^T$,The colour gauge group is unbroken. This is the Higgs mechanism, with the generic curvature condition realized by the standard Higgs potential.

Use $Q=T_3+Y$ and $T_a={\tau }_a/2$. For each generation $r=e,\mu ,\tau$, the leptons areBoth are color singlets. The conjugate antilepton fields transform in the conjugate representations and have opposite hypercharge; they are already included by the conjugate fields in the Lagrangian. The two components of $L_r$ have electric charges $0,-1$, and $R_r$ has charge $-1$. There is no right-handed neutrino representation in this field content. These assignments use the electroweak representation and hypercharge table in the same hypercharge normalization as the scalar doublet.

For a doublet of hypercharge $Y$, defineThe $SU(2)$ term is absent for a singlet. Under the local transformation $\psi \mapsto e^{iY\omega }U\psi$, the gauge fields transform so that $D_{\mu }\psi \mapsto e^{iY\omega }U{D}_{\mu }\psi$. Consequently the required gauge-covariant kinetic terms areThe fields of definite chirality are defined with $P_{L,R}=(1\mp {\gamma }_5)/2$. Since $\bar{L}$ has hypercharge $+1/2$, the Yukawa interactionis invariant: its hypercharges add to zero, and $\bar{L}\varphi$ contracts the two doublet indices. A bare charged-lepton mass violates these assignments. No renormalizable neutrino Yukawa term is available without a right-handed neutrino. A gauge-invariant scalar potential depending on ${\varphi }^{†}\varphi$ can select the nonzero vacuum, without altering these kinetic and Yukawa constructions.

There is an explicit local unitary gauge transformation whenever $r_{\varphi }=(|{\varphi }_1{|}^2+|{\varphi }_2{|}^2{)}^{1/2}\ne 0$:Thus, with the real field $\rho =\sqrt{2}{r}_{\varphi }-v$,This proves the polar coordinates for the electroweak Higgs doublet constructively. The gauge choice is local about the nonzero vacuum; it need not be nonsingular at zeros of the doublet.

The three identical-generation kinetic terms permit unitary flavor changes. A singular value decomposition gives $U_L^{†}{Y}_{\ell }{U}_R=\mathrm{diag}(y_e,y_{\mu },y_{\tau })$ with $y_r\ge 0$. Rotate both components of each left doublet together, and the right singlets independently. In this basis,The left/right cross terms combine into this Dirac mass. Since the neutrinos have no mass matrix, their simultaneous left rotation preserves a diagonal charged current. This is charged-lepton Yukawa matrix diagonalization; the neutrinos remain massless in the stated renormalizable model.

The scalar kinetic term givesIntroduce $s_W=g^{\prime }/\sqrt{g^2+g^{\prime 2}}$ and $c_W=g/\sqrt{g^2+g^{\prime 2}}$. The combinations $W^{+}=(A_1-i{A}_2)/\sqrt{2}$, $W^{-}=(W^{+}{)}^{\ast }$, $Z=c_W{A}_3-s_{W}B$ and $A_{\gamma }=s_W{A}_3+c_{W}B$ therefore diagonalize the quadratic terms:The factor $1/2$ applies to the real neutral field, not to the complex charged field. The massless photon corresponds to the unbroken generator $T_3+Y$, which annihilates the vacuum. This gives the electroweak doublet gauge-boson mass matrix and its diagonal spectrum.

Assume $\lambda >0$ and $v>0$. The minima of the scalar potential have $|\varphi |=v$. Choose the vacuum expectation value ${\varphi }_0=v{e}_3$. Its stabilizer subgroup consists exactly of matrices $\mathrm{diag}(R_2,1)$ with $R_2\in O(2)$, soThe continuous spontaneous symmetry breaking is $SO(3)\to SO(2)$ and has two broken generators. For the full orthogonal group, the cross-product notation requires the gauge connection to transform in the adjoint, as an axial vector: $R[A{]}_{\times }{R}^{-1}=[(\det R)RA{]}_{\times }$. The scalar field transforms as the ordinary vector $R\varphi$. This axial transformation of orthogonal gauge connections makes the stated covariant derivative transform correctly even for $\det R=-1$; assigning an ordinary-vector transformation to the connection would fail.

Near this nonzero vacuum, unitary gauge removes the two angular Goldstone bosons and gives $\varphi =(0,0,v+h)$. PutThese are the physical charged gauge bosons, neutral massless gauge boson, and radial scalar field. Directly substituting into the original gauge field strengths givesThe scalar field kinetic term has no radial-vector cross term, because ${\partial }_{\mu }\varphi$ and ${\mathbf{A}}_{\mu }\times \varphi$ lie in perpendicular internal directions. The complete physical gauge-scalar Lagrangian becomesFor each real vector the mass term is $m^2{A}_{\mu }{A}^{\mu }/2$, while for the complex pair it is $m_W^2{W}_{\mu }^{+}{W}^{-\mu }$. Hence the adjoint triplet Higgs spectrum isThe radial scalar also has $m_h^2=\lambda v^2$ in the question's potential normalization. The two lost scalar modes supply the longitudinal polarizations of the massive vectors through the Higgs mechanism.

For the lepton kinetic terms let $P_L=(1-{\gamma }^5)/2$, $P_R=(1+{\gamma }^5)/2$, and denote the left neutral triplet entry by $n_L=c_{\alpha }{\nu }_L+s_{\alpha }{N}_L$. The missing singlet is the perpendicular combinationIts overall sign is immaterial. The real orthogonal matrix $\left(\begin{array}{cc}{c}_{\alpha }& s_{\alpha }\\ -s_{\alpha }& c_{\alpha }\end{array}\right)$ is orthogonal, so the sum of the kinetic terms of $n_L$ and $L^S$ is ${\bar{\nu }}_{L}i/\partial {\nu }_L+{\bar{N}}_{L}i/\partial N_L$ with no mixed terms. Combining with the right triplet gives ordinary Dirac field kinetic terms for $E^{+},N,e$, and only a left-handed kinetic term for the massless neutrino. This is orthogonal completion of mixed neutral lepton kinetic terms. The heavy charged field is $E^{+}$, as printed in the PDF, not the TeX's $N^{+}$.

To compute the charge commutator, the canonical anticommutation relations implyThe quartic terms cancel on reordering the fermions. Thus well-defined normal-ordered integrated bilinears obey fermionic bilinear charge algebra, $[Q_C,Q_D]=Q_{[C,D]}$. Left/right mixed commutators vanish since $P_L{P}_R=0$.

In either triplet, writeThe displayed current has a factor two relative to the projected bilinears, since $1\mp {\gamma }^5=2P_{L,R}$. Consequently its charges are $T^{+}=2(Q_K^L+Q_K^R)$ and $T^{-}=(T^{+}{)}^{†}$. The neutral combinations have canonical anticommutators because $c_{\alpha }^2+s_{\alpha }^2=1$. Applying the matrix commutator giveswhere $Q_{\ell }=e\int :(E^{+†}{E}^{+}-e^{†}e):$ is the electromagnetic charge in the lepton sector. The neutrino, heavy neutral lepton and singlet contribute zero. This establishes triplet charged-current closure on electromagnetic charge, with the requested proportionality independent of normalization choices for the weak Noether charges. The PDF correctly writes $J^{-}=(J^{+}{)}^{†}$; the TeX repeats $J^{+}$ incorrectly. Equal-time algebra does not require conservation of the separate fermionic weak currents after symmetry breaking. For full gauge-theory charges, the corresponding charged-boson contributions must also be included.
