An altazimuth mount points an optical telescope using altitude and azimuth rotations. A mount restricted to elevations no greater than the zenith must change its azimuth by approximately half a turn when a target crosses the zenith.

Altitude $\gamma$, also called elevation angle, is the signed angle from the astronomical horizon to a viewing direction, measured in the vertical plane containing that direction and the zenith. Its range is $-90^{\circ }\le \gamma \le 90^{\circ }$: positive altitude is above the horizontal plane, zero altitude lies on the astronomical horizon, and $90^{\circ }$ points to the zenith. Altitude measures direction, rather than a Euclidean distance or a height in metres. In the local horizontal coordinate system, $\sin \gamma =\mathbf{n}\cdot {\mathbf{e}}_U$; the dot product makes the sign unambiguous even for directions below the astronomical horizon.

A concrete motivating observation is the Exploratorium Teacher Institute's Height Sight activity. Its inclinometer uses a sighting tube fixed to a card and an angular scale, with a string and small weight hanging from the scale's pivot. A partner reads where the freely hanging string meets the scale. Sighting a level target should give a readout near zero; sighting a taller target gives an angular height. The activity asks the observer to move closer and farther: the closer position gives the larger angle. The interpretation is that the readout measures the tube's tilt relative to the gravity reference, while converting that angle to a physical height also requires distance and eye height. The activity also extends the inclinometer to sky observations. ^[ref].

The following calibration and sky sequence is a proposed extension, with no claimed observing dataset. First establish two reference marks at the same height with a water level, rather than assuming that a sloping floor or distant ridge is horizontal. Keep the inclinometer in a vertical plane, sight between the marks, wait for the weight to settle, and read the zero several times. Next sight a mark whose independently measured rise $q$ above the tube and horizontal separation $d$ are known; a right triangle predicts ${\gamma }_{\mathrm{ref}}=\arctan (q/d)$. A synthetic $q=3\mathrm{m}$, $d=5\mathrm{m}$ gives ${\gamma }_{\mathrm{ref}}=30.964^{\circ }$. Checking both zero and this nonzero angle can reveal a wrongly attached tube or a scale read from the wrong end. Use level separation, not distance along inclined ground.

If the scale's indicated altitude is $m={\gamma }_{\mathrm{app}}+b$, estimate its additive zero $b$ from the level sight, then obtain apparent altitude ${\gamma }_{\mathrm{app}}=m-b$. For synthetic readings $b=1.0^{\circ }$ and $m=32.0^{\circ }$, the corrected altitude is $31.0^{\circ }$, close to the $30.964^{\circ }$ calibration prediction. Declaring illustrative readout bounds of $0.5^{\circ }$ for each reading gives a conservative combined bound of $1.0^{\circ }$ on $m-b$; these bounds are assumptions, not measured performance. Repeatability tests the variation between readings, whereas a persistent zero offset remains a systematic measurement error. Include uncertainty in the reference rise and separation before judging agreement.

At a fixed site, sight a recognizable star, record the observation time, corrected altitude and north-through-east azimuth, and repeat over a short interval. Record the terrain boundary at the same azimuth separately from the gravity-defined zero. The fixed-direction model in horizontal coordinate system predicts changing angular readouts as the Earth rotates; this is a prospective test, rather than a fabricated measurement curve. Keep the tube aligned, the string free of contact and shielded from wind, the eye at the same reference position, and repeat the level check afterward. Timestamp each sight so genuine sky motion is not mistaken for poor repeatability. An optical telescope with an angular readout can replace the sighting tube, but its mounting still needs an independently established level and angular zero.

The corrected instrument reads apparent altitude, including atmospheric refraction. Under ordinary conditions atmospheric refraction raises a low direction, so if $R$ is the upward angular correction, ${\gamma }_{\mathrm{app}}={\gamma }_{\mathrm{geom}}+R$. Subtracting the instrument zero does not subtract $R$. Record site height, temperature and pressure if applying a refraction model: these are explicit observer inputs in the US Naval Observatory's NOVAS software. A coarse inclinometer may be unable to resolve the correction, and a local weather reading alone does not determine every atmospheric layer. ^[ref].

An observer’s celestial meridian is the great circle containing the zenith and the celestial poles. Its upper half passes through the local north and south directions.

Declination $\delta$ is the signed angle from the reference celestial equator to a direction, measured along its hour circle: $-90^{\circ }\le \delta \le +90^{\circ }$. Positive declination means celestial north, rather than necessarily north of the observer's zenith. A direction with $\delta =0$ lies on the celestial equator; $\delta =+90^{\circ }$ is the north reference celestial pole. Declination is an angle, not a height or a measure of Euclidean distance. ^[ref].

The connection to an observation follows from a dot product. In the elementary spherical-Earth, unrefracted model, an observer at geographical latitude $\varphi$ has zenith direction $\mathbf{z}=(\cos \varphi \cos \Theta ,\cos \varphi \sin \Theta ,\sin \varphi )$ in the same reference axes. Since $\mathbf{n}\cdot \mathbf{z}=\sin a$ for altitude $a$, the cosine addition formula givesAt upper meridian transit, $H=0$, so $a_{\mathrm{upper}}=90^{\circ }-|\varphi -\delta |$. For the synthetic site $\varphi =52^{\circ }$ and synthetic direction $\delta =20^{\circ }$, this yields $a_{\mathrm{upper}}=58^{\circ }$. A direction with $\delta =70^{\circ }$ instead reaches $72^{\circ }$, north of the zenith; positive declination does not imply a crossing on the southern half of the celestial meridian. A negative computed upper altitude means the direction never rises above the geometric astronomical horizon at that site.

For an angular readout, define signed zenith distance $z_s$ on the upper celestial meridian, positive toward the south and negative toward the north. Then $\delta =\varphi -z_s$. A synthetic southward readout $z_s=32^{\circ }$ at $\varphi =52^{\circ }$ recovers $\delta =20^{\circ }$. An unsigned distance $|z_s|$ alone would leave two possibilities, $\varphi \pm |z_s|$, when both are in range. A calibrated optical telescope must therefore record which side of the zenith it points toward. In this linear relation, a $1^{\prime }$ error in the assumed geographical latitude produces a $1^{\prime }$ error in inferred declination; averaging repeated readings cannot remove that shared offset. Near the astronomical horizon, uncorrected atmospheric refraction also invalidates the geometric readout.

The unit vector construction explains a subtle feature of sky maps. At fixed declination, changing right ascension traces a parallel whose radius on the unit sphere is $\cos \delta$. Its arc length is $\cos \delta |d\alpha |$, with angles in radians; at $\delta =60^{\circ }$, a $15^{\circ }$ right ascension increment spans a $7.5^{\circ }$ arc along that parallel. This arc is not generally the shortest great circle separation. At either celestial pole, all right ascension values represent the same direction: the coordinate singularity belongs to the coordinate grid. The unit vector remains regular there.

A horizontal coordinate system describes a viewing direction using altitude $\gamma$ above the observer's astronomical horizon and azimuth $\eta$ around it. Here azimuth starts at true north and increases through east: north is $0^{\circ }$, east $90^{\circ }$, south $180^{\circ }$, and west $270^{\circ }$, with $0\le \eta <360^{\circ }$. True north is the northward intersection of the celestial meridian with the astronomical horizon, rather than an uncorrected magnetic-compass reading. Other origins and directions are legitimate, but their formulae must be converted consistently. ^[ref].

Construct a local orthonormal basis of east ${\mathbf{e}}_E$, north ${\mathbf{e}}_N$, and upward ${\mathbf{e}}_U$, with ${\mathbf{e}}_E\times {\mathbf{e}}_N={\mathbf{e}}_U$. The upward unit vector points to the zenith; the horizontal plane is perpendicular to it. For a ground instrument, a freely hanging weight establishes the local vertical through gravity. In an elementary spherical-Earth model, this vertical is radial; precision work distinguishes it from the normal to a reference surface. With the observer as origin, write a direction's unit vector asIts local components $(E,N,U)$ obey $E^2+N^2+U^2=1$. Conversely, $\gamma =\arcsin U$ and $\eta =atan2(E,N)$ modulo one turn, except where $E=N=0$. The quadrant-aware arctangent takes east as its first argument and north as its second. A synthetic direction with $\eta =60^{\circ }$ and $\gamma =30^{\circ }$ has $(E,N,U)=(3/4,\sqrt{3}/4,1/2)$. Thus its horizontal component has norm $\sqrt{3}/2$; its altitude is not the angle of the projected arrow in the horizontal plane.

A horizontal coordinate system depends on the observer's site and the observation time. The Earth's rotation changes the local axes relative to a fixed distant direction, while changing the site changes the zenith and the astronomical horizon. This makes the horizontal coordinate system directly useful for pointing an optical telescope and checking whether terrain blocks a target. A pair of angles without a site, time, azimuth convention, and geometric or refracted interpretation is an incomplete pointing instruction.

For a check against an equatorial coordinate system, let $\theta$ be the observer's geographical latitude, $\delta$ the direction's declination, and $h$ its west-positive hour angle, obtained from local sidereal time minus right ascension. In the spherical-Earth, unrefracted fixed-direction model, projection onto the local orthonormal basis givesTaking the dot product with the upward unit vector gives the last formula; the other two follow by the same projection. Recover altitude and azimuth from $(E,N,U)$ as above, using radians inside software trigonometric functions. The minus sign in $E$ is essential: a negative hour angle puts this synthetic direction east of the celestial meridian. ^[ref].

For illustrative geographical latitude $\theta =45^{\circ }$ and invented declination $\delta =15^{\circ }$, hour angle $h=-60^{\circ }$ gives $\gamma \simeq 31.636^{\circ }$ and $\eta \simeq 100.729^{\circ }$. At $h=+60^{\circ }$, the same altitude accompanies $\eta \simeq 259.271^{\circ }$: the direction is now westward. At $h=0$, it is due south with altitude $60^{\circ }$, agreeing with $90^{\circ }-|\theta -\delta |$ at upper meridian transit. These are analytical checks, not present positions of any star. For nearby objects, the direction must also be referred to the observer; simply rotating a geocentric direction omits the change of viewing position. Catalogue-to-observation refinements are described under equatorial coordinate system.

An hour circle is a great circle through both reference celestial poles and a chosen direction. Its two halves have right ascensions differing by $12^{\mathrm{h}}$; choose the half containing the direction when measuring declination. The observer's celestial meridian is the particular hour circle through the zenith. ^[ref].

Let $\mathbf{n},\mathbf{w},\mathbf{u}$ be orthonormal unit vectors north, west and upward. A direction of altitude $\gamma$ and westward azimuth $\eta$ isThe north celestial pole and the upper equatorial meridian direction areIn the equatorial coordinate system, the same unit vector is $\mathbf{x}=\sin \delta \mathbf{p}+\cos \delta (\cos h\mathbf{e}+\sin h\mathbf{w})$. Taking dot products with $\mathbf{p},\mathbf{w},\mathbf{e}$ respectively givesThis is an orthogonal transformation between two bases, so it preserves the length of the direction vector. Recover $h$ from both its sine and cosine to keep the correct quadrant. At the zenith, azimuth itself is undefined; the vector equations remain meaningful by continuity. Using the more usual eastward azimuth changes the sign of the second equation.

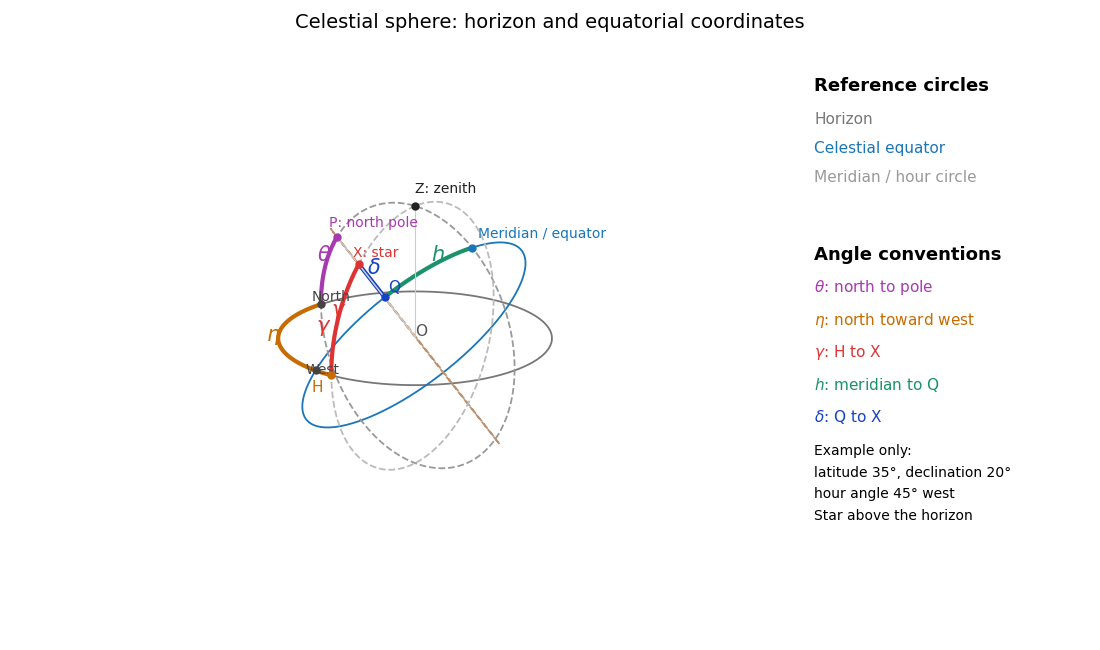

Use azimuth measured from north toward west, and positive hour angle westward. These conventions are forced by the signs in the coordinate formulae. In the diagram the observer is at $O$, the local vertical meets the celestial sphere at the zenith $Z$, and the north celestial pole is $P$. The astronomical horizon is perpendicular to $OZ$; the celestial equator is perpendicular to $OP$. Their intersections with the celestial meridian give the north horizon point and the upper equatorial meridian point.

The north celestial pole has altitude $\theta$; thus the angle between $OP$ and $OZ$ is $90^{\circ }-\theta$. Project $X$ along its vertical great circle onto the astronomical horizon at $H$: the arc $HX$ is the altitude $\gamma$, and the westward horizon arc from north to $H$ is the azimuth $\eta$. Project $X$ along its hour circle onto the celestial equator at $Q$: the arc $QX$ is the declination $\delta$, and the westward equatorial arc from the upper celestial meridian to $Q$ is the hour angle $h$. Equivalently the triangle on the celestial sphere $PZX$ has sides $PZ=90^{\circ }-\theta$, $PX=90^{\circ }-\delta$ and $ZX=90^{\circ }-\gamma$. All five angles refer to arcs on their specified reference circles, not arbitrary angles in the projected drawing.

A star of declination $\delta =\theta$ crosses the zenith. Its direction rotates around the celestial pole at ${\Omega }_{\mathrm{sid}}$, but its actual angular velocity on the celestial sphere is ${\Omega }_{\mathrm{sid}}\cos \theta$. Consequently the small-angle crossing-gap estimate becomesFor clarity, the factor $\cos \theta$ is the radius of the star's daily circle on a unit celestial sphere; it does not modify the sidereal hour angle rate.

The estimate assumes the required slew is nearly $180^{\circ }$. A more exact ideal symmetric reacquisition calculation is possible. Let the endpoints have hour angles $-H,+H$ and suppose $0<\theta <\pi /2$, $H$ small enough that both endpoints are above the astronomical horizon. The horizontal direction components are $n=\sin \theta \cos \theta (1-\cos H)$ and $w=\pm \cos \theta \sin H$. Their shortest azimuth separation isThe minimum ideal gap satisfies $2H{\Omega }_{\mathrm{az}}/{\Omega }_{\mathrm{sid}}=\Delta \eta (H)$; its angular separation is ${\varphi }_{\mathrm{full}}=2\arcsin (\cos \theta \sin H)$. Expanding for a fast drive gives the boxed expression. At an equatorial site $\Delta \eta =\pi$ exactly. At a geographic pole the direction with $\delta =\theta$ is stationary, so the crossing argument is inapplicable and the limit is zero. A full near-zenith rate-limited footprint still requires specifying the trajectory and drive model.

Write $T_{\mathrm{sid}}$ for one sidereal day in minutes and ${\Omega }_{\mathrm{sid}}=2\pi /T_{\mathrm{sid}}$. An equatorial star at an equatorial site rises along a vertical great circle, passes through the zenith, and descends on the opposite side. Its azimuth changes by $\pi$ at the crossing. The restricted altitude travel prevents following it continuously by rotating over the zenith.

The maximum azimuth rate is ${\Omega }_{\mathrm{az}}=2\pi \omega$ radians per minute, so the shortest half-turn takes $\Delta t=\pi /{\Omega }_{\mathrm{az}}=1/(2\omega )$ minutes. During that lost-track interval the star moves throughFor $T_{\mathrm{sid}}\simeq 1436.07$ minutes this is approximately $0.12534^{\circ }/\omega$; using a 24-hour day gives $0.125^{\circ }/\omega$. If the quoted zenith blind spot size means the angular radius of a symmetrically placed crossing gap, it is ${\varphi }_{\mathrm{full}}/2$, approximately $0.06267^{\circ }/\omega$.

This derives the ideal crossing-gap size with instantaneous acceleration and an available altitude drive. It does not uniquely define a circular forbidden region for all nearby trajectories. For example, at an equatorial site a star of small nonzero declination $\delta$ has maximum azimuth rate ${\Omega }_{\mathrm{sid}}|\cot \delta |$ at transit: its minimum offset is constrained by $|\tan \delta |\ge {\Omega }_{\mathrm{sid}}/{\Omega }_{\mathrm{az}}$. That rate contour and the half-turn crossing gap are different definitions of a zenith blind spot. Actual tracking footprints also depend on acceleration and the reacquisition strategy, as discussed in the telescope designers' tracking discussion.

Right ascension $\alpha$ is the eastward angle along the reference celestial equator from the reference equinox to a direction's hour circle, conventionally reduced to $0\le \alpha <24^{\mathrm{h}}$. Its hours label angles: $24^{\mathrm{h}}=360^{\circ }$, $1^{\mathrm{h}}=15^{\circ }$, $1^{\mathrm{m}}=15^{\prime }$ and $1^{\mathrm{s}}=15^{\prime \prime }$. Thus $6^{\mathrm{h}}30^{\mathrm{m}}=97.5^{\circ }=13\pi /24$ radians. A minute of right ascension differs from a minute of arc, and the actual arc on a fixed-declination parallel also contains the cosine factor described under declination.

The hours become useful through sidereal time. At local sidereal time $8^{\mathrm{h}}$, a synthetic direction of right ascension $6^{\mathrm{h}}30^{\mathrm{m}}$ has west-positive hour angle $1^{\mathrm{h}}30^{\mathrm{m}}=22.5^{\circ }$ and has passed its upper meridian transit. Conversely, at $5^{\mathrm{h}}30^{\mathrm{m}}$ it has hour angle $-1^{\mathrm{h}}$ and has yet to cross. Interpret these intervals in sidereal hours; ordinary civil hours are not interchangeable with them. The right ascension of the upper celestial meridian advances as the Earth turns, while the synthetic fixed target's right ascension stays unchanged.

An instrument makes this geometry tangible. DePauw University's description of McKim Observatory documents a meridian optical telescope with an angular circle, astronomical clocks and a chronograph. The circle measures zenith distance, and the crossing time supplies right ascension. Clock pulses and the observer's electrical key mark a rotating paper record, so crossing time is read relative to the clock marks. One clock kept sidereal time and another solar time. This apparatus separates two measured quantities: when a star crosses the celestial meridian, and at what angle from the zenith. ^[ref].

A teaching reconstruction would fix an optical telescope to sweep the celestial meridian, align its central sighting line, and observe a recognizable reference star followed by a target. Record each central-line crossing against a clock or timestamped camera, and read the angular circle at upper meridian transit. A short sequence shows the image moving across the stationary sighting line; the central crossing supplies a repeatable event. In the ideal model, successive upper crossings of a fixed direction recur once per sidereal day, and directions with increasing right ascension cross later in the same cycle. These are predictions for the reconstruction, rather than reported McKim measurements. Tatum derives the equality between local sidereal time and right ascension at upper meridian transit. ^[ref].

Calibrate the clock's zero by comparing its reference crossing readout $C_r$ with the reference star's predicted apparent right ascension ${\alpha }_r$ in the same date convention: the additive correction is $b={\alpha }_r-C_r$, modulo $24^{\mathrm{h}}$. Then infer target right ascension ${\alpha }_t=C_t+b$ if the clock rate is correct between crossings. In a purely synthetic example, ${\alpha }_r=6^{\mathrm{h}}00^{\mathrm{m}}00^{\mathrm{s}}$ and $C_r=6^{\mathrm{h}}00^{\mathrm{m}}20^{\mathrm{s}}$ imply $b=-20^{\mathrm{s}}$. A target readout $C_t=6^{\mathrm{h}}30^{\mathrm{m}}20^{\mathrm{s}}$ therefore gives ${\alpha }_t=6^{\mathrm{h}}30^{\mathrm{m}}00^{\mathrm{s}}=97.5^{\circ }$. The $20^{\mathrm{s}}$ clock offset is $300^{\prime \prime }$ in right ascension, while its local east-west angular effect at declination $60^{\circ }$ is approximately $150^{\prime \prime }$. The reference and target in this calculation are invented directions, with no claim about any current star's coordinates.

Controls give the inference its meaning. Use independently established geographical latitude and an angular-circle zero for declination; check sighting-line alignment against several reference stars, and bracket the target in time with references to reveal clock drift. Record north or south of the zenith, distinguish upper from lower meridian transit, and account for atmospheric refraction. Convert the observing timestamp to local sidereal time using the site's east-positive longitude correction, rather than a time-zone offset; precise conversion uses the Earth's measured rotation time. A reference star calibrates a zero only after its catalogue direction has been converted to the observation convention. Repeated crossings reduce random measurement error, while an incorrect clock rate, axis alignment or catalogue convention remains a systematic limitation. ^[ref]. These controls are requirements inferred from the geometric and clock model, not a claimed historical observing log.

The zenith is the point on the celestial sphere in the direction of the observer's local upward vertical. In the horizontal coordinate system, its unit vector is ${\mathbf{e}}_U$ and its altitude is $90^{\circ }$. The zenith belongs to the observer's site; it is not generally the north celestial pole, whose altitude depends on geographical latitude. A direction's zenith distance is its nonnegative angle from the zenith, so $z=90^{\circ }-\gamma$. A direction of altitude $30^{\circ }$ therefore has zenith distance $60^{\circ }$. ^[ref].

At the zenith, every value of azimuth produces $(E,N,U)=(0,0,1)$. There is no horizontal component to identify a bearing: $atan2(0,0)$ cannot provide a geometrically meaningful azimuth, even if software returns a number. This coordinate singularity is a defect of the angular description; the viewing direction itself remains regular. The same ambiguity occurs at the opposite downward vertical. Near the zenith, two directions at fixed altitude separated by a small azimuth increment $d\eta$ have separation $\cos \gamma |d\eta |$ to first order, with angles in radians. At altitude $89^{\circ }$, a $1^{\circ }$ azimuth increment spans only about $0.01745^{\circ }$ on that small arc. An optical telescope can consequently require a large bearing change for a small change of pointing near the zenith; working with unit vectors avoids inventing a preferred bearing at the singular point.

A zenith blind spot is a region in which an altazimuth mount cannot follow a target because the required axis motion exceeds a drive constraint. A finite slew across an exact zenith crossing gives a lost-track interval; a full forbidden footprint additionally depends on the target trajectory, acceleration and the control strategy. It need not be circular.

Zenith distance is the angle from the zenith to a viewing direction: $z=\arccos (\mathbf{n}\cdot {\mathbf{e}}_U)=90^{\circ }-\gamma$, where $\gamma$ is altitude and $0\le z\le 180^{\circ }$. The astronomical horizon has $z=90^{\circ }$, while the zenith has $z=0$. This unsigned separation supplies no azimuth and is distinct from the signed north/south angular readout used under declination.
