A memory cache allowing any cache block to occupy any resident slot. When full, its replacement policy chooses a victim from all resident cache lines. The examples in temporal locality and spatial locality use LRU replacement, so no additional placement restriction causes eviction.
The diagram enumerates every read of the fixed memory access trace under memory cache. Keep cache slots fixed: fill the lowest-numbered unused slot first, and subsequently reuse the victim's slot. Separately list recency from least recently used to most recently used. A cache hit refreshes that recency without moving the resident data to another cache slot.

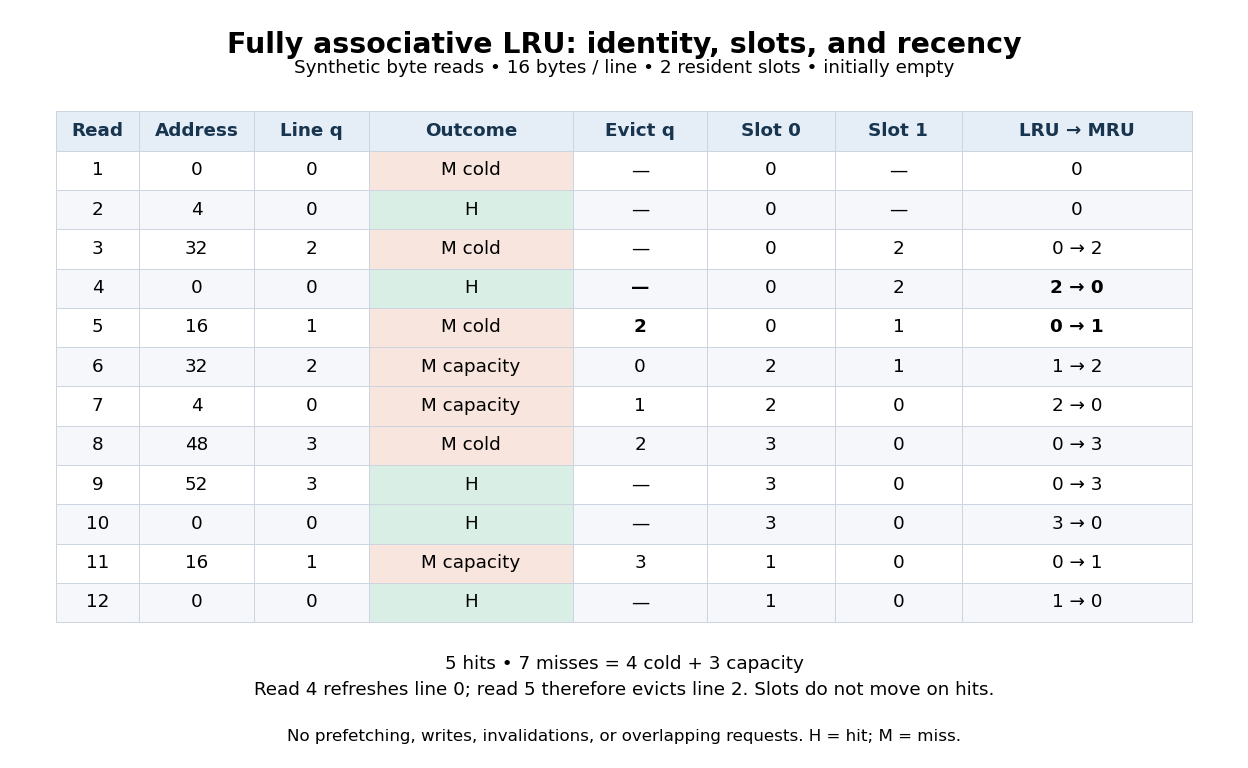

Every read, cache hit or cache miss, eviction, cache slot and recency state of the synthetic two-slot fully associative cache with LRU replacement
. Details.
After read 3, cache block 0 is older than cache block 2. Read 4 hits cache block 0, making cache block 2 older; read 5 must therefore evict cache block 2 to load cache block 1. Omitting recency updates on cache hits would choose the wrong victim. Read 6 immediately needs the evicted cache block 2, showing that LRU replacement uses past demand rather than knowledge of future demand.
With capacity four cache slots and the same cache line size, the same memory access trace has just its four compulsory misses and eight cache hits, since all four distinct cache blocks fit. Greater capacity helps this trace, but full associativity alone does not make LRU replacement optimal. Its attraction is freedom from placement restrictions; a hardware implementation must still identify a matching cache tag among eligible entries, and exact recency tracking adds work. [ref]
