The Airy disk is the central bright region, up to the first dark ring, in the scalar diffraction pattern of a uniformly illuminated, unobscured circular aperture. The whole pattern includes the weaker surrounding rings; its radius is distinct from its full width at half maximum.

For a circular optical pupil of diameter $D$ under normal, uniform monochromatic plane wave illumination, Fraunhofer diffraction givesHere $I_0$ is the on-axis light intensity, $\theta$ is the angle from the optical axis, $\lambda$ is the wavelength in the propagation medium, and $J_1$ is the order-one Bessel function of the first kind. The paraxial approximation replaces $\sin \theta$ by $\theta$, measured in radians. The first positive zero $j_{1,1}=3.831705970\dots$ givesThis is the angular radius of the Airy disk; the angular diameter is twice as large. The Airy disk derivation explains the origin of the Bessel function of the first kind and of the numerical coefficient.^[ref]

The image and both radial curves show the same calculated light intensity, divided by its peak. The image's logarithmic scale makes the weak rings visible; its colour is a display choice. The linear curve shows how small the ring peaks are compared with the centre. A dark ring marks a zero of wave amplitude, produced by cancellation across the optical pupil; it is not the edge of all transmitted light. The first Airy disk contains about $83.78\%$ of the total radiant flux, as calculated in Airy disk normalization and encircled energy.

For an original design example, take an ideal optical lens in air with focal length $f=100\mathrm{mm}$, circular optical pupil diameter $D=5.00\mathrm{mm}$ and wavelength $\lambda =550\mathrm{nm}$. In the focal plane, the radial coordinate $r\simeq f\theta$ givesThe first-zero diameter is $26.8327\mu \mathrm{m}$. Solving $P(u_{1/2})=1/2$ gives $u_{1/2}=1.616339948\dots$, so the diameter measured by full width at half maximum is onlyThus a quoted “spot diameter” is incomplete without its definition. Doubling $D$ halves both widths at fixed wavelength and focal length; increasing magnification alone changes the image scale without improving object-space discrimination.

The Airy disk supplies a calculable reference for a point spread function, allowing diffraction to be distinguished from defocus and optical aberrations. Its beauty is that one circular boundary determines an entire sequence of bright and dark rings through a Fourier transform. The ideal formula assumes an unobscured pupil, uniform illumination, ideal optical focus, a single wavelength, and a scalar description with small output angles. A blocked centre, nonuniform pupil transmission or a significant pupil wave phase error changes the response. High numerical aperture may require polarization of an electromagnetic wave and a vector field description. The circular-aperture diffraction laboratory experiment tests the far-field pattern directly; the Rayleigh criterion uses its first zero to define a two-source convention.

Angular magnification is the ratio of the signed viewing angle with an optical instrument to the signed viewing angle in a stated reference arrangement. Measure both as apparent directions from the eye, positive toward the same side of the optical axis; then an inverted view has negative $M_{\theta }$. If only positive angular sizes are compared, the result is $|M_{\theta }|$ and carries no orientation information. ^[ref].

For the upright virtual image of a converging thin lens, let the eye be at $x=e\ge 0$ and take the unaided reference to be the same small object at a distance $D$ from the eye. Within the small-angle approximation,Specify $D$: keeping the object in its original position means $D=e+u$, whereas the customary magnifier rating uses a near-point reference, often $D=25\mathrm{cm}$. A reference distance is a convention, not a claim that every eye has that near point. ^[ref].

For the virtual image diagram, $m=4$, $v=-30\mathrm{cm}$ and $e=5\mathrm{cm}$. With $D=25\mathrm{cm}$, $M_{\theta }\simeq 20/7$, whereas keeping the object at $D=e+u=12.5\mathrm{cm}$ gives $M_{\theta }\simeq 10/7$. Thus neither viewing comparison gives the transverse magnification four. A person may also be unable to focus on the unaided object at the shorter reference distance.

At $u=f$, each outgoing bundle is parallel with slope $-h_o/f$; its apparent viewing direction has angle ${\theta }_i\simeq h_o/f$. Consequently $M_{\theta }\simeq D/f$ remains finite even though $m$ is undefined at a finite image plane. Equivalently, in the limit $u\to f^{-}$, the factors $m$ and $e-v$ both grow without bound but their ratio tends to $1/f$. For $f=10\mathrm{cm}$ and $D=25\mathrm{cm}$, the relaxed-view prediction is $M_{\theta }\simeq 2.5$. ^[ref].

Axial chromatic aberration, also called longitudinal chromatic aberration, is colour-dependent focus position along the optical axis. For incident light rays parallel to the optical axis, it appears as a changing focal length. The chromatic aberration diagram isolates this effect using an ideal thin lens at each colour.

Beam divergence describes the angular spread of a beam away from its optical axis; specify the radius convention and whether the quoted angle is a half-angle or full angle. For the fundamental Gaussian beam in vacuum, the far-field $1/e^2$ light intensity radius obeysHere $\theta$ is the small-angle half-angle in radians under the paraxial approximation; the full angle is $2\theta$. The geometric asymptote has angle $\arctan (w_0/z_R)$, approximated by $w_0/z_R$ in this regime. Other beam profiles need their own beam divergence definitions and propagation laws.

KIT's teaching apparatus uses a glass spoke-wheel or test negative as the object, a halogen lamp with an illuminating optical lens, an imaging optical lens, a screen and a triangular rail with a position scale. The illuminating optical lens concentrates the lamp filament's image on the imaging optical lens's centre; translucent paper checks that illumination. This reduces the contribution of peripheral light rays and their spherical aberration. The instructions require fixed object-screen separation exceeding $4f$, at least ten displacement measurements, and separate red- and blue-filter measurements to test chromatic aberration.^[ref]

The following measurement protocol elaborates that apparatus rather than reporting additional KIT results. Align the target centre, optical lens and screen normal along one optical axis; measure $L$ between the target pattern plane and receiving screen face. Lock the target and screen. Slide the imaging optical lens to obtain the enlarged real image, then the reduced real image, reading the same carrier reference mark at each setting. Record $r_{-},r_{+}$ and $d=r_{+}-r_{-}$ for each pair. Record corresponding target and image intervals to test the reciprocal transverse magnifications independently; merely observing different image sizes is a weaker test.

Use the same central target detail to judge best optical focus. Bracket each setting by moving through both visibly blurred sides, repeat from both travel directions, and record the accepted position range as well as repeat scatter. Rail divisions set a readout limit but do not alone specify focusing uncertainty. Check scale calibration, carrier play and drift; a common additive carrier offset cancels in $d$, whereas scale-factor error remains. Keep illumination, aperture, target, screen and optical lens orientation fixed within a series. Change the aperture and colour filter in separate control series: spherical aberration and chromatic aberration can shift the apparent best optical focus, while a very small aperture introduces stronger diffraction and makes focus discrimination harder. Record these settings alongside the inferred focal length, rather than interpreting all disagreement as random measurement error.

For a rigid thick lens in air, let $h=x_{H^{\prime }}-x_H$ be the signed separation of its rear and front principal planes along the direction of propagation. Then the positive object and image distances measured from the principal planes obey $u+v=L-h$. Translating the whole assembly without reversing it moves both principal planes equally, so the measured carrier displacement still equals the difference of the two solutions for $u$. The same algebra therefore givesHere $f$ is the effective focal length measured from the principal planes. This deduction uses the principal-plane imaging equation, not the uncorrected thin lens formula.^[ref] Mechanical centre thickness is not generally $h$. Record thickness and optical lens orientation, but use a justified bound or model for $h$ if it matters at the claimed precision. The two readings $L,d$ alone cannot determine both $f$ and unknown $h$; cancelling a carrier offset does not cancel this limitation.

An optical camera can focus a white object sharply in one colour while leaving coloured fringes around its edges in another. Chromatic aberration is the dependence of image position or image scale on wavelength, caused by optical dispersion in the optical lens materials. Axial chromatic aberration separates the optical foci along the optical axis; lateral chromatic aberration changes the transverse magnification with wavelength. Moving the receiving plane can favour one colour without bringing all colours into focus. ^[ref]; ^[ref].

For ordinary optical glass in the visible range, the blue refractive index exceeds the red refractive index. For a fixed positive thin lens in air, the lensmaker's equation then givesHere $\lambda$ is wavelength, $n$ is refractive index, $\Phi$ is optical power, $f$ is focal length, and $R_a,R_b$ are the signed surface radius of curvature values in the lensmaker's equation. The blue light rays therefore bend more strongly and meet sooner. This ordering is a statement about ordinary visible optical dispersion, not a universal rule for every material and every spectral range. ^[ref].

For a worked example, take a single positive thin lens with reference optical power ${\Phi }_d=5\mathrm{D}$ and Abbe number $V_d=60$, hence reference focal length $f_d=0.2\mathrm{m}$. Its F–C optical power difference is $\Delta \Phi ={\Phi }_F-{\Phi }_C={\Phi }_d/V_d=5/60\mathrm{D}\approx 0.08333\mathrm{D}$, by the achromatic doublet power balance relation below. This difference alone does not locate the reference optical power within the F–C interval. To draw a transparent example, introduce a synthetic colour coordinate $q$, a dimensionless quantity, with red $q=-1/2$, reference $q=0$, and blue $q=+1/2$, and choose the toy optical dispersion modelThe diagram's red and blue endpoints represent the C and F endpoints of this toy model. Its reference point is placed symmetrically in optical power by construction; $q$ is not a measured wavelength scale, and the model is not measured optical glass data. The endpoint focal lengths areThus the axial chromatic aberration in this example separates the endpoint optical foci by about $3.334\mathrm{mm}$. A single receiving plane cannot coincide with both optical foci.

The useful design idea is to cancel changes of optical power while retaining a positive total optical power. An achromatic lens does this with materials having different Abbe numbers. It greatly reduces chromatic aberration, but correcting two chosen wavelengths still leaves the possibility of a secondary spectrum.

Coma makes an off-axis optical point source appear asymmetric, often with a compact head and a flaring tail like a comet. Different parts of the optical pupil send its light rays to different transverse image positions. A sharp central star image therefore does not guarantee sharp images across an optical telescope's field of view. In an idealized, aligned system with rotational symmetry, coma vanishes on the optical axis; misalignment can introduce coma even at the nominal field centre.^[ref]

Coma differs from spherical aberration, whose dependence on optical pupil radius can blur an on-axis point without selecting a transverse direction. Astigmatism gives different optical foci in two perpendicular sections of an off-axis bundle; a through-focus sequence can change its elongated image's orientation. Diffraction persists when these optical aberrations vanish. A real asymmetric point spread function may mix several effects, so its appearance alone is not a unique diagnosis of coma.

The classical primary description belongs to the nineteenth-century Seidel aberration classification of five primary monochromatic image errors.^[ref] It remains useful in modern design: OpticStudio's Seidel Coefficients by ANSYS, Inc. documentation lists coma as $W_{131}$ and tabulates each surface's contribution as well as the system sum (Discussion). Cancellation of contributions can reduce coma without making every surface individually free of it. The same documentation limits this calculation to specified systems with axially symmetric surfaces; higher-order terms and broken rotational symmetry require more general ray tracing.

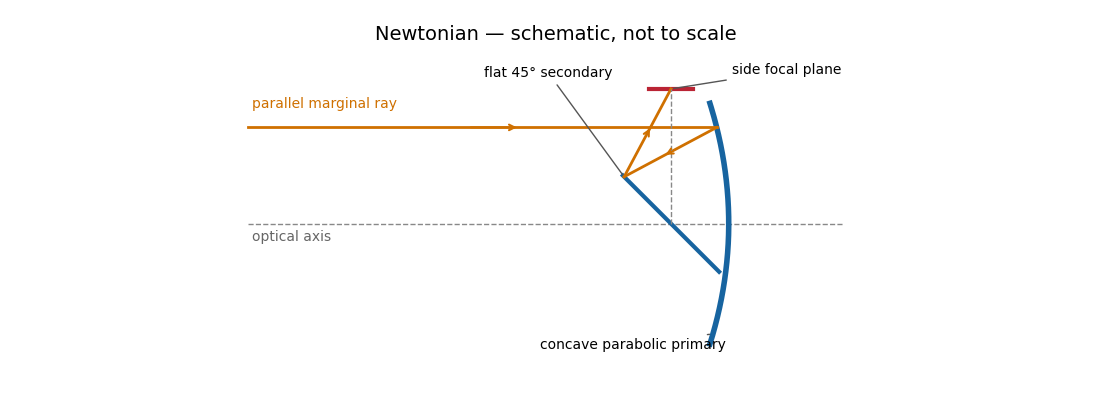

A concave spherical mirror reflects at the inside of a spherical surface of radius of curvature $R$. For incident light rays near its optical axis, the law of reflection gives paraxial focal length $f=R/2$. Rays farther from the optical axis have different axial crossing positions, causing spherical aberration; one must specify a criterion to define the best full-aperture focus.

The focal length $f$ specifies the signed distance from an ideal thin lens to its optical focus for incident light rays parallel to the optical axis. A converging thin lens has $f>0$, with a rear optical focus beyond the thin lens; a diverging thin lens has $f<0$, with a virtual optical focus on the incoming side. The focal length is a property of the optical lens in its specified surroundings, not the image distance for every object. For example, a converging thin lens with $f=1\mathrm{m}$ images an object $3\mathrm{m}$ away at $1.5\mathrm{m}$, as computed below. ^[ref].

An optical focus is a point where a specified bundle of light rays converges, or where its backward extensions meet. For a converging thin lens receiving light rays parallel to the optical axis, the rear optical focus is $(f,0)$ when the thin lens is at $x=0$; its front optical focus is $(-f,0)$. An object's image is generally elsewhere: the optical focus describes the parallel incoming bundle, while the thin lens equation locates the image for a finite object distance.

Consider an ideal coherent monochromatic wave from an unresolved source on the optical axis, a uniform circular entrance pupil of diameter $D$, and ideal relay optics without wavefront errors. In the scalar Fraunhofer diffraction approximation, a Fourier transform carries the pupil's complex amplitude into the image plane. Choose dimensionless pupil coordinates $\mathbf{x}$ in units of $D$ and angular coordinates $\mathbf{u}=D\mathbf{\theta }/\lambda$, where $\lambda$ is the wavelength. DefineThe coronagraphic focal plane mask has transmission $M=1-W$, with $W=1$ inside the occulting disk and $W=0$ outside. Thus the field immediately after the mask is $MA$. Outside the disk $M=1$, so the local wave intensity is still $|A{|}^2$: hiding the core has left those rings intact. Reimaging an unlimited pupil giveswhere $\ast$ is convolution, $L$ is the Lyot stop transmission, and the proportionality constant in the irradiance is omitted. Coordinate reversals from physical relay optics are absorbed into the coordinate choice. These equations use wave amplitudes throughout propagation; applying a Fourier transform to wave intensity would give a different and incorrect model. This is the pupil/image calculation described by Sivaramakrishnan et al.; the circular disk and numerical choices below are our illustrative specialization. ^[ref].

The subtraction explains the beauty of the arrangement: in much of the interior, the original pupil field and the convolution term nearly cancel. Near a boundary, that cancellation is incomplete. The Lyot stop can therefore block a region containing disproportionately much unwanted light. A hard-edged coronagraphic focal plane mask has a transform with extended tails, so the interior need not be perfectly dark. With an unlimited relay, $L=1$ gives $A_{\mathrm{final}}=MA$ exactly: no further ring suppression occurs. A stop covering the full original optical pupil instead uses $L=P$ and already clips field outside the optical pupil; an undersized Lyot stop clips more of the remaining rim.

The toy uses a coronagraphic focal plane mask of angular radius $3\lambda /D$ and a Lyot stop of diameter $0.8D$. The discrete Fourier transform grid has $1024\times 1024$ samples, with 128 across $D$ and angular sampling $0.125\lambda /D$; it approximates the continuous equations on a finite periodic domain. The plot averages wave intensity in annuli of width $0.25\lambda /D$. Over the annulus $4\le |\mathbf{u}|\le 10$, the mean wave intensity divided by the direct stellar peak is approximately $1.40\times 10^{-4}$ without a coronagraph, the same with only the focal mask and an unlimited relay, $4.44\times 10^{-5}$ with the mask and full pupil, and $1.66\times 10^{-6}$ with the mask and $0.8D$ Lyot stop. Thus the undersized opening reduces this particular annular mean about 27-fold relative to the full-pupil comparison. It does not suppress every direction by that factor, and these values do not predict a real instrument's detection limit.

The ideal toy excludes a central obstruction, support vanes, scattering of light, wavefront errors, atmospheric effects, a spread of wavelengths, pointing drift and detector noise. It also contains only the star: no simulated planet or solar corona. For a far off-axis source whose image misses the coronagraphic focal plane mask, the continuous geometric coronagraph throughput of the $0.8D$ opening tends to $0.8^2=0.64$ relative to the full disk. Rejecting stellar light therefore costs some desired light as well. Enlarging the coronagraphic focal plane mask narrows the characteristic scale of its pupil-plane transform by the scaling property of the Fourier transform, but also hides a larger neighborhood of the source.

Fresnel diffraction describes diffraction when the quadratic propagation wave phase across an aperture must be retained. Its Fresnel propagator becomes the Fraunhofer diffraction description when that curvature is negligible.

A Fresnel diffraction pattern is a map of how propagation changes the wave interference of light from an aperture. It can resemble the opening, develop bright and dark structure near its edges, and eventually approach a Fraunhofer diffraction pattern. The controlling comparison involves wavelength, opening size and propagation distance together; a distance large compared with the opening need not give the far field.

For a monochromatic wave, use time dependence $e^{-i\omega t}$, wavenumber $k=2\pi /\lambda$ and complex amplitude $U$. Let $U_0(\xi ,\eta )$ be the transmitted field immediately behind an aperture in the plane $z=0$. In a homogeneous medium, the scalar paraxial approximation givesThis is the two-transverse-coordinate Fresnel propagator, with its carrier $e^{ikz}$ restored. It adds complex amplitudes before taking their squared complex modulus to obtain light intensity. It is a scalar paraxial approximation, rather than a full vector solution of Maxwell equations.^[ref]

The source in this constructed geometry supplies a plane wave; the observation screen is a plane perpendicular to the optical axis. The right panel isolates the aperture-dependent wave phase that distinguishes Fresnel diffraction from Fraunhofer diffraction. Its vertical scale is in radians, and the drawing's lengths are schematic.

Keeping this wave phase is useful when transporting a field between nearby optical components: both the shape and the complex amplitude matter for subsequent wave interference. A particularly striking feature is that propagation can create a dark centre even from a uniformly illuminated symmetric aperture; the incident wave amplitudes need not be unequal for their outgoing contributions to cancel.

A fundamental Gaussian beam is an ideal beam of light whose transverse wave amplitude has a Gaussian function profile. Here consider a circularly symmetric beam in vacuum, with propagation along $z$, two transverse coordinates $x,y$, and radius $r=\sqrt{x^2+y^2}$ from the optical axis. With the beam waist at $z=0$, total power $P>0$, and vacuum wavelength $\lambda$, its time-averaged light intensity, meaning irradiance in $\mathrm{W}{\mathrm{m}}^{-2}$, isHere $w_0$ is the minimum beam radius, and $z_R$ is the Rayleigh range. Far from the beam waist, $w(z)\sim \theta |z|$ with beam divergence half-angle $\theta =\lambda /(\pi w_0)$. These are the fundamental circular Gaussian beam laws within the scalar paraxial approximation, appropriate when $w_0\gg \lambda$ and the beam divergence is small. The underlying envelope solves the parabolic wave equation exactly; this does not make it an exact vector solution of Maxwell equations. ^[ref].

The radius convention matters. Writing $U$ for the complex wave amplitude envelope, the same $w(z)$ is the wave amplitude $1/e$ radius and the light intensity $1/e^2$ radius:At $r=w(z)$ these ratios are $e^{-1}\approx 0.367879$ and $e^{-2}\approx 0.135335$, respectively. The light intensity $1/e$ radius is instead $w(z)/\sqrt{2}$. None of these radii is a sharp edge: the ideal Gaussian function has nonzero tails at every finite radius. Kogelnik and Li explicitly use the wave amplitude $1/e$ radius in their fundamental-mode treatment. ^[ref].

For a numerical example, take vacuum wavelength $\lambda =632.8\mathrm{nm}$ and beam waist radius $w_0=0.500\mathrm{mm}$. Substitution gives Rayleigh range $z_R\approx 1.24114754\mathrm{m}$ and far-field beam divergence half-angle $\theta \approx 0.402852992\mathrm{mrad}$. At $z=z_R$, the beam radius is $w=\sqrt{2}{w}_0\approx 0.707107\mathrm{mm}$ and the on-axis irradiance is half its waist value. At the same wavelength, halving the beam waist radius to $0.250\mathrm{mm}$ quarters the Rayleigh range to $0.310286885\mathrm{m}$ and doubles the beam divergence half-angle to $0.805705984\mathrm{mrad}$. At fixed power, that smaller beam waist also quadruples the peak irradiance.

The contours in the left panel are $r=\pm w(z)$ in a plane through the optical axis; they mark an light intensity level, not an outer boundary. The right panel compares the exact model radii with the far-field asymptotes $w=\theta z$. The horizontal and vertical axes use different length units, so the drawn slopes are not physical angles.

The normalization expresses conserved power during free propagation. In transverse polar coordinates, an annulus has area $2\pi rdr$, soA proof outline is the substitution $s=2r^2/w(z{)}^2$ in this integral. Spreading reduces peak irradiance as $w^{-2}$ while increasing transverse area as $w^2$, leaving power unchanged. In particular, the disk of radius $w(z)$ contains $1-e^{-2}\approx 0.8646647168$, or $86.4665\%$, of the total power; the local light intensity at its rim is only $13.5335\%$ of the on-axis light intensity. These are different quantities.

The left panel compares normalized wave amplitude magnitude and irradiance; the right panel integrates the transverse area to show enclosed power. For an ideal absorbing circular aperture of radius $a$ centered on the optical axis, the same fraction gives the power passing the aperture at that plane. An aperture of radius $w$ clips about $13.5335\%$ of the incident power; radius $2w$ clips only $e^{-8}\approx 0.000335463$, or $0.0335463\%$. After clipping, extra diffraction means the transmitted field no longer obeys the unmodified ideal Gaussian beam law. Every finite aperture cuts some ideal tail. Kogelnik and Li distinguish their large-aperture beam analysis from their finite-aperture diffraction analysis. ^[ref].

The useful tradeoff is that a small bright spot cannot remain narrow indefinitely. An optical lens can create a smaller beam waist, but diffraction then makes the beam spread faster. The particularly simple relation $w_0\theta =\lambda /\pi$ ties localization directly to beam divergence. A proof outline for the propagation law starts with $U(x,y,0)=U_0{e}^{-(x^2+y^2)/w_0^2}$. The parabolic wave equation separates into two transverse factors, and a Gaussian integral in each coordinate givesHere $q$ is dimensionless and $k$ is the wavenumber; the carrier convention is $e^{i(kz-\omega t)}$, with angular frequency $\omega$. Taking the squared complex modulus gives the stated $w(z)$ and its $w^{-2}$ light intensity scaling. Each transverse factor contributes $q^{-1/2}$, explaining the $q^{-1}$ prefactor here and the different prefactor in the preserved Gaussian beam with one transverse coordinate.

Historically, Gaussian beam theory developed alongside early laser resonator theory and lens-guided transmission. In their 1966 review, Kogelnik and Li credit Boyd and Gordon, and Goubau and Schwering, with early beam treatments; they summarize earlier work rather than claim the whole construction as a new discovery. Their paper brings beam propagation, focusing and finite-aperture diffraction into a common practical account. ^[ref].

A graded-index optical fiber has an optical fiber core whose refractive index varies smoothly with distance from the optical axis. Refraction bends light rays through the varying medium; the straight zigzag of a step-index optical fiber no longer describes their paths. The local launch cone can depend on entry position.^[ref]

Image formation assigns each object point a corresponding image point: outgoing light rays from that object point either converge there, giving a real image, or diverge as though they originated there, giving a virtual image. The requirement applies separately to each point. Bringing unrelated light rays together makes a bright patch, but does not preserve the object's pattern. This point-by-point correspondence explains how an optical camera records a scene. ^[ref].

Use the same convention as thin lens: place the optical lens at $x=0$, with incident light travelling to the right and a real object at $x=-u$, $u>0$. Write the image coordinate as $x=v$, so $v>0$ for a real image and $v<0$ for a virtual image. Heights $h_o,h_i$ are positive above the optical axis and negative below it. In air, within the paraxial approximation, a thin lens obeysHere $f$ is the signed focal length, positive for a converging optical lens and negative for a diverging optical lens; the expression for $v$ assumes $u\ne f$. Object distance $u$ is positive even though the object's coordinate is negative. These coordinate rules describe transmission through the optical lens; a mirror reverses the outgoing direction, so do not identify its image distance with this same rightward coordinate. ^[ref].

The beauty of geometrical optics is that two convenient light rays can locate a point, while a whole admitted bundle forms its image. For a converging thin lens, an incident light ray parallel to the optical axis exits through the rear optical focus; a light ray through the centre continues undeviated. Real optical lens elements do not focus every admitted light ray exactly: optical aberrations and diffraction limit the point correspondence. The diagrams below are original ideal-model constructions, not measured data. ^[ref].

Lateral chromatic aberration, also called transverse chromatic aberration, is colour-dependent image scale: an object away from the optical axis can have different image heights at different wavelengths. Its changing transverse magnification produces displaced coloured edges. The on-axis parallel bundle in the chromatic aberration diagram illustrates axial chromatic aberration, and does not measure lateral chromatic aberration. ^[ref].

An optical lens is a transparent element, or assembly of elements, that redirects a bundle of light rays to form images or change how the bundle spreads. In an ordinary glass optical lens, refraction at the surfaces provides the redirection: their changing normal vectors make Snell's law bend different light rays by different amounts. A converging optical lens brings incoming light rays parallel to its optical axis toward an optical focus; a diverging optical lens makes them spread as if from an optical focus on the incoming side. ^[ref].

For a usual glass thin lens in air, a form thicker at the centre than at the edges normally converges, with positive focal length; one thinner at the centre normally diverges. Shape alone is insufficient: the refractive index relative to the surroundings also matters, as the lensmaker's equation shows. An aperture selects which light rays pass; an optical lens also changes their directions. The distinction explains how an optical camera can gather light from one object point over many incoming directions and deliver it to one image location.

The beautiful simplification is that an entire bundle can be characterized by a focal length, and two constructed light rays can locate an image. The thin lens examples below turn that geometry into a prediction of image position, orientation and transverse magnification. A real optical lens retains optical aberrations and diffraction, so the construction is a useful leading model rather than an exact solution of Maxwell's equations.^[ref]

Early mathematical treatments include Johannes Kepler's 1611 Dioptrice, whose title explicitly concerns vision through newly invented instruments using transparent glass, and René Descartes's 1637 La Dioptrique, whose seventh discourse discusses improving vision with shaped glass. These are landmarks in explaining and designing optical instruments, rather than dates for the invention of the optical lens. ^[ref]; ^[ref].

Linear spectral dispersion is the derivative of the photodetector coordinate in the dispersion direction with respect to wavelength. Near the optical axis, $q=f_{\mathrm{cam}}d\beta /d\lambda$.

A classical Lyot coronagraph first forms an image of a bright source on the optical axis. A coronagraphic focal plane mask hides its core. Relay optics then form an image of the entrance pupil, where a Lyot stop blocks the outer rim and, when needed, borders around internal obstructions. Finally an optical camera forms the science image. The focal plane sorts incoming directions into image positions; the optical pupil sorts contributions across the aperture. This change of plane makes it possible to reject additional stellar light that survives the first mask. ^[ref].

A light ray whose path remains in a plane containing the optical axis. In a straight step-index optical fiber, this geometry gives the complementary axis and interface-normal angles used to derive the optical fiber acceptance angle.
