Diffusion is net transport associated with random microscopic motion. A localized patch of a dilute solute can spread through a stationary solvent: individual molecules move in both directions, but more cross from the crowded side of an imaginary surface than from the less crowded side. This imbalance gives a net diffusive flux down the concentration gradient; the molecules do not need to sense which direction has lower concentration. At uniform concentration, microscopic exchanges continue even though the net diffusive flux vanishes. ^[ref]

The distinction from advection is easiest to see in a dye patch. Uniform bulk motion carries its centre downstream; diffusion broadens it relative to that centre. Both can happen together. A moving or spreading patch by itself does not identify the mechanism: a nonuniform velocity field can also stretch a patch. ^[ref]

For a dilute nonreacting solute in a uniform medium at fixed temperature, Fick's first law models the relative diffusive flux as $\mathbf{j}=-D\nabla C$, with scalar diffusion coefficient $D>0$ of units ${\mathrm{m}}^2{\mathrm{s}}^{-1}$. Here $C$ is the amount of substance per unit volume, so $\mathbf{j}$ has units $\mathrm{mol}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$. With carrier velocity field $\mathbf{u}$, the total flux is $C\mathbf{u}+\mathbf{j}$. The continuity equation, with no sources or chemical reactions, givesFor constant $D$ and incompressible flow, this reduces to $C_t+\mathbf{u}\cdot \nabla C=D{\nabla }^{2}C$, where ${\nabla }^2$ is the Laplacian. In a stationary carrier it is the diffusion equation. These assumptions matter: variable $D$ must remain inside the divergence, and changing sources require extra terms. ^[ref]

The useful surprise is the common mathematics: thermal conduction smooths temperature through the analogous heat equation, while molecular diffusion smooths composition. This analogy already motivated the original formulation of Fick's laws. ^[ref] However, the thermal diffusivity and the solutal diffusivity need not be equal. A diffusive time scale $t_D\sim L^2/D$ means that crossing ten times the distance requires roughly one hundred times the time. This is why molecular diffusion is especially effective across thin layers, and why chaotic advection can assist mixing by making those layers thinner. Physical diffusion is a transport mechanism, distinct from the broader probabilistic class of Markov diffusion.

For $\mathcal{C}=C_0/\Delta C\gg 1$ and inverse Stefan number $\mathcal{S}=O(\mathcal{C})$, a stagnant mushy-layer model has nearly constant effective heat capacity, giving ${\Omega }^2{\theta }_t=\kappa {\theta }_{zz}$ with ${\Omega }^2=1+\mathcal{S}/\mathcal{C}$. With negligible liquid solutal diffusivity, roof value $\theta =-1$, positive liquid superheat ${\theta }_{\infty }$, and edge $h=2\lambda \sqrt{\kappa t}$, the mush profile is $\theta =-1+\mathrm{erf}(\Omega \eta )/\mathrm{erf}(\Omega \lambda )$. Matching heat flux requires $\Omega e^{{\lambda }^2}\mathrm{erfc}\lambda ={\theta }_{\infty }{e}^{{\Omega }^2{\lambda }^2}\mathrm{erf}(\Omega \lambda )$. The square on $\Omega$ in the exponential is essential. The porosity $\mathcal{C}/(\mathcal{C}-\theta )$ records the leading composition balance; the linear thermal profile is asymptotic, not exact at finite $\mathcal{C}$.

The Lorenz model of thermosolutal convection is a Galerkin method truncation retaining a roll velocity and the leading temperature and concentration modes. The variable $a$ measures the roll velocity; $b$ is the temperature mode correlated with the vertical motion, while $c$ is the horizontally averaged temperature-profile distortion generated by that motion. The corresponding concentration modes are $d$ and $e$. The symbol $d$ in this model is a solute amplitude, not the dimensional layer depth. The terms $ab$ and $ad$ change the mean scalar profiles; $a(1-c)$ and $a(1-e)$ express advection of the remaining background gradients.

The positive parameters are the Prandtl number $\sigma =\nu /\kappa$, the ratio $\tau ={\kappa }_s/\kappa$ of solutal diffusivity to thermal diffusivity, and the geometric vertical-mode decay ratio $\varpi$. In the usual fundamental-roll truncation with time normalized to the thermal roll-mode decay rate, $\varpi =4{\pi }^2/(k^2+{\pi }^2)$; treating it as an independently specified positive truncation parameter leaves the arguments below unchanged.

The parameter $r$ is the destabilizing thermal Rayleigh number divided by the free-slip critical-mode value, and $r_s>0$ measures stabilizing solutal buoyancy in the same thermal-diffusive normalization. For example, using a positive bottom-to-top stabilizing solute difference $\Delta S$ and density coefficient ${\beta }_S$,If a solutal Rayleigh number is instead defined with ${\kappa }_s$ in its denominator, the coefficient $r_s$ here is $\tau$ times that normalized number. Thermal buoyancy drives the roll; solutal buoyancy opposes it and diffuses at a different rate. This is the essential mechanism of thermosolutal convection.

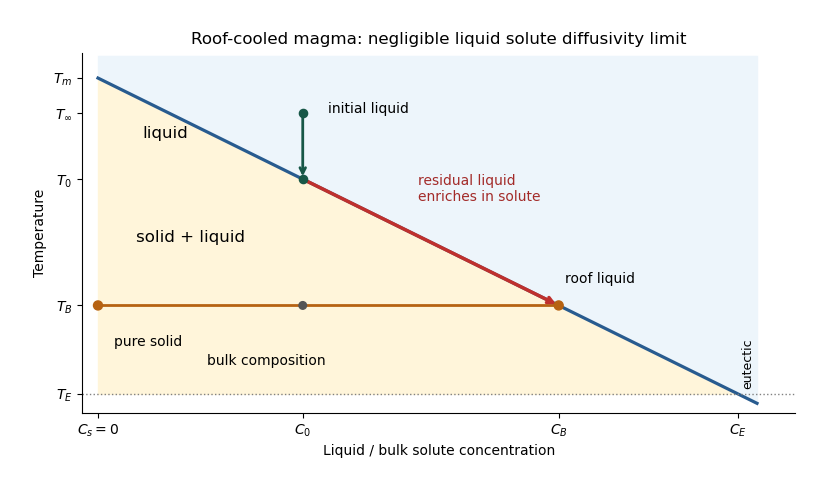

Take $z$ positive downwards from the roof. Write $T_0=T_m-m{C}_0$, $C_B=(T_m-T_B)/m$, $\Delta T=T_0-T_B=m(C_B-C_0)>0$ and $\Delta C=C_B-C_0$. The cooled magma follows the decreasing liquidus from $(C_0,T_0)$ towards $(C_B,T_B)$; the initially superheated liquid starts at $(C_0,T_{\infty })$ above that liquidus. The solid has zero solute concentration. At each temperature in the mushy layer, a horizontal tie line joins the pure solid to the residual liquid on the liquidus. The lever rule gives the liquid fraction from the bulk concentration. Since $T_B>T_E$, this path stops before the eutectic temperature and does not cross the eutectic composition.

The porosity $\varphi$ denotes the liquid fraction, so $1-\varphi$ is the solid fraction. Equal phase mass densities remove volume-change flow; the stable density stratification suppresses convection. In the stagnant mushy-layer model, define bulk specific enthalpy and bulk solute concentration byThe arbitrary reference of specific enthalpy has been omitted. The two conservation laws in $0<z<h(t)$ areHere $\kappa =k_T/(\rho c_p)$ is the thermal diffusivity, with $k_T$ the thermal conductivity. The positive $L{\varphi }_t$ term records increased specific enthalpy on melting; during freezing it supplies latent heat. In the liquid $z>h(t)$, the heat equation and solute diffusion equation arewhere $D$ is the solutal diffusivity. Neglecting solute diffusion inside the mushy layer does not permit dropping $D{C}_{zz}$ in the liquid at this stage.

Use $T(0,t)=T_B$, liquid $T\to T_{\infty }$ and $C\to C_0$ as $z\to \infty$, and initially $h=0$, $T=T_{\infty }$, $C=C_0$ for $z>0$. These are the half-space boundary conditions appropriate before cooling reaches the bottom of the chamber. For a closed chamber of finite depth $H$, replace the far-field conditions by the specified bottom conditions, for example $T_z=C_z=0$ at an insulated impermeable floor; the half-space similarity solution then ceases to apply when the thermal penetration depth approaches $H$.

At $z=h(t)$, let $C_i$ and $T_i=T_m-m{C}_i$ be the common liquid concentration and temperature, and let ${\varphi }_i$ be the limiting porosity on the mush side. Continuity of $T,C$, the Rankine-Hugoniot condition for solute, and the interfacial conservation of energy giveThe first condition has the sign of solute rejection into the liquid. For the sharp-edge stagnant mushy-layer model with nonzero liquid solutal diffusivity, close the free-boundary problem by marginal equilibrium at a mush-liquid boundary:This prevents constitutional supercooling immediately ahead of the mushy layer. A small solid fraction jump at its edge is allowed: imposing ${\varphi }_i=1$ as well as these finite-$D$ conditions would generally overdetermine the reduced model. At the roof, $C=C_B$ follows from the liquidus, and no additional solute-flux boundary condition is needed in the diffusion-free mush.

To obtain the large-concentration similarity solution, putThe positive superheat specifies the physically intended liquid initial state. On a similarity solution, $C_i,{\varphi }_i$ are constant, so every newly incorporated level leaves the same constant $B={\varphi }_i{C}_i$. Write $C_i=C_0+\Delta C\delta$ and $B=\Delta C(\mathcal{C}+a)$. Then throughout the mushy layerFor $a,\theta =O(1)$, $\mathcal{C}\gg 1$, and $\mathcal{S}/\mathcal{C}=O(1)$, the effective heat capacity is constant to relative error $O({\mathcal{C}}^{-1})$. Thus setIntegration of the similarity solution ordinary differential equation gives the leading analytical profilesThe temperature is $T=T_0+\Delta T\theta$. In the mushy layer, the concentration and porosity are the displayed $C,\varphi$; in the liquid,These retain the liquid solutal boundary layer. For completeness, finite-$r$ values of $\delta ,a,\lambda$ are determined analytically, to the same large-$\mathcal{C}$ order, by settingand solvingThe solute jump gives ${\varphi }_i=1-b/(\mathcal{C}+\delta )$ exactly; replacing $\mathcal{C}$ by $\mathcal{C}+\delta$ on the right of the last equation retains that jump's next-order factor, but does not make the linearized thermal profiles exact at finite $\mathcal{C}$. The branch has $0\le \delta <1$, $0<\varphi \le 1$. All these profiles are leading asymptotic expressions, not exact solutions of the nonlinear finite-$\mathcal{C}$ heat equation.

For $r\to 0$ at fixed positive $\lambda$, the complementary error function asymptotic gives $K(\lambda /\sqrt{r})\sim \sqrt{\pi }\lambda /\sqrt{r}$, hence $\delta =O(r)$, $b=O(r)$, $a\to 0$, and ${\varphi }_i\to 1$. The result simplifies toIn particular, $\varphi (0,t)=C_0/C_B=\mathcal{C}/(\mathcal{C}+1)$ and $\varphi (h^{-},t)=1$. There is no finite interfacial latent heat jump in this limit: the latent heat is released continuously throughout the mushy layer. Matching the two temperature gradients givesThe printed final equation is missing the square on $\Omega$ in the exponential. The corrected exponent follows directly from differentiating $\mathrm{erf}(\Omega \eta )$ and is consistent with ${\Omega }^2=1+\mathcal{S}/\mathcal{C}$. The positive root is unique: the mush-side gradient decreases from infinity to zero with $\lambda$, whereas ${\theta }_{\infty }K(\lambda )$ increases. The zero-superheat limit is singular and is not described by a finite positive $\lambda$ in this two-region construction.

Thermosolutal convection is double-diffusive convection driven by temperature and concentration gradients. Their buoyancy contributions can oppose one another, while unequal thermal diffusivity and solutal diffusivity allow steady, oscillatory and finite-amplitude states. For a layer heated from below with a stabilizing concentration gradient, thermal buoyancy is destabilizing and solutal buoyancy restoring.
