Transferring a dirty buffer's current contents to its backing location. The buffer cache state model permits no concurrent modification during the transfer and marks the result clean only after successful completion. A failed write preserves the obligation and prevents the proposed buffer cache eviction. A production implementation allowing new writes during input-output must retain their obligation rather than incorrectly clearing it when an older transfer finishes.

A successful transfer can leave data in a device's volatile memory cache. A storage flush or the documented equivalent supplies a persistence boundary; file-system journaling supplies recovery rules for related updates. These are additional obligations, not consequences of becoming a clean buffer.^[ref]

File-system journaling makes a group of related file system updates recoverable after a crash by recording them in a journal before changing their final storage locations. The useful promise is file-system crash consistency: after journal replay, a protected file-system transaction has taken effect completely or has not taken effect. File-system transaction durability adds a different promise: an acknowledged update survives the crash. The protected group can contain only file metadata, or both file metadata and file data blocks, depending on the file-system journaling mode.

Consider a tiny file containing ABCD in four-byte file data block 7. Its inode records size 4 and a reference to block 7. Appending EFGH in previously free block 9 requires three new stored records: $I$, the inode with size 8 and references to blocks 7 and 9; $B$, the block allocation bitmap marking block 9 allocated; and $D$, file data block 9 containing EFGH. An inode reference to a block still marked free lets a later allocation overwrite live contents; allocating a block without recording its owner can leak space. Even mutually consistent file metadata can expose stale contents if $D$ has not reached storage. Chapter 42 of Crash Consistency: FSCK and Journaling (section 42.1, pp. 2–4) develops this three-record append problem; the names, block numbers and tiny contents here are original teaching choices.

The first diagram protects all three records with write-ahead logging. Each journal payload record identifies a final destination and its complete new contents. A storage flush makes the complete journal payload durable before a separate journal commit record is written and made durable. Only then may a journal checkpoint copy the records to their final locations. The journal remains available until those copies have themselves passed a storage flush; it can then be retired and its space reused. Journal replay repairs an interrupted journal checkpoint using the retained new contents.^[ref]

These are persistence dependencies, not a claim that issuing writes in this order is sufficient. A device can report completion while its volatile memory cache still holds the only copy. The Linux kernel documents both flushing earlier completed requests and making completion of a particular request depend on persistence. The timeline uses separate storage flushes to make the dependencies explicit; an implementation can use equivalent device-supported operations. A commit write can persist before its storage flush returns: recovery uses the actual durable marker, while acknowledgment waits for successful completion.^[ref]

The appeal is that recovery knows exactly which updates to finish. It does not have to infer a user's intended contents from contradictory inodes and block allocation bitmaps. The cost includes writing the journal payload as well as its final copies and waiting for persistence boundaries. The journal records a recent transition, not a historical collection of recoverable files; file-system journaling is not a file-system backup.

Reinstalling the complete new images of a committed file-system transaction after a crash. An uncommitted journal payload is ignored. Rewriting the same image has idempotence: repeating it gives the same contents, unlike performing "append four more bytes" again. If recovery itself crashes, retaining the journal until the journal checkpoint is durable allows the same recovery to restart.

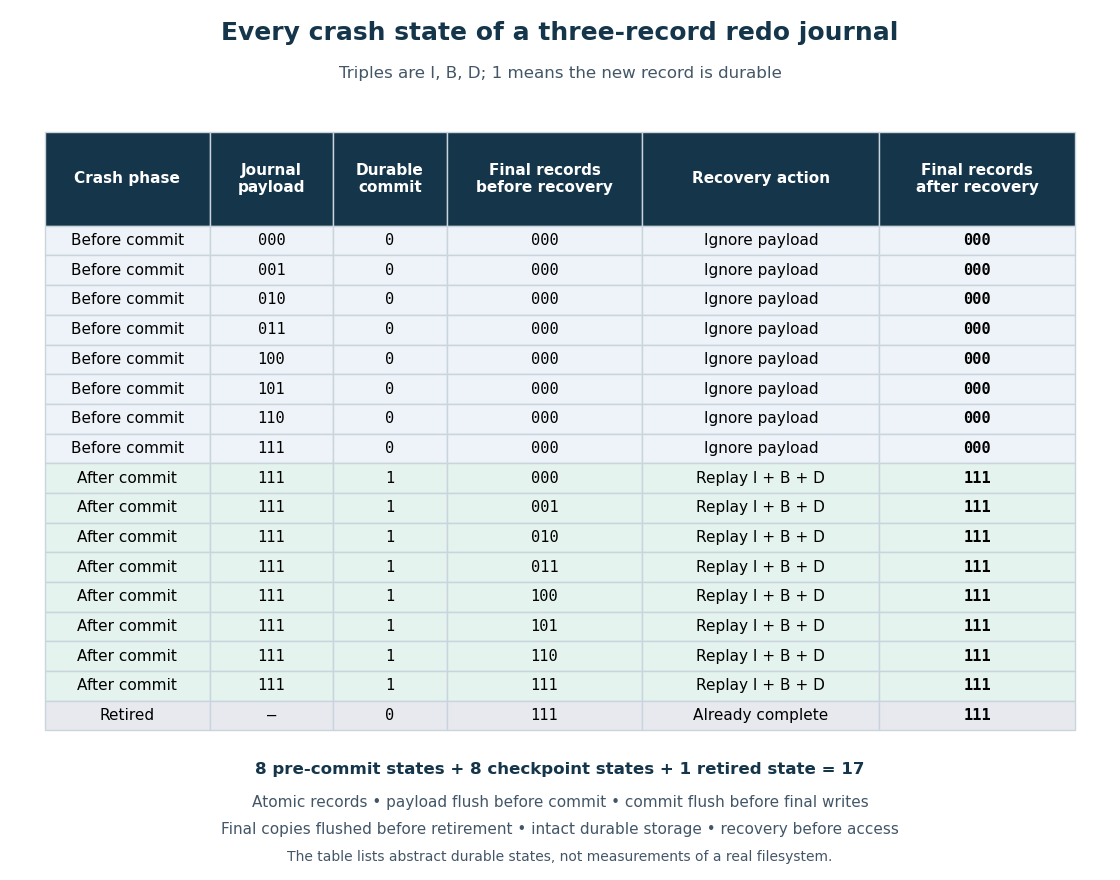

The second diagram exhausts the small full-data model. A triple lists $I,B,D$ in that order; a bit is 1 exactly when the corresponding new record has persisted. Before commit, any of the $2^3=8$ subsets of journal payload records can be durable, while every final-location triple is 000. After commit, the journal triple is 111, while any of the eight final-location triples can be durable. Retirement adds one state: the live journal is gone and the final-location triple is 111. Thus there are $8+8+1=17$ distinct abstract crash states. Waiting for a storage flush without another record reaching persistence does not create an additional state. Retirement is modeled as an atomic change of live-log status: old payload bytes may remain physically present but are no longer part of the live journal.

The short correctness argument has three cases. Before commit, final locations are unchanged. With commit, the complete journal payload restores 111 regardless of the current final-location subset. After retirement, 111 is already durable. Each of the six partial final-location triples is repairable because its journal is retained. The enumeration is exhaustive for these records and phase rules; it excludes torn records, dishonest flush completion, media corruption, journal reuse across several file-system transactions and failures of the recovery code. It is a model check, not a measured crash test of ext4.

There are two distinct questions: whether another operating-system process can observe shared contents, and whether those contents survive a crash. In the timeline, persistent storage deliberately remains $(7,8)$ while the shared page cache contains $(11,12)$. No background page writeback occurs in this toy interval. Real page writeback may persist some contents earlier; shared visibility alone cannot tell the reader which contents are durable.

For the covered shared range, msync(base, length, MS_SYNC) requests page writeback and waits for completion; check its return value. MS_ASYNC is not a durable completion acknowledgment, and on modern Linux kernel versions it is a no-op because dirty contents are already tracked. The address must be aligned, so synchronizing our changed second page uses base + 4096, length 4096, rather than base + 4133. Unmapping alone is not a guarantee of completed writeback.^[ref]

For persistence of the file and associated file metadata, fsync on an open file descriptor is a broader interface; a new directory entry needs separate synchronization of its file-system directory. Retain a suitable file descriptor if the persistence protocol needs it after mapping. Successful storage completion still relies on the file system and device honoring their persistence contracts.^[ref]

Neither fsync nor msync supplies mutual exclusion, an atomic storage write for several memory pages, or an application-wide file-system transaction. Stop or coordinate writers before deciding which update a completion acknowledges. A crash during page writeback can leave a mixture of old and new contents unless a separate recovery protocol provides file-system crash consistency. The last timeline row assumes successful synchronous completion, honored storage flush semantics and no subsequent writer; it illustrates a persistence boundary, not a promise about arbitrary hardware failures.

A request whose successful completion, under the device's stated contract, makes preceding covered writes survive loss of volatile memory cache contents. The diagrams wait for completion at each persistence boundary. Storage flush and atomic storage write are different properties: persistence of completed writes does not make a multi-record update indivisible.

Making a recoverable journal entry durable before installing its protected updates at their final locations. In this article the journal contains new record images, so recovery redoes committed changes rather than undoing uncommitted changes. The diagrams assume one isolated file-system transaction, fresh journal slots with unambiguous record identities, no other writer, and atomic storage writes for each record and marker. A crash loses volatile state; previously durable contents remain intact. Storage flushes are honored, and recovery finishes before the file system is exposed. These are model assumptions, not a claim that every physical file data block write is indivisible on arbitrary hardware.
