File-system journaling

File-system journaling makes a group of related file system updates recoverable after a crash by recording them in a journal before changing their final storage locations. The useful promise is file-system crash consistency: after journal replay, a protected file-system transaction has taken effect completely or has not taken effect. File-system transaction durability adds a different promise: an acknowledged update survives the crash. The protected group can contain only file metadata, or both file metadata and file data blocks, depending on the file-system journaling mode.

Consider a tiny file containing ABCD in four-byte file data block 7. Its inode records size 4 and a reference to block 7. Appending EFGH in previously free block 9 requires three new stored records: $I$, the inode with size 8 and references to blocks 7 and 9; $B$, the block allocation bitmap marking block 9 allocated; and $D$, file data block 9 containing EFGH. An inode reference to a block still marked free lets a later allocation overwrite live contents; allocating a block without recording its owner can leak space. Even mutually consistent file metadata can expose stale contents if $D$ has not reached storage. Chapter 42 of Crash Consistency: FSCK and Journaling (section 42.1, pp. 2–4) develops this three-record append problem; the names, block numbers and tiny contents here are original teaching choices.

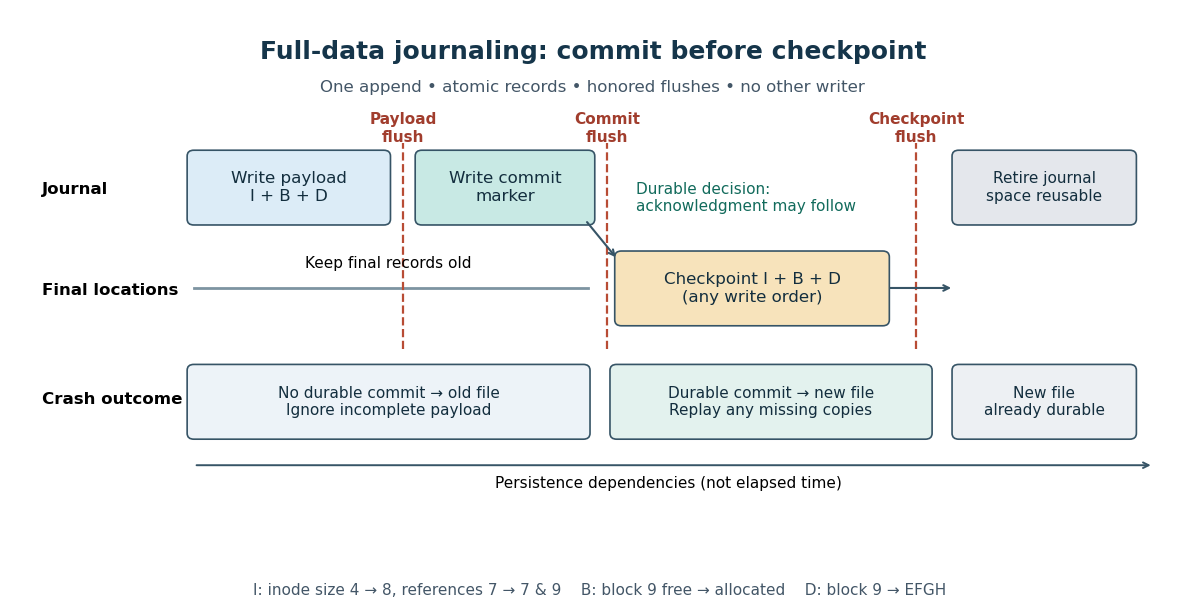

The first diagram protects all three records with write-ahead logging. Each journal payload record identifies a final destination and its complete new contents. A storage flush makes the complete journal payload durable before a separate journal commit record is written and made durable. Only then may a journal checkpoint copy the records to their final locations. The journal remains available until those copies have themselves passed a storage flush; it can then be retired and its space reused. Journal replay repairs an interrupted journal checkpoint using the retained new contents.^[ref]

These are persistence dependencies, not a claim that issuing writes in this order is sufficient. A device can report completion while its volatile memory cache still holds the only copy. The Linux kernel documents both flushing earlier completed requests and making completion of a particular request depend on persistence. The timeline uses separate storage flushes to make the dependencies explicit; an implementation can use equivalent device-supported operations. A commit write can persist before its storage flush returns: recovery uses the actual durable marker, while acknowledgment waits for successful completion.^[ref]

The appeal is that recovery knows exactly which updates to finish. It does not have to infer a user's intended contents from contradictory inodes and block allocation bitmaps. The cost includes writing the journal payload as well as its final copies and waiting for persistence boundaries. The journal records a recent transition, not a historical collection of recoverable files; file-system journaling is not a file-system backup.
