In the weak, non-crossing, leading-eccentricity model the exterior resonant coefficient has positive sign: write its disturbing function as $R_{\mathrm{res}}=B_q{e}_c^q\cos {\varphi }_{bc}$, with $B_q>0$ for the orders considered. The physical feedback can be seen for first order. Before an outer conjunction near apoapsis, the faster inner planet pulls the outer one backwards; after passing it pulls forwards. On the outward side, the nearer, stronger earlier pull wins, reducing the outer semi-major axis and increasing its mean motion. Thus ${\varphi }_{bc}<\pi$ is driven upward. On the inward side, the later forward pull wins and drives ${\varphi }_{bc}>\pi$ downward. The paired impulses cancel at the symmetric centre.

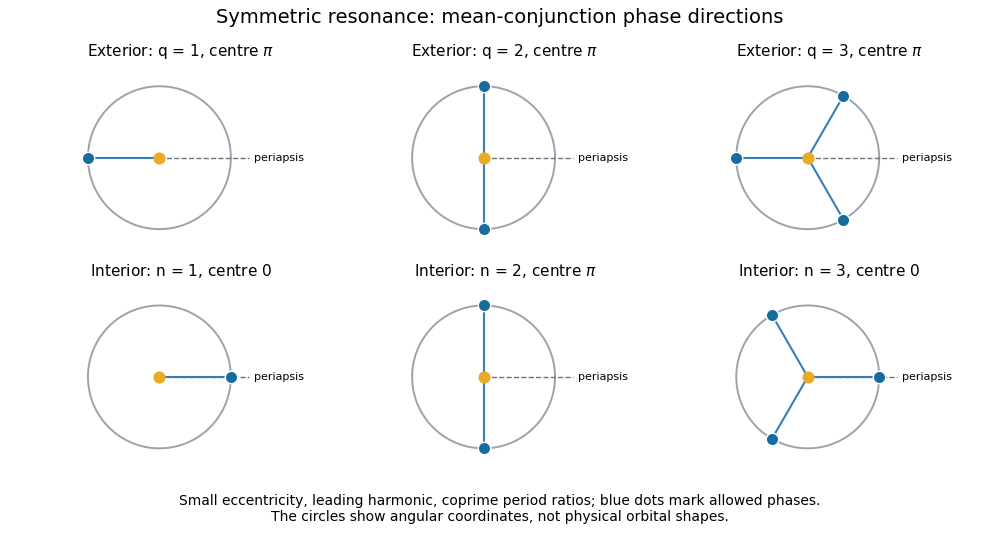

For higher order, sum the feedback over all $q$ conjunction phases. The first surviving angular Fourier harmonic is $\sin {\varphi }_{bc}$; the lower Fourier harmonics cancel over the equally spaced directions. A local Hamiltonian reduction with canonical momentum $J$ hasThe negative curvature of the Kepler orbit Hamiltonian gives the displayed sign. Linear stability analysis at $\pi$ gives a restoring acceleration. The symmetric libration centres of an eccentricity resonance are thereforeThe corresponding conjunction phases relative to periapsis are $\{\pi \}$, $\{\pi /2,3\pi /2\}$ and $\{\pi /3,\pi ,5\pi /3\}$. They suppress repeatedly close passages and provide resonance protection.

These are expected centres of the specified leading-harmonic model, not centres fixed solely by the integer order for arbitrary orbital eccentricity and masses. Asymmetric resonant-argument libration can occur when higher Fourier harmonics matter. For example, if $R=A\cos \varphi +B\cos 2\varphi$, $A>0$, $B>A/4$, the symmetric $\pi$ equilibrium loses stability and stable centres satisfy $\cos \varphi =-A/(4B)$. Thus further dynamical information is needed beyond the PDF's unrestricted eccentric orbit to assert unique centres. Exterior asymmetric branches are documented by Winter and Murray, “Resonance and chaos. II. Exterior resonances and asymmetric libration”.
