 Microwave radiometer calibration example

Consider an original idealized narrow-band model for one matched spatial mode and one polarization of waves. In the classical Rayleigh-Jeans law regime, an available thermal power can be written $P=k_{B}T\Delta \nu$, where $\Delta \nu$ is the effective bandwidth and $T$ the equivalent input noise temperature. Assume a linear detector with stable positive gain and absorb its bandwidth, Boltzmann constant and response factor into $g$. Then the output is $S=g(T+T_r)$, with input-referred receiver noise temperature $T_r$. These are model assumptions, not a reconstruction of the historical electronics.

Two references with known noise temperatures $T_h\ne T_c$ giveso the two-load radiometer calibration yieldsSubtracting the reference equations eliminates the unknown receiver term; substituting back determines it. An arbitrary stable output offset can likewise be eliminated from the interpolation for $T_s$, although separating that offset from $T_r$ then requires additional information.

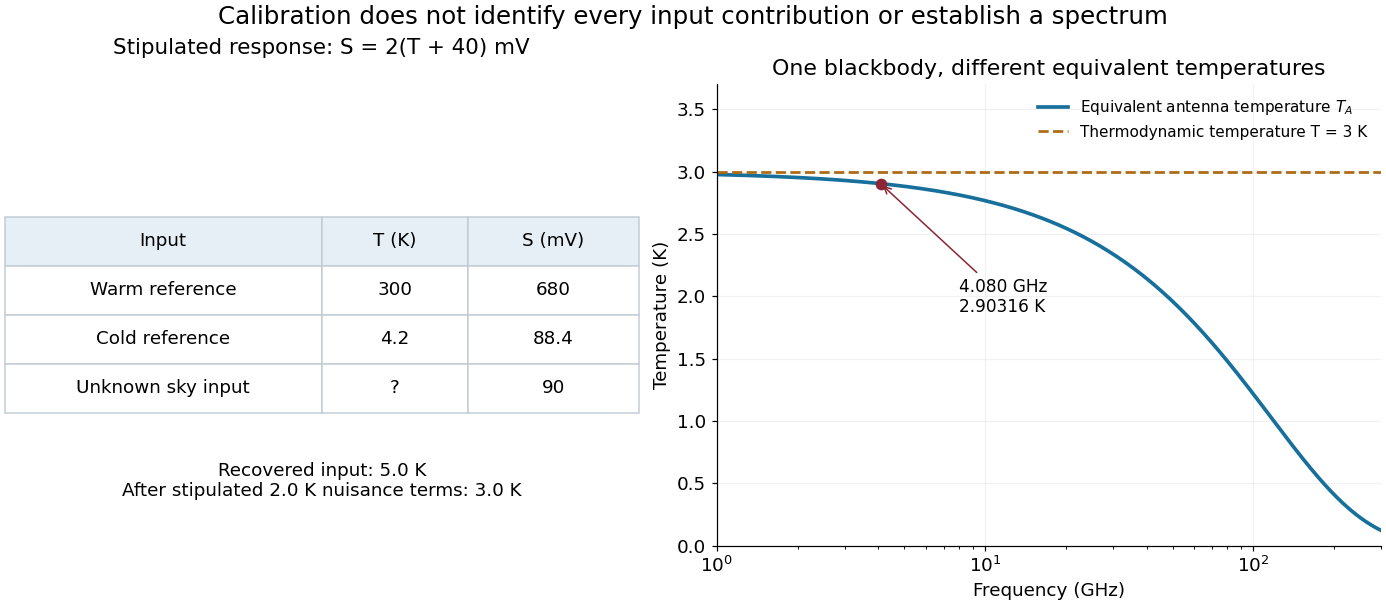

For deliberately chosen inputs, set $T_h=300\mathrm{K}$, $T_c=4.2\mathrm{K}$, $T_r=40\mathrm{K}$ and $g=2mV/K$. These are equivalent noise temperatures; physical load thermometry must be converted consistently at the observing frequency. The reference outputs are $S_h=680\mathrm{mV}$ and $S_c=88.4\mathrm{mV}$. A sky-input output $S_s=90\mathrm{mV}$ gives $T_s=5.0\mathrm{K}$. If independent estimates assign $1.4\mathrm{K}$ to atmosphere, $0.5\mathrm{K}$ to antenna loss and $0.1\mathrm{K}$ to ground pickup in this lumped additive model, the residual is $3.0\mathrm{K}$.

The subtraction exposes what a noise budget must achieve. A $1\mathrm{K}$ error in the assigned atmospheric term becomes a $1\mathrm{K}$ error in the residual, even with exact detector calibration. Multiplicative attenuation requires a different correction: if an isothermal atmosphere has transmission $t$, its ideal contribution is $t{T}_{\mathrm{cosmic}}+(1-t)T_{\mathrm{atm}}$ in the same classical equivalent-temperature convention. Recovering $T_{\mathrm{cosmic}}$ then requires both subtracting atmospheric emission and dividing by $t$. The additive toy budget applies when its terms already refer to the same receiver input.

There is also a conditioning issue. If $S_h-S_c$ is small, a fixed output error strongly changes the inferred temperature. Widely separated reference temperatures improve the scale determination only if the receiver remains linear over that range; measuring the reference repeatedly tests stability rather than proving linearity. The experiment therefore motivates a model, a calibration and a set of independent checks, each with its own assumptions.
