The Airy disk is the central bright region, up to the first dark ring, in the scalar diffraction pattern of a uniformly illuminated, unobscured circular aperture. The whole pattern includes the weaker surrounding rings; its radius is distinct from its full width at half maximum.

For a circular optical pupil of diameter $D$ under normal, uniform monochromatic plane wave illumination, Fraunhofer diffraction givesHere $I_0$ is the on-axis light intensity, $\theta$ is the angle from the optical axis, $\lambda$ is the wavelength in the propagation medium, and $J_1$ is the order-one Bessel function of the first kind. The paraxial approximation replaces $\sin \theta$ by $\theta$, measured in radians. The first positive zero $j_{1,1}=3.831705970\dots$ givesThis is the angular radius of the Airy disk; the angular diameter is twice as large. The Airy disk derivation explains the origin of the Bessel function of the first kind and of the numerical coefficient.^[ref]

The image and both radial curves show the same calculated light intensity, divided by its peak. The image's logarithmic scale makes the weak rings visible; its colour is a display choice. The linear curve shows how small the ring peaks are compared with the centre. A dark ring marks a zero of wave amplitude, produced by cancellation across the optical pupil; it is not the edge of all transmitted light. The first Airy disk contains about $83.78\%$ of the total radiant flux, as calculated in Airy disk normalization and encircled energy.

For an original design example, take an ideal optical lens in air with focal length $f=100\mathrm{mm}$, circular optical pupil diameter $D=5.00\mathrm{mm}$ and wavelength $\lambda =550\mathrm{nm}$. In the focal plane, the radial coordinate $r\simeq f\theta$ givesThe first-zero diameter is $26.8327\mu \mathrm{m}$. Solving $P(u_{1/2})=1/2$ gives $u_{1/2}=1.616339948\dots$, so the diameter measured by full width at half maximum is onlyThus a quoted “spot diameter” is incomplete without its definition. Doubling $D$ halves both widths at fixed wavelength and focal length; increasing magnification alone changes the image scale without improving object-space discrimination.

The Airy disk supplies a calculable reference for a point spread function, allowing diffraction to be distinguished from defocus and optical aberrations. Its beauty is that one circular boundary determines an entire sequence of bright and dark rings through a Fourier transform. The ideal formula assumes an unobscured pupil, uniform illumination, ideal optical focus, a single wavelength, and a scalar description with small output angles. A blocked centre, nonuniform pupil transmission or a significant pupil wave phase error changes the response. High numerical aperture may require polarization of an electromagnetic wave and a vector field description. The circular-aperture diffraction laboratory experiment tests the far-field pattern directly; the Rayleigh criterion uses its first zero to define a two-source convention.

Peak normalization $P(0)=1$ does not make the integral of a point spread function equal to one. In the paraxial approximation to the focal plane, define $b=\pi D/(\lambda f)$ and $u=br$. The unit-integral point spread function normalization isHere $p$ has units of inverse area; multiplying by the detected radiant flux gives image-plane irradiance. Its encircled energy, meaning the fraction inside radius $R=U/b$, isThis is an integral over area, so its radial weight is $u$. An unweighted integral of a line through the centre is a different quantity.

A short proof uses the Bessel function of the first kind identities $J_0^{\prime }=-J_1$ and $J_1^{\prime }=J_0-J_1/u$. They giveBoth expressions for $E$ vanish at zero. Since these Bessel functions of the first kind tend to zero as $U\to \infty$, $E(\infty )=1$, establishing the normalization. At the first dark ring,A circular detector region ending at the first zero therefore misses about $16.22\%$ of the ideal radiant flux, even though the surrounding rings have low peak light intensity. This matters when converting measured counts into total source brightness or choosing an image aperture for a photodetector.

A coronagraph is an optical instrument that suppresses a bright source's light before detection while transmitting some light from nearby directions. Its purpose is to reveal faint structure buried in the bright source's point spread function, as in exoplanet direct imaging. A Lyot coronagraph combines a coronagraphic focal plane mask with a Lyot stop in a reimaged optical pupil; blocking the central image alone does not remove its diffraction rings. ^[ref].

The original motivation was the solar corona: hiding the bright photosphere would allow longer, repeated observations of faint surrounding light. In his 1930 paper, Lyot explained that short total eclipses restricted observing time and prevented some long exposures for spectral lines. The attraction is an instrument that makes the faint neighborhood accessible on demand. ^[ref]. The Sun is an extended source; the point-source calculation below illustrates imaging of an unresolved star and is not a quantitative model of the solar corona.

A coronagraphic focal plane mask modifies the wave amplitude or wave phase in an intermediate focal plane. Here it is a perfectly opaque circular disk centered on the bright source. A finite aperture produces an extended point spread function, so a finite disk blocks only part of the stellar light. Its sharp edge also changes the transmitted field and hence the later diffraction pattern. The exact model below makes both effects visible.

Schmid et al. tested the Lyot stop on sky using the close binary $\alpha$ Hydri with SPHERE/ZIMPOL at the Very Large Telescope. They kept the CLC-S-WF coronagraphic focal plane mask, the NB730 filter and pupil-stabilized imaging mode, and compared observations without a pupil stop and with stopB1_2. Each configuration used ten 8-second exposures. One camera imaged the optical pupil while the other simultaneously imaged the focal plane, connecting the blocked pupil features to the image improvement. ^[ref].

Bright rings occurred at the inner and outer pupil boundaries; the stop covered them and other unwanted features. To compare point spread functions, the authors multiplied the no-stop image by $0.68$, accounting for lost off-axis transmission. The companion's reported detection significance rose from $5.2$ to $9.7$. This demonstrates a useful gain despite lost companion light. It measures the complete stop, including obstruction, support-vane and faulty-actuator blockers; it does not isolate outer-rim clipping alone or establish a universal suppression factor. The figures here are independent toys, not reproductions of those observations. ^[ref].

A diffraction-limited system has an optical response close to the ideal diffraction response for its specified optical pupil, wavelength and optical focus. Improving the optical aberrations further makes little difference to that response. This describes the optics: a poorly sampled or noisy detector can still deliver an image with much worse usable diffraction-limited resolution.

The optical pupil determines which wave amplitudes and wave phases contribute to an image point. In a scalar, paraxial approximation at the focal plane of an optical lens in air, write the pupil transmission as $T(u,v)e^{i\varphi (u,v)}$, after removing the ideal focusing phase. The amplitude spread function is proportional to its scaled Fourier transform:Here $(u,v)$ are pupil coordinates, $(x,y)$ are image coordinates, $f$ is focal length, and $\lambda$ is the wavelength in air. For a uniformly transmitting, unobscured circular optical pupil at ideal optical focus, the result is an Airy disk with surrounding rings. A blocked centre, support structures, or nonuniform transmission changes the ideal point spread function; “diffraction limited” does not specify one universal spot shape. The existing Fourier model of a Lyot coronagraph illustrates how pupil and focal masks deliberately alter this response.^[ref]

Optical aberrations add pupil wave phase errors. Defocus contributes a quadratic pupil wave phase in the paraxial approximation, redistributing light intensity from the best-focused spot. The Strehl ratio compares the peak with the ideal response for the same pupil and total radiant flux. A broad optical spectrum produces a weighted sum of wavelength-dependent point spread functions; chromatic aberration can additionally change optical focus with wavelength. Thus the operating conditions belong with any claim that a system is diffraction limited.

The field of view is the region of object directions sampled by an optical instrument in one pointing. State whether it is horizontal, vertical or diagonal, and whether it is a full angle or a half-angle. An object-plane width in millimetres also describes a field of view, but requires a specified object distance. Neither that width nor the angular field of view is the aperture diameter or the diffraction-limited resolution.

For a centred flat rectangular photodetector of width $w$ in the focal plane, with positive effective focal length $f$, infinity focus and ideal rectilinear imaging without optical distortion, the full horizontal field of view isThe model maps an object direction $\theta$ to image height of magnitude $|y|=f|\tan \theta |$; set $|y|=w/2$ and use the inverse tangent. This retains exact right triangle geometry within the stipulated imaging model; a paraxial focal length alone does not guarantee that a real wide-field optical lens obeys it. With detector height $h$, replace $w$ by $h$ for the vertical field of view, and by $\sqrt{w^2+h^2}$ for the diagonal field of view. The small-angle approximation gives ${\Theta }_x\simeq w/f$ in radians. ^[ref].

For an original worked example, a $36\mathrm{mm}$ detector width gives ${\Theta }_x\approx 39.60^{\circ }$ at $f=50\mathrm{mm}$, and $20.41^{\circ }$ at $f=100\mathrm{mm}$. Keeping $D=25\mathrm{mm}$ makes these f/2 and f/4 respectively: the field of view changes because $f$ changes. By contrast, closing $D$ from $25$ to $12.5\mathrm{mm}$ at $f=100\mathrm{mm}$ changes f/4 to f/8 while retaining $20.41^{\circ }$ in this model. The clean separation is useful: entrance pupil area controls collection, focal ratio controls the paraxial cone, and $w/f$ controls angular image coverage. Edge clipping, optical distortion, field curvature and optical aberrations can restrict the practically usable field of view.

A proposed angular readout on an optical bench illuminates a small asymmetric target at the optical focus of a collimator, providing a bundle with a known direction. Rotate the optical camera about the centre of its entrance pupil, reading a graduated rotation stage, and record the target image position on its fixed photodetector. Centre the target to establish zero; turn left and right until its centre reaches each detector edge. The difference between stage readings measures the full horizontal field of view. Repeat with a smaller aperture stop: unchanged edge directions but reduced signal support the distinction between collection and angular coverage. Keep the same active detector width, infinity focus, illumination, integration time and gain; approach each reading from the same direction to check mechanical backlash. A finite target blurs the edge criterion, detector thresholds can imitate lost coverage, and a wide bundle must illuminate the whole entrance pupil at every tested angle. These checks distinguish a geometrical boundary from insufficient signal. The analytical diagram is the prediction for this protocol, not a record of its execution.

The focal ratio, or f-number, of a converging optical instrument focused at infinity is the dimensionless quantitywhere $f>0$ is effective focal length and $D$ is the on-axis entrance pupil diameter. The notation f/4 means $N=4$, not $f=4$ in a particular unit. A $100\mathrm{mm}$ focal length with $D=25\mathrm{mm}$ gives f/4. Closing the aperture stop until $D=12.5\mathrm{mm}$ gives f/8 while retaining the same focal length. The mechanical opening need not equal $D$. ^[ref].

For a thin lens in air with a circular aperture stop at the thin lens, the converging bundle from a distant on-axis point has half-angle $\alpha$ satisfyingThe last step uses the small-angle approximation. For a compound optical lens, the cone is set by the image-side optical pupil and its distance from the receiving plane; the simple triangle is not an exact high-angle rule. At finite object distance a thin lens instead gives $v=f(1+|m|)$, by its imaging equation and transverse magnification, so its working cone corresponds to $v/D=N(1+|m|)$. Nominal focal ratio therefore does not alone specify close-range image irradiance. ^[ref].

Two useful scalings follow under stated conditions. For a fixed uniform incident beam and unchanged transmission, collected radiant flux scales as $D^2$. For an extended source with fixed radiance, the central image irradiance scales approximately as $N^{-2}$ in the paraxial approximation: the solid angle of the cone scales as $(D/f{)}^2$. For an ideal uniformly illuminated unobscured circular entrance pupil, the first dark ring of the point spread function has angular radius and focal plane radiusHere $\lambda$ is wavelength. These are first-zero radii, not diameters or a universal rule for resolving arbitrary objects. A proof outline evaluates the circular aperture's Fraunhofer diffraction using its Fourier transform, then uses the first zero of the resulting Bessel function. ^[ref].

At $\lambda =0.55\mu \mathrm{m}$, the example's f/4 and f/8 first-ring radii are $2.684$ and $5.368\mu \mathrm{m}$. Closing the aperture stop halves $D$, quarters collected radiant flux and doubles this diffraction radius. It can also reduce optical aberrations by excluding outer light rays; actual sharpness reflects both effects. This explains why a smaller aperture need not produce a sharper image. ^[ref].

A proposed optical bench check puts a fixed collimator before a converging thin lens and a photodetector large enough to collect the entire image behind it. Compare two centred aperture stops of known diameters while fixing source output, detector gain and integration time. The integrated signal tests the $D^2$ collection law; a spatially resolved optical camera at the focal plane can separately measure the point spread function. Repeat a dark reading and the first aperture stop, and check that neither the incoming beam nor detector clips either bundle. A resolved pinhole source, imperfect collimation, optical aberrations and detector pixel size can dominate the apparent spot width; a single peak reading does not measure total collected radiant flux.

Fraunhofer diffraction is the far-field approximation for diffraction: contributions from an aperture reach a selected observation direction with approximately linear path-dependent wave phases. Adding their complex amplitudes gives a Fourier transform of the field across the aperture. It also describes the appropriate rear focal plane of an ideal optical lens under coherent plane-wave illumination. The diffraction grating examples use this regime. ^[ref]; ^[ref].

For a slit of width $a$, wavelength $\lambda$ and screen distance $L$, sufficient conditions near the forward direction areThe last two statements are equivalent: the important comparison is with $a^2/\lambda$, rather than just with the slit width. For a finite rectangular aperture, check the corresponding condition for both transverse dimensions. The single-slit diffraction calculation treats the transverse cut associated with width $a$. ^[ref].

A short explanation is that the distance from slit coordinate $x$ to an observation point at distance $R$ and angle $\theta$ isThe linear term supplies the phase difference; the quadratic term supplies a wave phase error of order $a^2/(\lambda R)$, since the wavenumber is $2\pi /\lambda$. Near the forward direction $R\approx L$, so the stated condition makes this error small. This is why a distant screen permits the simple single-slit diffraction formula. ^[ref].

Let $x$ measure position along the line joining two mutually incoherent optical point sources in the focal plane, with equal detected radiant fluxes and separation $s$. Extend the even Airy disk profile $P(u)$ to signed $u$, and put $b=\pi D/(\lambda f)$ as in Airy disk normalization and encircled energy. Relative to the peak of one source carrying the pair's total radiant flux, their summed light intensity isThe two-dimensional point spread functions underlying these line profiles all have the same total radiant flux. The line-profile integrals themselves need not equal one.

The dashed curves show individual contributions; the solid curve is their sum. All panels use the same brightness scale, and the vertical markers indicate the true source centres. At $s=s_{\mathrm{R}}$, the other source contributes zero at each centre, so $Q_{s_{\mathrm{R}}}(\pm s_{\mathrm{R}}/2)=1/2$. At the midpoint,The midpoint is therefore about $26.50\%$ below the source-centre peak. This is a calculation for this particular Airy disk and equal-incoherent-source convention, not a universal experimental threshold. At $0.7s_{\mathrm{R}}$ the two central peaks merge; at $1.5s_{\mathrm{R}}$ the valley is deeper. Changing separation continuously changes the profile, without a discontinuity at the Rayleigh criterion.

To see how information survives when the central peaks merge, set $z=bx$ and $\delta =bs$. A symmetric Taylor expansion givesThe linear terms cancel because the source positions are symmetric. At the midpoint, the Airy disk derivation gives $Q_s(0)=1-{\delta }^2/16+O({\delta }^4)$. Thus a close pair's shape differs from that of one source, but only quadratically at leading order. Detecting this small change becomes sensitive to noise and response calibration. For unequal flux fractions $\alpha$ and $1-\alpha$, the intensity instead becomes $\alpha P(b(x-s/2))+(1-\alpha )P(b(x+s/2))$; its valley and peak positions need not match the equal-source example.

An optical microscope whose microscope objective, with the specimen at its designed front focal plane, sends out a parallel bundle of light rays from each specimen point. Different specimen points generally give different bundle directions. A tube lens then forms the finite intermediate microscope image; the microscope eyepiece views it. This parallel region permits suitable optical accessories to be inserted. Finite-conjugate and infinity-corrected components must be matched to their intended system.^[ref]

In the ideal paraxial approximation, an object height $h_o$ at objective focal length $f_o$ gives bundle slope $-h_o/f_o$. A tube lens of focal length $f_t$ maps that slope to $h_i=-f_t{h}_o/f_o$, soThis is a two-assembly result. Substituting infinity into the single-objective transverse magnification $-v_o/u_o$ would not describe the finite recorded image. Infinity correction concerns the region after the objective; relaxed-eye viewing concerns the region after the eyepiece. They are distinct conditions.

A classical Lyot coronagraph first forms an image of a bright source on the optical axis. A coronagraphic focal plane mask hides its core. Relay optics then form an image of the entrance pupil, where a Lyot stop blocks the outer rim and, when needed, borders around internal obstructions. Finally an optical camera forms the science image. The focal plane sorts incoming directions into image positions; the optical pupil sorts contributions across the aperture. This change of plane makes it possible to reject additional stellar light that survives the first mask. ^[ref].

The viewing optical lens assembly that acts as a magnifier of the intermediate microscope image. With that image at its front focal plane, the outgoing light rays from each point are parallel. In the small-angle approximation, the viewed angle is $h_i/f_e$, versus $h_i/D$ for the same image-sized object at reference distance $D$, giving $M_e=D/f_e$.^[ref]

A finite-distance virtual image requires a different eyepiece conjugate. In the ideal thin lens model, with the eye close to the eyepiece and the virtual image at distance $D$, the angular magnification becomes $1+D/f_e$. State the viewing condition before multiplying by the objective's transverse magnification; the relaxed-eye example above uses $D/f_e$.

An objective aperture selects outgoing electron directions in the objective lens's back focal plane. Passing the central transmitted beam gives bright-field transmission electron microscopy; selecting a separated diffracted beam gives dark-field transmission electron microscopy.^[ref]

In a paraxial approximation, an outgoing angle $\theta$ maps approximately to position $r=f\theta$ in this focal plane, where $f$ is the objective focal length. A centred opening of radius $a$ therefore admits $|\theta |\lesssim a/f$. Selecting a direction selects a component of the outgoing wavefunction; the subsequent image still assigns intensity to specimen positions. The opening is not a hole cut into a real-space specimen image. Its angular selection must be distinguished from selecting a specimen region for electron diffraction.

An optical camera images incident beams on a photodetector; a spectrograph optical camera maps a diffracted direction into a position in its focal plane.

An optical slit selects a narrow region of a focal plane. In a slit-limited spectrograph, the width of its image divided by the linear spectral dispersion sets the spectral width.

Use the gnomonic projection associated with an undistorted focal plane. Write $\Delta =\alpha -A$ and rotate the celestial Cartesian coordinate system so that the pointing meridian has longitude zero. The stellar direction and an orthonormal basis adapted to the optical axis areHere $\mathbf{e}$ points east and $\mathbf{n}$ points north. Intersect the ray $t\mathbf{s}$ with the plane $\mathbf{x}\cdot \mathbf{b}=f$. It gives $t=f/(\mathbf{s}\cdot \mathbf{b})$, so the detector coordinates areThese equations also avoid spurious singularities caused by writing individual tangents or cotangents.

To put this gnomonic projection in the desired form, let $\rho =({\cos }^2\delta {\cos }^2\Delta +{\sin }^2\delta {)}^{1/2}$ and choose $q$ locally byThus $\cot q=\cot \delta \cos \Delta$. The denominator becomes $\rho \cos (q-D)$, the numerator for $\eta$ becomes $\rho \sin (q-D)$, and $\cos \delta \sin \Delta =\rho \cos q\tan \Delta$. ConsequentlyUse the local meridian chart $\cos \Delta >0$, with $q\in [-\pi /2,\pi /2]$ chosen continuously near $D$ and $q=D$ at the image centre. A visible gnomonic projection requires $\mathbf{s}\cdot \mathbf{b}>0$, but this front-hemisphere condition alone does not select that meridian chart. A narrow field near a celestial pole can cross the opposite meridian; for such fields use the Cartesian expressions above and distinguish the oriented great circle parameter from ordinary declination. In particular, the small-field limit is $\xi \simeq f\cos D(\alpha -A)$ and $\eta \simeq f(\delta -D)$, with angles in radians. The factor $\cos D$ is the shrinking angular distance per unit right ascension near the pole.

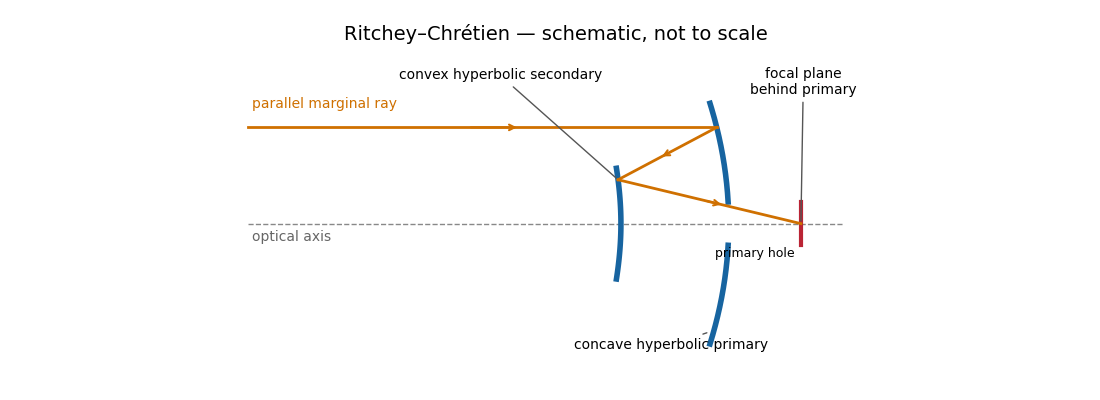

The Ritchey–Chrétien reflector follows the same folded path as a Cassegrain reflector, but both the concave primary and convex secondary are hyperbolic. Their conic constants and separation are chosen to cancel third-order spherical aberration and coma. The focal plane is behind the perforated primary.

The absence of third-order coma gives a much more useful wide field than a classical Cassegrain reflector, making this design attractive for research imaging. It retains astigmatism and field curvature, so a large flat detector generally needs corrective optics; higher-order optical aberrations are not all removed. Both aspheric mirrors are more demanding to manufacture and align, and the usual secondary obstruction remains. The sketch illustrates the beam routing and mirror types; its conics are not an optimized aplanatic prescription.

In a classical Cassegrain reflector, a concave parabolic primary sends light toward an intermediate focus, but a convex hyperbolic secondary intercepts it before it reaches that focus. The secondary returns the beam through a central hole in the primary to a focal plane behind the primary. The two relevant foci of the secondary’s hyperbola are the primary’s would-be focus and the final focus.

The secondary magnifies the effective focal length, giving a compact tube and convenient rear-mounted instruments. The classical conics correct on-axis spherical aberration, but not the off-axis coma, astigmatism or field curvature. There is secondary obscuration, diffraction from its supports, and sensitivity to mirror alignment. A long effective focal length is useful for a small angular image scale per detector pixel, but yields a small field for a fixed detector size.

A Newtonian reflector uses a concave primary generated by a parabola, followed by a flat secondary inclined at $45^{\circ }$ to the optical axis. Parallel marginal rays converge toward the primary focus; the secondary intercepts that converging beam and folds it sideways to an accessible focal plane.

The Newtonian reflector needs only one powered mirror, so it is relatively simple to fabricate and inexpensive. A parabolic primary has no on-axis spherical aberration. Its principal wide-field limitation is coma, accompanied by field curvature and off-axis astigmatism. The diagonal and its supports obstruct the entrance pupil and introduce diffraction; the tube is long compared with a folded two-powered-mirror design, and heavy instruments at the side focus can be awkward to support. These comments also answer the unheaded design-comparison clause on the next PDF page.
