A quadric surface obtained by extending a parabola along a fixed direction outside its plane. For example, $x=c-y^2/(4c)$ with arbitrary $z$ is a parabolic cylinder parallel to the $z$ axis. Each cross-section of fixed $z$ has vertex $(c,0)$ and focus $(0,0)$ in its $xy$ plane. It occurs as a coordinate surface in parabolic cylindrical coordinates.

Coordinate surfaces and sketch. Adding and subtracting the defining relations gives $s=u^2+v^2$ and $x=u^2-v^2$. Since $y^2=s^2-x^2$, we have $y^2=4u^2{v}^2$. For $u^2=c>0$, eliminate $v^2$ to obtainThis is a parabolic cylinder parallel to the $z$ axis, opening towards negative $x$, with cross-sectional vertex $(c,0)$ and focus at the origin. Similarly, $v^2=d>0$ givesa parabolic cylinder opening towards positive $x$, with vertex $(-d,0)$ and the same focus. The degenerate $u^2=0$ surface is the half-plane $y=0,x\le 0$; $v^2=0$ gives $y=0,x\ge 0$. Constant $w$ gives the horizontal planes $z=w$.

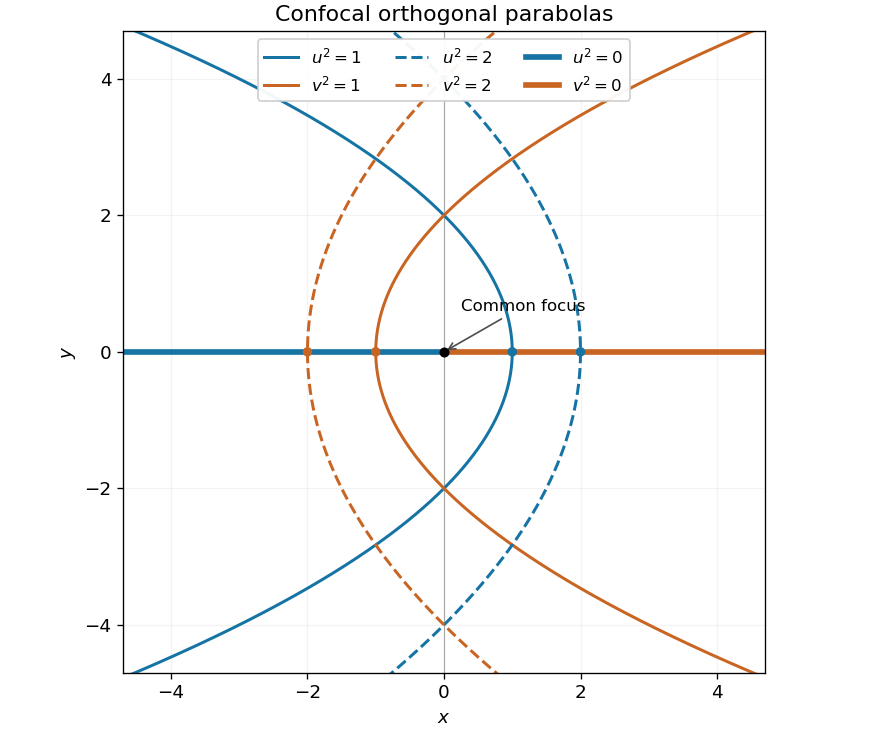

Thus the requested cross-sections consist of $x=1-y^2/4$, $x=2-y^2/8$, $x=y^2/4-1$, $x=y^2/8-2$ and the two horizontal half-axes. The parabolas of the two families meet orthogonally.

Signed coordinates. Take $u\ge 0$ and choose the sign of $v$ to agree with $y$ away from $y=0$. Then the Cartesian coordinates areEvery coordinate triple gives exactly one point. For $u>0$, $v$ and $y$ have the same sign. A fixed signed $v\ne 0$ selects the upper or lower half of its parabolic cylinder; the entire cylinder corresponds to fixed $v^2$. On the cut $u=0$, the two values $v=\pm \sqrt{-x}$ represent the same point of the negative $x$ half-axis. This boundary identification is unavoidable: there $y=0$ even when $v\ne 0$, so the sign prescription is understood by approaching from either side of the cut. The interior $u>0$ gives a unique coordinate chart off that half-axis.

Orthogonality and metric. Differentiate the position vector:The pairwise dot products vanish. Their lengths give the scale factors of orthogonal coordinates and hence the Riemannian metric:These are parabolic cylindrical coordinates. The differential calculation is regular for $u^2+v^2>0$; the $z$ axis is the coordinate singularity where the two planar tangent vectors vanish.

Laplacian. Put $h=2\sqrt{u^2+v^2}$. The physical components of the gradient of a $w$-independent scalar field are ${\varphi }_u/h,{\varphi }_v/h,0$. Applying the divergence formula cancels the two equal scale factors of orthogonal coordinates inside the derivatives:Therefore, away from the coordinate singularity,
