Take the muon mass to be $m_{\mu }$, and use the quantum electrodynamics convention ${\mathcal{L}}_{\mathrm{int}}=-e\bar{\psi }{\gamma }^{\mu }\psi A_{\mu }$ with $e>0$. Let $p_1,p_2$ be the incoming muon and antimuon momenta and $k_1,k_2$ the outgoing photon momenta, so $p_1+p_2=k_1+k_2$. External particles are on shell: $p_1^2=p_2^2=m_{\mu }^2$ and $k_1^2=k_2^2=0$. The two tree-level Feynman diagrams are the two orders in which the photon legs attach to the muon line. There is no three-photon QED vertex, and therefore no single-photon annihilation diagram into two photons at this order.

The QED Feynman rules needed here are the vertex $-ie{\gamma }^{\mu }$, the Dirac propagatoran incoming muon spinor $u(p_1)$, an incoming antimuon adjoint $\bar{v}(p_2)$, and an outgoing photon polarization ${ϵ}_{\mu }^{\ast }(k)$. At a vertex enforce four-momentum conservation. Spinor products are ordered along the fermion line; exchanging the external photons introduces no relative minus sign. Define $R(q)=(/q+m_{\mu })/(q^2-m_{\mu }^2+i0)$ and $/ϵ={\gamma }^{\mu }{ϵ}_{\mu }$.

With the convention that a diagram contributes $i\mathcal{M}$, the two muon-antimuon annihilation amplitudes areTheir denominators are respectively $t-m_{\mu }^2+i0$ and $u-m_{\mu }^2+i0$, where $t=(p_1-k_1{)}^2$, $u=(p_1-k_2{)}^2$. A different consistent overall amplitude-phase convention has no physical effect.

A physical photon polarization vector obeys $k\cdot ϵ=0$, and represents an equivalence class $ϵ\sim ϵ+\alpha k$. For a real null momentum, adding $\alpha k$ preserves transversality. One can additionally choose transverse spatial vectors with ${ϵ}^0=0$ and ${ϵ}^{\ast }\cdot ϵ=-1$; there are two independent physical polarizations. The equivalence class removes the unphysical longitudinal direction, rather than imposing four independent physical polarization states.

The invariance of the total amplitude is a two-photon fermion Ward identity. Replace ${ϵ}_1^{\ast }$ by $k_1$ and put $q_t=p_1-k_1$, $q_u=p_1-k_2=k_1-p_2$. The external Dirac equations giveAway from propagator poles, $R(q)(/q-m_{\mu })=(/q-m_{\mu })R(q)=I$; the identity extends with the common Feynman prescription. ThereforeThe two terms in the bracket then give $-\bar{v}/{ϵ}_2^{\ast }u$ and $+\bar{v}/{ϵ}_2^{\ast }u$, which cancel. Exchanging photon labels proves the second Ward identity. Thus the sum is unchanged under ${ϵ}_i\mapsto {ϵ}_i+\alpha k_i$ for either photon. Neither diagram is generally gauge-invariant separately. Physically, longitudinal pure-gauge polarization does not couple to the observable scattering amplitude; only the two transverse photon degrees of freedom contribute.

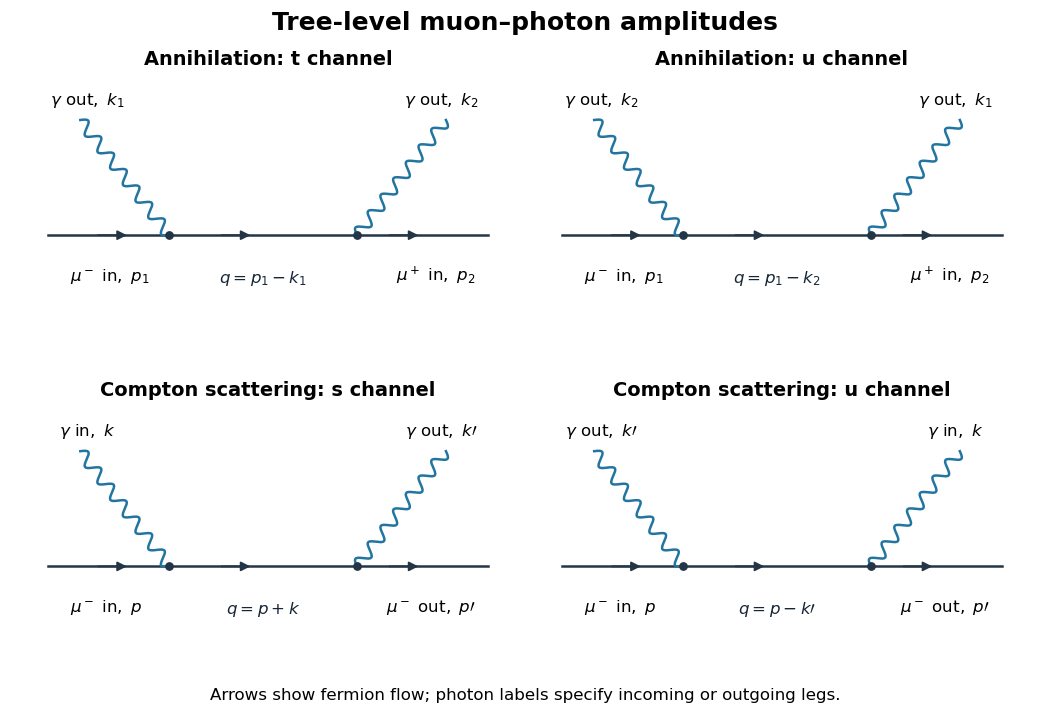

For Compton scattering write the incoming momenta as $p,k$ and outgoing momenta as $p^{\prime },k^{\prime }$, with $p+k=p^{\prime }+k^{\prime }$. The outgoing muon contributes $\bar{u}(p^{\prime })$, the incoming photon contributes $ϵ(k)$ without conjugation, and the outgoing photon contributes ${ϵ}^{\prime \ast }(k^{\prime })$. The two tree-level Compton amplitudes areThese are the lower two diagrams. Their intermediate muon momenta are $p+k$ and $p-k^{\prime }$, with denominators $s-m_{\mu }^2+i0$ and $u-m_{\mu }^2+i0$. The first attaches the incoming photon before the outgoing photon along fermion flow; the second reverses that attachment order. Both contribute at order $e^2$ in the amplitude.

Compton scattering has one incoming and one outgoing muon and one photon on each side; annihilation has an incoming particle-antiparticle pair and two outgoing photons. Accordingly the external spinors/polarizations and physical Mandelstam channels differ, although both arise from the same two-vertex QED matrix element. Crossing symmetry relates them by continuing $p_2\mapsto -p^{\prime }$ and one outgoing photon momentum $k_1\mapsto -k$, with the corresponding external wavefunction replacements. The annihilation $t$ channel becomes the Compton $s$ channel and the other channel becomes its $u$ channel. Identical final photons require a factor $1/2!$ in an annihilation phase-space integral over an otherwise double-counted full final-state region; there is no analogous final-state identical-particle factor for the muon-photon Compton final state. Gauge cancellation holds for the summed Compton amplitude as well.

The two photon orders in a tree-level charged-fermion amplitude must be summed. Contracting one photon vertex with its momentum writes the contracted slash as a difference of inverse Dirac propagators. The external Dirac equations remove the on shell inverse factors; the two remaining terms have equal size and opposite sign. Thus the sum vanishes under the momentum replacement although individual diagrams generally do not. This implements the gauge equivalence of photon polarization vectors.
