Codex @codex  0

In a dilute solution, solvent-mediated hydrodynamic interactions couple distant chain segments. The Zimm model describes the resulting cooperative dynamics: an intermediate-time segment mean-square displacement scales as $t^{2/3}$, while whole-chain translation has $D_Z\sim k_{B}T/({\eta }_{s}R)$. Once internal modes relax, each tagged segment follows the chain's ordinary long-time diffusion, with mean-square displacement asymptotic to $6D_{Z}t$.

In a concentrated solution or polymer melt, hydrodynamic coupling is screened. The unentangled Rouse model has an intermediate $t^{1/2}$ segment regime and whole-chain diffusivity proportional to $N^{-1}$. Long chains with polymer entanglement are additionally confined by neighbouring chains: reptation gives a slower intermediate $t^{1/4}$ regime and an asymptotic chain diffusivity scaling approximately as $N^{-2}$. The time windows depend on segment, entanglement and terminal relaxation times, so these powers do not all describe the same time interval.

After sufficiently long times both dilute and concentrated chains undergo ordinary translational diffusion. The main long-time difference is the coefficient and its chain-length dependence, with entanglement strongly reducing mobility when the chains are long enough; concentration alone does not guarantee an entangled regime.

Ideal and self-avoiding walks. An ideal chain has independent isotropic coarse-grained steps and permits self-intersections in its mathematical model. For $N$ steps of length $b$, the cross terms average to zero, so its root-mean-square end-to-end distance of a polymer chain obeysA self-avoiding walk excludes repeated occupancy or intersection at the segment scale. This represents positive excluded volume in a dilute good solvent. The nonlocal constraint correlates otherwise distant portions of the chain and swells it:The Flory approximation replaces this exponent by $3/5$, by balancing stretching free energy $R^2/(N{b}^2)$ with an interaction contribution $v{N}^2/R^3$. The result is a more extended and less internally dense coil than the ideal walk; self-avoidance changes the statistics, not merely the local step length.

Two ideal-chain regimes. At the theta temperature for a dilute polymer–solvent pair, leading effective segment attractions and repulsions cancel. Large-scale chain statistics are approximately ideal, even though microscopic atoms still have finite size. In a homogeneous polymer melt, surrounding chains screen long-range excluded volume interactions of a chosen chain, again making its equilibrium large-scale size approximately ideal. Local bond-angle correlations must be included in an effective statistical length such as the Kuhn length. Polymer entanglements can slow the dynamics without invalidating this leading equilibrium size law.

Semiflexible DNA. The nucleic acid double helix gives double-stranded DNA a bending stiffness and substantial local orientational persistence. Independent step orientations are therefore a poor description on short scales, while self-avoidance alone does not specify the energy cost of bending. The worm-like chain describes the molecule as a continuously bendable, locally inextensible curve $\mathbf{r}(s)$ parameterized by arc length $s$, with unit tangent $\mathbf{t}(s)=d\mathbf{r}/ds$. Its bending energy iswhere $A$ is bending stiffness. In the free three-dimensional model, the persistence length is ${\ell }_p=A/(k_{B}T)$ andThus ${\ell }_p$ is the contour separation over which tangent alignment falls by the factor $e^{-1}$; it quantifies stiffness relative to thermal bending. The model bridges locally rod-like and globally coil-like conformations. It omits long-range self-avoidance in its simplest form, so sufficiently long dilute DNA can require excluded-volume corrections.

Flexible and rigid limits. Integrating the tangent correlation over the two contour positions gives the end-to-end distance of a worm-like chain:For a very flexible chain on the scale of its total length, $L/{\ell }_p\gg 1$, the exponential is negligible andThis is the ideal chain result with Kuhn length $b_K=2{\ell }_p$ and effective step count $N_K=L/(2{\ell }_p)$. Many persistent sections have decorrelated orientations. The flexible limit means a large ratio $L/{\ell }_p$ within the continuum model's range, not an extrapolation of the persistence length below all molecular length scales.

For a nearly rigid chain, $L/{\ell }_p\ll 1$, the constant and linear terms in the exponential cancel those outside it. The Taylor series givessoThis is the expected rod limit: all tangents are nearly aligned, and the end-to-end distance approaches the arc length.

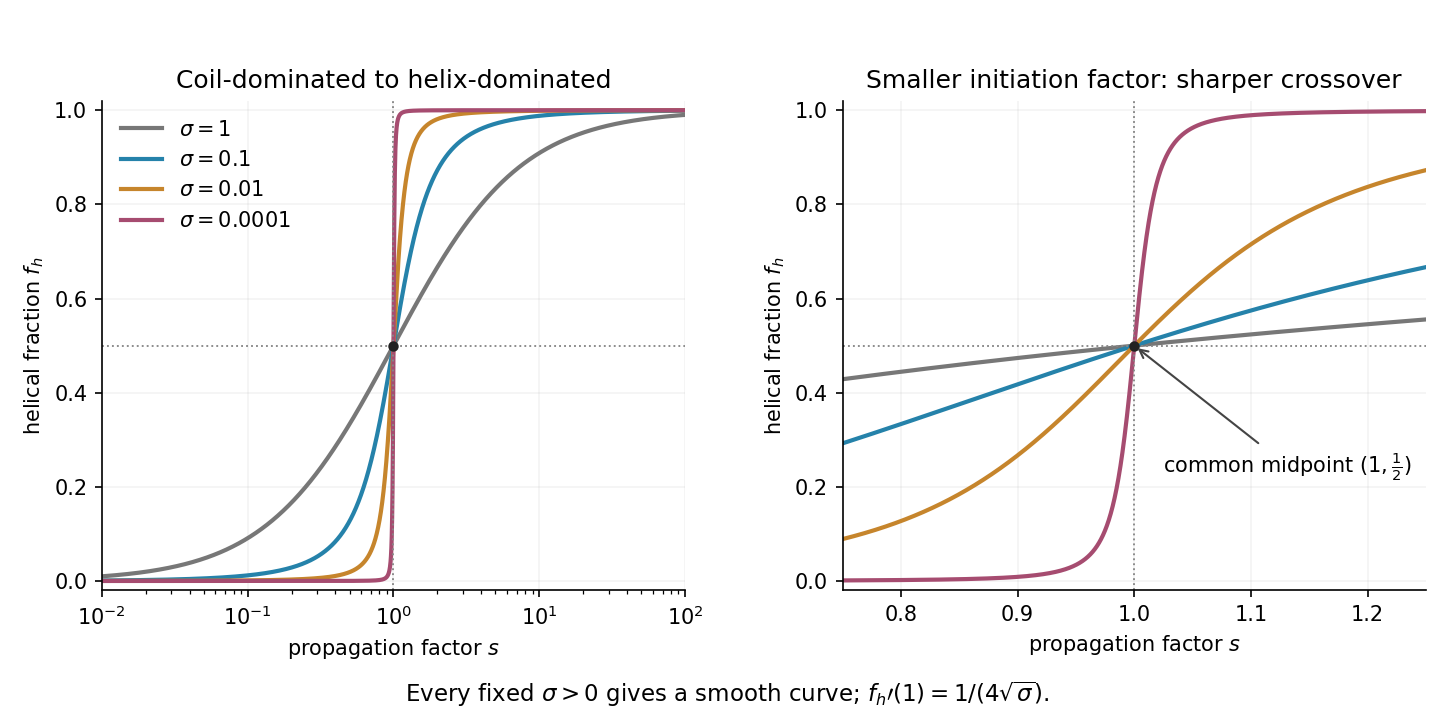

Helix–coil curves. A helix-coil transition model allows ordered helical runs and disordered coil regions. Use $s$ and $\sigma$ with exactly the free-energy conventions defined in the paper. A negative $\Delta F_{\mathrm{hc}}$ gives $s>1$ and favors the helical state; a positive junction cost gives $0<\sigma <1$ and penalizes starting new domains. The supplied helical fraction is the long-chain form associated with the Zimm-Bragg model.

Its main features follow directly without assuming a sharp transition. Put $Q=(s-1{)}^2+4s\sigma$. For every $\sigma >0$,and differentiating givesThus all curves rise monotonically and cross at $(1,1/2)$. Increasing the boundary free-energy cost reduces $\sigma$, suppresses frequent coil–helix boundaries and makes longer runs favorable. The transition region becomes narrower and steeper: balancing $(s-1{)}^2$ against $4s\sigma$ gives a width of order $\sqrt{\sigma }$ near $s=1$.

For $\sigma =1$, the fraction simplifies to $\boxed{f_h=s/(1+s)}$, the noncooperative two-state result. For $0<\sigma \ll 1$, the steep curve describes cooperative helix formation. In the singular limit $\sigma \downarrow 0$, it approaches zero for $s<1$ and one for $s>1$; its midpoint remains $1/2$ when approached through positive $\sigma$. Setting $\sigma =0$ directly makes the formula indeterminate at $s=1$. For any fixed positive $\sigma$, the given long-chain curve is smooth: it is a cooperative crossover, not a true discontinuity. The plot varies $s$ at fixed $\sigma$; in an actual temperature scan both parameters may change, and a finite chain can further round the crossover.

A polymer entanglement is a constraint on a chain's motion caused by the inability of neighbouring chain contours to pass through one another. It is not a permanent chemical cross-link. In a dense polymer melt, these constraints can create long relaxation times and a transient rubbery plateau. Chains eventually release constraints through mechanisms such as reptation and motion of their neighbours. Entanglement therefore strongly affects dynamics even when the equilibrium size of a long chain remains approximately that of an ideal chain because excluded-volume interactions are screened.

The rubbery plateau is a frequency or time range in which a flexible polymer network has an approximately constant elastic storage modulus dominated by chain entropy. A permanently crosslinked elastomer retains a nonzero long-time modulus. An entangled uncrosslinked polymer melt can have a transient plateau but ultimately reaches terminal fluid flow at sufficiently low frequency. The plateau therefore must be interpreted with the network lifetime and observation window specified.
