 Bellman–Ford algorithm

The Bellman-Ford algorithm solves the single-source shortest path problem in a finite directed graph with finite real edge weights, allowing negative weights. It repeatedly applies edge relaxation, so an improved tentative distance can improve its neighbours on a later visit. This makes it a label-correcting shortest-path algorithm.^[ref] If no negative-cost directed cycle is reachable from the source, at most $|V|-1$ complete passes suffice for all distances; a further check detects a reachable negative-cost directed cycle.^[ref]

There are two orientations to keep distinct. The usual single-source problem asks for distances from $s$, extending routes along outgoing directed edges. The Bellman inequalities above instead concern distances to a sink $r$, prepending incoming directed edges to known routes. The All-to-one Bellman-Ford recurrence below preserves that convention. Reversing every directed edge, with its weight unchanged, converts one problem into the other.

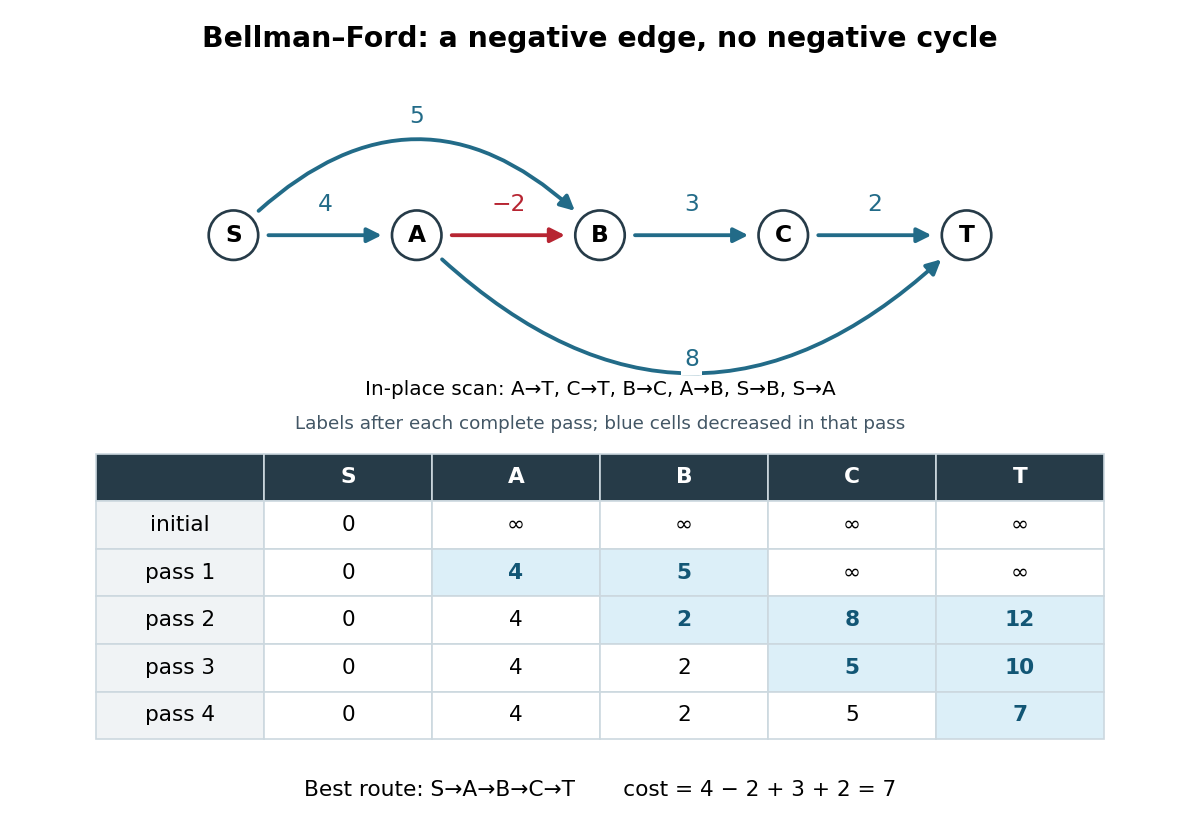

Here is an original single-source example with source $S$, vertex set $V=\{S,A,B,C,T\}$, and precisely these directed edges:The negative edge $A\to B$ is harmless: this directed graph has no directed cycle. Its best route to $T$ is $S\to A\to B\to C\to T$, of cost $4-2+3+2=7$. The other routes to $T$ cost $12$ through $S,A,T$ and $10$ through $S,B,C,T$.

Initialize $d(S)=0$ and the other tentative distances to $\infty$. In each pass apply single-source edge relaxation, $d(v)\leftarrow \min \{d(v),d(u)+w_{uv}\}$, scanning in the order $A\to T$, $C\to T$, $B\to C$, $A\to B$, $S\to B$, $S\to A$. Skip a candidate with $d(u)=\infty$. The figure records labels after each complete pass and uses current labels immediately: it is an in-place trace. In pass 2, $B\to C$ still uses $d(B)=5$, giving $8$; only later does $A\to B$ lower $B$ to $2$. Pass 3 carries that improvement to $C$, and pass 4 carries it to $T$. The final labels in order $(S,A,B,C,T)$ are $(0,4,2,5,7)$; the final shortest-path predecessors are $S,A,B,C$ for $A,B,C,T$ respectively.

The scan order explains the delay. Scanning instead as $S\to A$, $S\to B$, $A\to B$, $B\to C$, $C\to T$, $A\to T$ gives those same final labels in just one in-place pass. The Synchronous Bellman-Ford recurrence has a precise bound on the number of edges used by a recorded route; an in-place pass can propagate along several edges and need not have that interpretation. Both implementations have the $|V|-1$ pass guarantee under the stated no-reachable-negative-cycle hypothesis.

With a stored list of edges, complete-pass Bellman-Ford algorithm has time complexity $O(|V||E|+|V|)$ and uses $O(|V|)$ extra space for labels and shortest-path predecessors, using Big O notation and constant-cost arithmetic. The extra $|V|$ accounts for initialization even when $E$ is empty. A pass with no strict decrease permits early termination. A queue variant instead revisits outgoing edges of vertices whose labels improved; the authored implementation provides this alternative and has $O(|V||E|)$ worst-case running time on its usual nontrivial instances.^[ref] For nonnegative weights, the Dijkstra algorithm and its existing distance-frontier figure explain how permanent labels can avoid these repeated passes; the existing edge relaxation figure illustrates one update at a time.

The Bellman-Ford algorithm is an efficient algorithm used to find the shortest paths from a single source vertex to all other vertices in a graph. It is particularly useful for graphs that may contain edges with negative weights, making it more versatile than Dijkstra's algorithm, which only works with non-negative weights.
