 On-off X-ray photon counting

Background subtraction must account for uncertainty in the background measurement itself. In an original idealized experiment, an on-source exposure contains source and background, while an independent off-source exposure contains background alone. Assume stationary rates and identical background acceptance per unit live time. With $\alpha =t_{\mathrm{on}}/t_{\mathrm{off}}$, let independent counts obey Poisson distributions:Then linearity of expectation and addition of variances for independent random variables giveThe result concerns accepted source counts $S$, after all efficiencies. For large counts the normal approximation gives the descriptive signal-to-noise ratio in photon countingThis plug-in ratio is not an exact null-hypothesis significance. Small counts require the discrete Poisson model; searching many sky directions also changes a detection claim's p-value.

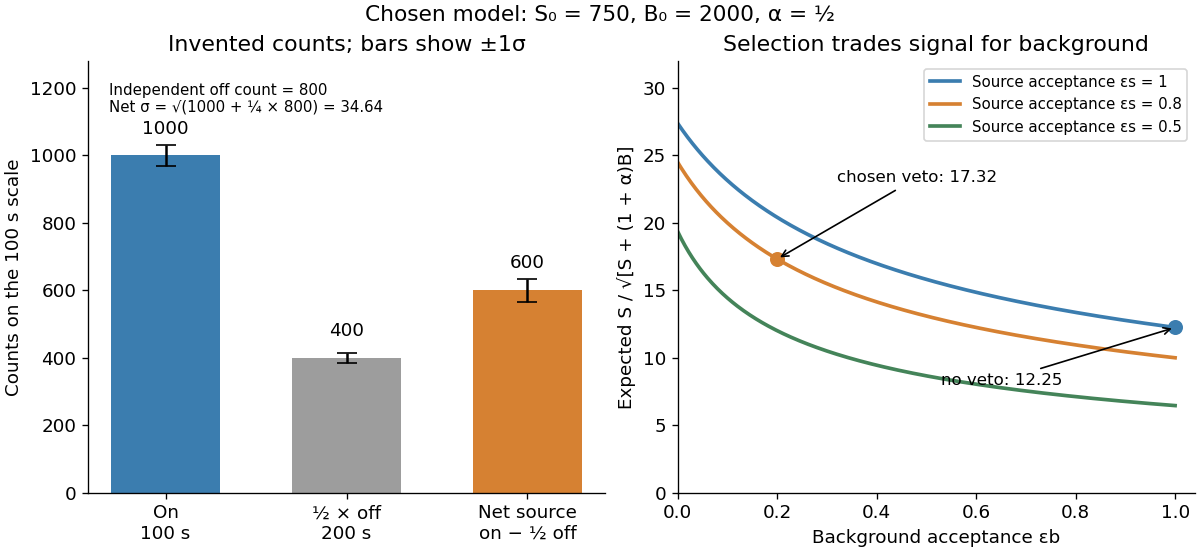

Choose $t_{\mathrm{on}}=100\mathrm{s}$ and $t_{\mathrm{off}}=200\mathrm{s}$, with observed counts $N_{\mathrm{on}}=1000$ and $N_{\mathrm{off}}=800$. Thus $\alpha =1/2$, $\hat{S}=600$, and the estimated standard deviation is $\sqrt{1200}=34.64$ counts. The inferred $F=\hat{S}/(A_{\mathrm{eff}}{t}_{\mathrm{on}})=0.300\pm 0.0173\mathrm{photons}\mathrm{c}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$ uses the preceding $A_{\mathrm{eff}}=20\mathrm{c}{\mathrm{m}}^2$ and includes counting uncertainty only. The descriptive ratio is $17.32$. Treating the scaled off-source background as exact would omit 200 counts squared from the estimated variance.

For a selection-design comparison, suppose before a veto the expected source contribution is $S_0=750$, the on-source background is $B_0=2000$, and $\alpha =1/2$. Let source acceptance be ${ϵ}_s=0.8$ and background acceptance be ${ϵ}_b=0.2$. Then $S=600$, $B=400$, and $S/\sqrt{S+(1+\alpha )B}=17.32$, whereas omitting the veto gives $750/\sqrt{750+3000}=12.25$. Rejection helps because the background is reduced enough to compensate for lost source events. A different veto can make matters worse; source efficiency and background rejection are separate probabilities. This comparison is an independent teaching example, not the efficiency calibration used above.

If both exposure times grow with fixed $\alpha$ and stationary rates, $S=s{t}_{\mathrm{on}}$ and $B=b{t}_{\mathrm{on}}$ imply $Z\simeq s\sqrt{t_{\mathrm{on}}}/\sqrt{s+(1+\alpha )b}$. Four times the live time doubles this ideal ratio. Misestimated background rates, uncertain X-ray effective area, and source variability can defeat that scaling; longer exposure does not remove systematic error.
