A decay tunnel provides a low-density flight region where selected unstable particles decay before remaining charged particles are removed or absorbed. For a pion-produced neutrino beam, its length balances pion decay probability against backgrounds from longer-lived daughters.

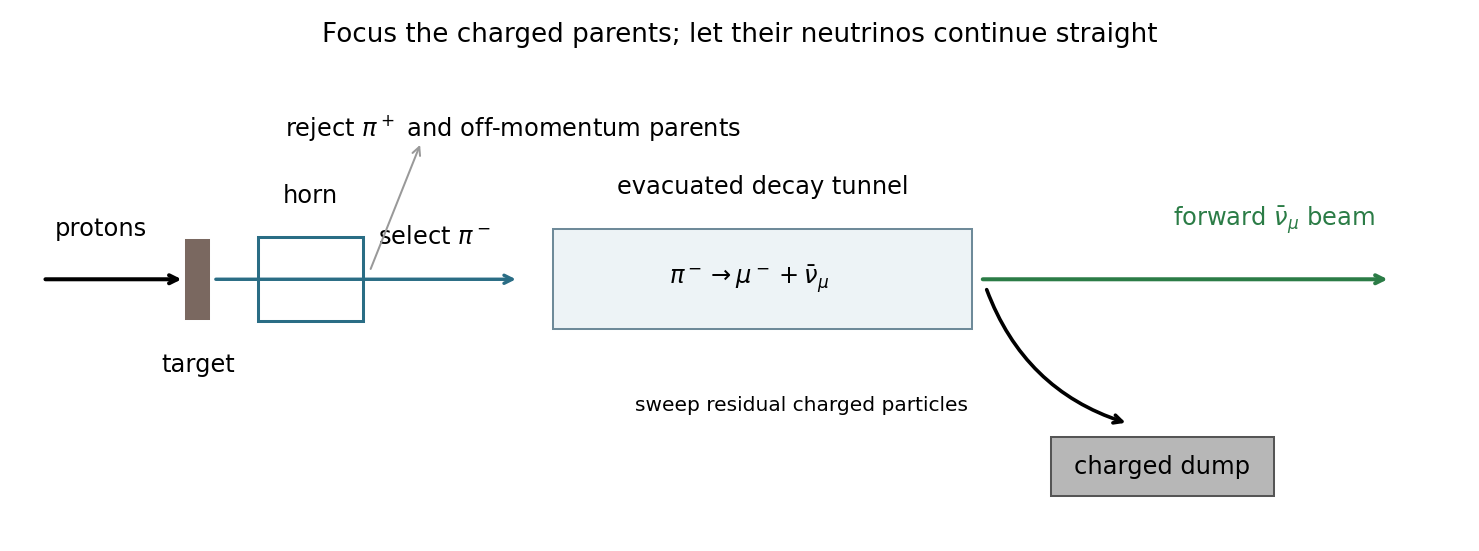

Use a high-energy proton beam on a target to produce secondary pions, then select and focus the negative ones. A magnetic horn and a charge-selecting dipole system remove positive pions, limiting wrong-sign ${\nu }_{\mu }$ contamination. Select a narrow range of magnetic rigidity; if additional species rejection is available, velocity or mass discrimination reduces negative kaon contamination at the same momentum.

The selected ${\pi }^{-}$ travel through an evacuated decay tunnel and undergo ${\pi }^{-}\to {\mu }^{-}{\bar{\nu }}_{\mu }$. Their forward Lorentz boost concentrates the antineutrinos within an angle of order $1/{\gamma }_{\pi }$. Choose a tunnel long enough for substantial pion decay but short compared with the boosted muon decay length. Since ${\tau }_{\mu }\simeq 2.2\mu \mathrm{s}$ is much longer than ${\tau }_{\pi }\simeq 26\mathrm{ns}$, this reduces secondary ${\mu }^{-}\to e^{-}{\bar{\nu }}_e{\nu }_{\mu }$ contamination.

Downstream magnets sweep the remaining charged particles into absorbers, and shielding stops residual hadrons and muons. The antineutrino beam continues straight through. Parent-particle collimation, charge selection, and a forward detector improve purity; neutral-kaon decays, remaining wrong-sign parents, and muon decays prevent perfect purity. Neutrinos themselves cannot be focused or charge-selected by these magnets. Neutrinos produced after stopped-muon decay or capture are much less forward and can be reduced by directional and energy selection.

Strike a target with high-energy protons, collect negative pions and kaons with magnetic horns, and let them decay in a long evacuated decay tunnel: ${\pi }^{-}\to {\mu }^{-}{\bar{\nu }}_{\mu }$ and $K^{-}\to {\mu }^{-}{\bar{\nu }}_{\mu }$. Absorb residual hadrons and range out muons in shielding. Focusing selects the negative parent sign and therefore enriches muon antineutrinos; other parent decays leave a finite contamination. Monitor the parent flux and use a near detector to constrain the unoscillated spectrum.

A massive segmented calorimeter supplies interaction probability and measures the hadronic shower. Alternate dense absorber plates with scintillation counters or tracking planes, and magnetize the iron or add a downstream magnetic muon detector. The signal is a positive muon plus a hadronic shower; the sign rejects much of the muon neutrino contamination. For a contained muon, its range gives energy; for a penetrating track, curvature gives $p_{\perp }[\mathrm{GeV}]=0.2998B[\mathrm{T}]R[\mathrm{m}]$. Multiple measurements and a field map determine the fitted momentum and sign. Summed calibrated shower response estimates the struck quark's visible hadronization energy, not the energy of a free observable quark. Correct for invisible nuclear losses, noncompensating response, leakage and acceptance. Neglecting target recoil corrections, $E_{\nu }\simeq E_{\mu }+E_{\mathrm{had}}$ and $y\simeq E_{\mathrm{had}}/E_{\nu }$.

The Fermilab primary proton beam strikes a target, producing secondary pions and kaons. Horn focusing selects positive parents; their decays ${\pi }^{+}\to {\mu }^{+}{\nu }_{\mu }$ and $K^{+}\to {\mu }^{+}{\nu }_{\mu }$ produce a predominantly muon neutrino beam. A decay tunnel permits decay before the remaining charged secondaries encounter an absorber. A near detector constrains the flux and interaction spectrum, while the distant MINOS detector measures its change.

The alternating scintillation counters and magnetized iron give a sampling calorimeter and a magnetic tracking volume. A charged current ${\nu }_{\mu }N\to {\mu }^{-}X$ event has a long negative muon track and a localized hadronic shower. Estimate $E_{\mu }$ by range if contained or magnetic curvature if exiting, and $E_X$ by the calibrated scintillator pulse-height sum. Reconstruct $E_{\nu }\simeq E_{\mu }+E_X$, with corrections for nuclear binding, invisible energy and detector response. The muon charge separates most wrong-sign muon antineutrino events; short showers without the track are primarily neutral current candidates. The source's $730\mathrm{km}$ baseline is used in the calculations below.
