 Solution

Normalization and angular pattern. A scattering phase function describes the distribution of single-scattered power over outgoing solid angle, for a specified incident direction, wavelength and polarization convention. Use the common normalizationThe scattering asymmetry parameter is the mean cosine of the scattering angle: forward scattering has positive $g$, backward scattering negative $g$, and a forward–backward symmetric pattern has $g=0$.

Let $C=E_0(2\pi /\lambda {)}^4[(n^2-1)/(n^2+2){]}^2{r}^6$. The given small-sphere angular intensity is $I=C(1+{\mu }^2)/2$, where $\mu =\cos \Theta$. Its total scattered power isNormalizing givesDimensionally the supplied $I$ is radiant intensity, power per solid angle. If interpreted as detector irradiance at a distance, the appropriate inverse-square distance factor is also needed; it cancels out of the normalized angular pattern.

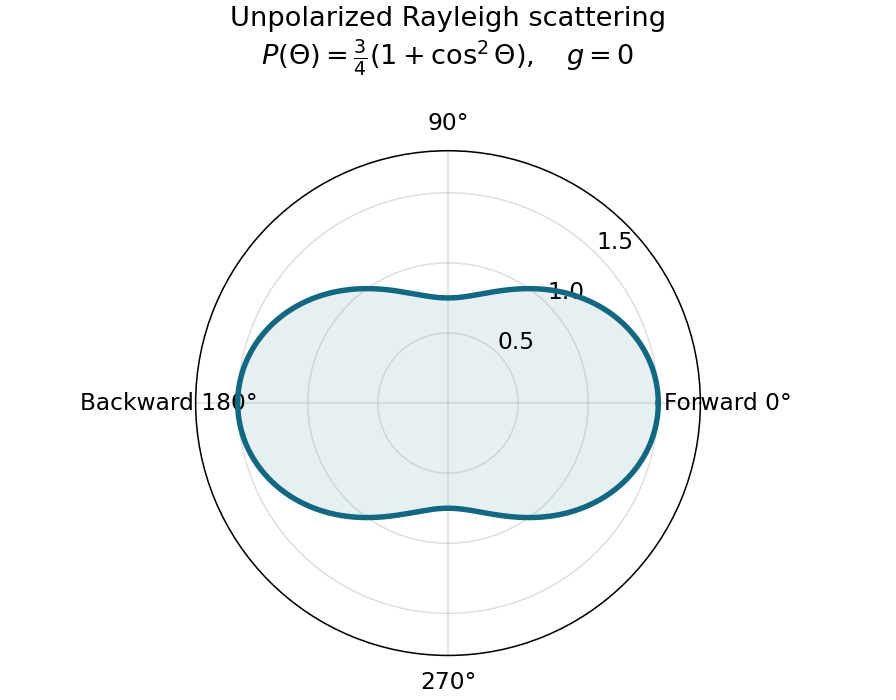

The polar plot has equal forward and backward lobes, each with radius $3/2$, and lateral values $3/4$. A small nonabsorbing particle behaves as an induced electric dipole. Radiation transverse to the dipole and the average over two orthogonal incident polarizations produce the $1+{\cos }^2\Theta$ form. Its odd angular moment vanishes:As the size parameter $2\pi r/\lambda$ grows, Rayleigh scattering in the electric-dipole approximation no longer suffices. Higher multipoles and interference produce structure in the angular pattern, and large particles generally develop a strong narrow forward diffraction peak. Their $g$ is normally positive, although detailed values and angular features depend on refractive index, size distribution and shape; they are not fixed by radius alone. Large spheres may show rainbows and backscattering structure, while nonspherical ice introduces further angular features.

Optically thick transmission. In a nonabsorbing two-stream or transport approximation, it is the transport optical depth $(1-g)\tau$ that controls the loss of forward directional memory. Using the same idealized albedo closure as in option 1 gives total forward-hemisphere transmittanceFor the same large but finite extinction optical depth,The respective transport-depth factors are $0.15$, $0.30$ and $1$. The water cloud scatters most strongly forward and returns the least light backward. All transmittances tend to zero in the infinite-depth limit. The strictly unscattered direct-beam transmittance is instead $e^{-\tau }$, identical in the three cases: the ranking concerns total transmitted radiation, including forward-scattered light, not that direct component alone. Full radiative transfer can also depend on higher angular moments beyond $g$.
