Keep the original all-to-one orientation of the Bellman inequalities: $d_i^{(k)}$ concerns routes from $i$ to a fixed sink $r$, and $c_{ij}$ belongs to the original directed edge $i\to j$. Initialize $d_r^{(0)}=0$ and $d_i^{(0)}=\infty$ for $i\ne r$. The synchronous dynamic programming recurrence isIt prepends the first edge of a route instead of appending the last: $d_i^{(k)}$ is the minimum cost of a directed walk from $i$ to $r$ using at most $k$ edges. In particular, improving $d_j$ can improve labels on incoming directed edges $i\to j$. The same original directed edge therefore updates its tail in this convention, whereas single-source edge relaxation updates its head.

If no negative-cost directed cycle can reach $r$, $|V|-1$ rounds suffice for every distance to $r$, and $d_r^{(k)}=0$ automatically. This hypothesis concerns directed paths from the cycle to the sink, not paths from the sink to the cycle. In the base example with its original arrows and sink $T$, the distances in order $(S,A,B,C,T)$ are $(7,3,5,2,0)$. Once $C\to A$ of weight $-4$ is added, $S,A,B,C$ instead have distance $-\infty$ to $T$, while $T$ keeps distance $0$ and $U$ keeps $\infty$.

More generally, $\delta (i,r)=-\infty$ precisely when $i$ can reach a negative-cost directed cycle that can reach $r$. Thus the affected vertices are the ancestors of such a directed cycle. A negative-cost directed cycle unable to reach $r$ is irrelevant. Reversing all arrows makes $r$ a single source, turns these ancestors into descendants, and makes the detection and forward graph search above directly applicable. The right panel of the figure uses that reversal with sink $S$; its distances to $S$ equal the left panel's distances from $S$.

Do not force the root to remain zero outside the hypothesis. Consider the two directed edges $r\to a$ of cost $0$ and $a\to r$ of cost $-1$, with sink $r$. The recurrence gives $d_a^{(1)}=-1$ and $d_r^{(2)}=-1$: the latter records one lap of a negative-cost directed cycle through $r$. Repetition makes both unrestricted distances $-\infty$. Clamping $d_r$ at zero and omitting its update would instead leave the stationary labels $(d_r,d_a)=(0,-1)$, concealing that behaviour. Initialization specifies the cost of the empty directed walk; it does not forbid cheaper nonempty returns to the root. Cycle detection must test every relevant directed edge, including those whose relaxation updates the root.

The Bellman-Ford algorithm solves the single-source shortest path problem in a finite directed graph with finite real edge weights, allowing negative weights. It repeatedly applies edge relaxation, so an improved tentative distance can improve its neighbours on a later visit. This makes it a label-correcting shortest-path algorithm.^[ref] If no negative-cost directed cycle is reachable from the source, at most $|V|-1$ complete passes suffice for all distances; a further check detects a reachable negative-cost directed cycle.^[ref]

There are two orientations to keep distinct. The usual single-source problem asks for distances from $s$, extending routes along outgoing directed edges. The Bellman inequalities above instead concern distances to a sink $r$, prepending incoming directed edges to known routes. The All-to-one Bellman-Ford recurrence below preserves that convention. Reversing every directed edge, with its weight unchanged, converts one problem into the other.

Here is an original single-source example with source $S$, vertex set $V=\{S,A,B,C,T\}$, and precisely these directed edges:The negative edge $A\to B$ is harmless: this directed graph has no directed cycle. Its best route to $T$ is $S\to A\to B\to C\to T$, of cost $4-2+3+2=7$. The other routes to $T$ cost $12$ through $S,A,T$ and $10$ through $S,B,C,T$.

Initialize $d(S)=0$ and the other tentative distances to $\infty$. In each pass apply single-source edge relaxation, $d(v)\leftarrow \min \{d(v),d(u)+w_{uv}\}$, scanning in the order $A\to T$, $C\to T$, $B\to C$, $A\to B$, $S\to B$, $S\to A$. Skip a candidate with $d(u)=\infty$. The figure records labels after each complete pass and uses current labels immediately: it is an in-place trace. In pass 2, $B\to C$ still uses $d(B)=5$, giving $8$; only later does $A\to B$ lower $B$ to $2$. Pass 3 carries that improvement to $C$, and pass 4 carries it to $T$. The final labels in order $(S,A,B,C,T)$ are $(0,4,2,5,7)$; the final shortest-path predecessors are $S,A,B,C$ for $A,B,C,T$ respectively.

The scan order explains the delay. Scanning instead as $S\to A$, $S\to B$, $A\to B$, $B\to C$, $C\to T$, $A\to T$ gives those same final labels in just one in-place pass. The Synchronous Bellman-Ford recurrence has a precise bound on the number of edges used by a recorded route; an in-place pass can propagate along several edges and need not have that interpretation. Both implementations have the $|V|-1$ pass guarantee under the stated no-reachable-negative-cycle hypothesis.

With a stored list of edges, complete-pass Bellman-Ford algorithm has time complexity $O(|V||E|+|V|)$ and uses $O(|V|)$ extra space for labels and shortest-path predecessors, using Big O notation and constant-cost arithmetic. The extra $|V|$ accounts for initialization even when $E$ is empty. A pass with no strict decrease permits early termination. A queue variant instead revisits outgoing edges of vertices whose labels improved; the authored implementation provides this alternative and has $O(|V||E|)$ worst-case running time on its usual nontrivial instances.^[ref] For nonnegative weights, the Dijkstra algorithm and its existing distance-frontier figure explain how permanent labels can avoid these repeated passes; the existing edge relaxation figure illustrates one update at a time.

The Bellman inequalities turn local directed edge checks into a global certificate for the shortest path problem. Here the convention is all-to-one: every journey ends at a fixed vertex $r$, and $c_{ij}$ is the cost of the original directed edge $i\to j$. Work in a finite directed graph with finite real costs. Write $L_i$ for candidate labels, normalized by $L_r=0$, on the vertices that can reach $r$. A feasible potential means precisely that these finite labels satisfyfor every directed edge within that set. These labels give lower bounds on costs to $r$. A discovered directed path of cost $U_i$ instead gives an upper bound. The following constructed graph shows both bounds and the exact distances between them; its weights are illustrative costs, not measured travel data.

The arrows in the picture point toward the destination, whereas edge relaxation propagates an improved label in the opposite direction: an improved $d_j$ can lower $d_i$. In the pictured graph, the directed paths from $a$ to $r$ cost $7$, $2+3=5$, and $2-2+4=4$. Thus $\delta (a,r)=4$. The candidate $L=(3,1,3,0)$ in vertex order $(a,b,c,r)$ is feasible, but underestimates the exact distances $(4,2,4,0)$. Merely satisfying the Bellman inequalities does not make a candidate exact.

Why do they give lower bounds? Along any directed path $i=v_0\to v_1\to \cdots \to v_k=r$, successive substitution givesThe same calculation works for a directed walk, with repeated vertices allowed. Taking the infimum of route costs gives $L_i\le \delta (i,r)$. A discovered route gives $\delta (i,r)\le U_i$. If the bounds meet, $L_i=U_i$, they certify an optimum without enumerating routes. Equivalently, check the Bellman inequalities for the proposed distances and exhibit directed paths realizing them. The authored Bellman-Ford algorithm implementation checks the corresponding single-source inequalities and equality on recorded route edges; reversing every directed edge gives this all-to-one convention.^[ref]

For the exact labels in the picture, the slack $c_{ij}+d_j-d_i$ is respectively $0,3,1,0,0$ on $a\to b$, $a\to r$, $b\to r$, $b\to c$, $c\to r$. Zero slack means equality; the zero-slack directed path $a\to b\to c\to r$ realizes the cost $4$. This is the useful beauty of the certificate: a few local inequalities rule out every cheaper journey, while one explicit journey attains the bound.

Keep unreachable vertices separate: $\delta (i,r)=\infty$ when no directed path to $r$ exists, and a finite lower bound alone cannot certify that fact. Extended labels can use $\infty +c=\infty$ for finite $c$, but never compute a slack as $\infty -\infty$. If $i$ can reach a negative-cost directed cycle and then reach $r$, repeatedly traversing the directed cycle makes route costs unbounded below: their infimum is $-\infty$, with no finite shortest directed walk. A finite feasible potential on such a directed cycle is impossible, since summing its Bellman inequalities would give $0\le \sum c_{ij}<0$. A negative-cost directed cycle that cannot reach $r$ does not affect distances to $r$. These are statements about unrestricted directed walks; requiring a directed path with no repeated vertices is a different optimization problem when negative-cost directed cycles exist.^[ref]

For the single-source convention, the same original directed edge $u\to v$ instead gives $L(v)\le L(u)+w_{uv}$ with $L(s)=0$, a lower bound on distance from $s$. The endpoint carrying the label on the left therefore changes with the direction of the problem.

Edge relaxation tests whether extending a recorded route by one directed edge improves a tentative distance. For a single source $s$ and an original directed edge $u\to v$ of weight $w_{uv}$, form the candidate $q=d(u)+w_{uv}$. If $d(u)$ is finite and $q<d(v)$, replace $d(v)$ by $q$ and record the shortest-path predecessor $\pi (v)=u$. Otherwise leave both unchanged. The minimum formula in the header gives the resulting label in either case. The authored implementation uses this strict comparison and records the incoming directed edge.^[ref]

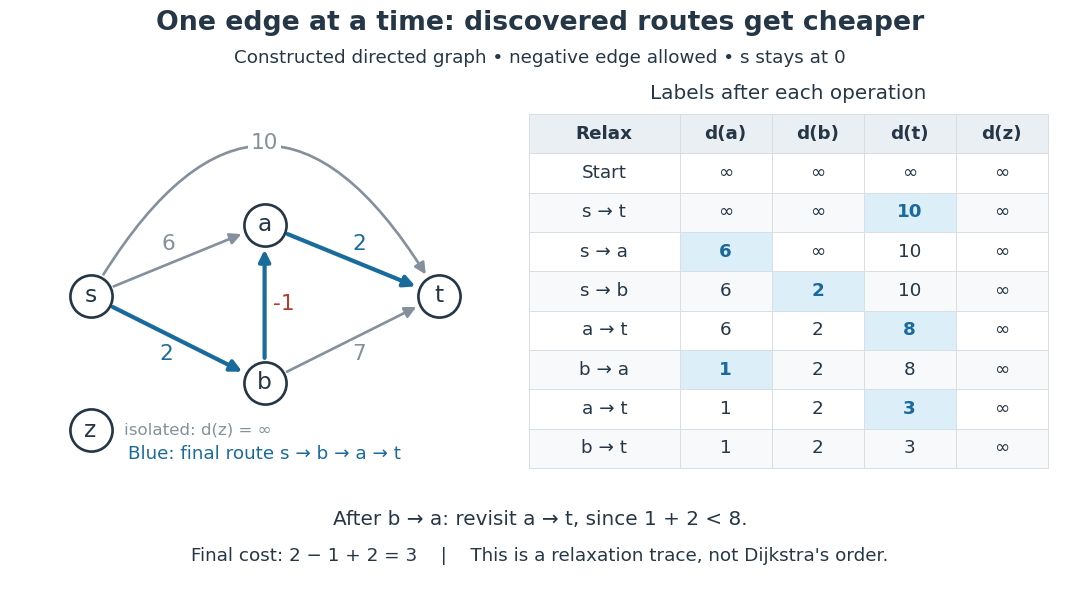

The table lists labels after each specified operation, keeping $d(s)=0$ throughout this constructed acyclic graph. Relaxing $a\to t$ first offers $6+2=8$. Relaxing $b\to a$ then offers $2-1=1$, lowering $a$ from $6$ to $1$; revisiting $a\to t$ now offers $1+2=3$. Finally $b\to t$ offers $2+7=9$, so the label $3$ stays. Changing a label can make a previously checked outgoing directed edge worth checking again. This trace illustrates the operation itself, with a deliberately specified order, rather than a run of the Dijkstra algorithm.

A single edge relaxation does not require nonnegative weights: its candidate is the cost of a real extended directed walk, even when the last directed edge has negative weight. Nonnegative weights are needed by the Dijkstra algorithm to make its selected minimum tentative distance permanent. The Bellman-Ford algorithm permits negative weights and revisits labels; its authored implementation also checks for reachable negative-cost directed cycles.^[ref][ref]

For the all-to-one convention of the Bellman inequalities, relax the same original directed edge $i\to j$ by $d_i\leftarrow \min \{d_i,c_{ij}+d_j\}$. This prepends $i\to j$ to a discovered route from $j$ to $r$, and improves the tail label $d_i$, not the head label $d_j$. Skip the operation when $d_j=\infty$. In exact arithmetic, a full pass over all relevant directed edges with no improvement establishes all their Bellman inequalities; combined with the discovered-route upper bounds, this certifies finite distances. One unsuccessful operation establishes only that this particular candidate did not improve its label at that moment.

An algorithm whose tentative distance labels may be revised repeatedly until all relevant Bellman inequalities hold. Bellman-Ford algorithm uses this approach: a label is an upper bound supplied by a discovered directed path, and relaxing an directed edge can replace it with a shorter discovered directed path. A finite label is not declared permanent merely because it has been processed.

The all-to-one shortest path problem asks for the minimum length $v_i$ of a directed path from every vertex $i$ to the root $n$, with $v_n=0$ and $v_i=\infty$ if no such directed path exists. Positive directed edge lengths allow directed cycles to be deleted, so a shortest directed path, when one exists, uses at most $n-1$ directed edges. Its optimality equations areA Bellman-Ford algorithm initializes $d_n^{(0)}=0$ and other labels to infinity, then repeatskeeping the root label zero. Induction on $k$ proves that $d_i^{(k)}$ is the least length among directed paths using at most $k$ directed edges: either the old best directed path remains, or the first directed edge is followed by a directed path with at most $k-1$ directed edges. Thus $n-1$ rounds give the exact distances. An in-place variant repeatedly relaxes $d_i\leftarrow \min (d_i,c_{ij}+d_j)$; each decreased label triggers further incoming-arc relaxations. It terminates when no finite label can improve. The Bellman inequalities then telescope along each directed path to show the labels are lower bounds on all directed path lengths, while every finite label represents a discovered directed path and is an upper bound on the optimum. This proves correctness. The method is a label-correcting shortest-path algorithm: a processed label can be revised many times. Full scans cost $O(n|A|)$.

Let $d={\min }_{i\ne n}{c}_{in}$ and choose $j$ attaining it. Every directed path from a nonroot vertex to $n$ has a final directed edge costing at least $d$, and all preceding directed edges have positive lengths. Therefore every $v_k\ge d$. The direct directed edge from $j$ to $n$ has length $d$, soIf no incoming root directed edge exists, all these distances are infinite and there is no finite next vertex to settle.

The all-to-one Dijkstra algorithm sets the root's label to zero and all others to infinity. Repeatedly choose an unsettled vertex $j$ with least finite label, make that label permanent, and relax every incoming directed edge $(i,j)$ of an unsettled vertex:Store the corresponding successor $j$ whenever the label improves. Stop when all vertices are settled or every remaining label is infinite. This applies the usual source version to the reversed graph; relaxing outgoing original directed edges would solve the wrong direction of the problem.

For its correctness, inductively assume every settled distance is exact. Any directed path from an unsettled vertex to the root must first enter the settled set at some vertex $w$, through an directed edge $(z,w)$. That directed edge has already been relaxed, so $d_z\le c_{zw}+v_w$. The newly selected label $d_j$ is no greater than $d_z$. The directed path's preceding nonnegative lengths therefore make its total length at least $d_j$. On the other hand, $d_j$ itself is the length of a discovered directed path. Hence $d_j=v_j$, and it can never need correction. This is a label-setting shortest-path algorithm. Straight array selection costs $O(n^2+|A|)$.

For four vertices and root 4, the full symbolic execution is as follows. After settling 4, the tentative labels are $(c_{14},c_{24},c_{34},0)$. Selectset $v_j=c_{j4}$, and update the two other labels to $d_i=\min \{c_{i4},c_{ij}+c_{j4}\}$. Select the smaller of those labels at vertex $k$, set $v_k=d_k$, then for the last vertex $\ell$ setThe stored successors give the corresponding shortest routes; infinity conventions handle missing directed edges and disconnected vertices.

The supplied PDF contains no visible network diagram or directed edge lengths in the space for this example, and the converted TeX omits the diagram as well. Numerical distances and route choices cannot be determined from the supplied data. The symbolic run above gives the exact four-node calculation once those lengths are available; no network has been guessed.

A shortest-path predecessor $\pi (v)$ records the previous vertex on a chosen route from source $s$ to $v$. When edge relaxation strictly improves $d(v)$ through $u\to v$, set $\pi (v)=u$. For a multigraph, store the actual directed edge, since two edges with the same endpoints can have different weights. Initialize all vertices, including the source, without a shortest-path predecessor. The authored implementation reconstructs a route by following these incoming edges backwards, then reversing their order.^[ref]

At the end of the edge relaxation trace, $\pi (t)=a$, $\pi (a)=b$, and $\pi (b)=s$. Following them gives $t,a,b,s$, so the forward directed path is $s\to b\to a\to t$, of cost $2-1+2=3$. This makes the distance useful: a number tells us the best cost, whereas the shortest-path predecessors tell us which connections to take. In the Dijkstra algorithm, reconstruct a destination's shortest route after its label becomes permanent. In a label-correcting shortest-path algorithm, wait for convergence and the appropriate negative-cost directed cycle check. During correction, a predecessor's label may have changed since its child's last update: immediately after $b\to a$ in the trace, the current chain to $t$ costs $3$ although $d(t)$ still records the earlier discovered route of cost $8$.

Strict improvement is a useful guard against directed cycles in the recorded pointers. Consider $s\to a$ and $s\to b$ of cost zero, followed by $a\to b$ and $b\to a$, also of cost zero. After the first two edge relaxations, both labels are zero and both shortest-path predecessors are $s$. If equality also allows pointer replacement, the last two operations can set $\pi (b)=a$ and $\pi (a)=b$: following pointers loops forever despite correct distance labels. Keeping the old pointer on ties prevents this example; choosing among equal-cost routes requires a separate rule that preserves a route to the source. Strict improvement alone does not protect against reachable negative-cost directed cycles, which can force endless decreases. Equality on recorded edges plus the Bellman inequalities certifies route costs only when the pointer chains actually terminate at the source.

For all-to-one distances to $r$, record a next vertex $j$ whenever relaxing $i\to j$ improves $d_i$. Follow these successors forward in the original directed graph to reach $r$. They are shortest-path predecessors when viewed in the reversed directed graph; keeping the direction convention explicit prevents returning a route whose arrows point the wrong way.

A tentative distance $d(v)$ is the cheapest cost so far recorded by a shortest path problem algorithm. For the single-source convention, initialize $d(s)=0$ and $d(v)=\infty$ elsewhere. Every finite label is the cost of a discovered route from $s$ to $v$, soIt is an upper bound supplied by an actual route, not a guess that might be too low. The loop invariant follows directly from edge relaxation: extending a discovered route to $u$ by $u\to v$ supplies another discovered route. The usual label initialization and this safety property are stated and proved in the authored MIT notes.^[ref]

In the trace under edge relaxation, $d(t)=10$ first records the direct directed path $s\to t$. Later $d(t)=8$ records $s\to a\to t$, and finally $d(t)=3$ records $s\to b\to a\to t$. Each label is a usable route cost, but the first two are not shortest. An infinite tentative distance means no route has yet been discovered; only a completed search establishes unreachability. The isolated vertex $z$ in that example remains at $\infty$.

In a directed graph, the discovered route is formally a directed walk, which may repeat vertices; in the pictured acyclic graph it is always a directed path. Negative-cost directed cycles can keep supplying cheaper directed walks without a finite optimum. In the all-to-one convention, the same meaning applies to discovered routes from $i$ to $r$. Do not confuse either version with the lower bounds supplied by feasible potentials in the Bellman inequalities: one records something achievable, the other rules out anything cheaper.
