The zero-field energy levels here are averaged over hyperfine structure; $h$ is the Planck constant. Electron self-energy and vacuum polarization produce radiative corrections. Self-energy describes the bound electron's radiative interaction with its own electromagnetic field. Precision predictions also include nuclear recoil and proton charge radius effects; assigning recoil terms to the reference or Lamb shift is convention-dependent. A finite proton charge radius changes binding independently of radiative effects.^[ref]

A vacuum-electric field “jiggling” picture motivates one contribution, not every hydrogen atom energy correction.

The Lamb shift is a radiative displacement of atomic energy levels beyond the values from the Dirac equation in a Coulomb potential. In hydrogen, the $2S_{1/2}$ and $2P_{1/2}$ levels are degenerate for a point Coulomb potential in the Dirac equation, yet the $2S_{1/2}$ level lies higher by roughly a gigahertz. This is distinct from the fine structure splitting between different $J$ levels and from nuclear-spin hyperfine structure.

Electron self-energy in the quantized electromagnetic field is the dominant contribution to the familiar hydrogen splitting; vacuum polarization contributes too. Renormalization separates the physical electron mass from its divergent free-electron self-energy. A useful leading-log scale for a hydrogenic $nS$ level isnot an exact numerical formula. The enhanced sensitivity of S states follows from their nonzero wavefunction at the nucleus; leading short-distance corrections act like contact perturbations. A precision prediction also includes finite nuclear size and recoil, and must consistently separate those effects from the radiative contribution.^[ref]

The original Lamb-Retherford experiment used a beam of hydrogen atoms, electron-impact excitation into metastable $2S$, and microwave-induced transfer into short-lived $2P$ states. Those atoms decayed before reaching the detector. Metastable atoms surviving to a metal target ejected electrons, so a drop in the measured current signalled a resonance. Varying the microwave excitation and magnetic field established the displacement from the Dirac equation expectation. Microwave quenching converted a small energy difference into a measurable loss of a long-lived population, avoiding optical Doppler widths that obscure the splitting.^[ref]

In the ideal point-nucleus Dirac-Coulomb problem, hydrogen levels depend on $n$ and $j$, so $2S_{1/2}$ and $2P_{1/2}$ are degenerate despite their different orbital angular momenta. The Lamb shift removes this degeneracy: the $2S_{1/2}$ level lies about $h\times 1.06\mathrm{GHz}$ above $2P_{1/2}$, an energy of roughly $4.4\mu \mathrm{eV}$. This is distinct from the much larger $2P_{3/2}-2P_{1/2}$ fine-structure splitting.

quantum electrodynamics changes the electron's interaction with the Coulomb field. electron self-energy and vacuum polarization give state-dependent radiative corrections; a complete prediction also keeps specified recoil and nuclear-size contributions. An $S$ wave samples the nucleus differently from a $P$ wave, so equal $n,j$ no longer ensures equal energy. A leading-log estimate for an $nS$ radiative contribution scales as $\alpha (Z\alpha {)}^4{m}_e{c}^2\ln [(Z\alpha {)}^{-2}]/n^3$, with a numerical prefactor and further state-dependent terms. This is a scale estimate, not a replacement for renormalized bound-state QED. The measurable shift is a difference relative to a specified reference Hamiltonian, rather than an unregulated absolute vacuum energy.^[ref]

The original microwave experiment used a tungsten oven to dissociate hydrogen, an electron beam to populate metastable $2S$ atoms, and electron ejection from a metal target to measure surviving metastable atoms. Microwaves transferred population to rapidly decaying $2P$, reducing detector current. At a fixed microwave frequency, interruption of the radiation and a scan of static magnetic field revealed Zeeman-tuned resonances. Comparing resonance locations with the Dirac-level prediction showed the $S$ level shifted upward. Field calibration and homogeneity, excessive microwave intensity, unresolved hyperfine structure and stray-electric-field quenching limit the measurement; the signal is not direct absorption by a large equilibrium excited population.^[ref]

In Feynman gauge, use the auxiliary photon propagator $-i{g}_{\mu \nu }/(k^2-{\lambda }^2+i0)$ and $r=\lambda /m>0$. The projected one-loop Feynman parameter integral isHere $x$ is the source's photon parameter $z$.^[ref]

To check the reduction, use $N_2=4z(1-z)m^2$ and ${\Delta }^{\prime }=(1-z{)}^2{m}^2+z{\lambda }^2$. The three-parameter expression has prefactor $e^2/(16{\pi }^2)$ multiplying $N_2/{\Delta }^{\prime }$. At fixed $z$, ${\int }_0^{1-z}du=1-z$, giving $e^2/(4{\pi }^2){\int }_0^{1}z(1-z{)}^2/[(1-z{)}^2+z{r}^2]dz$. Substituting $e^2=4\pi \alpha$ gives exactly the displayed integral. This starts from the projected QED numerator; it is not a derivation of the whole QED calculation from an arbitrarily chosen integral.

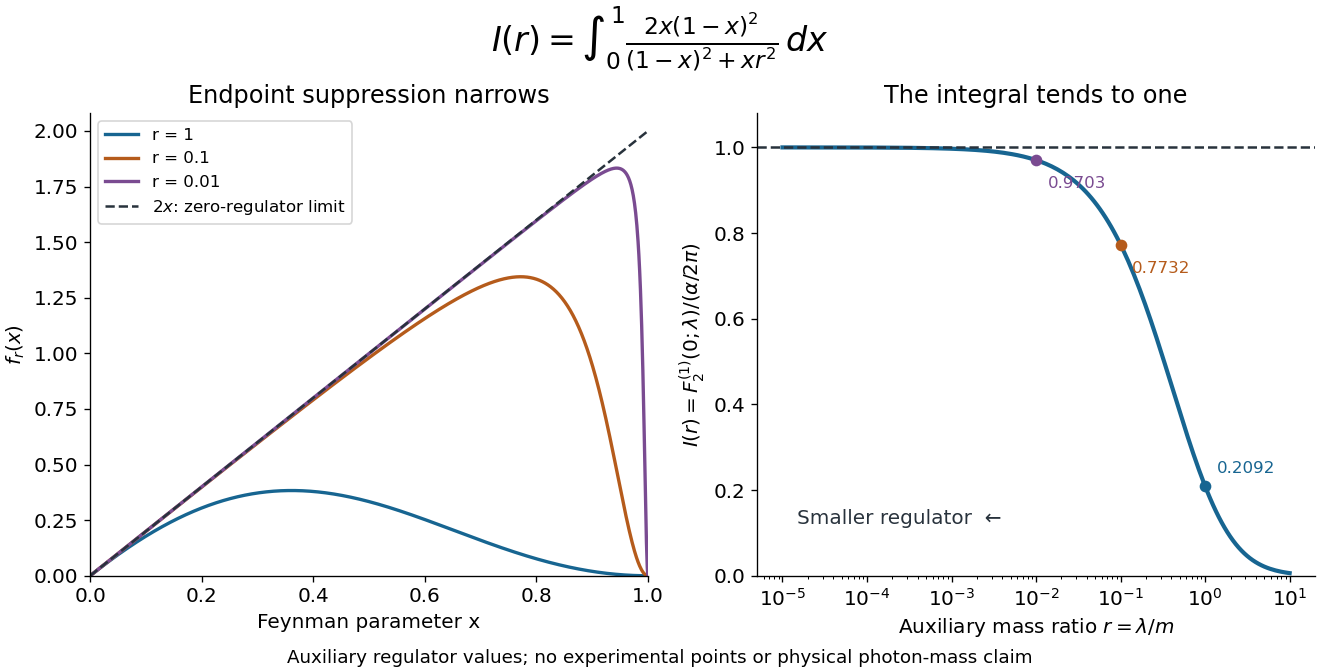

The regulator can then be removed by a short independent argument. Write its integrand as $f_r(x)$. For $0\le x<1$, $f_r(x)\to 2x$, andThe dominated convergence theorem therefore gives $I(r)\to 1$ and $F_2^{(1)}(0)=\alpha /(2\pi )$. At $x=1$ the regulated integrand is zero, whereas the limiting function can be assigned value $2$; one point has zero measure and changes no integral. For every $r>0$, $0<I(r)<1$, and decreasing $r$ increases the integral. The visible suppression near $x=1$ narrows as the regulator shrinks; it is not a uniform pointwise approximation at that endpoint.

This auxiliary mass regulates an infrared divergence, not an ultraviolet divergence; the finite-mass prescription alone is not fully gauge-invariant.^[ref]

The ultraviolet problem belongs to the full QED amplitude. Electron self-energy, wave-function renormalization and the charge vertex require consistent counterterms and renormalization conditions. The Ward identity for QED renormalization constants ties $Z_1$ to $Z_2$, rather than allowing the vertex and external electron normalization to be fitted independently. Minimal renormalizable QED has no independent Pauli term to adjust this finite one-loop $F_2(0)$: its dimension-five coefficient is predicted from the mass and electric charge inputs. Adding a free Pauli term would define a different theory with an extra parameter. Finiteness of the reduced integral alone proves neither all-order renormalizability nor finiteness of every QED observable.
