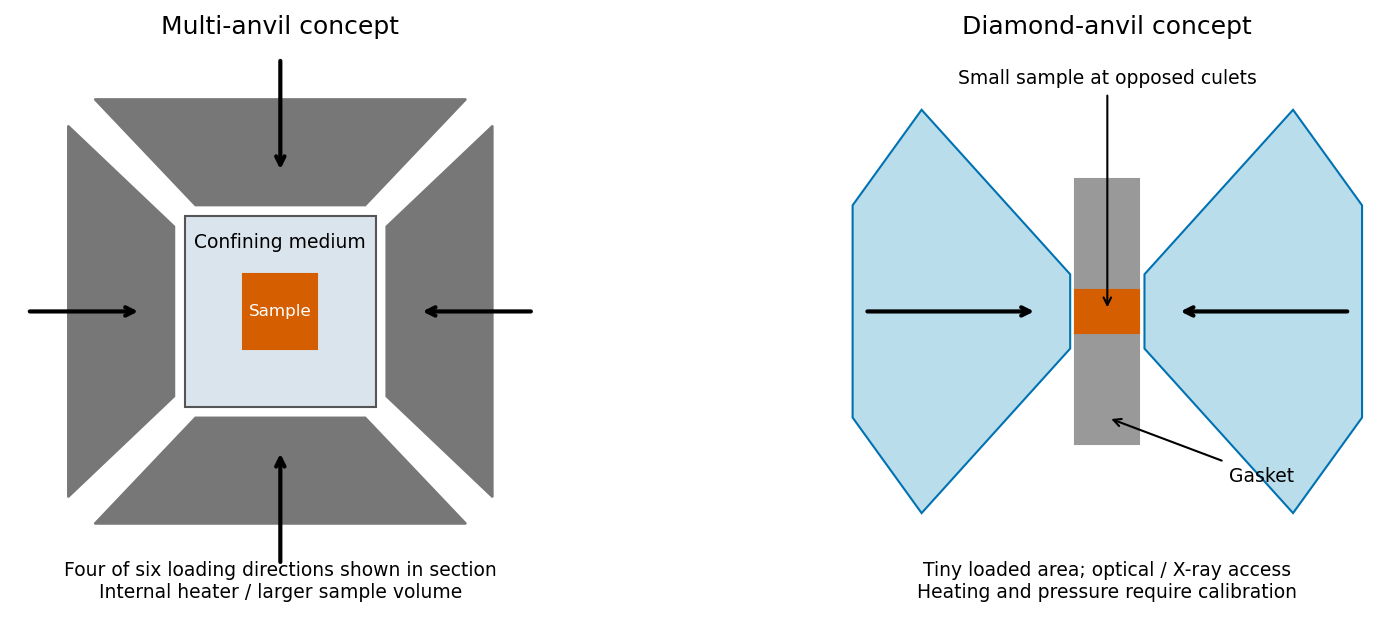

A multi-anvil press transmits a large external load through several hard anvils onto a confined pressure medium surrounding the sample. Reducing the loaded area raises pressure, while the surrounding medium and gasket limit lateral escape. A resistive heater within the assembly can heat the sample, with insulation and temperature sensing arranged around it. It provides relatively large sample volumes and useful bulk, high-temperature experimental conditions, but access to the sample and optical paths is restricted, pressure gradients and calibration matter, and the maximum pressure is constrained by anvil strength and geometry.

A diamond anvil cell squeezes a very small sample and pressure medium in a gasket hole between opposed diamond culets. Diamond combines high strength with useful optical transparency, permitting spectroscopy and optical pressure calibration as well as suitable X-ray access. Heating can be external or laser-based. The very small contact area permits high pressure from a modest total force, but gives a tiny sample volume. Nonhydrostatic stress, pressure gradients, gasket deformation, heating gradients, chemical compatibility and diamond failure are important limitations.

Neither device generates pressure by force alone independent of area and confinement. Nor does a nominal force-to-area ratio guarantee a known hydrostatic sample pressure; experimental pressure and temperature must be calibrated. The two assemblies trade sample volume and access against pressure reach rather than one being universally preferable.

A diamond anvil cell concentrates force onto tiny opposing culets, reaching very high pressure with small samples and useful optical access through diamond; its small volume, pressure gradients, alignment demands and difficulties with some heating or sample environments can limit experiments. A multi-anvil press supports a much larger sample and is useful for high-temperature synthesis and bulk measurements, but usually reaches lower ultimate pressures and has more restricted optical access. Hydrostaticity, attainable temperature and calibration depend on the actual apparatus and pressure medium; neither design guarantees uniform pressure.
