Pressure measures the compressive normal force per unit surface area. For a uniformly loaded surface of surface area , the magnitude of the perpendicular force is ; locally, . Its SI unit is the pascal, . A force parallel to the surface contributes shear stress, rather than pressure. In a gas, the steady macroscopic force comes from many microscopic transfers of momentum; ideal gas pressure from wall collisions makes this connection explicit. [ref]
https://openstax.org/books/university-physics-volume-2/pages/2-2-pressure-temperature-and-rms-speed. OpenStax University Physics Volume 2, section 2.2: microscopic origin of pressure
For a computed example, a uniform pressure of on a piston of surface area produces a perpendicular force of . If the opposite face is exposed to , the net force due to the two pressures is , directed toward the lower-pressure side. The pressure on either face and their difference answer different questions; gauge pressure records a difference from a specified reference, often atmospheric pressure.
A scalar pressure describes a gas in local thermodynamic equilibrium with isotropic random particle velocities: every wall orientation has the same normal force per unit surface area. Without this isotropy, normal stresses can depend on direction and a pressure tensor is needed. Thus random motion alone is insufficient; a preferred direction matters.
In thermodynamics, pressure and volume are thermodynamic conjugate variables. For a simple compressible system, reversible expansion delivers work , and at fixed entropy and particle number ,where is internal energy. A large pressure therefore means both a large wall force per unit surface area and a large amount of expansion work per small increase in volume.
Surface pressure, in fluid-mechanical loading, is the local pressure evaluated at a boundary such as an airfoil surface. It is a scalar field over position and time, with units of pascals. The field can vary strongly along the same body even when the surrounding free-stream conditions are fixed.
For a small surface patch with outward unit normal vector pointing from the solid into the fluid, the pressure contribution to the force isIt acts normally to the surface. Tangential viscous stress is a separate contribution. Experiments commonly compare the boundary value with a reference pressure using the pressure coefficientwhere is dynamic pressure. A coefficient is dimensionless; reconstructing the pressure difference requires the reference conditions.
For an original patch example, let , and . Then . On a patch, absolute pressure gives an inward force of ; relative to the reference pressure, the pressure-force contribution differs by outward. A negative coefficient therefore describes a reference-relative deficit, not a negative absolute pressure.
A primary wind tunnel experiment by Robert M. Pinkerton used 54 pressure orifices in a NACA4412 model and compared measured distributions at different angles of attack with potential flow predictions. Such pressure tapping observes local boundary pressures through small openings; the distribution is reconstructed from measurements at selected positions.[ref]
Calculated and Measured Pressure Distributions over the Midspan Section of the NACA 4412 Airfoil by Robert M. Pinkerton. NACA-TR-563, NTRS abstract: 54 orifices, tested incidence range and comparison with calculations
Spatial resolution of surface-pressure measurements limits what that reconstruction can establish between taps. Reference pressure, probe response and flow unsteadiness also affect the result. Surface pressure integration for airfoil lift uses the reconstructed field and surface directions to obtain an overall force; one pressure reading alone does not determine lift.
Spatial resolution of surface-pressure measurements describes which spatial variations of surface pressure can be distinguished by the measurement arrangement. Tap spacing, opening size and the reconstruction model matter separately from uncertainty in each measured pressure. Repeatedly measuring the same taps more precisely does not supply the missing values between them.
A primary wind tunnel experiment by Robert M. Pinkerton sampled a NACA4412 airfoil with 54 pressure orifices and compared measured distributions with theoretical calculations.[ref]
Calculated and Measured Pressure Distributions over the Midspan Section of the NACA 4412 Airfoil by Robert M. Pinkerton. NACA-TR-563, NTRS abstract: pressure-orifice apparatus and distribution comparison
The observations constrain pressures at the instrumented sites. Interpolation and surface pressure integration for airfoil lift require assumptions about the field between those sites.An original sampling counterexample makes the limitation exact. On a chordwise coordinate , place five taps at . Compare two candidate pressure differences,Both give zero at every tap, butAt and chord , the integrals differ by in a simplified force-per-span calculation on a flat strip. The geometry and candidate fields are constructed examples, not solutions for a measured airfoil. They prove that these five readings alone do not determine an arbitrary continuous field or its integral.
This is spatial aliasing: distinct fields produce the same samples. Additional smoothness or spatial-bandwidth assumptions can constrain reconstruction, but must be stated and tested. The pressure-tap spatial footprint adds another consideration: a finite opening can respond differently from an ideal point measurement. Increasing sampling density, characterizing the probe and checking an independent integrated force address different parts of the inference.
A pressure-tap spatial footprint describes the finite region of a surface pressure field that contributes to a tap's response, rather than treating the reading as an exact point value. A pressure-footprint response kernel can represent spatial averaging in a simplified linear model. A real opening can also disturb the flow, so averaging is not a complete physical correction model.
For an ideal one-dimensional strip of width , suppose the reading at isFor a smooth field, a Taylor expansion gives . Symmetry cancels the first-order gradient term, but not curvature. For an exactly quadratic field this expression through is exact. It shows why a footprint cannot in general be summarized by a displaced point location.
If , direct integration instead givesThe multiplier is a sinc function. For wavelength , a half-wavelength strip retains of the amplitude, while a full-wavelength strip gives zero. These results concern an ideal strip spatial averaging filter, not an asserted weighting law for a circular pressure hole.
An actual wind tunnel experiment by E. B. Plentovich and Blair B. Gloss used interchangeable orifices in a flat plate. Increasing opening size increased the observed pressure error; a flush porous-metal plug reduced it under the tested conditions.[ref]
Orifice-Induced Pressure Error Studies in Langley 7- by 10-Foot High-Speed Tunnel by E. B. Plentovich and Blair B. Gloss. NASA-TP-2545, Summary and printed pp. 3–4: model, interchangeable orifices and apparatus
This is direct evidence that opening geometry affects the measurement, including through local flow disturbance.Footprint characterization and tap spacing address separate limitations. Closely spaced readings from broad footprints may still suppress short spatial variations, while narrow footprints sampled too sparsely can suffer spatial aliasing. Neither problem is removed merely by improving the precision of the pressure transducer.
A pressure difference compares the pressures at two stated locations or against two reference states. With , a positive value means location one has higher pressure. A membrane or piston with equal effective face areas experiences a net pressure force of magnitude , even if both absolute pressures are large.
For example, pressures and across give a net pressure force of . A liquid-column manometer converts a pressure difference to a vertical level difference through hydrostatic pressure, while a differential pressure transducer senses it directly. Comparing ports at different heights requires accounting for the fluid between them. During flow, the relation between pressure difference and volumetric flow rate also depends on geometry, viscosity and other contributions to the energy balance.
An instrument measuring atmospheric pressure. A mercury barometer compares the hydrostatic pressure of a measured mercury column with the pressure above it. Its equation is , with the vertical separation of the liquid levels.
A mercury barometer measures atmospheric pressure by balancing it against a vertical Mercury column. A tube closed at its upper end connects below to a mercury reservoir open to the atmosphere. If the gas pressure above the column is , hydrostatic equilibrium gives , where is the vertical separation of the two mercury surfaces.
The height measures a pressure difference; interpreting it requires the actual mercury mass density and local gravitational acceleration. Residual gas above the column, capillarity and temperature-dependent scale length can shift the reading.[ref]
Mercury Barometers and Manometers by W. G. Brombacher and others. §3.1, principle of measurement; §§6.4 and 7, vacuum and error sources
The mercury-barometer temperature correction treats density and scale expansion explicitly. Distinguishing the two liquid levels is essential: an upper-surface position alone is not always the full column height.A measured mercury column represents pressure through its actual mass density and local gravitational acceleration. An equivalent reference column therefore obeys . If the indicated scale length expands as and mercury volume as , the first-order thermal factor multiplying the scale reading is . These factors describe a pressure-unit reduction, not a physical change in local gravity.[ref]
Mercury Barometers and Manometers by W. G. Brombacher and others. §§9–10 and equation45
A mercury barometer with its lower end in a reservoir exposed to atmospheric pressure. A fixed-cistern scale must allow for the changing reservoir level, while an adjustable cistern can restore a fixed lower reference before each reading.
An adjustable-cistern barometer associated with Jean Nicolas Fortin. Restoring the cistern surface to a fixed index makes the lower mercury level reproducible before the upper level is read.[ref]
A fixed-cistern barometer is a mercury barometer whose reservoir geometry is left fixed during a reading. As mercury rises in the narrow tube, it is withdrawn from the reservoir and the reservoir level falls. The measured column-height change consequently exceeds the upper-surface displacement relative to the instrument frame.[ref]
For constant tube and reservoir areas and , conservation of mercury volume gives a reservoir drop when the tube surface rises by . Thus in this ideal geometry. A calibrated scale can incorporate that ratio; temperature changes require additional corrections. A Fortin barometer instead restores the lower surface to a fixed index before reading, illustrating two ways of controlling the same reference-level problem.
A pressure increment applied to a confined fluid in equilibrium is transmitted throughout it. The pressure increment is a scalar, not a force vector copied in one direction. Comparing different heights also requires the hydrostatic pressure difference. Finite-speed pressure wave propagation precedes the new equilibrium.
Two connected pistons apply Pascal's law to convert force and displacement. For an ideal incompressible fluid, and , hence : output force gain is not an energy gain.
A pressure unit defined by . In a logarithmic gas thermodynamic activity, a pressure expressed in bars must still be divided by the same-unit reference pressure to form a dimensionless ratio.
Pressure work is mechanical work transferred by pressure forces acting through a moving boundary. For a piston of area moving through , and the opposing applied force is . The work done by the fluid is thereforeThe familiar uses the system pressure when it equals the applied boundary pressure, as in a reversible mechanical step. In a free expansion into vacuum, and the boundary work vanishes even if the gas initially has nonzero internal pressure.
In steady incompressible flow, the Bernoulli equation contains as flow work per unit mass. This accounts for pressure forces at a control volume's entrances and exits; it is not an independently conserved internal energy of an isolated parcel. The first law of thermodynamics keeps the complete work and energy balance.
The resultant of distributed surface pressure; in a fluid its force per unit volume is . A spherical shell in hydrostatic equilibrium balances this against its gravitational weight.
A high-pressure apparatus in which several anvils compress a relatively large specimen. Compared with a diamond anvil cell, it typically offers greater sample volume for synthesis and bulk measurements, with less optical access and a lower ultimate pressure range.
A pressure sensor converts a pressure into a recorded signal. An absolute pressure sensor uses a vacuum reference; a gauge pressure sensor uses a specified reference pressure. A closed gas syringe and an absolute pressure sensor can test Boyle's law after allowing the temperature to stabilize.
Atmospheric pressure often provides the reference for a gauge pressure measurement: . The absolute pressure is measured relative to an ideal vacuum, whereas zero gauge pressure means equality to the chosen reference. The actual atmospheric pressure can vary; it must be specified when converting between these descriptions. [ref]
University Physics Volume 1 by William Moebs and others. OpenStax: atmospheric, gauge and absolute pressure
.Dividing a pressure disturbance by the constant reference mass density gives a quantity whose gradient enters the Boussinesq equations directly as an acceleration. Its units are squared velocity. Distinguish this convention from physical pressure when calculating energy flux or comparing wave polarization formulae.
In the local rest frame of a gas, the pressure tensor is the directional momentum flux , where is the phase-space distribution function per unit momentum volume and is particle velocity. For an isotropic distribution, , recovering the kinetic pressure of an isotropic gas. An anisotropic distribution can exert different normal pressures along different directions.
For a central differentiable pair potential, an exact local representation of the interaction momentum flux isHere is the two-particle number density. The line integral assigns each pair's exchanged momentum along the segment joining the particles. Translating both endpoints gives . Integrating over and using pair-exchange symmetry proves that is the interaction force density. Its homogeneous isotropic specialization gives the interaction part of the virial pressure from pair correlations. The kinetic pressure tensor accounts separately for random particle motion.
Directional dependence of particle pressure. In a gyrotropic plasma, only parallel plasma pressure and perpendicular plasma pressure are independent. Their difference changes the effective magnetic tension and can drive firehose instability or mirror instability.
In Gaussian units, the gyrotropic pressure tensor adds directional stress to the magnetic tension. A transverse displacement of a uniform magnetic field obeys . Positive gives a restoring force; negative gives the fluid firehose instability. This follows by combining with the divergence of the Maxwell stress tensor. In SI replace by .
A compressive kinetic plasma instability generally driven by sufficiently large perpendicular plasma pressure relative to parallel plasma pressure. Perturbed field-strength minima trap particles and alter perpendicular pressure-balanced plasma perturbation. Its threshold depends on species distributions and plasma beta; isotropic equilibrium alone does not imply this instability.
Parallel particle pressure can overcome magnetic tension. In the long-wavelength gyrotropic plasma limit, the Alfvén wave has , so the condition in the title makes it unstable. The detailed kinetic threshold at shorter scales requires additional physics.
The normal stress along the local magnetic field, evaluated using the random parallel velocity. At zero equilibrium mean flow, its linear perturbation is obtained from together with the perturbation of the velocity-space measure.
The equal normal stresses in the two directions perpendicular to the local magnetic field for a gyrotropic phase-space distribution function. The factor one half averages the two perpendicular velocity components. With first adiabatic invariant , the integrand is .
Gas pressure is the mechanical pressure contributed by material particles. For a classical ideal gas, .
Radiation pressure is the normal momentum flux transferred by electromagnetic radiation to a surface. A photon travelling in vacuum carries momentum , where is its energy, its frequency, the Planck constant and the speed of light. Photon absorption transfers that momentum; specular reflection reverses its normal component. This lets light exert a force even when almost no energy becomes heat in the receiver.

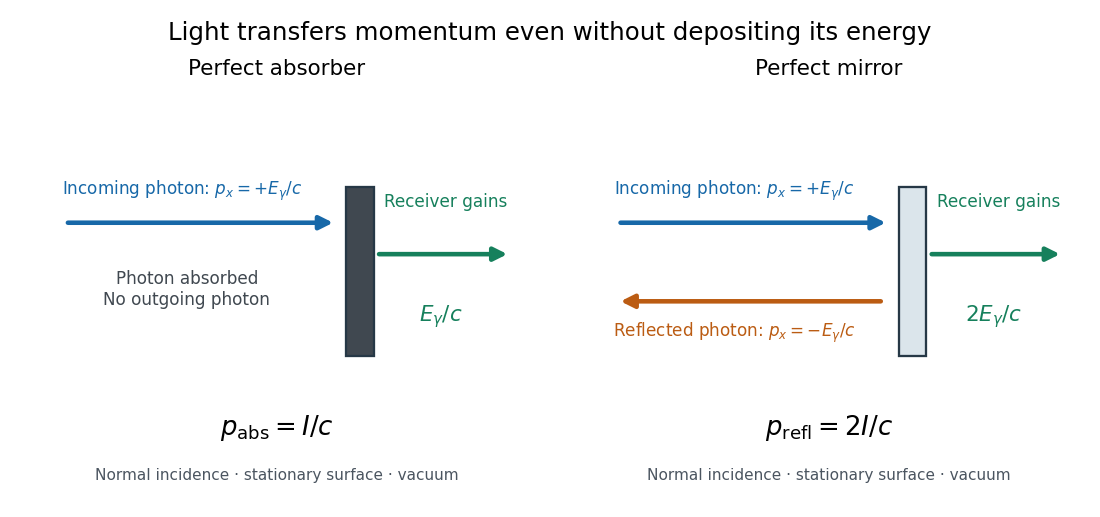

Two useful formulas describe different preparations. A directed beam normally incident on a stationary perfect absorber gives pressure , and on a stationary perfect mirror gives . Here is light intensity, the incident power per beam cross-sectional area perpendicular to propagation, in . An isotropic photon gas has pressure , where is its radiation internal energy per volume, in . Stored energy density and travelling energy flux must be distinguished: an isotropic field can have zero net energy flux and positive radiation pressure.
The physical appeal is that the same momentum conservation connects a single photon collision, a mirror's measurable force, and a radiation-filled cavity's equation of state. The directional calculation below complements radiation pressure on a perfectly absorbing surface; the equilibrium spectrum and its temperature dependence belong to blackbody radiation and the photon gas.
An ideal receding mirror reflecting a source beam of constant power receives force after including both Doppler-shifted reflected momentum and reduced impact rate. For fixed rest mass , use in the momentum equation. It reduces to , where . Starting from rest gives . This continuum mirror model neglects individual-photon recoil and finite beam interception.
For normal incidence in vacuum, a uniform beam delivers energy to an illuminated surface area during time . A perfect absorber receives momentum , so force divided by surface area gives . A perfect stationary mirror sends the photons back with reversed momentum, so momentum conservation gives twice the normal transfer, . These are time-averaged pressures; the microscopic arrivals need not be uniform.
For a stipulated model light intensity and the exact SI speed of light ,These are computed predictions, not measured data or a universal sunlight value. If the beam fully covers a normally oriented surface area , the intercepted radiant flux is and the absorber's force is . Using the total source power would be wrong if only part of its beam reaches the receiver. The absorption prediction assumes complete photon absorption, while the reflection prediction assumes complete specular reflection; transmission, scattering of light and directed thermal photon emission require their own outgoing momentum accounting.
Measure the angle of incidence between the incoming path and the surface's normal line, with . There are two separate cosine factors. A fixed actual surface area intercepts only its projected area , so . Each incoming photon supplies normal momentum on absorption, or twice that on specular reflection. Thus, for radiometric absorptance and reflected power fraction ,This model assumes transmitted light continues straight in the same medium and carries away its original momentum. It omits thermal recoil and assumes a stationary receiver. At , fixed beam light intensity therefore gives one quarter of the normal-incidence pressure. For fixed intercepted radiant flux , however, the normal force has only one cosine factor. Equivalently, if the given quantity is receiving-surface irradiance , then . The distinction matters when interpreting an experiment's angle scan. [ref]
Use of radiation pressure for measurement of high-power laser emission by Paul A. Williams and others. Williams and collaborators, Use of radiation pressure for measurement of high-power laser emission, equation (1): force expressed using intercepted optical power and the incidence-angle cosine
Absorption also transfers a tangential momentum component at oblique incidence. It contributes a tangential force, rather than normal pressure. Ideal specular reflection preserves the tangential momentum component, so it transfers only normal momentum.

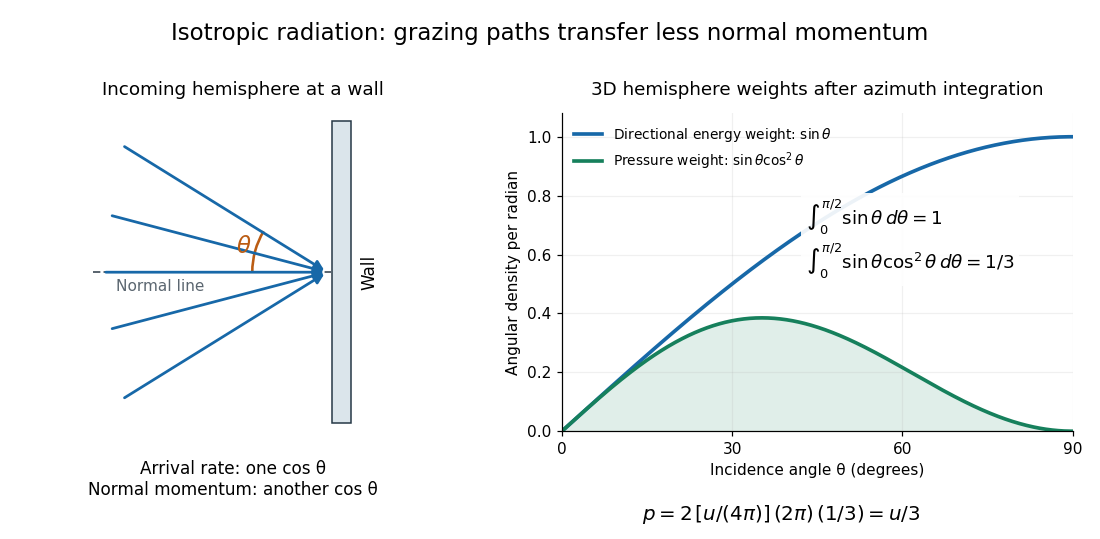

For radiation in vacuum with isotropy, energy is distributed equally per solid angle: write for energy density per unit solid angle. Let be the angle between a ray's path and the wall normal. Its normal velocity determines the arrival rate, while normal momentum per energy is . Their product is . For a perfectly reflecting cavity wall,The leading two is the normal momentum reversal; the incoming hemisphere contains half of the field's directional energy density. This is also the normal component of the bulk pressure tensor, . Isotropy makes all three diagonal components equal, while their sum is because the squared direction components sum to one. The factor one third therefore depends on three-dimensional angular geometry, not on the shape of the blackbody radiation spectrum.
A perfectly absorbing wall exposed to this incoming hemisphere receives only from absorption. If it is in thermal equilibrium with the isotropic radiation, its outgoing emission supplies another of recoil, recovering . A cold absorber before equilibrium is a different boundary condition. Similarly, the one-way incident energy flux is , whereas the net energy flux across a plane in the undisturbed isotropic field is zero. Dividing by misses the extra normal-momentum projection and does not give the cavity pressure.
For a stipulated isotropic radiation energy density , the bulk pressure is regardless of its spectral shape. In thermal equilibrium, blackbody radiation supplies with radiation constant , so ; Stefan–Boltzmann law defines . The equilibrium photon gas derives this same equation of state from its free energy.[ref]
A 2013 experiment by Paul A. Williams and collaborators mounted a 25-mm dielectric mirror on a commercial force-restoration balance. Removing its pan-weight compensation spring allowed horizontal force sensing with a horizontal laser path. They measured mirror optical reflectance and varied incidence from about to . A 1071-nm laser, capable of 530 W, was switched at 0.1 Hz. Digitized mass-equivalent readings were converted to force using ; quadrature demodulation isolated the switched signal from drift. [ref]
Measurement calibration used a 20-g mass, with checks down to 1 mg. The optical forces lay below that checked range, limiting the accuracy claim. An angle scan tested the predicted cosine dependence at fixed intercepted power. Replacing the mirror with a carbon nanotube coated absorber increased absorbed power while reducing the predicted optical force; no modulation peak was detected. This bounded gas-heating artifacts under those conditions, rather than proving their universal absence. The fitted slope was about 7% below . Inferring laser power requires calibrated force, optical reflectance, radiometric absorptance and angle of incidence, with measurement uncertainty for each. [ref]
An equation of state relates thermodynamic state variables. The ideal gas law, , gives a simple example: specifying temperature, particle number and volume determines the equilibrium pressure within that model. A fluid momentum equation needs such thermodynamic information to connect compression with pressure response.
One pressure relation does not generally determine every thermal property. An ideal gas's internal energy still depends on its available molecular degrees of freedom; the pressure law alone does not supply its heat capacity. Likewise, the Van der Waals equation requires a compatible thermal description when predicting temperature changes or heat transfer.
An equation of state describes allowed equilibrium states, whereas a particular heating or compression protocol specifies a path among them. Keeping those roles separate prevents treating every process relation as a universal material law.
The compressibility factor is the ratio , where is number density. A classical ideal gas has . The virial expansion writes for a dilute gas; this dimensionless ratio is distinct from isothermal compressibility, which is a response derivative with units of inverse pressure.
A perfect fluid in general relativity stellar model in which pressure depends only on energy density, . A positive derivative makes this relation locally invertible and turns outward-decreasing pressure into outward-decreasing density. This general relation need not have the constant ratio used for a constant cosmological fluid parameter.
A Clausius gas with covolume parameter obeys . It is the repulsive-volume part of a Van der Waals equation without the attractive term.
The Van der Waals equation is a simple real gas equation of state that can also describe a liquid-gas critical point. With particle count fixed, write the volume per particle as :or equivalently . Here is pressure, is absolute temperature, and is the Boltzmann constant. In SI, and have units per particle, has units , and has units ; the particle count is dimensionless. The pole at excludes smaller volume values from this model.
The correction represents excluded volume; the attraction term lowers pressure at fixed temperature and particle number density . This is a mean-field theory, replacing detailed intermolecular structure by two parameters. At with , it approaches the ideal gas law . It supplies a useful qualitative route from a dilute gas to phase coexistence, without a claim of quantitative accuracy for every fluid.[ref]
Van der Waals Gas. opening explanation and equation 6.156: excluded volume and attractive pressure correction; Fitzpatrick uses molar volume
Do not mix this particle convention with the molar volume convention elsewhere in this article. With amount of substance , Avogadro constant , and molar gas constant , one has , , and , so . The molar parameters have units and , respectively.
Johannes Diderik van der Waals introduced this equation of state in 1873, connecting molecular attraction with departures from the dilute ideal gas law. Its historical significance is the unified treatment of gases and liquids, rather than a universally exact fit.[ref]
Johannes Diderik van der Waals, Facts by Nobel Prize Outreach. Nobel Prize Outreach, Johannes Diderik van der Waals, Work: equation introduced in 1873 and molecular attraction
A mean-field fluid model with excluded-volume and attractive-interaction parameters, described by the Van der Waals equation. Its pressure law alone does not fix every thermal property: the caloric closure of the van der Waals equation supplies the additional internal-energy assumption.
For the one-mole Van der Waals equation with constant parameters, integrate along an isotherm to obtain the displayed difference. The attractive contribution has a positive change on expansion, whereas the translational term lowers free energy. Thermodynamic consistency independently gives and . These homogeneous-branch expressions are not a substitute for equilibrium convexification through a subcritical coexistence region.
The thermodynamic identity fixes the volume-dependent term but leaves an arbitrary function of temperature. Classical monatomic mean-field modelling adds , giving .
For fixed amount of substance, thermodynamic consistency givesIndeed, the first law of thermodynamics gives , and the Helmholtz free energy Maxwell relation gives . For the fixed-amount convention with temperature-independent , substitution gives . Integration yields . If the dilute-limit reference is as for every , then .
The same formula may be interpreted molarly if all use that convention. Mixing molar and total quantities changes the amount factors. The attraction controls the volume correction to internal energy, while excluded volume alone does not contribute to this derivative when are independent of temperature.
For one mole with temperature-independent parameters , the equation of state is . A Maxwell relation gives , so the volume dependence is . Matching the ideal gas entropy at infinite volume fixes the excess at the same to . The attraction contributes to the Helmholtz free energy but no excess entropy when is independent of temperature. A temperature-dependent attraction parameter would change this conclusion.
The molar volume is the volume per amount of substance, not the total container volume or the volume per particle. In the molar convention of the Van der Waals equation, take constant positive parametersThenor, for any fixed amount of substance,Both terms in the first equation are pressures. The total excluded volume is : using would subtract quantities with different units. Changing the sample size at fixed molar volume and temperature changes and proportionally, while leaving pressure unchanged. This is a useful unit and extensivity check before fitting a real gas.
For the molar Van der Waals critical point, differentiate with respect to molar volume at fixed temperature:Setting both to zero gives and . Equating them and dividing by the nonzero factors yields , soHere has units , has units , and has units . This is the molar version of the particle derivation below: , with the same physical and . If one writes , and without subscripts, then all of in those formulas must be molar quantities.
Now define the dimensionless reduced variables explicitly as , and . Substituting the three critical values cancels and givesBecause , these are exactly the reduced variables in the Van der Waals isotherm discussion. The Van der Waals law of corresponding states is therefore independent of whether one starts with particle or molar units. It predicts a critical ratio , providing a third check on any proposed parameter fit.
Choose a hypothetical fluid with molar constants and , using . These stipulated constants are not a fit to carbon dioxide. The molar critical formulas giveAt and , first convert to . The repulsive-volume term and attractive correction areso . The ideal gas law would instead give . The excluded volume raises pressure relative to that ideal value, but attraction more than offsets the increase here. Neither correction alone describes this example.
For , the same state occupies . The total-volume formula gives and the same . Halving the sample has halved both its physical volume and its excluded volume, while retaining its pressure. Conversely, if the two critical measurements are used to determine model constants, inversion givesAn independent critical molar volume then tests the prediction ; agreement with two fitted numbers does not ensure agreement with the third.
At , the Van der Waals liquid-gas coexistence example below becomes , , and . For a mean molar volume of , the lever rule gives gas mole fraction . Its volume fraction is instead : less than one quarter of the molecules occupy more than half the volume. The flat equilibrium pressure corresponds to changing these proportions. It does not describe a homogeneous sample sliding along the unstable loop.
The Van der Waals equation becomes independent of its material parameters when pressure, temperature and molecular volume are divided by their critical values: . This explains the common reduced isotherms within this model, without claiming exact agreement for all real fluids.

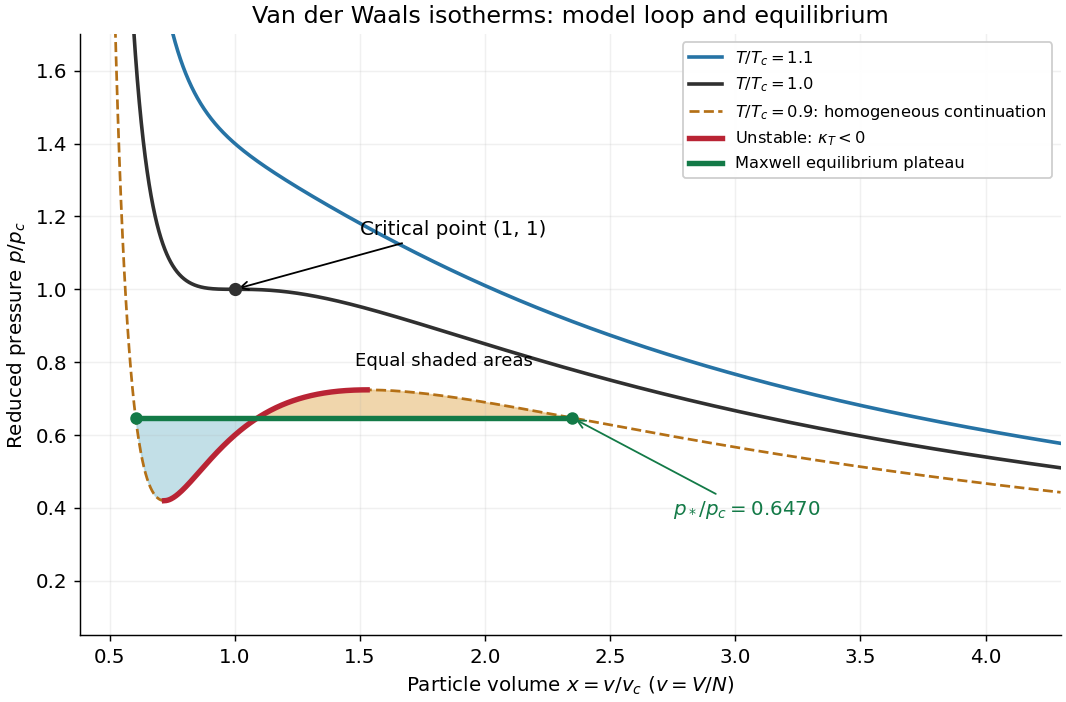

A Van der Waals isotherm is the pressure–particle volume curve at a fixed temperature. Put , , and , using the Van der Waals critical point values below. Then the existing Van der Waals law of corresponding states becomesAll curves in the figure are calculations in this reduced model.
Van der Waals isotherms below, at and above the Van der Waals critical point
. The dashed subcritical homogeneous continuation contains an unstable red segment. The green Maxwell construction plateau describes equilibrium phase coexistence; the two shaded areas are equal. Curves are model calculations, not carbon dioxide measurements. Details.For a uniform thermodynamic phase, the isothermal compressibility isThus the upward-sloping portion of a subcritical Van der Waals isotherm has : compression would reduce pressure, allowing a density disturbance to grow. It is mechanically unstable. The spinodal points bound that portion; setting the derivative to zero gives their curve . Negative slope alone guarantees only local mechanical stability: portions between the spinodal and the phase coexistence endpoints have metastability. Equilibrium replaces the entire interval between those endpoints, including these metastable portions, by a Maxwell construction plateau.[ref]
Statistical Physics by David Tong. §5.1, equation 5.3 and §5.1.1, Maxwell Construction and Meta-Stable States: unstable middle branch and coexistence versus spinodal

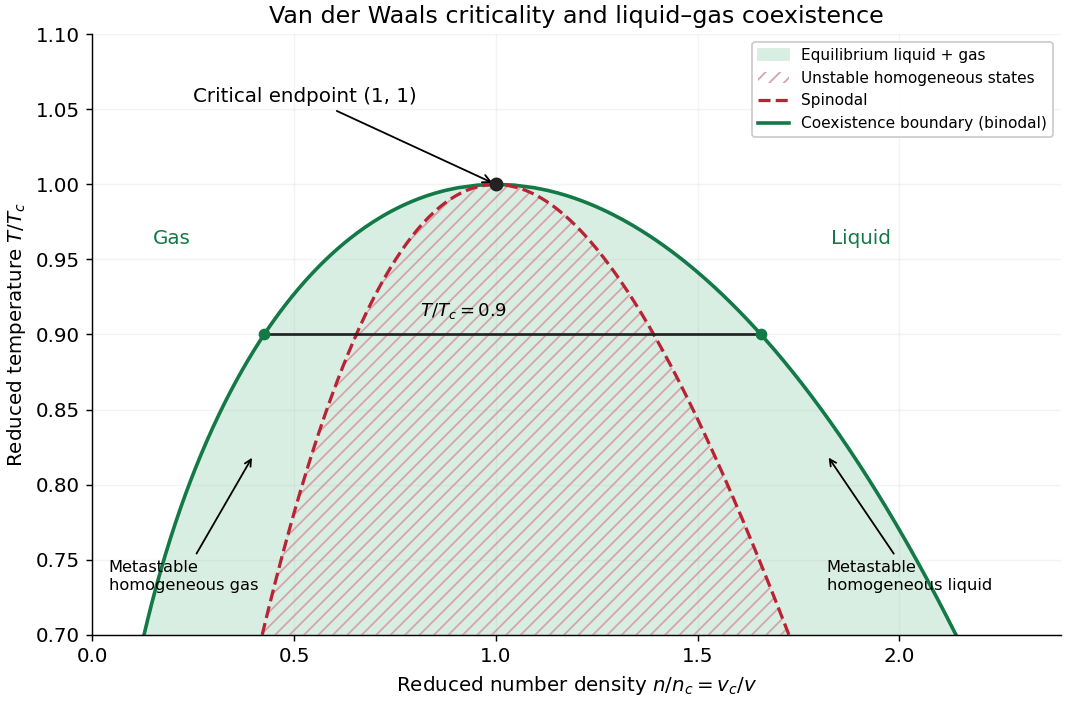

The liquid-gas critical point of the Van der Waals equation occurs where its two subcritical stationary points merge into a horizontal inflection point. The conditions are . The short calculation isDividing these relations gives , henceSubstitution gives the Van der Waals law of corresponding states and the parameter-independent ratio . That ratio belongs to this equation of state; reducing a real fluid's variables does not enforce it.[ref]
Statistical Physics by David Tong. §5.1.3, equations 5.7–5.8: critical values, reduced equation and compressibility ratio
An exact rearrangement of the reduced critical Van der Waals isotherm makes its flatness visible:The first nonzero departure near is . On the critical particle volume approached from , andThe divergent isothermal compressibility and cubic flattening explain why the critical region is mechanically soft. These are mean-field theory predictions; thermal fluctuations limit their use for real fluids very close to a thermodynamic critical point.
For molar equation , the critical values are and . At , . Thus on the stable branch above . The mean-field compressibility exponent is one; the continuation below the critical temperature is unstable rather than an equilibrium negative compressibility.
Below , the equilibrium liquid and gas have the same temperature, pressure , and per-particle chemical potential. For macroscopic bulk thermodynamic phases, neglect interface contributions. The Maxwell equal-area construction determines and byIt expresses equality of chemical potentials, since at fixed temperature. Equivalently, the equilibrium Helmholtz free energy per particle follows a common tangent line between the two endpoint states, lying below the homogeneous continuation between them. The construction uses that mathematical continuation to compare endpoints; it is not a physical compression path through negative isothermal compressibility states.[ref]
Statistical Physics by David Tong. §5.1.1, equation 5.5, Maxwell Construction and figures 36–37: chemical-potential equality and flat coexistence intervals
Here is a reproducible calculated example at . With , the homogeneous intersections solve the cubic equationThe Maxwell construction givesAll three roots of a polynomial satisfy . Only the smallest and largest are the phase coexistence endpoints; the middle one has negative isothermal compressibility. Equal pressures at three admissible values of volume therefore do not imply three stable thermodynamic phases. An analytic area check isAt full numerical precision, the residual is below in reduced units; independent numerical integration gives the same cancellation. At , the spinodal points are instead and .
The equilibrium plateau changes the phase fraction rather than the endpoint densities. For a gas particle fraction and mean particle volume , the lever rule readsThus at gives : this is a particle fraction, not the volume fraction occupied by gas. Differentiating equality of chemical potentials along this model's phase coexistence curve yields the same Clapeyron equation explained below, , with latent heat per particle. Both endpoint differences vanish as the Van der Waals critical point is approached; the equation's critical limit must be taken as a ratio.
The Maxwell construction presumes a pure bulk fluid at thermodynamic equilibrium. Its endpoint equality does not specify how rapidly a real compression reaches equilibrium. A homogeneous metastable sample can persist while nucleation is delayed; the spinodal marks loss of local mechanical stability in this mean-field theory, rather than the equilibrium onset of condensation. Surface tension, finite sample size and impurities can affect the observed transition. These qualifications matter when comparing a mathematical Van der Waals isotherm with a visible liquid meniscus.
For one mole, liquid–vapour phase coexistence requires equal pressure and chemical potential. At , the saturation pressure is exponentially small. Neglecting it in the dense-phase equation of state gives . The root near the excluded volume isThis is an asymptotic low-temperature result, not an exact coexistence volume at every subcritical temperature. Away from that limit, solve equal pressure together with the Maxwell equal-area construction.
The 1869 The Bakerian Lecture: On the Continuity of the Gaseous and Liquid States of Matter by Thomas Andrews describes dried carbon dioxide trapped above mercury in a sealed capillary tube. A steel screw pressurized water in a strong copper tube; movable mercury transmitted the load. A second capillary tube held air as a pressure gauge. Flowing water around the visible capillary tubes controlled temperature; a thermometer read the bath. A cathetometer read column positions, converted to volume readings using weighed-mercury calibration.[ref]
The Bakerian Lecture: On the Continuity of the Gaseous and Liquid States of Matter by Thomas Andrews. Andrews, pp. 576–578 and Plate LXIII, figures 3 and 5–7: sample preparation, screw, coupled capillaries, water jackets and optical readout
Below the critical temperature, compression produced a visible liquid–gas boundary; above it, large density changes occurred without that boundary. Three trials gave as his critical temperature. Purity checks detected residual air; mercury height corrections accounted for unequal hydrostatic pressures. He explicitly left air nonideality and pressure-induced tube-capacity corrections unresolved, so his air-gauge pressures were approximate. These readouts support a liquid-gas critical point; they do not measure a homogeneous unstable loop or establish universal quantitative accuracy of the later Van der Waals equation.[ref]
The Bakerian Lecture: On the Continuity of the Gaseous and Liquid States of Matter by Thomas Andrews. Andrews, pp. 576, 578–580 and 583: residual air, approximate air-gauge pressure, hydrostatic corrections and three critical-temperature trials
Andrews's carbon dioxide experiment: control, readout and the liquid-gas critical point
. Original functional schematic, not a scale reconstruction. The water circuit transmits compression through mercury to two samples; separate temperature jackets permit control of the sample and air gauge. The right panels distinguish a visible liquid–gas liquid meniscus from a single thermodynamic phase. Interpret alongside the experimental limitations above. Details.A disappearing liquid meniscus by itself has more than one possible explanation: in ordinary subcritical condensation or evaporation, one thermodynamic phase can simply run out. The stronger critical-point inference combines temperature control, compression readings and the existence of a continuous route around the endpoint of the phase coexistence curve. On that route a dilute gas can become dense without crossing a two-phase boundary. This is what continuity of liquid and gas means; it does not remove their distinct equilibrium number densities below .
In his 12 December 1910 Nobel lecture, Johannes Diderik van der Waals explained gases and liquids through the same moving molecules, with attraction and finite size modifying their pressure. He also rejected the idea that constant should give universal numerical agreement. His critical-volume discussion explicitly retained derivatives of a volume-dependent : the familiar follows only when those derivatives are neglected. Thus the elegant constant-parameter Van der Waals critical point is a model result whose limitations were already part of its author's account.[ref]
The Equation of State for Gases and Liquids by Johannes Diderik van der Waals. The equation of state for gases and liquids, Nobel lecture delivered 12 December 1910, pp. 254–257: molecular continuity, constant-parameter caveat and critical-volume derivatives
An adiabatic equation of state describes a pressure-density or pressure-volume relation appropriate to a stated adiabatic evolution model. For a fixed amount of ideal gas undergoing reversible compression with constant heat capacity ratio ,The relation follows by combining the first law of thermodynamics, the ideal gas law and zero heat transfer. Equivalently, the process is isentropic under these reversible assumptions.
Compressing an insulated gas raises its temperature because mechanical work increases its internal energy. Slowly measured pressure and volume can then be compared with the predicted power law. Insulation alone does not justify that law for an arbitrary rapid process: irreversible adiabatic piston compression, a shock wave, variable heat capacities or phase changes require a different treatment. The underlying material equation of state and the additional process assumptions should therefore be stated separately.
A pressure measurement determines pressure relative to a specified reference using an instrument such as a manometer or pressure transducer. Gauge pressure, absolute pressure and differential pressure require different references; measurement calibration and measurement uncertainty determine how the reading can be interpreted.
High-pressure experimental metrology connects three tasks: producing pressure, retaining it without leakage, and assigning a calibrated value to the pressure experienced by a sample. A large applied force alone establishes none of the last two. The useful result is a reproducible material property at specified pressure, temperature and stress conditions, with stated measurement uncertainty.
Percy Williams Bridgman identified leakage as an earlier experimental limit. His 1946 lecture describes packing that tightens as pressure rises, ultimately leaving vessel strength as a limit.[ref]
General Survey of Certain Results in the Field of High-Pressure Physics by Percy Williams Bridgman. General survey of certain results in the field of high-pressure physics, delivered 11 December 1946, p. 53 opening and Figure 1 caption
The Bridgman unsupported-area seal turns the very pressure that would drive a leak into an extra seating force. Its appeal is a feedback between load and sealing, rather than an assumption of perfectly fitted rigid surfaces. The piston-cylinder pressure apparatus below explains that feedback; pressure calibration then separates the applied load from the sample's inferred pressure.
In a functional model, a driven piston reduces the chamber's volume. A surrounding cylinder carries the wall stress; a deformable packing or gasket closes a potential leak path around a moving or removable closure. A sample and a separate pressure sensor occupy the chamber. A transmitting liquid can load the sample on all sides; the sensor's signal passes to an external readout. This is a division of experimental functions, not a scale reconstruction of one historical machine.
For a slowly moving frictionless drive piston of effective surface area , external pressure and inward applied force , Newton's second law at mechanical balance givesThus on a stipulated effective surface area corresponds ideally to of differential pressure. These are illustrative numbers, not apparatus specifications. The effective surface area is the one associated with the pressure difference, not necessarily an external ram's visible cross section. With resisting friction during inward motion, the balance becomes . During outward motion the sign of the friction contribution reverses. An applied-load reading can therefore show hysteresis even when the chamber's actual pressure is well defined.
A resistance pressure gauge instead supplies an internal signal. In a generic electrical readout, measure an electric potential difference with a known electric current and use Ohm's law to infer electrical resistance . This describes a possible readout principle; the lecture passage cited below identifies the sensor material and calibration landmarks without specifying this wiring.
Consider an ideal pressure-driven closure plug with a large chamber-facing projected area . Its opposite side seats against a smaller annular packing surface area . The remaining projected part is the unsupported area: it has no opposing packing contact in that plane. Here is the chamber pressure relative to the exterior. Let denote the mean axial compressive contact stress on the packing, not the chamber's hydrostatic stress.
Bridgman unsupported-area seal: unequal surface areas make the packing load itself
. Original functional section and force diagram, with no historical dimensions. Chamber pressure acts over ; the packing reaction acts over the smaller . The central stem occupies the unsupported projected part . Blue arrows show the chamber load on the closure; orange arrows show the opposing packing reaction. The drive piston that pressurizes the chamber is a separate experimental function. Details.Neglect friction, the plug's weight, and other axial reactions. The plug's Newton's second law in static balance isThe load is the same on both sides; its smaller supporting surface area raises the packing's mean contact stress. For a stipulated ratio and , the ideal seating stress is . Its excess over chamber pressure is . Reducing to zero removes this amplification. This is the elementary force balance behind self-energizing seating, consistent with the lecture's Figure 1 caption.[ref]
The relation is a model, not a universal sealing law. The mean axial contact stress need not equal the local contact stress along every possible leakage path. Confinement and plasticity in continuum mechanics determine whether the packing closes a gap or instead extrudes into it. Friction diverts load into other surfaces; material plasticity in continuum mechanics changes contact geometry; the vessel must carry its own stress. A finite initial seating load may also be needed before chamber pressure can develop. An arbitrarily small does not yield arbitrarily useful sealing: the assumptions fail when local deformation, extrusion or structural failure takes over.
With tension taken positive, hydrostatic stress is the stress tensor , where is the identity matrix. Every plane has the same compressive normal stress, and no tangential traction. More generally,where is deviatoric stress. Two samples can share the same mean pressure while experiencing different deviatoric stresses. A stationary liquid cannot sustain equilibrium shear stress; a solid transmitting medium can support it. Consequently, a load divided by surface area does not by itself establish hydrostatic sample conditions. A transmitting medium's state at the actual pressure and temperature, and contact between sample and walls, matter.
Bridgman's Figure 4 compares mild steel fractured in tension at atmospheric pressure with steel stretched further in a liquid at .[ref]
General Survey of Certain Results in the Field of High-Pressure Physics by Percy Williams Bridgman. p. 56, Figure 4 caption: atmospheric-pressure tensile fracture versus greater reduction of area in pressurized liquid; historical kg/cm² rendered explicitly as force per area
The imposed tension remains a directional load: the experiment combines confinement with deformation, rather than measuring a hydrostatic stress alone. Its comparison motivates recording the loading path and the surrounding medium as well as pressure; it does not establish a universal fracture threshold for all steels.Pressure calibration assigns pressure values to a sensor's output by comparison with a reference under specified conditions. It is not the same as making the output more finely resolved. A smooth electrical resistance curve can be repeatable yet have an incorrect pressure scale.
Bridgman used pressure-dependent electrical resistance of manganin and established fixed points, including a bismuth transition. He reported poorer accuracy above the better calibrated range.[ref]
General Survey of Certain Results in the Field of High-Pressure Physics by Percy Williams Bridgman. p. 56, pressure-measurement paragraph: manganin gauge, bismuth fixed point, and different accuracy estimates below and above 30000 kg/cm²
A fixed-point specimen and a property-measurement sample have distinct roles: one helps assign the scale, while the other is studied on that scale. The reference transition must itself have an assigned pressure at the relevant temperature. Agreement at a single point does not determine a nonlinear sensor response elsewhere. Comparing increasing and decreasing pressure checks hysteresis; returning to a reference checks drift. These are checks one can design from the measurement model, not additional historical controls asserted for the lecture's experiments.
A resistance pressure gauge is a pressure sensor whose electrical resistance is calibrated against pressure. Even a simple local response needs both pressure and temperature. For an original illustrative model definewhere is the reference electrical resistance at , , and zero history offset. The derivatives and are local sensitivities with units and , respectively; is a dimensionless history offset. Constant sensitivities are an approximation over a chosen range, not material constants valid at every pressure.
Choose synthetic coefficients and , with and . A measured ratio then gives . Ignoring the temperature change gives , a error. This model is deliberately stipulated; these numbers are not measured manganin coefficients or Bridgman's data.
Pressure calibration: a synthetic electrical resistance response with temperature and hysteresis offsets
. Original calculated example. The blue reference line has , ; the orange line has , . Dashed lines illustrate two histories with , not observed data. A ratio 1.022 maps to 1.00 GPa after correcting temperature, or 1.10 GPa if read against the blue line. The lower chain distinguishes the specimen, the internal sensor, the electrical readout and the calibrated pressure. Details.If two histories differ by , their outputs at the same pressure differ by ; interpreting both with a single history-free curve gives an apparent pressure separation . The half separation is . Reversing the drive can additionally cause mechanical friction hysteresis, independently of this sensor model. Record both the electrical calibration history and the loading direction.
For independent small standard measurement uncertainties and exact stipulated , first-order propagation givesFor , , and , this is . Real calibration also includes coefficient measurement uncertainties, correlations, reference-point measurement uncertainty, and any unresolved nonhydrostatic loading. A sensor calibrates its local environment; it cannot by itself certify the absence of deviatoric stress throughout the sample.
A diamond anvil cell compresses a sample between opposed diamond tips. The flat diamond anvil culets load a metal gasket whose hole holds the specimen and a pressure-transmitting medium. Transparent diamond admits excitation and returning fluorescence, enabling an internal ruby pressure sensor.[ref]
High Pressure X-Ray Crystallography With the Diamond Cell at NIST⁄NBS by Gasper J. Piermarini. Sections 2–3, Figures 1 and 5: anvils, optical path and gasket
Diamond anvil cell: compression, optical access and internal ruby readout
. Original functional section, not a reconstruction or a scale drawing. The separate excitation and collection paths depict one possible arrangement. A monochromator and photodetector resolve the fluorescence emission spectrum; the inference uses a spectral line position rather than its brightness. The optional sodium chloride reference belongs to the calibration experiment, rather than to every subsequent sample measurement. Details.The functions in the drawing answer different questions. The drive applies force, the gasket confines the sample, the medium transmits stress, and the ruby pressure scale assigns a local pressure from an optical signal. A large drive reading cannot establish either the sample's pressure or the absence of deviatoric stress. Optical access also permits repeated readings without unloading the sample: a change during a long measurement can be detected rather than silently folded into a material-property curve.
A diamond anvil culet is the small flat contact face at the tip of a diamond anvil. Its diameter determines its nominal surface area . The gasket hole has a different surface area ; neither should be confused with the much larger drive mechanism. For an ideal static axial balance, is the compressive force on either anvil. The two equal opposing loads do not produce through a single contact.
For an original chosen geometry, and giveHere is the mean axial contact stress over the culet, not a measured chamber pressure. Using a hole instead would give , nine times larger. That substitution falsely assigns the entire applied force to the hole.
To see the missing load path, idealize the culet as a coplanar hole region plus a surrounding contact annulus. With a hydrostatic chamber pressure and axial resultant carried by the gasket, its force balance isIf the stipulated chamber pressure is , the hole carries only and the gasket carries . These are model loads, not measurements. Real gasket deformation and anvil elasticity alter the local contact stress; the scalar balance cannot predict without additional information. This is why internal pressure calibration matters even when applied force is accurately known.
The ruby pressure scale converts a shift of a ruby fluorescence spectral line into pressure. Excitation light produces a fluorescence emission spectrum; fitting its line gives a wavelength . The reference must be measured or assigned at specified reference pressure and temperature. The difference is an observable; interpreting it as pressure requires a pressure calibration and suitable stress conditions.
The original 1972 report found sharp emission shifting toward lower photon energy as pressure increased; it tentatively associated broadening with nonhydrostatic conditions.[ref]
Pressure Measurement Made by the Utilization of Ruby Sharp-Line Luminescence by Richard A. Forman and others. Abstract: direction of R-line shifts and tentative nonhydrostatic interpretation
In use, excitation rejection, a calibrated wavelength axis and a fitted background matter because leakage or background can move an apparent peak. A brighter trace improves counting statistics but does not alone establish a correct pressure scale.The ruby R-line shift compares the same emission feature under two conditions. It is distinct from the Stokes shift, which compares absorption and emission features. In ruby, chromium ions in the corundum crystal provide the electronic transitions; compression changes their local environment and transition energies.[ref]
Stress Measurements in Alumina by Optical Fluorescence: Revisited by Robert F. Cook and Chris A. Michaels. Introduction and hydrostatic-pressure discussion: chromium fluorescence in alumina and stress-sensitive R lines
For consistently defined vacuum wavelengths, the reciprocal relation givesThus a positive wavelength shift means a negative reciprocal shift, and gives lower photon energy; is the Planck constant and the speed of light. For spectroscopic wavenumber, use vacuum wavelength and keep that convention consistent. A calibration specified in air wavelength must retain its convention or be converted consistently. The reciprocal relation is nonlinear: a line exactly linear in is not exactly linear in .
For a purely mathematical check with chosen vacuum wavelengths and , the reciprocal shift is . The small-shift approximation gives , about too large in magnitude. These chosen values illustrate the conversion; they are not measured ruby lines or an additional pressure calibration.
The 1975 experiment mixed powdered sodium chloride and 0.5%-chromium ruby in a 4:1 volume ratio. An Inconel gasket, initially thick with a hole, held the powder and 4:1 methanol–ethanol. At , X-ray diffraction rings on film away gave salt compression; a reference equation of state assigned pressure. After decreasing load, they waited at least five hours and bracketed diffraction exposures with readings to check drift.[ref]
Calibration of the pressure dependence of the R1 ruby fluorescence line to 195 kbar by Gasper J. Piermarini and others. pp. 2774–2775, Experimental Procedures
The recommended linear slope was , with a fit confidence interval of , to . Reference-scale systematic measurement uncertainty remained separate. Above about the medium was only quasihydrostatic; separate range fits checked consistency.[ref]
Calibration of the pressure dependence of the R1 ruby fluorescence line to 195 kbar by Gasper J. Piermarini and others. pp. 2775–2776, Table I and recommended calibration; p. 2778, pressure-distribution discussion
The logical chain is compression to reference pressure, paired with optical shift, then a fitted response. X-ray diffraction supplies the reference comparison during calibration; subsequent ruby readings transfer that scale to other samples. The reference equation of state is therefore part of the meaning of the reported pressure. Changing it can move all calibrated readings together, even if the optical measurements repeat perfectly. A regression residual tests agreement with the chosen reference within the sampled conditions; it cannot independently certify that reference.
Construct a synthetic local calibration to show the calculation independently of the historical data. Choose reference pairs , with shifts in and pressures in . The reference zero is already subtracted. Treat the shifts as exact for this fit and give the three reference pressures equal weights. Minimizing the ordinary least squares objectiveand setting its derivative to zero givesThe regression residuals are . Their weighted moment vanishes, as required by the least-squares normal equations. An unknown reference offset requires fitting an intercept instead; forcing it to zero can bias the slope. If shift errors matter, this elementary fit is insufficient.
Synthetic ruby pressure scale: fitting the response and propagating measurement uncertainty
. Original stipulated reference points and calculations, not measured historical calibration. The left panel shows the fitted slope and a chosen reading. The right panel separates independent contributions to standard uncertainty; bar lengths are standard contributions, which combine by sums of squares. The assigned slope standard uncertainty includes a hypothetical reference-scale contribution and is not estimated from the three residuals. Details.Use the local measurement modelHere denotes pressure relative to the reference, is calibrated sensitivity, and is a local wavelength sensitivity to temperature at fixed pressure. Choose , and a reading at . The inferred pressure is . These coefficients and readings are stipulated, not measured ruby constants. With the same pressure, a increase in temperature would add to the shift in this model; neglecting it would overestimate pressure by .
Assign independent standard uncertainties , and for the temperature difference. Here is an independently assigned calibration uncertainty, not an estimate from the regression residuals above; treat as exact in this example. First-order propagation of uncertainty follows by differentiating the measurement model:The four standard contributions are , giving . This is a standard uncertainty, not automatically a interval. Correlated reference and loaded wavelength readings require the corresponding covariance term; common wavelength-axis drift may cancel in their difference. Uncertain , nonzero , model inadequacy and unresolved deviatoric stress require a broader budget. Taking more optical readings reduces some random errors while leaving a common reference-scale error.
A single optical shift represents pressure only to the extent that the calibration's mechanical and thermal conditions apply. Under hydrostatic stress, all directions have the same compressive normal stress. Under deviatoric stress, differently oriented ruby grains can respond differently; spatially varying pressure can also superpose shifted lines. These mechanisms can produce different optical signals at equal mean pressure.[ref]
Stress Measurements in Alumina by Optical Fluorescence: Revisited by Robert F. Cook and Chris A. Michaels. Sections 1–2: stress-sensitive fluorescence shifts and crystallographic stress components
The 2001 account describes scanning local line positions and measuring line width over an extended region. The former resolves spatial differences; the latter supplies a rapid warning.[ref]
High Pressure X-Ray Crystallography With the Diamond Cell at NIST⁄NBS by Gasper J. Piermarini. Section 4.2, Methods I and II
Neither a broadened line nor a narrow one uniquely determines the stress tensor. Instrument resolution, temperature variation and unresolved overlapping signals can also affect width. A small observed region can have a narrow line while differing from another region. Compare locations, reference traces and instrument settings before treating width as evidence for a particular mechanical explanation. These are proposed diagnostic checks, not additional historical controls attributed to the 1975 experiment.
Temperature is another independent input. A useful local expansion is : one measured shift cannot determine both unknowns. Measure or control temperature, or supply a second independently calibrated observable. The coefficients need not remain constant across a large range. Even when a pressure sensitivity transfers over some temperatures, the reference line, line width and practical readout quality can change.
The historical high-temperature account reports degrading pressure measurement quality above about .[ref]
High Pressure X-Ray Crystallography With the Diamond Cell at NIST⁄NBS by Gasper J. Piermarini. Section 4.1, high-temperature cell and readout-quality discussion
Articles by others on the same topic
Pressure is defined as the force exerted per unit area on a surface. It is a scalar quantity, meaning it has magnitude but no direction. The formula to calculate pressure (P) is: \[ P = \frac{F}{A} \] where: - \( P \) is the pressure, - \( F \) is the force applied, - \( A \) is the area over which the force is distributed.
