A nonzero probability density inside a barrier does not by itself imply transport. In one dimension, the probability current of a wavefunction is $J=(\hslash /m)\mathrm{Im}({\psi }^{\ast }{\psi }^{\prime })$. A single evanescent wave $C{e}^{-\kappa x}$ has ${\psi }^{\ast }{\psi }^{\prime }=-\kappa |C{|}^2{e}^{-2\kappa x}$, a real quantity, hence $J=0$. This is what happens on the inaccessible side of a potential barrier extending to infinity with $E<V_0$.^[ref]

For the finite-barrier wavefunction $A{e}^{\kappa x}+B{e}^{-\kappa x}$, the cross terms instead giveThe relative quantum phase of the two probability amplitudes permits a nonzero, spatially constant probability current, even though neither exponential function separately carries it. The probability continuity equation gives ${\partial }_{x}J=0$ for this stationary state. Matching the wavefunction and its derivative also makes $J$ continuous at both faces, soHere $R=|r{|}^2$ is the quantum reflection probability, and $T=J_{\mathrm{tr}}/J_{\mathrm{inc}}$ is the transmission probability. The net exterior probability current equals the interior probability current; it is not lost as the wavefunction decreases. A physical incident wave packet supplies finite total probability, while the stationary state describes the energy component used to compute its transmitted flux.

For equal exterior potential energies and constant mass, the exact transmission probability isBelow the barrier, the hyperbolic sine is positive for $a>0$, so $0<T<1$. At $E=V_0$, the interior wavefunction is linear in $x$; either neighbouring formula has the displayed finite limit, since $\sinh z/z$ and $\sin z/z$ tend to one. Above the barrier, the interior wavefunction oscillates: the quantum reflection probability generally remains nonzero, but $qa=n\pi$ for a positive integer $n$ gives perfect transmission probability $T=1$ through constructive wave interference. These are scattering resonances, not below-barrier quantum tunnelling.

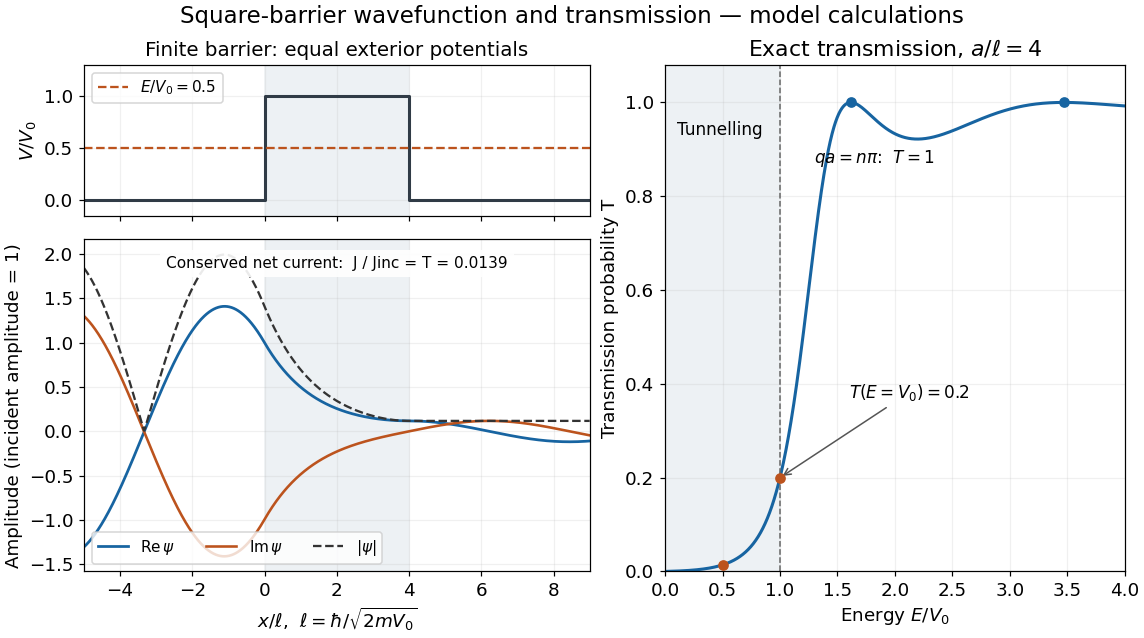

At half height, $E=V_0/2$, we have $k=\kappa$ and $T={\mathrm{sech}}^2(\kappa a)$, consistent with finite square barrier transmission at half barrier height after replacing this width $a$ by that example's width $2a$. In the illustration, the width is four times $\ell =\hslash /\sqrt{2m{V}_0}$ and $E/V_0=1/2$, giving $T\simeq 0.01388$. The plotted wavefunction comes from solving the four interface equations; the transmission probability curve uses the closed formula.
