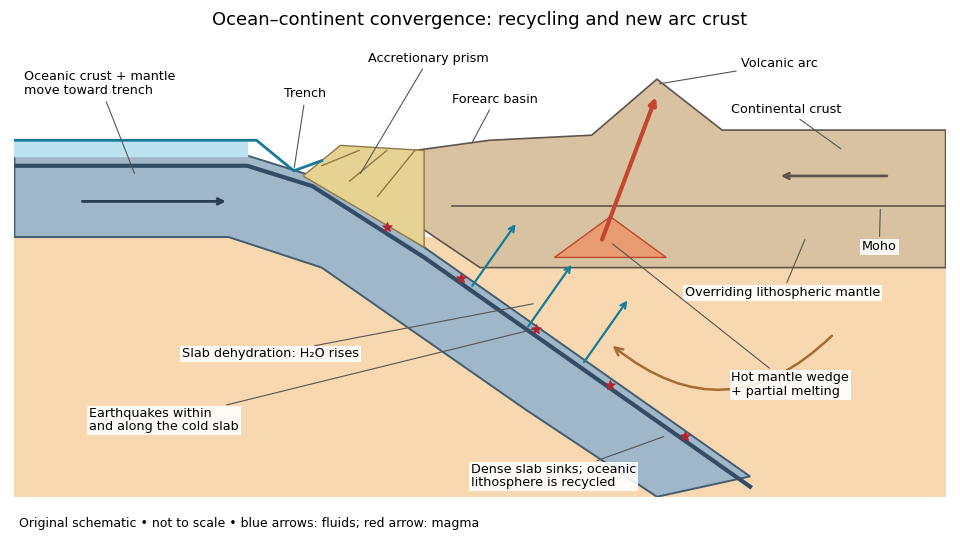

Choose an ocean–continent convergent margin. The essential relationship is recycling of oceanic lithosphere by subduction, together with production and modification of crust in a volcanic arc.

The incoming tectonic plate consists of thin oceanic crust, chiefly basalt and gabbro, above colder lithospheric mantle. As that oceanic lithosphere approaches the subduction zone, bending produces the subduction trench. Its cold interior can become denser than the surrounding mantle; the resulting slab pull helps sustain subduction. The descending slab carries both oceanic crust and lithospheric mantle into the interior. Thus the recycled unit is an entire portion of lithosphere, rather than just its crust.

At the subduction trench, some incoming sediment is scraped off and stacked by thrust faults into an accretionary prism. Material can also be added beneath the overriding plate by tectonic underplating. A forearc basin collects sediment between the accretionary prism and the volcanic arc. This is an accreting example: other convergent margins lose upper-plate material through tectonic erosion, so an accretionary prism is not universal.

The cold slab undergoes increasing pressure and metamorphism. Conversion of basaltic rocks and gabbro towards eclogite increases their density, while slab dehydration releases water from hydrated minerals. The rising fluid lowers the solidus of hot peridotite in the mantle wedge, causing flux melting. The usual source of arc magma is therefore the fluid-modified mantle wedge; extensive slab melting is not required. Thermal-petrological calculations show that the depth and amount of slab dehydration depend on the incoming slab's thermal structure.^[ref]

Buoyant magma rises through the overriding plate, freezes in igneous intrusions or erupts in the volcanic arc. Fractional crystallization, interaction with existing continental crust and repeated intrusion can produce more evolved arc magmas and add new crust. Some material merely reworks old crust, and simultaneous tectonic erosion can remove it: volcanism alone does not measure net continental growth. Tectonic shortening, folding and thrust faults can thicken and raise the upper plate.

The Wadati-Benioff zone marks earthquakes along and within the cold descending slab. Shallow interface earthquakes reflect unstable slip where the plates are coupled; deeper earthquakes require mechanisms such as dehydration embrittlement and are not simply dry shallow friction operating at every depth. In contrast, the hot mantle wedge deforms mainly by material creep. Together, the subduction trench, accretionary prism, forearc basin, volcanic arc and inclined seismicity connect surface features to the processes recycling and creating crust.

Cascadia subducts a young, warm plate and lacks the enormous plateau and crustal root of the central Andes; the central Andean Nazca Plate system also supports much deeper intraslab earthquakes. These are regional comparisons: neither western margin is uniform along its length.

First, the Juan de Fuca Plate entering Cascadia is young, typically of order 10 million years old, because its spreading ridge lies close to the margin. Its lithosphere is comparatively thin and warm. Much of the Nazca Plate entering the central Andes is older and colder. A cold plate carries low temperatures farther into the mantle, sustaining deep intraslab seismicity; the warm Cascadia slab loses its brittle seismogenic character much shallower. This concerns earthquakes within the slab, not the size of megathrust earthquakes: both margins can generate very large plate-interface events. The official warm-slab synthesis treats Cascadia as an endmember.^[ref]

Second, the central Andes have undergone major sustained crustal shortening and tectonic thickening, building a high plateau and locally roughly 60–70 km thick continental crust. Cascadia has an active volcanic arc and mountains but no equivalent continuous central-Andean plateau and crustal root. The difference reflects the accumulated history of convergence, upper-plate deformation, slab dip, trench motion and mechanical coupling, not just the instantaneous existence of subduction. The Andes include flat-slab segments with gaps in arc volcanism as well as normally dipping segments.^[ref][ref]

A young warm incoming plate and a faster, colder incoming plate can therefore generate different thermal structures, dehydration patterns and deformation histories. Plate age alone is insufficient to predict the thickness of the overriding continental crust.

Support for the left curve comes from high laboratory friction and substantial in situ differential stress; support for the right curve comes from low inferred fault traction, weak fault materials or high pore pressure. No single observation directly measures the whole plotted envelope.

For the left, stronger shallow-crust model:

For the right, weak shallow-layer model:

To discriminate, measure the strength-controlling quantities through depth and across both faults and their surroundings. Obtain borehole stress, pore pressure and temperature profiles where feasible; use borehole breakouts and hydraulic tests to constrain effective stress. Recover fault and host rocks and test their friction and material creep at relevant fluid conditions. The right curve specifically predicts an end to the shallow weakening near its sharp rise: investigate changes in permeability of a porous medium, alteration and fault gouge with depth, rather than testing only a surface sample.

Combine those measurements with heat flux transects, magnetotelluric sounding for conductive fluids, accurate earthquake depths and focal mechanisms, and GNSS or InSAR observations of deformation. The latter can help constrain the depth distribution of locking and postseismic relaxation, but neither locking nor seismicity alone gives absolute strength. Earthquake stress drop is a change in stress, not the pre-event stress. Low heat flux can also reflect heat transport or transient weakening; high electrical conductivity can have causes other than free water. A joint explanation of all these data is needed to choose between the models locally.
