The Aharonov-Bohm effect is the phase $q\Phi /\hslash$ acquired when a charge $q$ encircles magnetic flux $\Phi$, even when the magnetic field vanishes along the charge's path.

In the magnetic Aharonov-Bohm effect, a coherent Electron wave takes two routes around inaccessible magnetic flux. Recombination converts their relative wave phase into displaced interference fringes. In 1959, Yakir Aharonov and David Bohm proposed a shielded solenoid geometry and identified the obstruction to removing the magnetic vector potential throughout the accessible region.^[ref]

Use International System of Units, electric charge $q$, and magnetic minimal coupling $H=(-i\hslash \nabla -q\mathbf{A}{)}^2/(2m)$. Let ${\gamma }_1,{\gamma }_2$ run from the same source $S$ to the same detector point $D$. The oriented closed curve $C$ follows ${\gamma }_1$ and then ${\gamma }_2$ backwards. For a static magnetic vector potential, the magnetic contribution to the relative wave phase isHere ${\Phi }_C={\int }_{\Sigma }\mathbf{B}\cdot d\mathbf{S}$ is the oriented magnetic flux through a spanning surface. Equal or calibrated nonmagnetic propagation phases are assumed. For an Electron, $q=-e$, where $e>0$ is the elementary charge; reversing $C$ reverses the sign. The observable is the gauge-invariant holonomy $e^{i\delta }$, rather than a unique local value of the magnetic vector potential.

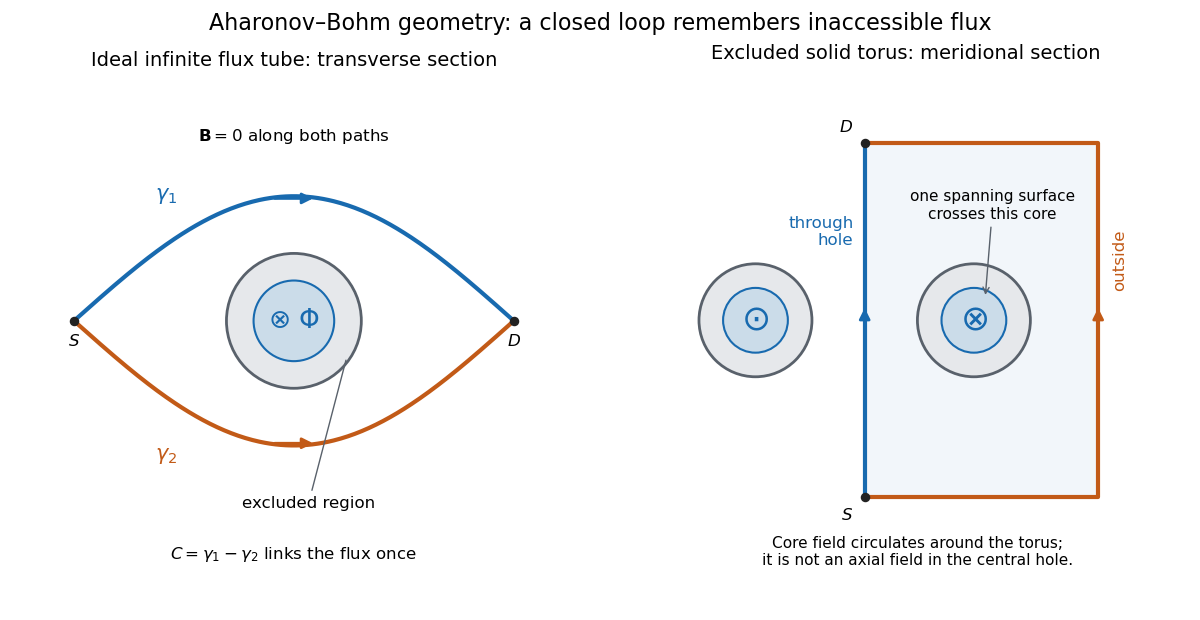

The accessible region is a multiply connected region: $C$ cannot contract to a point without entering the excluded flux region. Stokes theorem does not set the line integral to zero, because a spanning surface must cross that excluded region, where the magnetic field need not vanish. There is real magnetic flux in the apparatus; only the accessible paths are idealized as free of the magnetic field. The exterior of a finite straight solenoid also permits routes around its ends, so its exact topology and leakage differ from those of an infinite solenoid or an excluded solid torus.

An explicit model makes the obstruction visible. Outside an infinite flux tube of radius $a$, choose cylindrical coordinates $(r,\theta ,z)$ andIts curl vanishes there, but a loop with winding number $n$ has ${\oint }_C\mathbf{A}\cdot d\mathbf{l}=n\Phi$. Locally $\mathbf{A}=\nabla (\Phi \theta /(2\pi ))$; the angular coordinate changes by $2\pi$ on a circuit. For generic $q\Phi /\hslash$, that candidate gauge removal changes the wave function's single-valued boundary condition. On a simply connected region, a smooth static magnetic vector potential with zero curl instead has a globally defined scalar primitive and is a pure gauge potential. Thus local zero magnetic field and globally removable magnetic vector potential are different conditions.

For an original interference example, take mutually coherent scalar amplitudes with constant individual intensities $I_1,I_2$ and an imposed carrier phase $ky$, as in off-axis holography. ThenThe interference fringe spacing is $d=2\pi /k$. An Electron enclosing $\Phi =h/(4e)$ has $\delta =-\pi /2$, shifting maxima by $d/4$ for this orientation. Increasing the magnetic flux by $h/e$ changes $\delta$ by $-2\pi$ and restores the same pattern: the Electron Aharonov-Bohm effect has magnetic flux quantum $h/e$. This uses $h=2\pi \hslash$, the Planck constant. It does not require the source's magnetic flux to vary continuously during a single exposure.

For $I_1=1$, $I_2=1/4$, the extrema are $I_{\max }=9/4$, $I_{\min }=1/4$, and the interferometric visibility is $4/5$. A fixed Aharonov-Bohm phase translates these fringes without changing their contrast. Averaging unresolved fluctuating phases can reduce the contrast; a darkened pattern alone cannot identify enclosed magnetic flux. These formulas assume coherence, indistinguishable alternatives and stable beam envelopes.

The appeal of the Aharonov-Bohm effect is that a local Lorentz force calculation along either ideal path misses information carried by their global arrangement. It gives a physical example of holonomy and supplies the encircling phase used in Chern--Simons flux attachment. This alone does not establish intrinsic topological order. The static comparison also matters: changing magnetic flux can induce an electric field, so a time-dependent experiment requires the scalar-potential contribution as well as the displayed spatial line integral.
