For $r_{-}<r_{+}$, an ingoing chart with $v=t+r_{\ast }$ has metric $-Vd{v}^2+2dvdr+R^{2}d{\Omega }_2^2$. In its future interior, $\nabla r={\partial }_v+V{\partial }_r$ is future timelike, so every future causal curve decreases $r$ and cannot reach future null infinity. The singularity $r=r_{-}$ is spacelike. A Kruskal–Szekeres coordinates extension has the same qualitative Penrose diagram as Schwarzschild spacetime, with two exterior regions, a future black-hole interior and a past white hole interior. The past interior has the same radial interval but is not a black hole region; specifying the radial interval alone does not identify the future component. For $r_{-}>r_{+}$, the physical exterior $r>r_{-}$ has $V>0$ everywhere and outgoing null rays escape from arbitrarily near a timelike naked singularity.

The tortoise coordinate is $r_{\ast }=r+(r_h/2)\log |(r-r_h)/(r+r_h)|$. Set $u=t-r_{\ast }$ and $v=t+r_{\ast }$, then $U=-e^{-u/r_h}$ and $V=e^{v/r_h}$ in the right exterior. The extended radial metric is $-r_h^2(r+r_h{)}^2{e}^{-2r/r_h}dUdV/r^2$, regular at $r=r_h$. The horizons are $UV=0$, while $r=0$ gives $UV=1$ and is a spacelike curvature singularity. Compactification by $\arctan U,\arctan V$ displays two exteriors, a future black hole and a past white hole.

The Kruskal spacetime is the maximal analytic extension of the positive-mass vacuum Schwarzschild spacetime. It contains two exterior regions, a black hole, and a white hole. Kruskal–Szekeres coordinates remove both horizon coordinate singularities, while $r=0$ remains a curvature singularity.

Take $M>0$ and write $f=1-2M/r$. Integrating $d{r}_{\ast }/dr=f^{-1}$ gives the Schwarzschild tortoise coordinateThe advanced and retarded Eddington-Finkelstein coordinates are respectively $v=t+r_{\ast }$ and $u=t-r_{\ast }$. Substituting $dt=dv-dr/f$ or $dt=du+dr/f$ givesBoth radial-time blocks have determinant $-1$ and smooth coefficients at $r=2M$. Consequently the Schwarzschild event horizon is a coordinate singularity of the original chart, not a degeneracy of the geometry. The Kretschmann scalar $48M^2/r^6$ is finite there, while it diverges at $r=0$. Angular coordinate degeneracies at the polar axes are removed separately by ordinary sphere charts.

The ingoing Eddington-Finkelstein coordinates extend the right exterior through its future black hole horizon. Radial null geodesics obey either $dv=0$ or $dr/dv=f/2$. Inside $r=2M$, the latter also moves towards smaller $r$ as $v$ increases, and the future-directed ingoing family has decreasing $r$. Thus neither family can escape to the exterior. The future horizon is the boundary separating points that can send signals to future null infinity from those that cannot. The retarded chart extends through the past horizon instead. Reversing the time orientation gives the white hole: future-directed signals can leave it, but exterior signals cannot enter it. These are distinct branches in the eternal extension; the white-hole branch need not occur in a spacetime formed by collapse.

For a simultaneous extension through both branches, start in the right exterior and define the Kruskal–Szekeres coordinatesTheir product and the extended metric areIndeed $du=-4MdU/U$ and $dv=4MdV/V$ transform $-fdudv$ into the displayed expression. The function of $r$ on the right of the product relation has derivative $-r{e}^{r/(2M)}/(4M^2)$, nonzero at $r=2M$, so $r$ is a smooth function of $UV$ across zero. The coefficient of $dUdV$ there is $-16M^2/e$, finite and nonzero. Allowing either sign of $U,V$ therefore gives the regular maximal extension with $UV<1$ and $r>0$.

With $T_K=(V+U)/2$ and $X_K=(V-U)/2$, the radial metric is a positive multiple of $-d{T}_K^2+d{X}_K^2$. The two exterior regions have $(U,V)=(-,+)$ and $(+,-)$. The future interior, or black hole region, has $(+,+)$; the past interior, or white hole region, has $(-,-)$. The Killing horizons are $U=0$ and $V=0$, meeting on the bifurcation surface at $U=V=0$.

For the Penrose diagram, compactify the null variables before forming time and space:This Schwarzschild conformal compactification preserves radial null directions because $dUdV={\sec }^2\bar{U}{\sec }^2\bar{V}(d{T}^2-d{X}^2)$. The ranges $|\bar{U}|,|\bar{V}|<\pi /2$ bound the diagram, and $UV<1$ cuts off its future and past tips. On $UV=1$ with $U,V>0$, $\bar{U}+\bar{V}=\pi /2$, so the future curvature singularity is $T=\pi /4$. The past curvature singularity is similarly $T=-\pi /4$. Both have $|X|<\pi /4$ and are spacelike. The horizon lines remain $T=\pm X$.

Each point of this radial Penrose diagram represents a two-sphere, except at limiting boundaries. Each exterior has its own future and past null infinity, ${\mathcal{I}}^{+}$ and ${\mathcal{I}}^{-}$. For example in the right exterior, $V\to \infty$ at fixed $U<0$ gives ${\mathcal{I}}^{+}$, whereas $U\to -\infty$ at fixed $V>0$ gives ${\mathcal{I}}^{-}$. Its spacelike infinity is $(T,X)=(0,\pi /2)$; its future and past timelike infinity are the vertices $(\pi /4,\pi /4)$ and $(-\pi /4,\pi /4)$. The left exterior has the reflected counterparts. These conformal boundary points are ideal endpoints, not finite-distance spacetime events; the physical affine or proper parameters of escaping geodesics diverge.

The horizons are regular null surfaces, while the horizontal $r=0$ boundaries are genuine curvature singularities. The central point represents the regular bifurcation surface, not a singularity. Future-directed radial causal curves have nondecreasing $U,V$, so a curve cannot go from one exterior to the other: changing the requisite signs would require one null variable to decrease. Crossing a future horizon instead leads towards the future singularity. The maximal extension has two causally disconnected exteriors, a future black-hole region and a past white-hole region.

Suppress the angular three-spheres and use radial null coordinates $u=t-r_{\ast }$, $v=t+r_{\ast }$ with $d{r}_{\ast }/dr=1/V$. Compactifying these null coordinates puts radial light rays at 45 degrees in the Penrose diagram. Simple zeros of V give logarithmic ends of the tortoise coordinate and are crossed by regular null charts. The sign of V distinguishes static blocks, where r is spacelike, from inter-horizon blocks, where r is timelike.

The center is a genuine curvature singularity. An orthonormal-frame calculation gives the Kretschmann scalar of a five-dimensional charged black holeIt diverges at zero radius and is finite at positive horizons. Since the normal to a constant-r hypersurface has squared norm V, the singular boundary is spacelike when V is negative near zero and timelike when V is positive there.

For $Q=0$, V is negative inside the sole horizon and the maximal extension is Schwarzschild-like: two asymptotically flat exteriors, a future black-hole triangle ending at a spacelike singularity, and a past white hole triangle beginning at a spacelike singularity. The two pairs of horizon branches meet at a regular bifurcation sphere.

For $|Q|>M$, V is positive for every positive r. The radial conformal domain is a single exterior with a timelike naked singularity at its left boundary and the usual past/future null infinities on its outer boundaries. There is no horizon. These two cases are shown together below; red zigzags denote curvature singularities.

For $0<|Q|<M$, the exterior $r>r_{+}$ and deep interior $0<r<r_{-}$ are static, while $r_{-}<r<r_{+}$ is a trapped or time-reversed band. The outer roots are event horizons for a chosen exterior, and the inner roots are Cauchy horizons. The center is timelike because $V\sim Q^2/r^4>0$ there. In the exact analytic extension, crossing successive inner and outer horizon branches produces an infinite succession of exterior, trapped, inner-static and white hole blocks. The following finite strip specifies the repetition; it does not terminate the spacetime at the drawing's upper or lower edge.

For $|Q|=M$, $V=(1-M/r^2{)}^2$ is nonnegative on both sides of $r_h=\sqrt{M}$. There is no inter-horizon trapped band. Near the horizon, $r_{\ast }\sim -M/[4(r-r_h)]$, so the horizon is an infinite throat end of each static coordinate block. It is null and degenerate, without a regular bifurcation surface. The extension consists of alternating exterior and inner-static blocks, with timelike singularities in the latter. The separate conformal blocks below, together with their future-to-past horizon gluing rule, describe the full repeated extension. The open throat endpoints are ideal boundaries, not additional events where horizon branches meet.

Thus the neutral, strictly subextremal charged, extremal and overcharged cases all have distinct causal structures. These drawings describe the maximal analytic stationary metrics. The additional angular dimension changes areas and curvature falloff, but does not change these radial causal block types.

Use geometrized units $G=c=1$ and positive mass $M$. The Schwarzschild metric initially describes an exterior region, not the whole black hole:Here $r$ is the areal radius and $t$ is Schwarzschild time, normalized at infinity. We must distinguish a removable coordinate singularity from a genuine curvature singularity. The Kretschmann scalar isIt is finite at $r=2M$ and diverges at $r=0$. Thus $r=2M$ can be crossed in a better chart, whereas $r=0$ cannot be made a regular point by changing the coordinate chart.

First integrate the Schwarzschild tortoise coordinate:The radial metric becomes $f(-d{t}^2+d{r}_{\ast }^2)$. Set $v=t+r_{\ast }$; the ingoing Eddington-Finkelstein coordinates giveThe radial block has determinant minus one and smooth coefficients at $r=2M$, so it extends through the future Schwarzschild event horizon. Its ingoing radial null geodesics have constant $v$, while the outgoing radial null geodesics obey $dr/dv=f/2$. In the future interior both future-directed radial null families decrease $r$; $r=0$ is therefore an unavoidable future boundary for causal motion there. The outgoing chart $u=t-r_{\ast }$ similarly gives $d{s}^2=-fd{u}^2-2dudr+r^{2}d{\Omega }^2$, extending through the past horizon. A single one of these null charts does not display both horizons or the entire extension.

To regularize both horizons together, introduce Kruskal–Szekeres coordinates in the original exterior:ThenFor $r>0$ the right side defining $UV$ decreases monotonically from one to minus infinity. In fact its derivative is $-r{e}^{r/(2M)}/(4M^2)$. Thus it determines a unique smooth $r=r(UV)$ wherever $UV<1$, including $UV=0$. At $r=2M$ the radial metric coefficient is finite and nonzero, proving actual regularity of both horizons and their intersection, rather than merely relabelling the old coordinate divergence. Allowing all real $U,V$ with $UV<1$ produces the simply connected maximal analytic extension, the Kruskal spacetime.

There are four regions of the Kruskal spacetime. The original exterior is $U<0,V>0$; a second asymptotically flat exterior is $U>0,V<0$. The future black hole has $U>0,V>0$ and $0<r<2M$; the past white hole has $U<0,V<0$ and the same range of areal radius. The horizon branches are $U=0$ and $V=0$. Their intersection $U=V=0$ is a regular bifurcation surface, a two-sphere of radius $2M$, not the centre of the spacetime. Each point of the radial diagram represents a symmetry two-sphere.

Put $T_K=(V+U)/2$ and $X_K=(V-U)/2$. Radial null geodesics have slopes $d{T}_K=\pm d{X}_K$, and the curvature singularities haveThe upper branch is the future spacelike Schwarzschild singularity; the lower branch is the white hole past singularity. The Killing vector field extends as ${\partial }_t=(V{\partial }_V-U{\partial }_U)/(4M)$. It is future directed in the original exterior and past directed in the other exterior for the chosen global time orientation; inside, this stationary vector is spacelike. In the future interior, $r$ is a time coordinate decreasing toward the singularity. For example, a radial infaller of unit specific Killing energy obeys $dr/d\tau =-\sqrt{2M/r}$ and reaches $r=0$ from the horizon in finite proper time $4M/3$. The curvature divergence and this geodesic endpoint show why the extension stops there.

For the global causal picture, compactify the null coordinates using $p=\arctan U$, $q=\arctan V$ and let $\mathcal{T}=2(p+q)/\pi$, $\mathcal{X}=2(q-p)/\pi$. The conformal compactification rescales the metric to remove the coordinate factors from the radial metric while preserving its null directions. Since $UV=1$ gives $p+q=\pm \pi /2$ on the two singular branches, they become the horizontal lines $\mathcal{T}=\pm 1$. The resulting Penrose diagram displays the two exteriors, each with its own past null infinity, future null infinity and spatial infinity, plus the future and past interiors. The singularities are spacelike boundaries; the horizons are interior null surfaces. Future event horizons separate events that can escape to an exterior's future null infinity from events in the black-hole interior.

The time-symmetric spatial slice has a bridge between the exteriors, but it is not a traversable passage. Future-directed causal curves have nondecreasing $U$ and $V$. Moving from the right exterior to the left would require $V$ to decrease from positive to negative; the reverse passage would require $U$ to decrease. Both are impossible. This proves the non-traversability of the Schwarzschild bridge. The complete eternal vacuum extension has two exteriors, a black hole and a white hole; it has no causal route between its exteriors. A black hole made by stellar collapse is a different global spacetime: its matter-filled past replaces the white hole region, and it normally has only one exterior. The vacuum extension constructed here should not be mistaken for the collapse history of a single star.

With electric charge, spherical electrovacuum instead gives the Reissner-Nordstrom metric, in an electromagnetic normalization absorbing the charge conversion constants:For $0<|Q|<M$, there are two simple horizons. Outside $r_{+}$ the metric is static; between $r_{-}$ and $r_{+}$, $f<0$ and $r$ is timelike. Inside $r_{-}$, $f>0$ again, so $r$ is spacelike and the $r=0$ singularity is timelike. The outer horizon is the event horizon; the inner horizon is a Cauchy horizon. The same logarithmic tortoise-coordinate and exponential-null-coordinate method crosses each simple horizon locally, but one exponential scale does not regularize both simultaneously: their surface gravities have different magnitudes,Continuing the exact metric through successive inner horizons produces repeated blocks with further exteriors, and evolution beyond a Cauchy horizon is not uniquely fixed by data on the original Cauchy hypersurface. The timelike singularity can be avoided by some trajectories in this ideal extension, unlike the unavoidable spacelike singularity of the future Schwarzschild spacetime interior. However, the enormous inner-horizon blueshift makes this exact continuation unstable: perturbations can cause mass inflation. This is an important qualification on the global structure of a charged spherical black hole.

At $|Q|=M$ the two horizons coalesce, $f=(1-M/r{)}^2$ and surface gravity is zero. The horizon is a degenerate Killing horizon, the tortoise-coordinate divergence becomes a pole and the ordinary nondegenerate Kruskal spacetime construction must be replaced. The exterior develops an infinitely long spatial throat and the formal Hawking temperature vanishes. For $|Q|>M$, no real zero of $f$ remains: the electrovacuum solution has a naked singularity, not a black hole. Consequently arbitrarily allowing charge changes the causal structure, not just the horizon radius.

Let $r_h=\sqrt{2m}$ and $f(r)=1-r_h^2/r^2$. The geometry is the five-dimensional Schwarzschild-Tangherlini metric. Introduce a tortoise coordinate by $d{r}_{\ast }/dr=f^{-1}$. Decomposing the integrand givesAn irrelevant additive constant has been fixed. Set $v=t+r_{\ast }$ and $u=t-r_{\ast }$. Substituting $dt=dv-dr/f$ or $dt=du+dr/f$ respectively gives the ingoing Eddington-Finkelstein coordinates and outgoing Eddington-Finkelstein coordinates:The radial-time block in each has determinant $-1$, so the apparent singularity at $f=0$ has disappeared. The ingoing chart crosses the future event horizon, and the outgoing chart crosses the past horizon. Radial null geodesics in the ingoing chart obey either $v=\text{constant}$ or $dr/dv=f/2$, displaying how outward light is trapped when $r<r_h$.

For the maximal extension, the exterior radial metric is $-fdudv$. Since the surface gravity is $\kappa =f^{\prime }(r_h)/2=1/r_h$, choosein the right exterior. Their product and the extended metric areThe coefficient at the horizon is finite and nonzero, $-4r_h^2{e}^{-2}$. The product relation therefore extends smoothly through either horizon. For $r>r_h$, $UV<0$ gives two exterior regions. For $0<r<r_h$, $0<UV<1$ gives the future black-hole interior with $U,V>0$ and the past white-hole interior with $U,V<0$. The Kruskal extension of the five-dimensional Schwarzschild-Tangherlini metric has a bifurcation three-sphere at $U=V=0$.

The singularity $r=0$ corresponds to $UV=1$. It is a curvature singularity: for example, its Kretschmann scalar is $72r_h^4/r^8$. Since $g^{ab}{\partial }_{a}r{\partial }_{b}r=f<0$ in the interior, constant-$r$ surfaces are spacelike there, and the singularities are spacelike boundaries. Define $P=\arctan U$, $Q=\arctan V$, then compactified coordinates $T=(Q+P)/2$, $X=(Q-P)/2$. Radial null curves have $T\pm X=\text{constant}$. Moreover, $\tan P\tan Q=1$ gives $T=\pm \pi /4$ at the two singularities. This constructs the Penrose diagram, not just its horizon labels:

Each point away from the singular boundaries represents a three-sphere, not a two-sphere. The diagram has two asymptotically flat exteriors with separate past and future null infinities, a future black hole and a past white hole. The diagram of a collapse spacetime would omit the second exterior and the white-hole region; the maximal extension of the metric given here contains both.

For the Komar integral, normalize the stationary Killing vector field as $k={\partial }_t$, with unit norm at infinity. The Killing equation makes ${\nabla }^a{k}^b$ antisymmetric, and its divergence is proportional to $R^b{}_c{k}^c$. In a vacuum exterior this vanishes, so Stokes theorem makes the flux independent of the enclosing sphere. In the weak-field limit its radial component measures the derivative of the gravitational potential; its large-sphere flux is therefore proportional to the asymptotic gravitational mass. Normalization of $k$ is needed because rescaling it would rescale the integral.

Specify the surface orientation to fix the sign and factor. On a static exterior slice take future unit normal $u^a=f^{-1/2}({\partial }_t{)}^a$, outward radial normal $n^a=f^{1/2}({\partial }_r{)}^a$ andThen $d{\Sigma }^{tr}=-dA$ and $d{\Sigma }^{rt}=dA$, with both antisymmetric components included. Since $k_t=-f$,The three-sphere area is $2{\pi }^2{r}^3$, and $f^{\prime }=2r_h^2/r^3=4m/r^3$. ThusReversing the binormal orientation gives $+8{\pi }^{2}m$; a convention with half the antisymmetric binormal gives half this magnitude. The question does not fix those conventions, so the choice above is explicit.

For comparison with physical mass, the Komar mass normalization in higher dimensions isIn five dimensions this givesThe metric parameter $m$ has dimensions of length squared and is not itself the physical mass. An independent horizon check is $I_K=-2\kappa A_H$ with $A_H=2{\pi }^2{r}_h^3$, which reproduces the same integral. The dimension-adjusted normalization also agrees with the ADM mass; the four-dimensional Komar prefactor should not be reused unchanged.

Assume $M>0$ and use geometric units. The stationary Killing vector field $K={\partial }_t$ gives the conserved Killing energy $E=-g(K,U)=f\dot{t}$. For radial motion, normalization of the four-velocity gives $-f{\dot{t}}^2+f^{-1}{\dot{r}}^2=-1$. Combining these identities yieldsAt rest at infinity, $f\to 1$ and $\dot{r}\to 0$, so $E=1$. Choose the inward branch $\dot{r}=-\sqrt{2M/r}$. Its proper time from the Schwarzschild event horizon to the curvature singularity isIn ordinary units this is $4GM/(3c^3)$. The endpoint $r=0$ is not a regular centre of the spacetime. This is the Schwarzschild horizon-to-singularity proper time for fall from infinity, rather than a universal time for all infall energies.

For this geodesic congruence, set $w(r)=\sqrt{2M/r}$. Its four-velocity and metric dual areThe right side is an exact one-form because $w/f$ depends only on $r$. Thus $U_a=-{\partial }_a\tau$, with free-fall proper time in Schwarzschild spacetime determined byIndeed $U^a{\partial }_a\tau =-U^a{U}_a=1$, so this scalar advances by the actual proper time on every member of the infalling geodesic congruence, with a synchronized choice of additive offsets.

Substitution of $dt=d\tau -w{f}^{-1}dr$ in the Schwarzschild metric givesUsing $f=1-w^2$, the Painlevé–Gullstrand coordinates therefore haveAll coefficients are finite at $r=2M$; the determinant of the $\tau ,r$ block is $-f-w^2=-1$. Hence the horizon is a coordinate singularity of Schwarzschild time, not a degeneracy of the metric. The new spatial slices have $d{\ell }^2=d{r}^2+r^{2}d{\Sigma }^2$, the flat Euclidean metric, and $g^{ab}{\partial }_a\tau {\partial }_b\tau =-1$ makes their normals the freely falling four-velocities. By contrast, the curvature scalar $R_{abcd}{R}^{abcd}=48M^2/r^6$ diverges at $r=0$; this genuine singularity is not removed.

For ingoing Eddington-Finkelstein coordinates, use $v=t+r_{\ast }$ with $d{r}_{\ast }/dr=f^{-1}$, for example $r_{\ast }=r+2M\log |r/(2M)-1|$. ThenBoth constructions cross the future horizon. Their time functions have different meanings: $v=\text{constant}$ is an ingoing null hypersurface, whereas $\tau =\text{constant}$ is a flat spacelike hypersurface orthogonal to the infallers. Thus the former is adapted to ingoing null geodesics, and the latter to a timelike free-fall clock congruence.

For the Kruskal diagram, choose Kruskal–Szekeres coordinates with $U_K=-e^{-(t-r_{\ast })/(4M)}$, $V_K=e^{(t+r_{\ast })/(4M)}$ in the right exterior and extend them across its horizon. They obeyThe four regions of Kruskal spacetime are I, the right exterior $(U_K<0,V_K>0)$; II, the future black hole $(U_K>0,V_K>0)$; III, the other exterior $(U_K>0,V_K<0)$; and IV, the past white hole $(U_K<0,V_K<0)$. The null axes are horizons, their intersection is the bifurcation two-sphere, and the spacelike boundaries $U_K{V}_K=1$ are the future and past curvature singularities. A point in this radial diagram represents a symmetry two-sphere.

The domain of the ingoing Painleve-Gullstrand chart is region I together with region II and their common future horizon. More precisely, it is $V_K>0$, $U_K{V}_K<1$, or $r>0$ with finite $\tau$. To verify the boundary rather than infer it from the locally regular metric, put $\rho =\sqrt{r/(2M)}$ and writeThis follows by subtracting $r_{\ast }$ from the preceding radial primitive, and $S$ is finite at $r=2M$. Thus $V_K=\exp [(\tau -S(r))/(4M)]>0$ throughout the chart. Conversely every point with $V_K>0$ and $r>0$ gives a finite $\tau$. The past horizon $V_K=0$, the bifurcation sphere, region III and region IV are absent. Reversing the sign of the radial term produces the outgoing chart through the white hole instead.

Use geometrized units and metric signature $(-+++)$, with $M>0$. In the exterior of Schwarzschild spacetime, put $f=1-2M/r$. The Schwarzschild tortoise coordinate satisfiesThe retarded and advanced null coordinates $u=t-r_{\ast }$ and $v=t+r_{\ast }$ then give $d{s}^2=-fdudv+r^{2}d{\Omega }^2$. The logarithmic divergence of $r_{\ast }$ suggests exponentiating these null coordinates. In the right exterior define the Kruskal–Szekeres coordinatesTheir product eliminates $t$:Since $du=-4MdU/U$ and $dv=4MdV/V$, the Schwarzschild metric becomesHere $r$ is an implicitly defined function of $UV$. The derivative of the right side with respect to $r$ is $-r{e}^{r/(2M)}/(4M^2)$, which is nonzero at $r=2M$. The inverse function theorem therefore makes $r(UV)$ smooth across that surface, and the coefficient of $dUdV$ tends to $-16M^2/e$. Thus the Schwarzschild event horizon is a coordinate singularity of the original chart, while this Lorentzian metric remains regular there.

Extend the Kruskal–Szekeres coordinates to all real $U,V$ with $UV<1$. The signs give two exterior regions, $U<0<V$ and $V<0<U$, a future black hole region $U,V>0$, and a past white hole region $U,V<0$. The event horizons are $U=0$ or $V=0$, intersecting at the bifurcation surface. The boundary $UV=1$ has $r=0$ and is a genuine Schwarzschild singularity, as the Kretschmann scalar $48M^2/r^6$ diverges there.

Finally, $T=(V+U)/2$ and $X=(V-U)/2$ give $UV=T^2-X^2$ and a radial metric proportional to $-d{T}^2+d{X}^2$. Hence radial null geodesics have slopes $\pm 1$, the event horizons are $T=\pm X$, and the singular boundaries are $T^2-X^2=1$. This constructs the maximal Kruskal extension; a black hole produced by collapse need not contain the second exterior or the white hole of that eternal extension.

Use geometrized units $G=c=1$ and metric signature $(-,+,+,+)$. Put $f=1-2M/r$ in the Schwarzschild metric. The Schwarzschild tortoise coordinate satisfies $d{r}_{\ast }/dr=f^{-1}$, soSubstituting $dt=dv-f^{-1}dr$ gives the ingoing Eddington-Finkelstein coordinates:The radial metric tensor has determinant $-1$ and inverse components $g^{vv}=0$, $g^{vr}=1$, $g^{rr}=f$. Thus it is nondegenerate and analytic at $r=2M$. The same expression defines a Lorentzian metric for every $r>0$, extending the exterior across the future Schwarzschild event horizon into the black hole. It does not include the other exterior or the white hole of the full Kruskal spacetime. At $r=0$, the Kretschmann scalar $R_{abcd}{R}^{abcd}=48M^2/r^6$ diverges, so this is a curvature singularity, not a removable coordinate singularity.

A spacetime is geodesically complete if every maximal geodesic has an affine parameter ranging over all of $\mathbb{R}$. For timelike geodesics this is equivalent to unbounded proper time in both directions. An extendible geodesic segment can be prolonged in the same spacetime; an inextendible geodesic cannot. A finite coordinate endpoint need not imply finite affine parameter.

For the Kruskal spacetime, use $U,V$ withIn the right exterior $U<0<V$. A truncated ray $U=U_0<0$, $V_1<V<V_2$ is an extendible geodesic of radial null type: neither artificial endpoint is a spacetime boundary. A future ray $U=U_0>0$ in the black hole reaches $UV=1$, hence $r=0$, and is inextendible geodesic and future null-geodesically incomplete. Its Killing energy $E\ne 0$ gives $dr/d\lambda =-|E|$, so the Schwarzschild singularity occurs at finite affine parameter. The maximal continuation toward the past supplies the other half of this same null geodesic.

There is no inextendible, complete radial timelike geodesic in positive-mass Kruskal spacetime. This requested example is impossible as printed. For a radial timelike geodesic, the conserved Killing energy and normalization giveIf $E^2<1$, $r$ has at most one turning point, a maximum $r_{\max }=2M/(1-E^2)$; a maximal trajectory runs from the white hole Schwarzschild singularity to the Schwarzschild singularity. If $E^2\ge 1$, there is no finite turning point; one end can lie at infinity but the other reaches $r=0$. The exceptional $E=0$ trajectory through the bifurcation surface also reaches $r=0$ in both time directions. Near $r=0$,whose integral is finite. Constant-$r$ radial timelike curves are accelerated, not geodesics.

Two plausible repairs have different meanings. Removing “radial” permits a complete circular timelike geodesic at $r=R>6M$, with nonzero angular momentum and proper time ranging over $\mathbb{R}$. Replacing “timelike” by “null” permits a complete horizon null geodesic: $U=0$, $V\in \mathbb{R}$, with $V$ an affine parameter. The Penrose diagram shows both repairs explicitly, together with the two valid requested examples; the circular trajectory is only a radial projection and is labelled as nonradial.

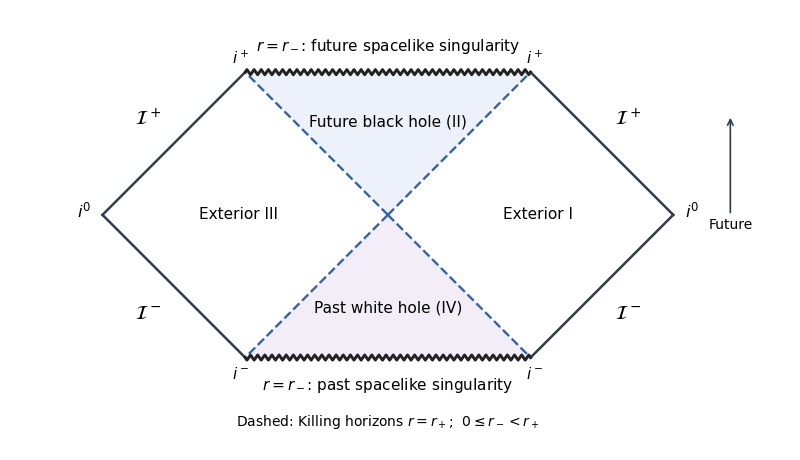

The horizontal boundaries are the Schwarzschild singularities, diagonal dashed lines are the Killing horizons, and outer diagonal edges are null infinity.

Relative to a chosen asymptotically flat end, define the black hole region bywhere ${\mathcal{I}}^{+}$ is that end's future null infinity in a conformal completion. It consists of events unable to send a future causal signal to that infinity; its boundary is the corresponding future event horizon.

For $0<\alpha <r_0/2$, $h>0$ and $f<0$ on $r_{-}<r<r_{+}$. The gradient of $r$ has norm $g^{ab}{\nabla }_{a}r{\nabla }_{b}r=f$, so it is timelike there. Use the future extension regular in the ingoing coordinates above, reached by an exterior future ingoing null geodesic with $\dot{r}=-E\sqrt{h}<0$. This determines $\nabla r$ to be future timelike in the inter-horizon block. Every nonzero future causal tangent $V$ therefore obeysAt the future outer horizon the gradient becomes future null and gives the corresponding one-way inequality $dr/d\lambda \le 0$. No future signal can cross that horizon outward to the selected exterior. The future inter-horizon block is consequently within $\mathcal{B}$; a future-directed path can leave it only through the inner horizon, not return through the outer horizon to the selected infinity.

This statement requires a branch and an end. The maximal extension also contains time-reversed inter-horizon blocks, where future-directed curves have increasing $r$ and emerge into an exterior: they are white holes, not the selected black hole region. Thus the unqualified claim for every copy of $r_{-}<r<r_{+}$ in an arbitrary extension is false. Analytic continuation past a Cauchy horizon can also introduce other asymptotic ends; the displayed definition explicitly refers to the chosen component of infinity.

To sketch the causal structure, suppress the spacelike $\psi$ circle by its orbit-space projection. The induced three-dimensional metric tensor isThe causal projection along a spacelike circular fiber is exact: any causal curve projects to a $q$-causal curve, and every base curve has a lift $d\psi =\Omega dt$ with exactly its base norm. The diagrams therefore represent this two-dimensional orbit space, not a constant-$\psi$ slice of the three-dimensional submanifold.

There are three nonextremal block types. For $r>r_{+}$, $r_{\ast }$ spans the full real line from the outer horizon to infinity, producing an exterior diamond. For $r_{-}<r<r_{+}$, $r_{\ast }$ spans the full line with the time and space roles reversed; these diamonds contain the future black-hole or past white-hole branches. For $0<r<r_{-}$, $r_{\ast }$ is finite at zero and diverges at the inner horizon, producing a static half-diamond with a timelike singular edge. The supplied Kretschmann scalar diverges as $384{\alpha }^4{r}_0^4/r^{12}$ at $r=0$, and $f>0$ on the inner side, so that edge is a genuine timelike curvature singularity. In contrast, both horizon radii are regular in horizon-adapted coordinates.

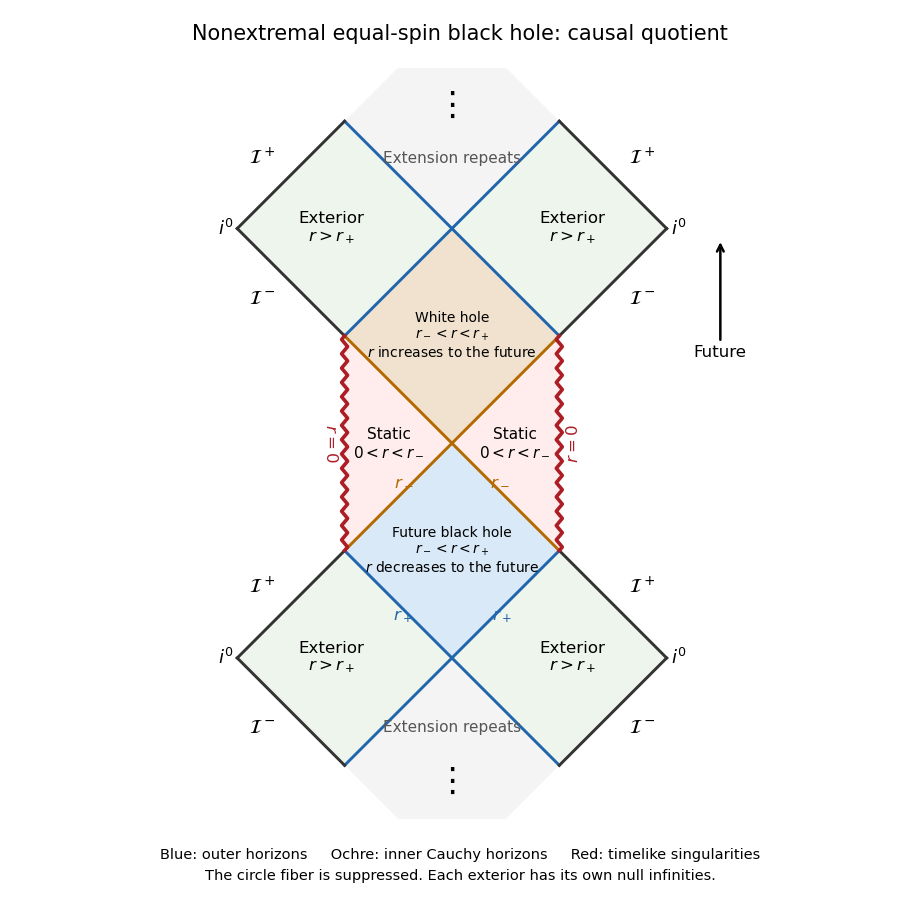

The finite strip shows two exterior levels, a future trapped block, an inner static level with timelike singularities, and the next emerging block. Continuing through the inner Cauchy horizons repeats this pattern upward and downward in the maximal analytic extension. The inner boundary is not a spacelike Schwarzschild-type singularity. Such an ideal extension need not describe a physical collapse past its unstable inner horizon.

At $\alpha =r_0/2$, put $R=r_0/\sqrt{2}$. Then $r_{+}=r_{-}=R$, $f=(r^2-R^2{)}^2/r^4$, and the interval $r_{-}<r<r_{+}$ is empty. The lapse is positive on both sides, so there is no inter-horizon trapped diamond. The horizon is a degenerate Killing horizon, with $\kappa =0$. In the exterior $r_{\ast }\to -\infty$ as $r\downarrow R$, while inside $r_{\ast }\to +\infty$ as $r\uparrow R$; more precisely its leading pole is $-\sqrt{2}{R}^2/[4(r-R)]$. Static proper distance to the horizon is infinite. Future ingoing rays still cross it at finite affine parameter, as the regular ingoing metric tensor shows.

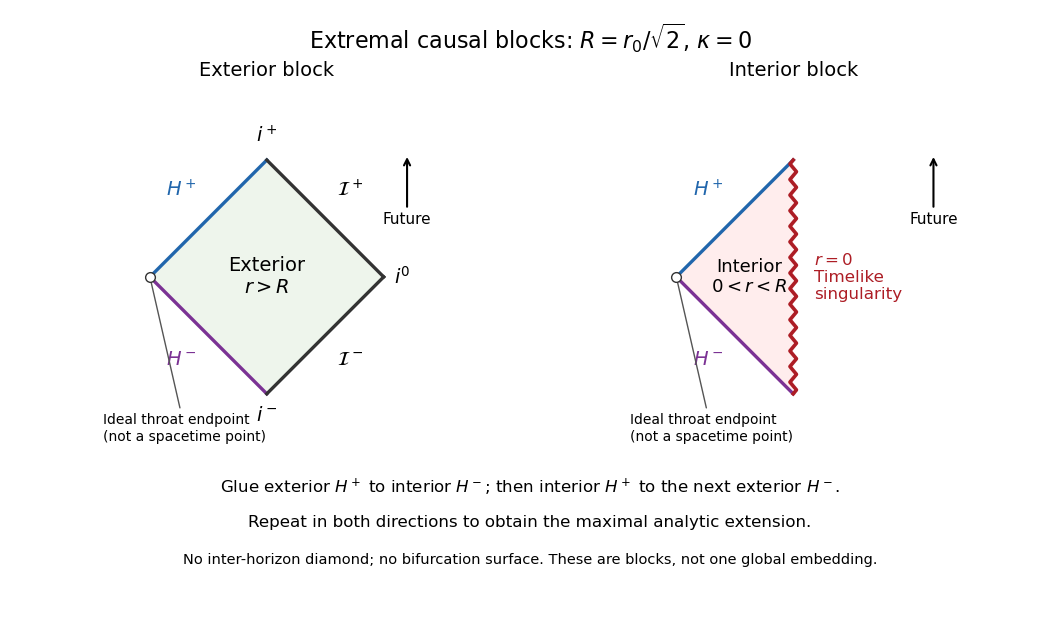

The extremal sketch gives the exterior diamond and singular interior half-diamond, with the complete gluing prescription: the exterior future horizon attaches to the interior past horizon; the interior future horizon attaches to the past horizon of another exterior. Repeating these attachments gives the maximal extension. The marked throat endpoints are conformal ideal endpoints, not bifurcation points of the spacetime. This block representation avoids incorrectly treating the extremal geometry as two transverse horizons with a collapsed trapped region.

Given an asymptotically flat spacetime with a conformal completion and future null infinity ${\mathcal{I}}^{+}$, its black hole region isThe event horizon is its boundary. For the magnetically charged dilaton black hole, first assume $0\le a=r_{-}<b=r_{+}$. The physical asymptotic component has $r>a$, and the ingoing chart extends regularly across $r=b$. Its future ingoing null direction is $-{\partial }_r$. For $a<r<b$,Hence $\nabla r$ is future timelike. Every nonzero future causal tangent $X$ satisfies $X(r)=g(\nabla r,X)<0$. A future causal curve from this interior can neither cross back to $r=b$ nor reach the asymptotic end $r\to \infty$, so it cannot reach ${\mathcal{I}}^{+}$. It lies in $\mathcal{B}$.

This proof uses the future black-hole extension. The radial interval alone does not distinguish it from the past white hole interior of the maximal extension; that interior has the same interval and can send signals to infinity. Thus the statement needs this future-component qualification if the maximal spacetime is intended.

The Kretschmann scalar confirms that $r=a$ is a genuine curvature singularity: for $0<a<b$, its numerator at $r=a$ is $3a^4(a-b{)}^2$, andFor $a=0$ it instead reduces to $12b^2/r^6$. Since $V<0$ on approaching the singularity from the interior, the singularity is spacelike. At $r=b>a$ the curvature is finite.

For the maximal extension, take $U=-e^{-u/(2b)}$, $W=e^{v/(2b)}$ in the right exterior and continue analytically across the horizons. ThenThe singularity is $UW=(1-a/b)e^{a/b}>0$ and the horizons are $U=0$ and $W=0$. Rescaling the null coordinates by the square root of this positive constant before arctangent compactification produces the usual qualitative Penrose diagram of Schwarzschild spacetime: two exteriors, a future black-hole region, a past white-hole region, and future and past spacelike singularities. The dashed lines below are the horizon branches; only the future interior is the black-hole region.

If $a>b$, the physical domain remains $r>a$, but now $V>0$ throughout it. The apparent zero $r=b$ is beyond the curvature singularity and is not an accessible horizon. The singularity is timelike, and outgoing radial null rays with $\dot{r}=E>0$ escape to infinity from arbitrarily near it. ThusThe excluded equality $r_{-}=r_{+}$ is a singular limiting case, not a regular horizon. These facts describe the causal structure of the magnetic dilaton black hole.
