Bessel focal length uncertainty (${\sigma }_f^2\simeq A^2{\sigma }_L^2+B^2{\sigma }_d^2+2AB\mathrm{Cov}(L,d)$)

For small measurement errors, write $f=L/4-d^2/(4L)$. Its partial derivatives and first-order propagation of uncertainty areHere the $\sigma$ values are standard deviations used to describe uncertainty, and $\mathrm{Cov}(L,d)$ is the covariance. Independent carrier-reading errors give ${\sigma }_d^2={\sigma }_{r_{-}}^2+{\sigma }_{r_{+}}^2$; correlated readings require the term $-2\mathrm{Cov}(r_{-},r_{+})$. Averaging repeated independent pairs reduces the random component of the uncertainty of the mean, but does not remove calibration or model errors.

As a stipulated uncertainty calculation, let $L=45\mathrm{cm}$, $d=15\mathrm{cm}$, ${\sigma }_L=0.10\mathrm{cm}$ and ${\sigma }_{r_{-}}={\sigma }_{r_{+}}=0.05\mathrm{cm}$, with all three input errors independent. Then ${\sigma }_d=0.0707\mathrm{cm}$, $A=5/18$, $B=-1/6$ and ${\sigma }_f\simeq 0.0302\mathrm{cm}$. The result would be $f=10.000\mathrm{cm}$ with this standard uncertainty in the stipulated thin lens model; these numbers are not a measured uncertainty budget. A small neglected principal-plane separation gives an additional first-order bias $f_{\mathrm{thin}}-f\simeq Ah$, distinct from that random budget.

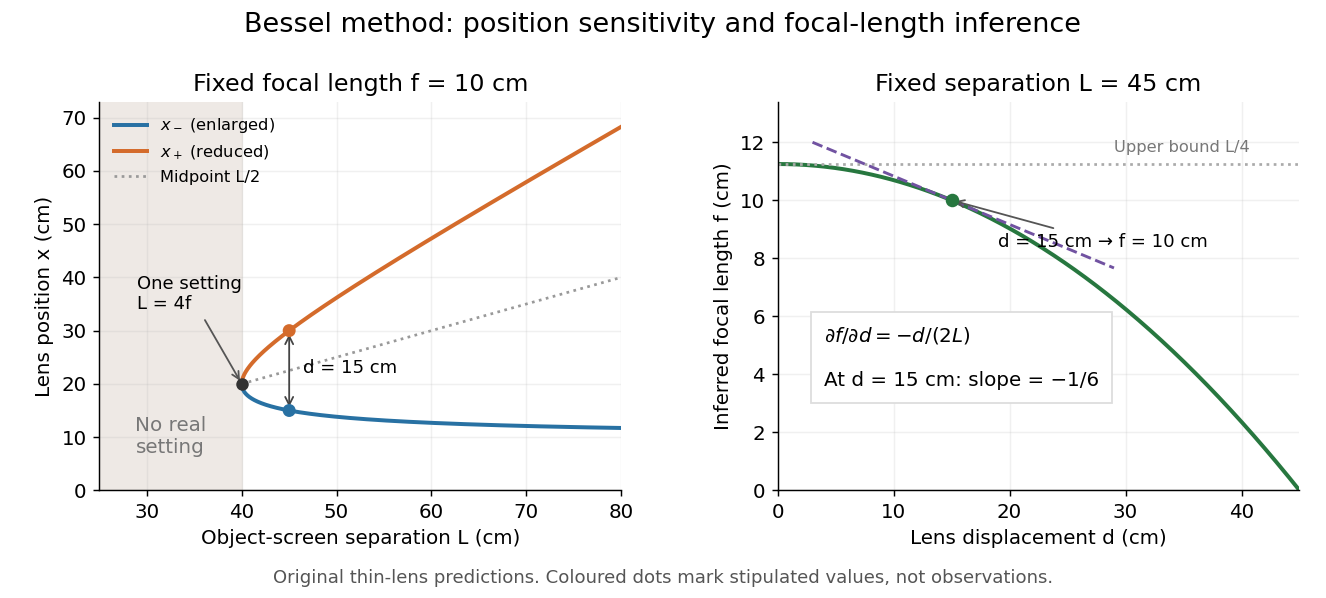

The two kinds of sensitivity must be distinguished. At fixed focal length,These derivatives diverge as $L$ approaches $4f$ from above: a small change in object-screen spacing strongly changes the separation of the two settings. Yet the inferred focal length's displacement sensitivity $|B|=d/(2L)$ tends to zero. That does not make coalescing settings easy to measure. For fixed $L$, define the axial mismatch between the predicted real image and the screen as $g(x)=fx/(x-f)-(L-x)$, for $x>f$. At a focused setting,Near $u=v=2f$, moving the optical lens changes this mismatch only weakly, making visual discrimination of the two settings difficult. At the example's settings $g^{\prime }(15\mathrm{cm})=-3$ and $g^{\prime }(30\mathrm{cm})=3/4$, so equal carrier motion produces different axial defocus responses. This is an axial mismatch calculation, not a full prediction of perceived image sharpness.

Choose $L$ sufficiently above $4f$ to separate the two accepted focusing ranges, while retaining both real images on the available screen and rail. There is no universal best $L$: focusing uncertainty itself depends on aperture, transverse magnification, optical aberrations and the target. Close to $d=0$, the nonnegative measured separation and the quadratic term in $d$ also make first-order propagation of uncertainty unreliable if its error is comparable to its value. Repeatability, controls and the principal plane correction determine whether the elegant two-distance formula is an adequate measurement model.
