A standing wave results from the superposition principle applied to equal-frequency, equal-amplitude waves travelling in opposite directions. Its spatial nodes of a standing wave remain fixed while its displacement oscillates in time.

For a pure standing wave, the two travelling waves also have equal amplitudes: their interference leaves a fixed mode shape, rather than a profile moving along the string. Choose the position origin and time origin so that their transverse displacements areHere $a>0$ is each constituent's amplitude, $k=2\pi /\lambda$ is the wavenumber, $\lambda$ is the wavelength, and $\omega =2\pi f$ is the angular frequency corresponding to frequency $f$. Their wave speed is $c=\omega /k$. The superposition principle and the sine addition formula giveThe spatial factor stays put; the temporal factor changes its size and sign. Other constant wave phases shift the position or time origin. Unequal constituent amplitudes generally leave moving displacement at the would-be nodes of a standing wave, rather than this exact factorization.^[ref]

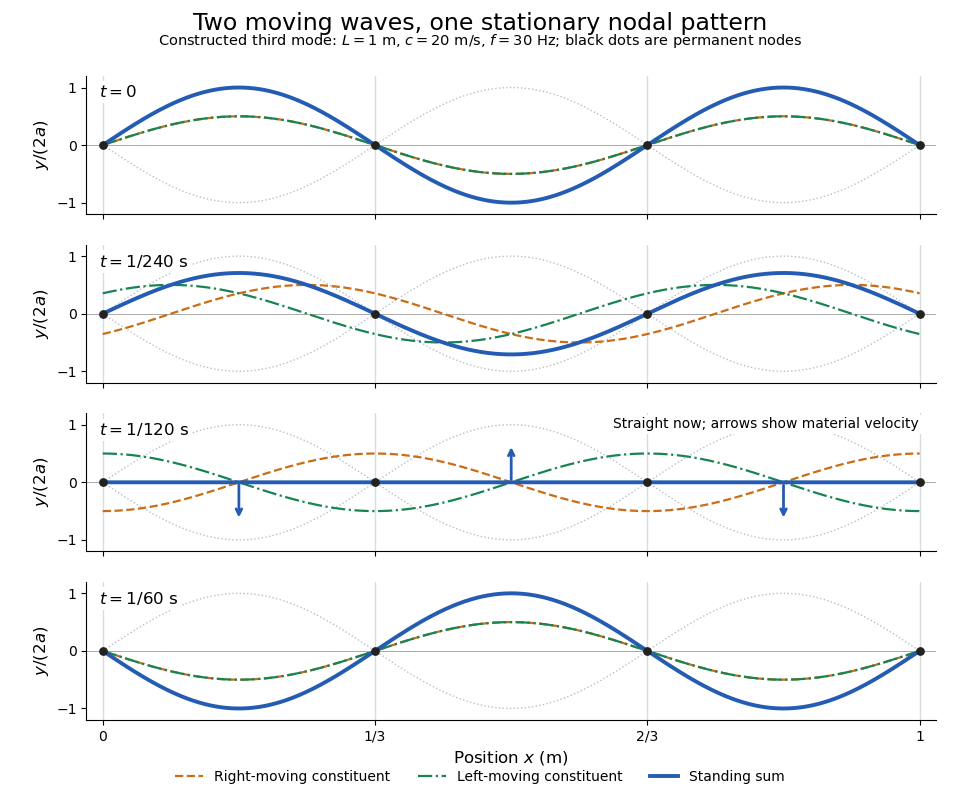

For an original ideal-string example, set $L=1\mathrm{m}$, $c=20\mathrm{m}{\mathrm{s}}^{-1}$, and choose the third normal mode. Then $k=3\pi {\mathrm{m}}^{-1}$, $\omega =60\pi {\mathrm{s}}^{-1}$, and $f=30\mathrm{Hz}$ by fixed-end standing wave frequencies. With each constituent amplitude $a=5\mathrm{mm}$,Its nodes of a standing wave are at $x=0,1/3,2/3,1\mathrm{m}$ and its antinodes at $x=1/6,1/2,5/6\mathrm{m}$. These are constructed model parameters, not experimental readings.

At $t=1/120\mathrm{s}$, every point has zero displacement, but most have nonzero transverse velocity: the string is crossing its straight configuration. The black dots alone mark permanent nodes of a standing wave. At an antinode the greatest transverse speed is $2a\omega =0.6\pi \mathrm{m}{\mathrm{s}}^{-1}$, much smaller than the chosen $20\mathrm{m}{\mathrm{s}}^{-1}$ wave speed. One is motion of string material; the other is propagation of the constituent profiles.

The beauty of a standing wave is that motion reveals geometry: fixed nodes of a standing wave turn a moving disturbance into a spatial ruler. Their separation measures wavelength, and boundary conditions turn the continuous choice of wavenumber into a discrete set of normal modes. This is useful both for interpreting string vibrations and for understanding how a bounded wave equation selects its eigenfrequencies.
