Fresnel diffraction describes diffraction when the quadratic propagation wave phase across an aperture must be retained. Its Fresnel propagator becomes the Fraunhofer diffraction description when that curvature is negligible.

A Fresnel diffraction pattern is a map of how propagation changes the wave interference of light from an aperture. It can resemble the opening, develop bright and dark structure near its edges, and eventually approach a Fraunhofer diffraction pattern. The controlling comparison involves wavelength, opening size and propagation distance together; a distance large compared with the opening need not give the far field.

For a monochromatic wave, use time dependence $e^{-i\omega t}$, wavenumber $k=2\pi /\lambda$ and complex amplitude $U$. Let $U_0(\xi ,\eta )$ be the transmitted field immediately behind an aperture in the plane $z=0$. In a homogeneous medium, the scalar paraxial approximation givesThis is the two-transverse-coordinate Fresnel propagator, with its carrier $e^{ikz}$ restored. It adds complex amplitudes before taking their squared complex modulus to obtain light intensity. It is a scalar paraxial approximation, rather than a full vector solution of Maxwell equations.^[ref]

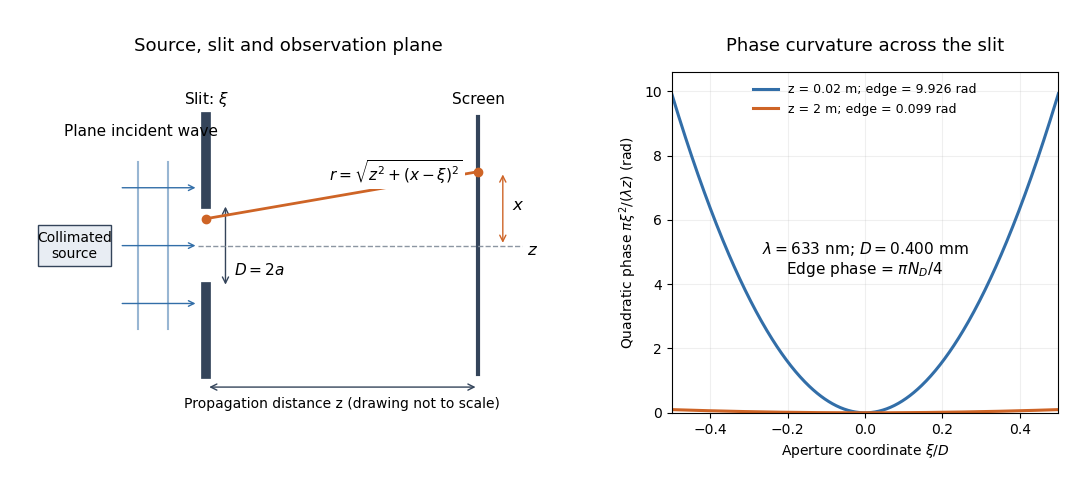

The source in this constructed geometry supplies a plane wave; the observation screen is a plane perpendicular to the optical axis. The right panel isolates the aperture-dependent wave phase that distinguishes Fresnel diffraction from Fraunhofer diffraction. Its vertical scale is in radians, and the drawing's lengths are schematic.

Keeping this wave phase is useful when transporting a field between nearby optical components: both the shape and the complex amplitude matter for subsequent wave interference. A particularly striking feature is that propagation can create a dark centre even from a uniformly illuminated symmetric aperture; the incident wave amplitudes need not be unequal for their outgoing contributions to cancel.

A Fresnel number compares squared aperture size with the product of wavelength and propagation distance. For an optical slit of full width $D=2a$, explicitly distinguish the full-width and half-width conventions:The full-width convention is used throughout the Fresnel slit propagation example below. The definition $D^2/(\lambda z)$ also appears in the Delft treatment.^[ref]

For uniform incident wave phase, $N_D\ll 1$ makes the omitted aperture wave phase small and gives the Fraunhofer diffraction regime. When $N_D$ is of order one or larger, retain it and use Fresnel diffraction, provided the paraxial approximation still holds. These are continuous changes in accuracy, rather than a physical boundary at one selected number. For a rectangular aperture, check both transverse dimensions. Incident wavefront curvature contributes its own wave phase through $U_0$; the aperture-to-screen Fresnel number alone does not describe a spherical source's illumination.

The scaling is revealing: doubling the optical slit width at fixed wavelength and distance multiplies the Fresnel number by four. Maintaining the same Fresnel number then requires four times the distance. Two systems can consequently have the same dimensionless pattern despite very different physical lengths.
