Intermediate value theorem hypotheses and counterexamples

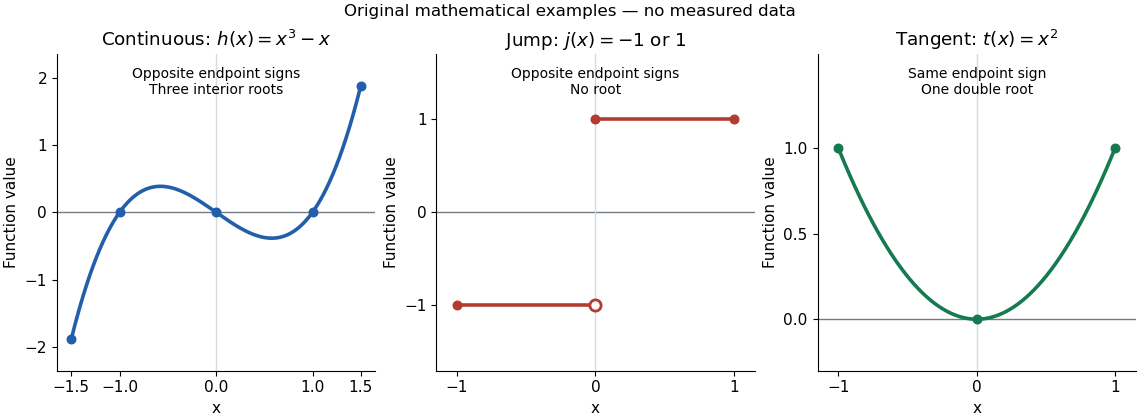

Three explicit functions separate the hypotheses from the conclusion. These are original mathematical illustrations, not measured data.

The polynomial function $h(x)=x^3-x=x(x-1)(x+1)$ is a continuous function on $[-3/2,3/2]$, with $h(-3/2)=-15/8$ and $h(3/2)=15/8$. The intermediate value theorem guarantees at least one zero of a function in the interior, while the polynomial factorization displays three: $-1,0,1$. Thus strict opposite signs do not establish uniqueness.

The everywhere-defined functionhas $j(-1)=-1$ and $j(1)=1$, yet no zero of a function. Its jump discontinuity at zero is exactly where the continuity hypothesis fails. A drawn vertical connector would be misleading: the function graph contains neither the intermediate heights nor a zero of a function at that jump. Even continuity only on the interior is insufficient: setting $q(x)=-1$ for $0\le x<1$ and $q(1)=1$ gives opposite endpoint signs on $[0,1]$ with no zero of a function, because the left one-sided limit at $1$ is not $q(1)$.

The polynomial function $t(x)=x^2$ on $[-1,1]$ is a continuous function, and $t(-1)=t(1)=1$, yet $t(0)=0$. Its root of a polynomial at zero has multiplicity of a root two. The function graph touches its horizontal tangent line there and stays positive on both sides: existence of a zero of a function does not require a sign change. More generally, near a real root of a polynomial $r$, a polynomial factorization $p(x)=(x-r{)}^{2m}u(x)$ with $m\ge 1$ and $u(r)\ne 0$ has the same sign on both sides sufficiently close to $r$, since the continuous function $u$ retains its sign. The intermediate value theorem does not rule out values outside the range between endpoint outputs.^[ref]
