Linear limb-darkening law ($I(\mu )=I_c[1-u(1-\mu )]$)

The linear limb-darkening law parametrizes angular specific intensity by a stipulated limb-darkening coefficient $u$:Here $I$ denotes specific intensity at one frequency, or radiance integrated over a specified interval of frequency or wavelength; it does not denote radiant intensity. Within this stipulated range, $u=0$ gives a uniform disk and $I(0)/I_c=1-u$. The linear limb-darkening law is linear in $\mu$, while its radial profile $I(r)=I_c[1-u+u\sqrt{1-(r/R_{\star }{)}^2}]$ is curved. In the linear source function example above, $u=b_{\nu }/(a_{\nu }+b_{\nu })$ when $a_{\nu },b_{\nu }\ge 0$ and $a_{\nu }+b_{\nu }>0$.

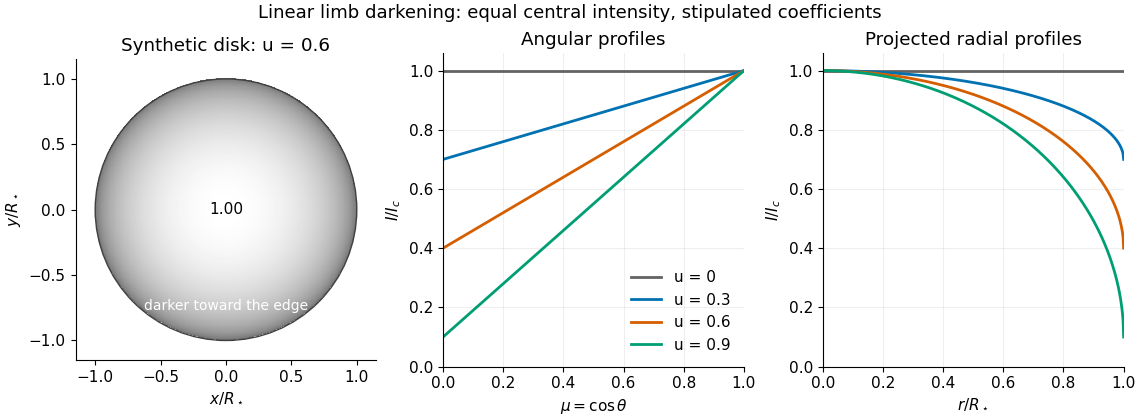

For the illustrative choice $u=0.6$, the specific intensity at $r/R_{\star }=0$, $0.8$, and the limiting edge is respectively $I_c$, $0.76I_c$, and $0.4I_c$. These are synthetic values, not measurements of the Sun. Real optical spectra and stellar atmospheres need not obey a linear limb-darkening law; more flexible profiles can be necessary for accurate exoplanet transit photometry. ^[ref]

The parameter $u$ in the linear limb-darkening law specifies its contrast between disk centre and the limiting edge. Its interpretation requires the chosen law and interval of frequency or wavelength. A limb-darkening coefficient fitted to an exoplanet transit may trade off against the transit impact parameter and planet radius; it is not a direct measurement of one layer's temperature.
