Small-planet transit weighting ($\delta \simeq k^{2}I({\mu }_p)/\overline{I}$)

A dark, opaque circular planet of radius $R_p$ blocks specific intensity over its overlap with the projected star. With $k=R_p/R_{\star }$ and no transit dilution, the instantaneous exoplanet transit depth is exactlyWhen $k\ll 1$, the entire planetary disk is inside the stellar disk, and specific intensity varies little across that disk, small-planet transit weighting reduces toHere $z$ is the projected centre separation divided by $R_{\star }$. The numerator samples the local specific intensity; the denominator normalizes by the whole star's mean specific intensity. The small-size argument and the distinction between full overlap and ingress are explicit in the original analytic treatment. ^[ref]

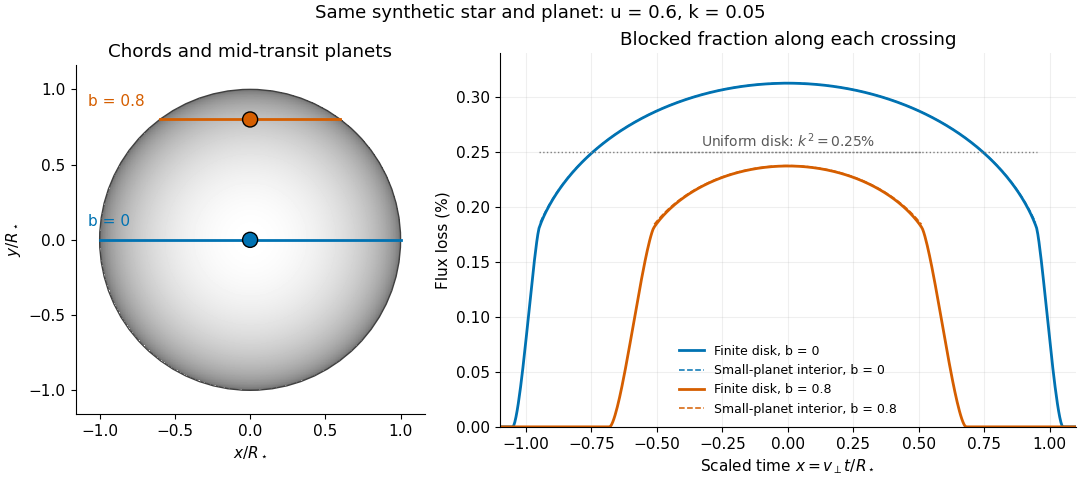

For a short approximately straight crossing at constant transverse velocity $v_{\perp }$, write $x=v_{\perp }t/R_{\star }$ with $t=0$ at mid-transit, and let $b$ be the transit impact parameter. Then $z^2=x^2+b^2$ and ${\mu }_p=\sqrt{1-b^2-x^2}$. With stipulated $u=0.6$ and $k=0.05$, a central crossing has mid-transit exoplanet transit depth approximately $0.003125$, whereas $b=0.8$ gives $0.002375$. A uniform disk would give $k^2=0.0025$ for either fully overlapping crossing. The brighter central chord produces a deeper dip and the off-centre chord a shorter crossing at the same $v_{\perp }$.

At fixed $z<1$ away from the edge, a two-dimensional Taylor's theorem expansion over the symmetric planetary disk cancels the first derivatives; the first correction to the blocked radiant flux is of order $k^4$ if the second derivatives remain bounded. This error estimate is not uniform at the edge, where the radial derivative of the linear limb-darkening law diverges. Ingress, egress, a grazing exoplanet transit, and a crossing of a starspot require the overlap integral or a suitable more complete model. Inferring $k=\sqrt{\delta }$ without the local-to-mean specific intensity ratio can bias the estimated planet radius.
