Matrix-chain split reconstruction ($s[i,j]$)

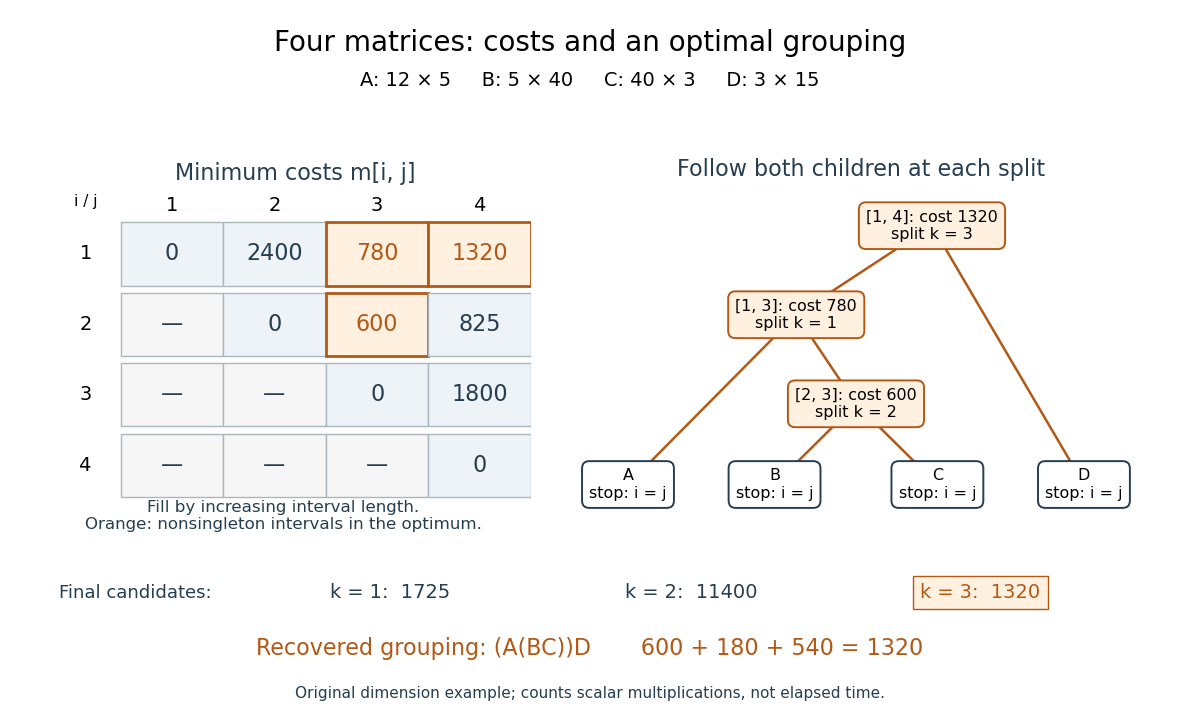

Extend the original example by a matrix $D$ with matrix dimensions $3\times 15$, so $(p_0,p_1,p_2,p_3,p_4)=(12,5,40,3,15)$. The Catalan number $C_3=5$ counts all possible groupings. Their scalar multiplication costs areThe optimum is $(A(BC))D$, with cost $1320$. Enumeration makes a useful check here, but dynamic programming reaches the same answer by solving ten integer intervals, including the four single-matrix base cases:For example, $m[2,4]=\min \{1800+5\cdot 40\cdot 15,600+5\cdot 3\cdot 15\}=\min \{4800,825\}=825$. The three final-split candidates for the full matrix product supply a compact certificate:The first candidate already uses the better grouping of $BCD$; the worse $A(B(CD))$ need not be reconsidered at the top level. This is how optimal substructure lets the table represent all five possibilities with only three final candidates.

Read $s[1,4]=3$, which separates $ABC$ from $D$. Then $s[1,3]=1$ separates $A$ from $BC$, and $s[2,3]=2$ separates $B$ from $C$. This recursion stops at every $i=j$, returning the corresponding matrix name. Combining the returned expressions recovers $(A(BC))D$, rather than only its cost. Every recursive call uses a shorter integer interval, establishing algorithm termination; a tied minimum may choose any attaining split. The recovered binary tree has $n$ leaves and $n-1$ internal nodes, so reconstruction takes $O(n)$ steps. Its attraction is the separation between an enormous family of groupings and a small set of reusable dynamic programming states.
