An optical oscillator strength is a dimensionless weight assigned to an optical resonance. In an independent-resonance Lorentz oscillator model using a reference electron mass $m_e$ and a specified participating number density $n$,Its normalization must be stated: assigning one unit of total strength per participating Electron means ${\sum }_j{f}_j=1$. A one-resonance approximation with $f_1=1$ represents the whole chosen electron population, rather than asserting that the first allowed interband transition carries all optical strength. The smallest band gap therefore need not equal the fitted resonance energy.

In the Lorentz oscillator model, each participating bound Electron is displaced by an applied electric field against a restoring force. The model replaces complicated interband transitions by a driven damped harmonic oscillator. If $u$ is the Electron displacement along the field and the Electron charge is $-e$, its equation of motion isHere ${\omega }_0$ describes binding and $\gamma >0$ describes loss of coherent motion. For $E(t)=\mathrm{Re}(E_0{e}^{-i\omega t})$, the complex amplitude isThe induced electric dipole moment is $-eu$, so the electric polarization amplitude for number density $n$ isUsing $D={ϵ}_{0}E+P={ϵ}_0{ϵ}_{r}E$ givesThe paper's $ϵ$ is this dimensionless relative permittivity, rather than the absolute permittivity ${ϵ}_0{ϵ}_r$. Independent classes of bound Electrons contribute additive susceptibilities, usually with different resonance frequencies and optical oscillator strengths.

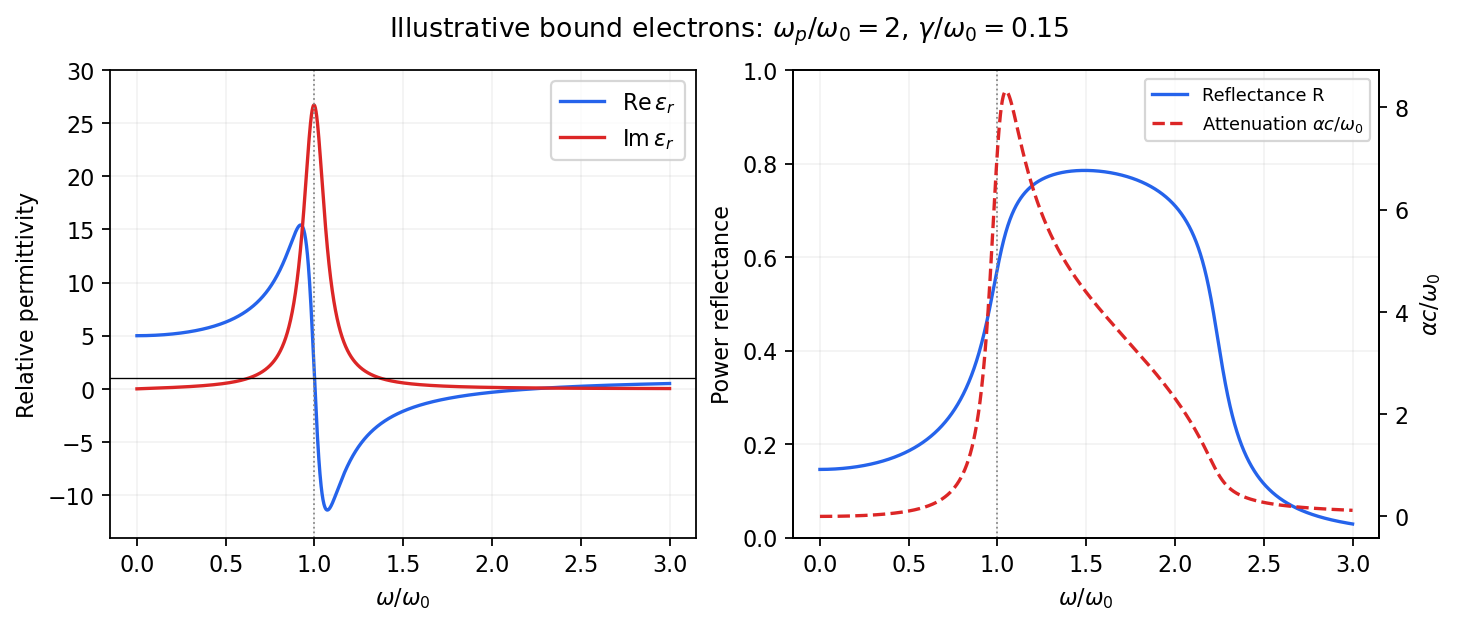

Writing $D_{\omega }=({\omega }_0^2-{\omega }^2{)}^2+{\gamma }^2{\omega }^2$ separates the response intoAt zero frequency the real part is $1+{\omega }_p^2/{\omega }_0^2$ and the imaginary part vanishes. Near resonance the imaginary part has a positive photon absorption peak and the real part changes rapidly, passing through $1$ at ${\omega }_0$. Above resonance the real part can become negative when damping is sufficiently weak; at very high frequency it approaches $1$ from below while the imaginary part tends to zero. Finite damping removes the undamped divergence.

For a nonmagnetic material take the passive square-root branch $N=\eta +i\kappa =\sqrt{{ϵ}_r}$, with $\kappa \ge 0$. A plane wave then has an intensity attenuation coefficient $\alpha =2\omega \kappa /c$. Thus the imaginary permittivity expresses dissipation, whereas the actual photon absorption coefficient is determined by the imaginary refractive index. The normal-incidence power reflectance isA large refractive-index mismatch produces wave reflection even without loss. In the undamped model ${ϵ}_r<0$ between ${\omega }_0$ and $\sqrt{{\omega }_0^2+{\omega }_p^2}$, so the field is evanescent and wave reflection is total in a semi-infinite sample. With damping the response includes both wave reflection and photon absorption; a peak in the imaginary permittivity should not simply be identified with a reflectance peak.

To infer the short-wavelength background from $R=0.35$, assume weak photon absorption and take the physical semiconductor branch $\eta >1$. ThensoThis is an estimate of the valence-electron background in a frequency window above the doped-carrier response and below the effective bound-electron resonance. One reflectance value alone does not determine both parts of a complex dielectric constant. Even for real ${ϵ}_r$, a reciprocal-index branch gives the same $R$; the ordinary background index greater than unity selects the branch used here.

Using the supplied conventional cubic lattice parameter, the participating valence-electron number density isUsing $m=m_e$ for the stipulated free-electron comparison givesAn angular frequency “in eV” means its quantum energy $\hslash \omega$, not $h\omega$. No doped-carrier effective mass should be inserted into this valence-electron count.

The low-frequency limit of the bound-electron contribution obeysConsequentlyThis effective resonance is much larger than the quoted $0.2\mathrm{eV}$ band gap. There is no contradiction: the single oscillator has been assigned the strength of all sixteen participating valence Electrons per conventional cell, whereas the band gap is only the lowest interband excitation threshold. A real spectrum distributes optical oscillator strength over many transitions. Equating the oscillator resonance to the lowest threshold would misrepresent the assumed background response. Here “low frequency” means low relative to ${\omega }_0$; the static response of the doped conducting sample also contains its free carriers.

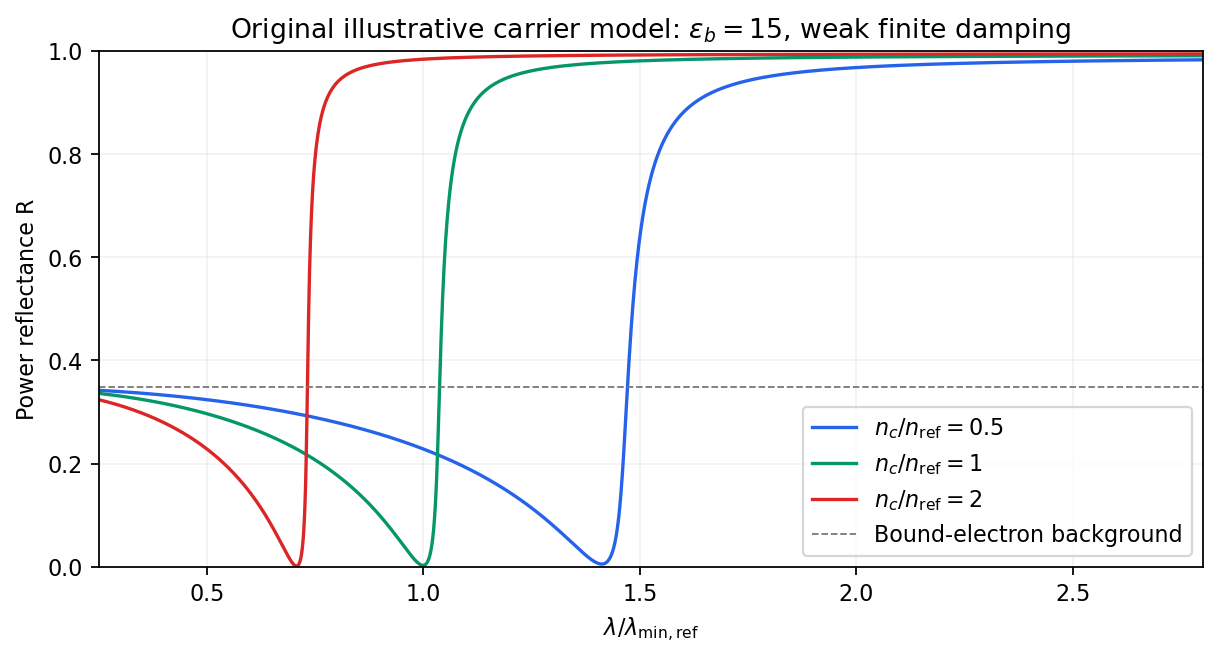

The additional mobile carriers in doped indium antimonide contribute a Drude frequency response, obtained by setting their restoring frequency to zero. At infrared frequencies well below the effective valence resonance, the sum is approximatelyAt the shorter wavelengths the carrier term is small and $R$ approaches the background value. As wavelength increases, the negative free-carrier contribution lowers the real permittivity towards unity. For weak damping, refractive-index matching to vacuum gives the Drude-Lorentz reflectivity minimum atThis minimum is near ${ϵ}_r^{\prime }=1$, not its zero. At the slightly lower screened plasma frequency ${\omega }_{pc}/\sqrt{{ϵ}_b}$, the real permittivity crosses zero; at longer wavelengths it becomes negative and the material becomes strongly reflective. Finite damping prevents a perfectly vanishing minimum and rounds the edge. At still lower frequency the large conducting response also drives $R$ towards unity.

For fixed carrier effective mass and background permittivity, ${\omega }_{pc}\propto \sqrt{n_c}$ and ${\lambda }_{\min }\propto n_c^{-1/2}$. The observed shift of the minimum towards shorter wavelength as doping increases is therefore the expected free-carrier trend. The figure is an original model illustration, not a digitization or quantitative fit of the supplied curves; the carrier effective mass, damping and their density dependence have not been specified.
