Past exam of the geophysical fluid dynamics course of the University of Oxford / 2025 / 2 / b / Solution

Using the constants as printed, with volume flux measured in Sverdrups, givesIn particular the two small expansion coefficients should not be silently replaced by different oceanographic values.

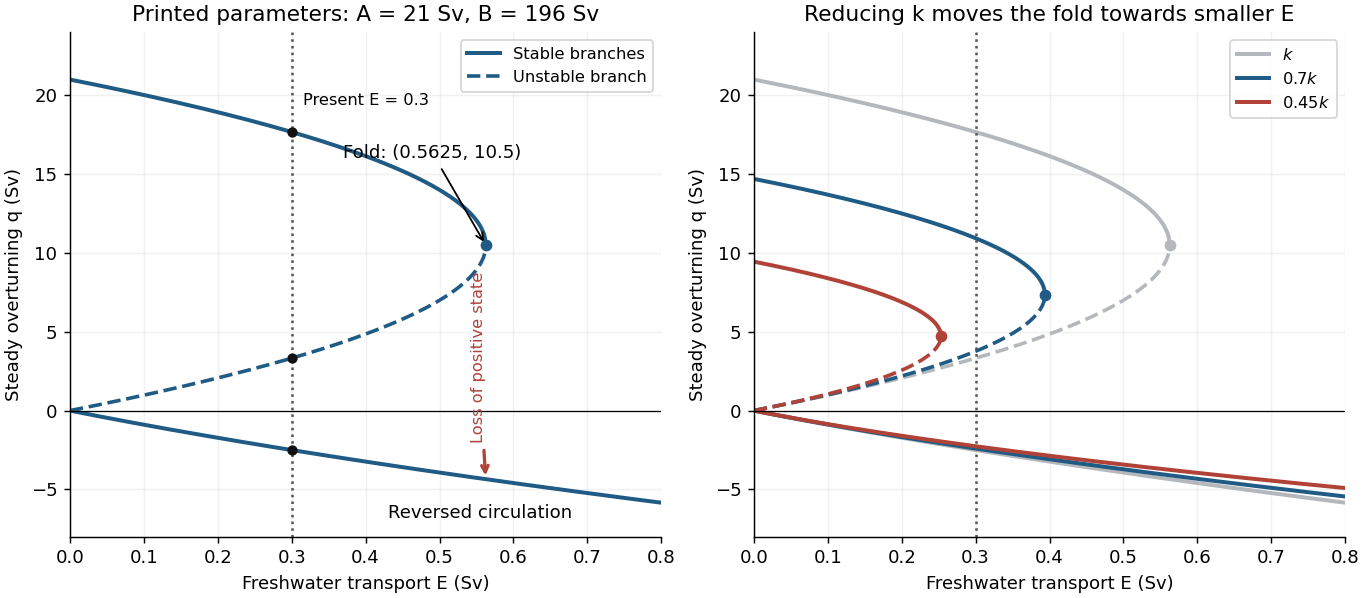

For a positive steady volume flux, the equation in 2(a) is $q^2-Aq+BE=0$. For a negative steady volume flux, it is $q^2-Aq-BE=0$, with only its negative root admissible. Therefore for $E>0$ the branches areThe upper positive branch $q_{+}$ is stable, the lower positive branch $q_{-}$ is unstable, and the reversed branch $q_{\mathrm{rev}}$ is stable under the usual salt budget dynamics with fixed $\Delta T$. Thus there is bistability below the positive-branch fold. At the fold the two positive equilibria merge with a zero restoring rate; the point is not an ordinary asymptotically stable interior point of either branch. The negative algebraic root of the positive-$q$ quadratic, or positive root of the negative-$q$ quadratic, must never be added as extra solutions.

At $E=0.3\mathrm{Sv}$, the three steady volume fluxes areThe present thermally dominated, northward-upper-flow Atlantic meridional overturning circulation corresponds to $q_{+}\simeq 17.7\mathrm{Sv}$. These algebraic data alone also allow a stable reversed state, so selecting the present branch uses the stated circulation direction. On the large positive branch, the predicted salinity contrast is $\Delta S=E{S}_0/q_{+}\simeq 0.594\mathrm{g}\mathrm{k}{\mathrm{g}}^{-1}$, consistent with the reference-salinity approximation. The weaker branches give larger contrasts, approximately $3.16$ and $4.20\mathrm{g}\mathrm{k}{\mathrm{g}}^{-1}$, so the approximation is less accurate there.

The saddle-node bifurcation occurs atFor $E>E_c$, only the reversed steady volume flux remains. At $E=E_c$ there are still two distinct values, the double positive root and the negative root; “single-valued” holds strictly above this threshold.

Slowly increasing $E$ from the present value causes the stable positive volume flux to weaken. Its salinity contrast then increases because salt exchange is weaker, reducing the cold-box density advantage further: this is the salt-advection feedback. At the fold the positive steady state disappears, producing an abrupt transition to the reversed branch in the quasistatic limit. At the same $E_c$ that branch hasFor a finite slow ramp there can be a small dynamical delay near the fold. In this model subsequently reducing $E$ while keeping it positive follows the stable reversed branch instead of automatically restoring the positive branch, an example of hysteresis. The two small branches approach $q=0$ as $E\to 0^{+}$. At $E=0$ this is an equal-density, no-exchange equilibrium with $\Delta S=\alpha \Delta T/\beta =3.75\mathrm{g}\mathrm{k}{\mathrm{g}}^{-1}$, whereas the positive branch tends to $q=A$ with $\Delta S=0$. One must use the original density relation at this endpoint, rather than divide by $|q|=0$.

The reversal is thermally opposed but salinity driven: freshwater makes the cold box sufficiently fresh that the warm, salty box becomes denser. A real weakening would reduce the northward ocean heat flux and alter regional climate and ocean ventilation. The fold and full reversal here describe the ideal two-box overturning model; its numerical threshold is not a forecast for the real ocean, whose other controls appear in 2(c).
