A quantum dot confines electronic motion in all three directions. A semiconductor dot can be thin enough that only one transverse subband is occupied, with discrete lateral states controlled by gates. In a rectangular hard-wall model,A smooth circular lateral confinement is often better approximated by $m^{\ast }{\omega }_0^2{r}^2/2$, giving ${ϵ}_{n_x{n}_y}=\hslash {\omega }_0(n_x+n_y+1)$ above the transverse ground energy. Shell $q=n_x+n_y$ contains $q+1$ orbitals, twice that many electrons before interactions split the spin degeneracy. Hence closed-shell electron numbers are $2,6,12,20,\dots$. These are single-particle quantum numbers; an interacting dot's states are many-electron eigenstates, not simply one orbital occupied by a whole charged island.

A perpendicular magnetic field changes the harmonic spectrum to the Fock-Darwin spectrum. For an electron of charge $-e$, take ${\omega }_c=eB/m^{\ast }>0$ and $L_z=\ell \hslash$ in the usual symmetric gauge. ThenReversing the definition of the angular label changes the displayed sign of its orbital term, not the set of energies. The Zeeman term lifts spin degeneracy, while exchange can favor parallel-spin filling in partially filled shells. These effects are distinguished by how peaks evolve with field rather than by identifying every irregular peak spacing with one-particle confinement.

For electrostatics, let $C_{\Sigma }=C_s+C_d+C_g$ and $Q_g=C_s{V}_s+C_d{V}_d+C_g{V}_g+Q_0$, where $Q_0$ represents a fixed offset charge in the chosen convention. The constant interaction model givesThe charging energy is conventionally $E_C=e^2/(2C_{\Sigma })$, whereas adjacent charge-state potentials differ byThis addition energy separates a capacitive contribution from orbital spacing. Exchange, nonuniform screening and correlations are corrections to the constant interaction model; a change in dot shape or effective capacitance can also alter spacings.

Connect the island weakly to source and drain reservoirs through tunnel barriers. sequential tunnelling is suppressed in a charge-stable region when neither adding nor removing an electron is energetically accessible. Sweeping the gate brings a charge electrochemical potential through the reservoir Fermi level, giving a Coulomb-blockade conductance peak. The gate lever arm is ${\alpha }_g=C_g/C_{\Sigma }$, so $\Delta V_g=E_{\mathrm{add}}/(e{\alpha }_g)$ locally if the capacitances and level spectrum do not vary appreciably. At finite source-drain bias, alignment with either reservoir defines the boundaries of a Coulomb diamond. Its slopes constrain capacitance ratios, and lines parallel to its edges can reveal excited-state transport. The conversion from a diamond's bias height to an energy depends on bias convention; a full-height/half-height factor must not be assumed without declaring the circuit.

A clear charging spectrum requires $k_{B}T$ and tunnel broadening $\hslash \Gamma$ smaller than the relevant addition energy; resolving individual orbital levels additionally requires them smaller than the orbital spacing. Tunnel resistances large compared with $h/e^2$ suppress strong charge fluctuations in the usual weak-junction regime. Blockade is not an assertion of mathematically zero current: higher-order cotunnelling can remain, and strong coupling or low-temperature spin correlations can invalidate the sequential model. An experimental check therefore combines gate sweeps with bias spectroscopy, temperature dependence and barrier tuning to separate level structure from broadening or uncontrolled charge traps.

In a primary vertical-dot experiment, gate-controlled current oscillations were converted into addition energies using finite-bias diamond spectroscopy; varying magnetic field then followed shell and spin filling. Reproducing enhanced addition energies at electron numbers 2 and 6 in several devices strengthened the shell assignment. The electron temperature was independently estimated above the refrigerator base temperature, an essential distinction when judging spectral resolution. Field-dependent reordering also revealed exchange effects beyond a purely spin-degenerate orbital model.^[ref]

Integer Hall transport and filling. A clean two-dimensional electron gas at low temperature in a strong perpendicular magnetic field forms Landau levels with orbital spacing $\hslash {\omega }_c$, where ${\omega }_c=e|B|/m^{\ast }$. Examples include semiconductor heterojunctions and inversion layers. On integer plateaus,with integer plateau index $\nu$. The density of states in one resolved Landau branch is $e|B|/h$ per unit area, so the actual filling factor isIt varies continuously with density and field. Within a disorder-broadened plateau, localized states can change occupation without changing the integer number of transporting edge branches; the filling need not equal the plateau integer at every point in that interval.

At a boundary, the confining potential bends the Landau energies through the Fermi energy, giving chiral edge states, interpreted semiclassically as skipping orbits. Opposite edges carry opposite propagation directions. An ideal spin-resolved transmitted edge channel contributes $e^2/h$; $\nu$ such channels give $I=\nu (e^2/h)(V_S-V_D)$. Chirality and suppressed backscattering between well-separated edges explain vanishing longitudinal voltage. Ideal reservoirs and appropriate probe equilibration are part of this edge-state transport model.

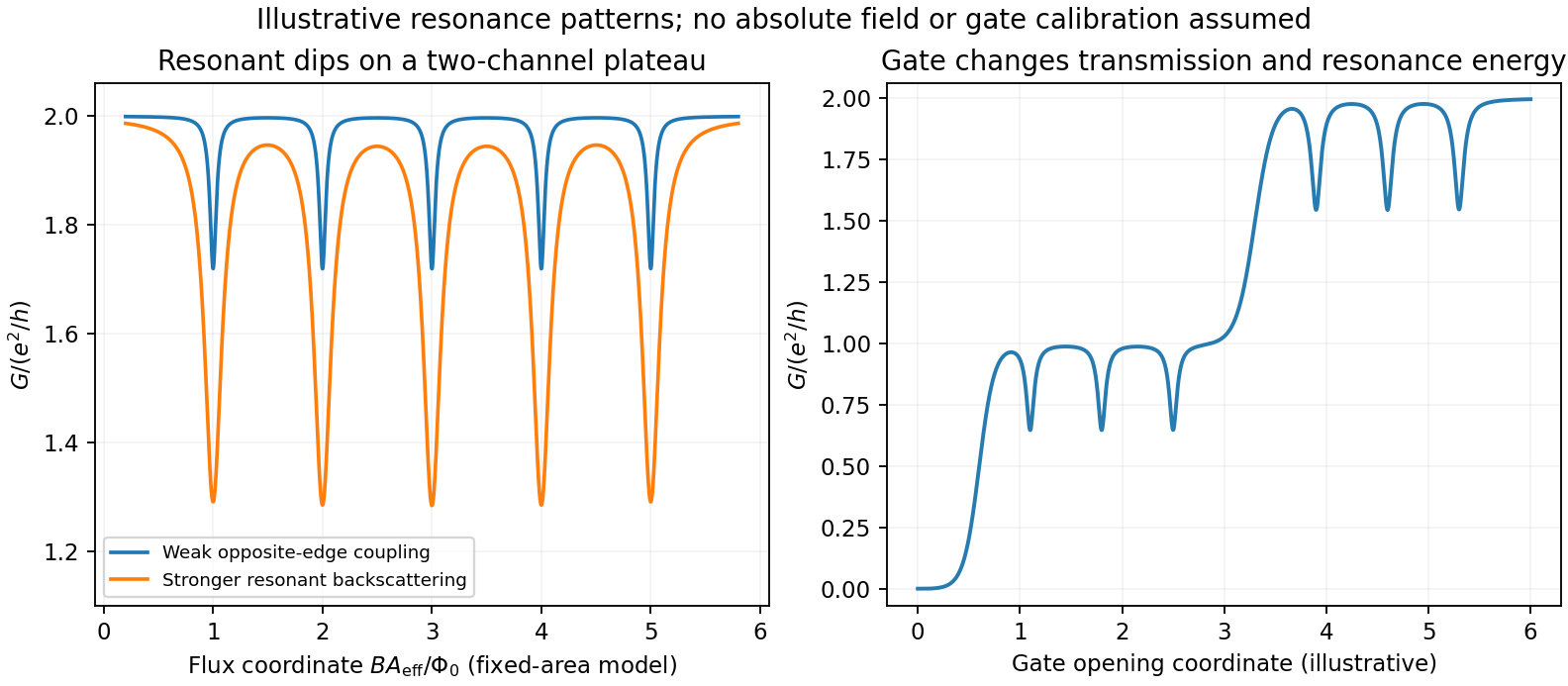

A gated antidot. A local repulsive gate potential depletes an island inside the Hall bar. Edge states circulate around its boundary as closed antidot orbits. When a localized orbit is weakly coupled to extended channels on opposite sides, resonance at the reservoir electrochemical potential permits backscattering and produces conductance dips on an otherwise quantized transmitting plateau. If the path instead adds a transmission route between otherwise disconnected channels, resonant peaks can occur: the sign depends on the device's tunnel connectivity and what conductance is measured. An isolated antidot too far from every conducting edge has negligible transport signature.

For the simplest opposite-edge backscattering picture with one active branch,where $f$ branches would otherwise transmit. A gate moves the resonance through the Fermi energy by changing both confinement and orbit area. Stronger depletion of the constrictions also changes $f$, producing broad conductance plateaus or pinch-off, with narrow resonances superposed where coupling is finite. Low temperature resolves individual resonances; thermal and tunnel broadening can merge them.

For a fixed-area single-electron orbit, a phase change of $2\pi$ corresponds toSweeping gate voltage at fixed field shifts enclosed area and level energy, giving oscillatory resonance tracks. This period is not automatically set by the lithographic gate area. Charging energy, self-consistent screening and spin branches modify spacings; in particular coupled spin branches in a charging model can generate two resonances per $h/e$ cycle without changing the electron flux quantum.^[ref]

No antidot dimensions, capacitances, lever arms or measured spectrum are supplied, so absolute periods and resonance voltages cannot be extracted. The sketch illustrates the mechanisms and regimes requested, rather than inventing a numerical device data set.

Improving the bare edge potential. A picture of noninteracting Landau levels simply intersecting a prescribed smooth confinement ignores the redistribution and screening of electron charge. A self-consistent electrostatic calculation combines gate and donor potentials, electron density and Coulomb interactions. Where a partially occupied Landau level has a large density response, electrons screen strongly and create a compressible strip with nearly pinned level energy. Regions with the chemical potential in a gap are incompressible and support much of the potential change. Consequently the screened edge alternates between compressible and incompressible strips, rather than preserving an arbitrary externally drawn slope. Finite temperature, disorder, exchange and edge reconstruction can require refinements beyond the simplest electrostatic model.^[ref]

Fractional states and composite fermions. Very clean two-dimensional systems show plateaus at selected fractional fillings, with small longitudinal resistance and a many-electron excitation gap. Electron-electron correlations are essential; partial filling of a noninteracting Landau level is not enough. The simplest composite fermion binds two statistical flux quanta to each electron. This is a representation of correlated electron motion, not a physical solenoid attached to a particle. With $B>0$, ${\Phi }_0=h/e$, and density $n_s$, the mean effective field isDefine a signed effective filling ${\nu }^{\ast }=n_s{\Phi }_0/B^{\ast }$. ThenFor ${\nu }^{\ast }=p>0$, filled composite-fermion levels produce $\nu =p/(2p+1)=1/3,2/5,3/7,\dots$. For reversed effective field write ${\nu }^{\ast }=-p$, giving $\nu =p/(2p-1)=1,2/3,3/5,\dots$; the nontrivial fractional upper sequence starts with $p=2$. If effective filling is defined as nonnegative using $|B^{\ast }|$, retain these as separate field-direction branches instead of using the signed expression blindly. At $\nu =1/2$ the mean $B^{\ast }$ vanishes and the effective filling diverges, so it is not an integer composite-fermion Hall plateau in this simplest construction. Attaching two flux quanta preserves fermionic statistics; the emergent integer-like gaps organize a prominent sequence of fractional electronic states.^[ref]
