Uniformly magnetized cylinder ($\mathbf{M}=M\hat{\mathbf{z}},{\mathbf{K}}_{\mathrm{b}}=M\hat{\mathbf{\varphi }}$)

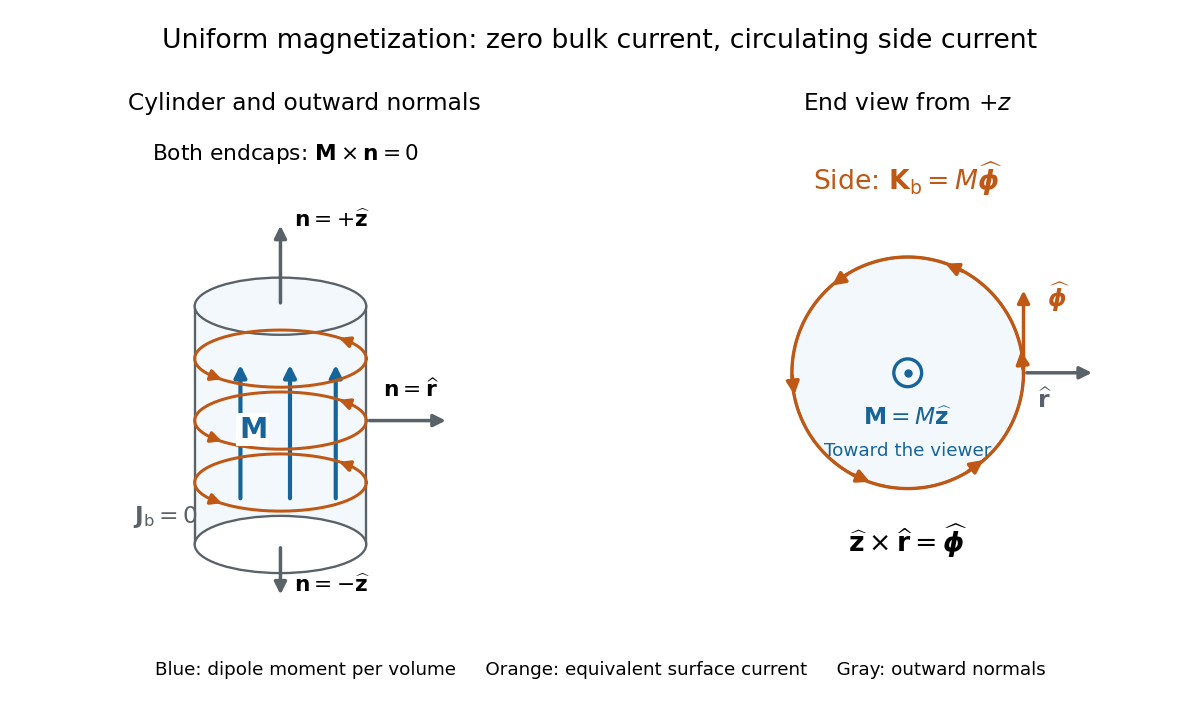

Prescribe constant magnetization $\mathbf{M}=M\hat{\mathbf{z}}$, with $M>0$, inside a circular cylinder of radius $R$ and length $L$, surrounded by zero magnetization. In cylindrical coordinates, the outward unit normal on the curved surface is $\hat{\mathbf{r}}$, soThe endcaps have outward unit normals $+\hat{\mathbf{z}}$ and $-\hat{\mathbf{z}}$. Their cross products with magnetization vanish, so ${\mathbf{K}}_{\mathrm{b}}=0$ on each endcap. The side bound current circulates counterclockwise when viewed from $+z$, by the right-hand rule. Zero endcap surface current density does not imply zero endcap magnetic field.

For an original example, let $M=800A/m$, $R=0.020\mathrm{m}$, and $L=0.10\mathrm{m}$. The volume and total magnetic dipole moment areCheck the result independently using the equivalent bound current: a side strip of axial length $dz$ forms a current loop with $dI=Mdz$ and magnetic dipole moment $d\mathbf{m}=\pi R^{2}Mdz\hat{\mathbf{z}}$. Its integral over $L$ gives the same $M\pi R^{2}L\hat{\mathbf{z}}$. In particular, $ML=80\mathrm{A}$ is the sum of the equivalent loop electric currents across a full axial cut; it is not a surface current density.

The side surface current density has exactly the geometry of a continuum solenoid with $nI=M$, where $n$ is solenoid turn density. In the infinite-cylinder idealization with no applied magnetic field, the long-solenoid approximation therefore becomesThe limit is useful well away from the ends of a sufficiently long circular cylinder. A finite circular cylinder instead has fringing magnetic field and a demagnetizing field. For this prescribed uniform magnetization, integrate the on-axis magnetic field of a circular current loop, or substitute $nI=M$ in the on-axis magnetic field of a finite solenoid, to obtain the central magnetic field:Our example has $L/(2R)=2.5$ and $B_z(0)/({\mu }_{0}M)=5/\sqrt{29}\approx 0.92848$, rather than unity. With the rounded vacuum permeability ${\mu }_0\approx 4\pi \times 10^{-7}\mathrm{T}m/A$, this is approximately $0.9334\mathrm{mT}$, compared with the infinite-cylinder value $1.0053\mathrm{mT}$. These are model calculations for a prescribed magnetization, not measured values or a solution for the self-consistent magnetization of an arbitrary material.
