Viscous Burgers travelling shock ($U(z)=s-\frac{u_L-u_R}{2}\tanh \frac{(u_L-u_R)z}{4\nu }$)

A travelling wave of the viscous Burgers equation can connect constant states $u_L>u_R$ through a smooth decreasing layer. Require $u(x,t)=U(z)$, $z=x-st$, $U(-\infty )=u_L$, $U(+\infty )=u_R$, and $U^{\prime }\to 0$ at both ends. Substitution and one integration giveThe speed follows by evaluating the integration constant at both end states. It is precisely the Rankine-Hugoniot condition for conservation law flux $f(u)=u^2/2$. Choosing the center $U(0)=s$ gives the displayed hyperbolic tangent profile. Its characteristic width scales as $\nu /(u_L-u_R)$; a smaller positive $\nu$ makes a thinner smooth layer.

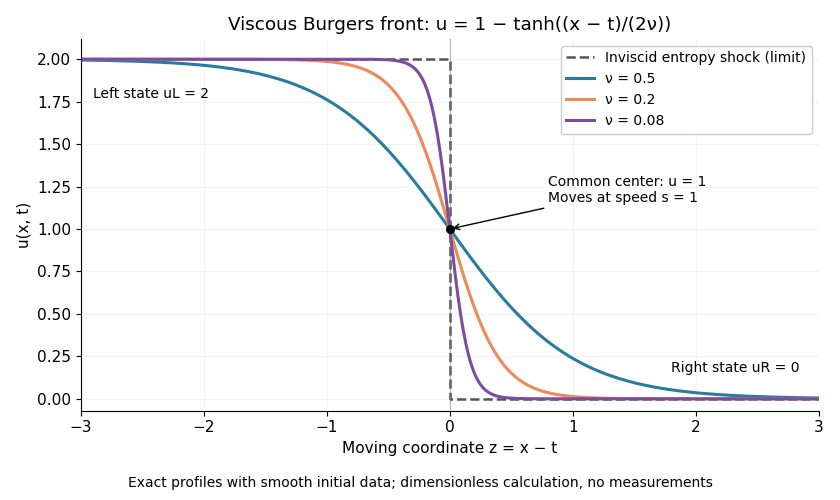

For an original worked example in dimensionless quantities, take $u_L=2$, $u_R=0$ and $s=1$:This is an exact classical solution on $\mathbb{R}$ with its own smooth initial condition $u(x,0)=1-\tanh (x/(2\nu ))$ and limiting states $2,0$. It is a family of moving profiles, not the finite-$\nu$ solution starting from an exact discontinuous step. For that different initial condition, the Cole-Hopf transformation supplies the evolution. At $\nu =1/2$, this front starts from the same $1-\tanh x$ profile as the Burgers characteristic breaking example: positive diffusion maintains a smooth moving layer while the inviscid profile breaks at $t=1$.

To check the partial differential equation explicitly, set $w=(x-t)/(2\nu )$ and $S=1-{\tanh }^{2}w$. ThenThe independent Rankine-Hugoniot condition check gives $s=(0-2)/(0-2)=1$, using $f(2)=2$ and $f(0)=0$. At fixed $x\ne t$, the vanishing viscosity approximation tends to the entropy shock $2$ for $x<t$ and $0$ for $x>t$. At the center the smooth profiles stay at $1$; changing the value on the discontinuity does not change the limiting weak solution.

For $u_L<u_R$, the same integrated ordinary differential equation has $U^{\prime }<0$ between the two states when $\nu >0$, so it cannot supply an increasing connecting front. The inviscid admissible expansion is the rarefaction wave of the Burgers Riemann problem with positive flux.
