A blue loop is an excursion to higher effective temperature, followed by a return redward, during core helium burning in some evolved stars. Its extent depends on core and envelope structure, composition gradients and mixing. Only loops reaching the Cepheid instability strip produce the associated additional Cepheid variable crossings.

The instability strip is a region of the Hertzsprung-Russell diagram in which certain stellar oscillations grow because pulsation driving exceeds damping. For the classical Cepheid instability strip, partial ionization zones enable the kappa mechanism. Their heat-exchange times and location inside the star determine whether they can supply positive work to a mode.

The boundaries are physical stability limits, rather than lines marking a new fuel source. Moving to a different effective temperature changes the relevant layers and the role of convection, which can remove or redistribute the heat needed for driving. A star can cross the instability strip during stellar evolution and temporarily become a variable such as a Cepheid variable. Different classes and modes need not share identical boundaries.

Assume an isolated star of initial mass five solar masses of approximately solar stellar metallicity. Rotation, convective overshooting and mass loss change numerical ages and the extent of a blue loop, so the ages below are estimates. Take zero age at the zero-age main sequence; the pre-main-sequence star phase adds a much shorter contraction time.

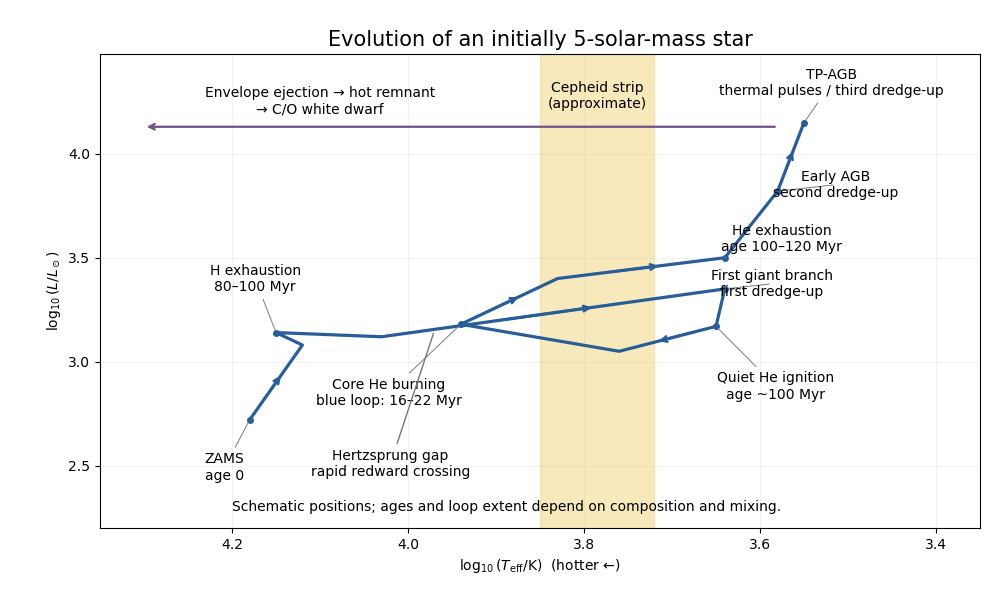

The original schematic Hertzsprung-Russell diagram marks the stages discussed below. The strip denotes the approximate Cepheid instability strip; the track is illustrative, rather than a computed stellar model.

The main sequence lasts roughly $8\times 10^7$–$10^8$ years. CNO cycle hydrogen burning is concentrated in a mixed convective core. Its declining hydrogen mass fraction and rising helium mass fraction are nearly uniform there, while the retreating core leaves a composition gradient. The unprocessed envelope remains hydrogen rich. At the terminal-age main sequence, core hydrogen is exhausted and a hydrogen-burning shell takes over.

The inert helium core grows through shell burning. The Schönberg-Chandrasekhar limit is approximatelyBeyond this limit an isothermal nondegenerate core cannot remain in thermal equilibrium with its envelope. Core contraction and envelope expansion carry the star across the Hertzsprung gap. An initial slower shell-burning interval can precede the rapid crossing; the crossing itself is governed by Kelvin-Helmholtz contraction, with a representative $G{M}^2/(RL)\sim 10^5$–$10^6$ years. First dredge-up then mixes hydrogen-processed material into the convective envelope, lowering its hydrogen mass fraction and increasing helium and nitrogen, while leaving a composition discontinuity where the envelope later retreats.

At an age still of order $10^8$ years, core helium burning begins quietly: the core is nondegenerate, so there is no helium flash. The Triple-alpha process and subsequent alpha capture build a carbon-oxygen core. Core helium burning lasts roughly $1.6\times 10^7$–$2.2\times 10^7$ years in representative solar-composition models. Pols's stellar-evolution notes illustrate the substantial dependence of these lifetimes on convective overshooting.

During a blue loop the envelope contracts and effective temperature increases, before the star returns redward. The loop depends on core and envelope structure and the hydrogen discontinuity left by first dredge-up. A loop reaching the Cepheid instability strip produces two further crossings, blueward and redward, in addition to the earlier rapid crossing of the Hertzsprung gap. Cepheid variables pulsate through the opacity mechanism, involving helium ionization. Neither loop extent nor all three strip crossings are guaranteed for every composition or mixing prescription. The hydrogen-burning shell continues moving outward in enclosed mass while central helium is depleted. Lattanzio's five-solar-mass tutorial shows these composition changes.

After helium exhaustion, at an age roughly $1.0\times 10^8$–$1.2\times 10^8$ years, the star ascends the Asymptotic giant branch. An inert carbon-oxygen core is surrounded by helium-rich material and a hydrogen-rich envelope. Second dredge-up mixes helium and hydrogen burning products into the envelope and reduces the hydrogen-exhausted core mass. Subsequently a helium-burning shell and hydrogen-burning shell alternate in importance. A thermal pulse of an asymptotic-giant-branch star causes intershell convection, expansion and temporary quenching of hydrogen burning; third dredge-up can carry carbon and slow neutron-capture process products outward. Between pulses hydrogen burning rebuilds the helium layer. These mechanisms are illustrated in Lattanzio's AGB tutorial.

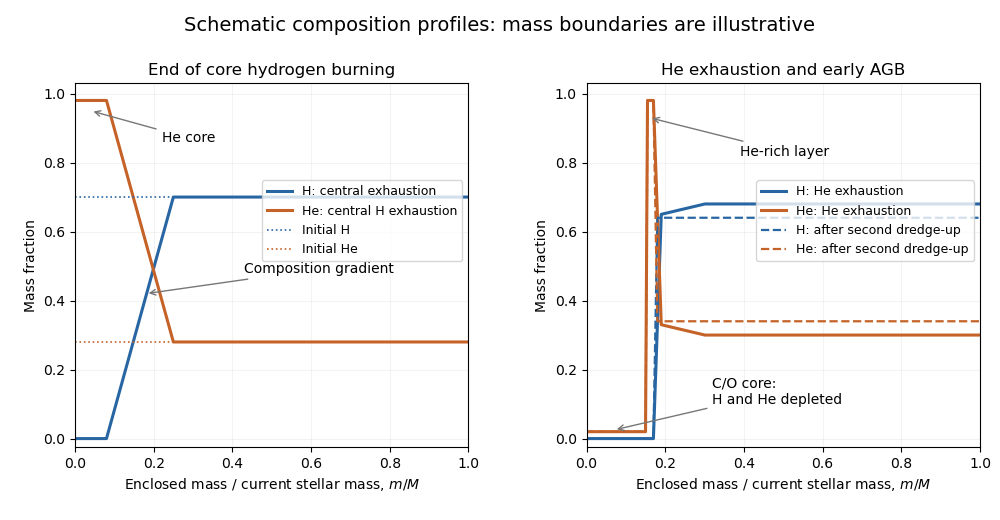

The following original stellar composition profile sketches distinguish hydrogen exhaustion from helium exhaustion; their mass boundaries are illustrative.

The final giant phases add at most a few million years at this level of accuracy. Strong stellar winds remove the envelope; the hot remnant can illuminate a planetary nebula and then cool as a carbon-oxygen white dwarf. A typical remnant is of order one solar mass. The ordinary isolated $5M_{\odot }$ case does not reach sustained carbon burning and core collapse. Thus the usual endpoint is a carbon-oxygen white dwarf, at a total age of order $10^8$ years, with its subsequent cooling age added separately.
