Evanescent field in total internal reflection ($k_{2z}=i\kappa$)

The evanescent field in total internal reflection oscillates and advances in wave phase along the boundary while its wave amplitude decays away from it. With the coordinates above and time dependence $e^{-i\omega t}$, a TE polarization has complex amplitudeThe physical electric field is $\mathrm{Re}[\mathbf{E}(x,z)e^{-i\omega t}]$. The decaying sign excludes a field that grows without bound at $z\to \infty$. Dielectric-interface boundary conditions determine $A$; for nongrazing incidence it is generally nonzero.^[ref]

Zero normal energy flux follows directly from Maxwell equations. The wavevector is $(q,0,i\kappa )$; the relation $\mathbf{H}=(\mathbf{k}\times \mathbf{E})/(\omega {\mu }_0)$ givesConsequently, the cycle-averaged Poynting vector isThe electric field and $H_x$ are a quarter-cycle apart, so their product has zero cycle average. Tangential energy flux survives. This is a local calculation for the single decaying evanescent wave in the infinite second half-space.

To check reflected power independently, put $a=n_1{k}_0\cos \theta >0$. The existing transverse-electric Fresnel reflection coefficient becomes $r=(a-i\kappa )/(a+i\kappa )$. Its numerator and denominator are complex conjugates, so $|r{|}^2=1$, while $1+r=2a/(a+i\kappa )\ne 0$ supplies the surface electric field relative to the incident wave amplitude. Thus a unit optical reflectance does not require a zero transmitted field. The same normal power balance holds for TM polarization; its reflected wave phase generally differs from the TE polarization phase. A mixture can therefore change its polarization of an electromagnetic wave on reflection even though all normal incident power returns.

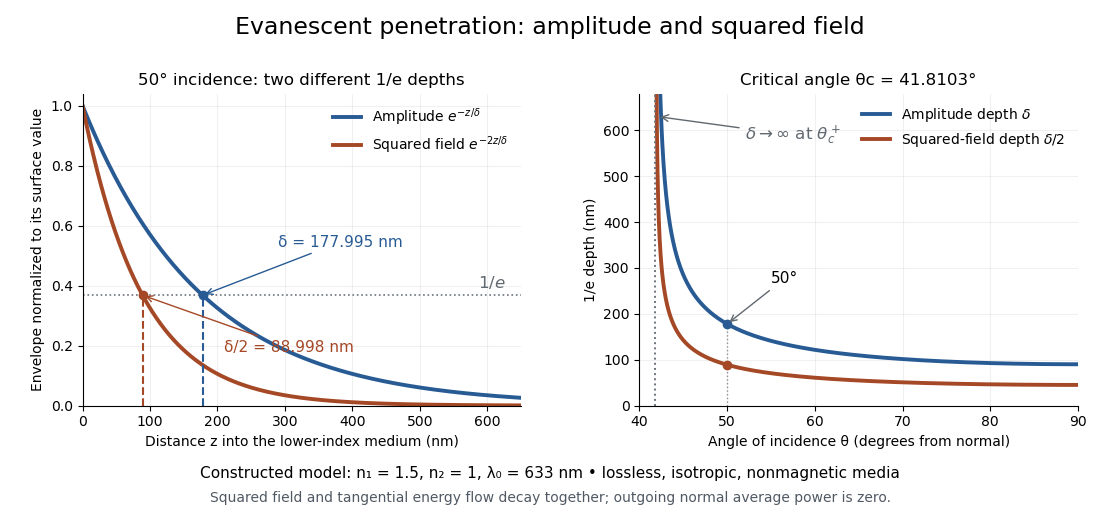

Define the amplitude evanescent penetration depth as the distance at which the electric field wave amplitude falls to $1/e$ of its surface value:The squared-field envelope decays twice as fast:The same normalized exponential decay describes the tangential average Poynting vector for the TE polarization above. An intensity penetration depth convention often means $d_{1/e}$; it must not be confused with amplitude depth $\delta$ or interpreted as outgoing normal light intensity.

For the stipulated $n_1=1.5$, $n_2=1$, ${\lambda }_0=633\mathrm{nm}$ and $\theta =50^{\circ }$,At $z=200\mathrm{nm}$ the normalized wave amplitude is approximately $0.325099$, and its squared envelope is approximately $0.105689$. At $z=\delta$, these become $e^{-1}$ and $e^{-2}$, respectively. The quantity inside the square root is dimensionless, so $\kappa$ has inverse-length units and both depths have length units.

The sharp angular dependence has a simple explanation. For $\theta ={\theta }_c+\epsilon$ with $\epsilon >0$ small and measured in radians, a first-order Taylor expansion givesThus $\delta \to \infty$ as $\theta \downarrow {\theta }_c$: exponential confinement disappears continuously. With fixed refractive indices, $\delta$ decreases as the angle of incidence increases and approaches ${\lambda }_0/(2\pi \sqrt{n_1^2-n_2^2})\approx 90.1091\mathrm{nm}$ as $\theta \to 90^{\circ }$. This is a limit of the normalized depth; exactly grazing incidence supplies zero incident normal power. Real beam widths, angular spreads and optical dispersion matter when applying these ideal plane electromagnetic wave predictions near the threshold.
