A rigid Skyrmion orientation is quantized on a cover of its Skyrmion collective-coordinate orbit. A lifted combined rotation in the static field's stabilizer subgroup identifies the same classical field and imposes ${\hat{D}}^J(R){\hat{D}}^I(A)\Psi ={\chi }_{\mathrm{FR}}\Psi$, where the sign is the chosen Finkelstein-Rubinstein constraints character of that configuration-space loop. Choosing the nontrivial character models unit baryons as fermions. A $2\pi$ spatial rotation or isorotation of charge $B$ then has sign $(-1{)}^B$: deforming the field to separated unit lumps adds the unit-lump loop classes in the fundamental group ${\mathbb{Z}}_2$, while the labelled orbital paths can be contracted in three dimensions. The resulting Finkelstein-Rubinstein constraints sign is the product of the unit-lump signs. Hence spin and isospin are half-integer for odd $B$ and integer for even $B$. Further stabilizer constraints restrict which pairs $(J,I)$ and which body-fixed states occur. The energy operator comes from the inertia tensors on the orbit; symmetry selects allowed states but does not by itself determine their energies. A bosonic choice of the trivial topological character is mathematically possible but does not model a fermionic nucleon.

The familiar low-energy $B=4$ Skyrmion has a cubic baryon-density shell with six face-hole directions and full density symmetry $O_h$, the symmetry group of a cube. The proper subgroup is $O\cong S_4$, the rotational symmetry group of a cube; its field invariance includes compensating isorotations. A useful rational map approximation for Skyrmions has $R(z)=(z^4+2i\sqrt{3}{z}^2+1)/(z^4-2i\sqrt{3}{z}^2+1)$. The relation $R(iz)=1/R(z)$ pairs a spatial quarter-turn with a target half-turn. Its branch directions are $z=0,\infty ,\pm 1,\pm i$, corresponding to the six coordinate-axis directions. The map gives an approximate field, not an exact analytic energy-minimizing solution.

An isorotation is a global transformation generated by isospin. In the pion Skyrme model it acts as $U\mapsto AU{A}^{†}$, with constant $A\in SU(2)$, rotating the three pion components while preserving the scalar component. The matrices $A$ and $-A$ induce the same classical rotation, so this action factors through $SO(3)$; quantum states may carry half-integer isospin on its $SU(2)$ cover. This global internal rotation is distinct from a spatial rotation or a local gauge transformation.

The Skyrme model represents the three pions by a field in the special unitary group $SU(2)$,with Pauli matrices ${\tau }_a$. Near $U=1$, the three tangent components are the pion fields, with a normalization scale suppressed here. Define $L_{\mu }=U^{†}{\partial }_{\mu }U$. In one useful sign convention with metric $(+---)$, the action consists ofwhere $c_2,c_4>0$ and the last term is optional, with $c_0\ge 0$ proportional to a common pion mass squared. The first term is a nonlinear sigma model kinetic term, and the second is the four-derivative term of the Skyrme model. For a static configuration of size $s$, the two derivative contributions scale as $E_2\propto s$ and $E_4\propto 1/s$, whereas a mass term scales as $s^3$. This Derrick scaling explains why the four-derivative term can stabilize a finite size instead of allowing collapse.

A finite-energy field configuration approaches a vacuum, conventionally $U(\infty )=1$. Compactifying space makes $U$ a map $S^3\to SU(2)\simeq S^3$. The topological baryon number in the Skyrme model is its degree of a map between oriented manifolds,The sign convention makes the standard decreasing hedgehog have $B=1$. Smooth evolution with the vacuum boundary condition preserves this integer. A Skyrmion is a localized soliton in such a sector; the unit soliton, after quantization, models a nucleon, and higher positive charges model multi-baryon systems. The topological conservation law is distinct from an ordinary Noether charge of isospin. Classical pion fields are bosonic, so obtaining fermionic nucleons also needs the quantum-statistics choice discussed below.

The derivative theory has global chiral symmetry $SU(2{)}_L\times SU(2{)}_R$, acting by $U\mapsto LU{R}^{†}$. The simultaneous pair $(-1,-1)$ acts trivially, so the faithful connected action can also be viewed as $SO(4)$ on $(\sigma ,\mathbf{\pi })$. In the massless theory the choice of vacuum breaks this to the vector subgroup. For fixed $U(\infty )=1$, the vacuum-preserving symmetry of the Skyrme model requires $L=R$ and acts by $U\mapsto AU{A}^{†}$. This is isospin, effectively $SO(3)$ because $A$ and $-A$ act the same way. A usual common pion-mass term explicitly preserves only this vector subgroup; full chiral symmetry is then an approximate massless-limit symmetry, not an exact symmetry of that term. Independent axial rotations change the vacuum and are not extra localized rigid-rotor coordinates in a sector with fixed boundary vacuum.

The space-time symmetry is the Poincare group, comprising translations and Lorentz transformations, including spatial rotations. Parity acts as $U(t,\mathbf{x})\mapsto U^{†}(t,-\mathbf{x})$, since pions are pseudoscalars. For a static finite-energy solution, translations change its position; spatial rotations and isorotations change its orientation. These transformations generate collective coordinates, but a particular field can be unchanged by certain combined transformations.

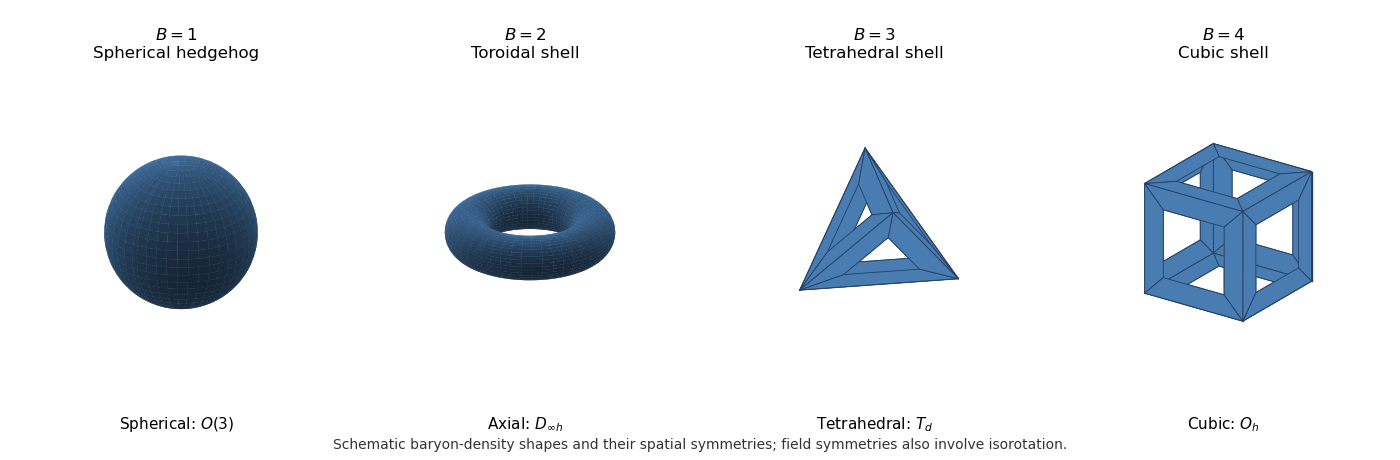

For the usual low-charge minimum branches of the standard model, the relevant shapes and density symmetries are the following. These are not claims about every field of a given degree, all excited solutions or arbitrary modified pion potentials.

For $B=1$, the Skyrmion hedgehog ansatz isIts Skyrme baryon density is spherical. Indeed $B=-(2/\pi ){\int }_0^{\infty }{f}^{\prime }{\sin }^{2}fdr=1$. A spatial rotation rotates the pion direction, so the field itself is invariant under a compensating isorotation, not under every spatial rotation alone. Its proper combined stabilizer is a diagonal $SO(3)$.

For $B=2$, the toroidal two-Skyrmion has a ring-shaped density with an axial hole and full density symmetry $D_{\infty h}$. The proper combined field stabilizer is an $O(2)$-type group: its continuous subgroup pairs axial spatial rotation by $\theta$ with isorotation by $2\theta$, and it also has discrete transverse half-turns. The angular approximation $R(z)=z^2$ makes the axial factor two explicit. A static two-baryon minimum is consequently not simply two separate round unit lumps.

For $B=3$, the tetrahedral three-Skyrmion has a tetrahedral shell with four face-hole directions and full density group $T_d$. Its proper rotational group is $T\cong A_4$, the tetrahedral symmetry group of order 12. The actual field symmetries again pair these rotations with isorotations.

For $B=4$, the cubic four-Skyrmion has a cubic shell with six face-hole directions. Its full density group is $O_h$, the symmetry group of a cube, and its proper group is $O\cong S_4$, the rotational symmetry group of a cube of order 24. Cubic and octahedral symmetry name the same point group; this particular density shape is cubic. Reflections in these full density groups should not be confused with the proper rotation-isorotation group used for angular-momentum quantization.

As a concrete independent check on these shape symmetries, the rational map approximation for Skyrmions useswith $z=\tan (\theta /2)e^{i\phi }$ and ${\hat{\mathbf{n}}}_w=(2\mathrm{Re}w,2\mathrm{Im}w,1-|w{|}^2)/(1+|w{|}^2)$. Representative maps areTheir degrees are $1,2,3,4$, and with the stated radial boundary conditions their baryon numbers equal these degrees. The angular Jacobian of a rational map is $J_R=[(1+|z{|}^2)|R^{\prime }|/(1+|R{|}^2){]}^2$. It vanishes at branch directions. $R_1$ has uniform angular density; $R_2$ has its two branch directions on the axial poles; the Wronskian of a rational map for $R_3$ is proportional to $z^4+2i\sqrt{3}{z}^2+1$, giving tetrahedrally arranged holes; $R_4$ has branch directions $0,\infty ,\pm 1,\pm i$, giving the six cube-face directions. Also $R_4(iz)=1/R_4(z)$ pairs a spatial quarter-turn with an isospin half-turn. These give illustrative approximate fields, not exact analytic solutions or a proof of global energy minimality.

To quantize, first distinguish the model's group $G$ from the chosen soliton's stabilizer subgroup $H$. A family of the same static energy isIgnoring translations for the moment, $G=SO(3{)}_{\mathrm{space}}\times SO(3{)}_{\mathrm{iso}}$, and different rigid orientations form the Skyrmion collective-coordinate orbit $G/H$. The connected stabilizer dimensions are $3,1,0,0$ for the four shapes, so their orientation-orbit dimensions are $3,5,6,6$; adding translations gives $6,8,9,9$. For the unit hedgehog, treating rotation and isorotation as six independent modes would double-count its locked orientation. For higher charges, arbitrary separation of constituent lumps is not an exact flat moduli space in this non-Bogomolny theory.

Let the orbit coordinates depend slowly on time. Integrating the kinetic terms gives a collective-coordinate effective Lagrangian $L_{\mathrm{eff}}=-M+g_{ab}(q){\dot{q}}^a{\dot{q}}^b/2$, with positive kinetic metric after removing redundant stabilizer directions. Its angular blocks are the spatial, isospin and mixed inertia tensors. Collective-coordinate quantization produces a rotor Hamiltonian on this orbit, with translations giving center-of-mass momentum. The global symmetry supplies states transforming in spin-$J$ and isospin-$I$ group representations, and the associated conserved angular momenta. Inertia tensors determine energy splittings; group symmetry alone does not specify those tensors or their numerical energies.

The topology and the static stabilizer supply further collective-rotation constraints for a Skyrmion. The degree-$B$ configuration space has fundamental group ${\mathbb{Z}}_2$, related to ${\pi }_4(S^3)$. Choosing the nontrivial Finkelstein-Rubinstein constraints character gives fermionic unit baryons. Wavefunctions live on the appropriate cover, and a lifted stabilizer operation obeysThe sign depends on whether the actual field-configuration loop is contractible, not just on whether the density looks symmetric. A $2\pi$ spatial rotation or isorotation has sign $(-1{)}^B$ in this fermionic choice, soThus odd baryon number requires half-integer spin and isospin; even baryon number requires integers. Discrete or continuous combined stabilizer symmetries impose additional restrictions on the allowed pairs and body-fixed rotor states. They must not simply be omitted, or replaced by trivial invariance under every density symmetry. The trivial character is a possible bosonic quantization but would not produce a fermionic nucleon. Improper field symmetries, implemented using the model parity transformation, can additionally constrain parity labels; scalar-density reflection symmetry alone is insufficient to infer those labels.

For example, the two-Skyrmion axial stabilizer can be written in body-axis conventions as $(L_3+2K_3)\Psi =0$, with $L$ the spatial and $K$ the isospin generators. A transverse spatial half-turn accompanied by an isospin half-turn has the nontrivial sign in the Finkelstein-Rubinstein constraints. The integer-spin scalar state $J=I=0$ is therefore excluded despite even $B$. A spin-one, isospin-zero state with zero axial body projection has the required minus sign under that half-turn; the spin-zero, isospin-one channel can also satisfy the constraints. Their relative energies require the inertia tensors.

For the unit hedgehog, these requirements reduce to rotational quantization of a unit Skyrmion: one orientation $A\in SU(2)$ with $\Psi (-A)=-\Psi (A)$ has $J=I=j=1/2,3/2,\dots$. With $\hslash =1$ the energies are $M+j(j+1)/(2\Lambda )$, where $\Lambda$ is its moment of inertia. Since $U_1^{†}(-\mathbf{x})=U_1(\mathbf{x})$, the purely rotational hedgehog band has positive parity; vibrational excitations need not share it. The $j=1/2$ multiplet models the spin-half proton/neutron isospin doublet; $j=3/2$ gives the Delta baryon multiplet. The familiar lowest rotor assignments for $B=2,3,4$ are respectively $(J,I)=(1,0),(1/2,1/2),(0,0)$. These assignments incorporate the corresponding field-stabilizer constraints and standard inertia ordering, not a prediction from density shape alone. Deformations, vibrational modes, radiation and binding dynamics lie beyond the rigid approximation. The two symmetry roles are therefore

The local Skyrme baryon density is $\mathcal{B}(x)=-{ϵ}_{ijk}\mathrm{tr}(L_i{L}_j{L}_k)/(24{\pi }^2)$, with $L_i=U^{†}{\partial }_{i}U$ and $B=\int \mathcal{B}{d}^{3}x$. It is invariant under global isorotations and transforms as a scalar under proper spatial rotations, so its contours reveal the geometric shape of a Skyrmion. For the rational map approximation for Skyrmions, $\mathcal{B}=-f^{\prime }{\sin }^{2}f{J}_R/(2{\pi }^2{r}^2)$, where $J_R$ is the angular Jacobian of a rational map. Integrating $J_R$ over the sphere gives $4\pi \mathrm{deg}R$, recovering the integer total charge. A decreasing profile and holomorphic angular map give a nonnegative density, but a general field may have regions of negative density; positivity is not a general topological theorem. The density is different from the energy density.

The familiar low-energy $B=3$ Skyrmion has tetrahedral baryon-density symmetry $T_d$. Proper rotations form the tetrahedral symmetry group $T\cong A_4$, acting on the field with compensating isorotations. An angular approximation is $R(z)=(i\sqrt{3}{z}^2-1)/(z^3-i\sqrt{3}z)$. Its Wronskian of a rational map is proportional to $z^4+2i\sqrt{3}{z}^2+1$. The four branch directions are the face-hole directions of a tetrahedral shell. A rational map and a variational radial profile approximate the actual field, and baryon-density symmetry must be distinguished from invariance of the pion field under an unaccompanied spatial rotation.

The standard low-energy $B=2$ Skyrmion in the ordinary Skyrme model has a toroidal baryon-density shape, with axial density symmetry $D_{\infty h}$. Its proper combined field symmetries have an $O(2)$-type stabilizer. The angular ansatz $R(z)=z^2$ in the rational map approximation for Skyrmions explains the axial relation $R(e^{i\theta }z)=e^{2i\theta }R(z)$: spatial rotation through $\theta$ is accompanied by isorotation through $2\theta$. The angular density vanishes at the two axial directions, yielding the toroidal hole. This describes the familiar minimal branch and a useful approximate field; it is not an assertion that every degree-two field is toroidal.
