Past exam of the chemistry A course of the University of Cambridge / 2022 / Paper 1 / A4 / b / i / Solution

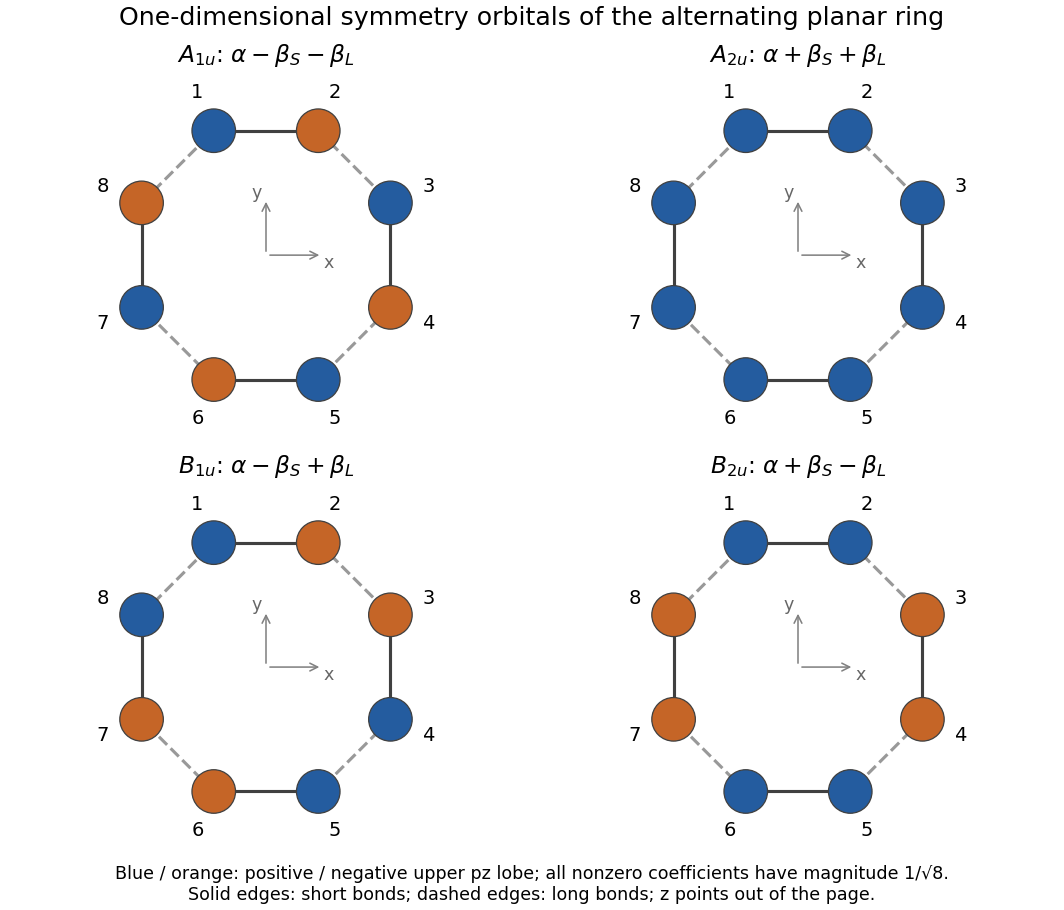

Write $p_j=p_{zj}$ and use the orthonormal basis of the Hückel method. The four normalized one-dimensional symmetry-adapted linear combinations areFor example, the $xz$ mirror plane exchanges sites $1\leftrightarrow 6$, $2\leftrightarrow 5$, $3\leftrightarrow 4$, $8\leftrightarrow 7$, without changing the sign of an individual $p_z$ orbital. The all-positive combination is unchanged by every vertical mirror but changes sign under ${\sigma }_h$, giving $A_{2u}$. The alternating combination changes sign under both sorts of vertical mirror, as required for $A_{1u}$. The two remaining sign patterns distinguish $B_{1u}$ from $B_{2u}$ in the printed axes. The signs refer to the upper $p_z$ lobes; the lower lobes have opposite quantum phases, and neither colour denotes an electric charge.

For a normalized coefficient vector $\mathbf{c}$, the energy isEvery site has one short-bond and one long-bond neighbour. Equivalently, apply the Hückel method matrix to any coefficient and read off its two neighbouring signs. The results areWith negative resonance integrals and $|{\beta }_S|>|{\beta }_L|$, the $A_{2u}$ and $B_{2u}$ levels are occupied, while $B_{1u}$ and $A_{1u}$ are unoccupied in the closed-shell alternating-bond state.
