Past exam of the chemistry course of the year 4 of the natural sciences course of the University of Cambridge / 2022 / Paper 2 / Section I

The product is 1,3,4-Oxadiazole. Protonation or phosphorylation activates one formyl carbonyl of the diacylhydrazine. The oxygen of the other carbonyl attacks intramolecularly, closing a five-membered ring containing the atom sequence O–C–N–N–C. Proton transfers and loss of water produce the conjugated ring; deprotonation restores the neutral aromatic heterocycle.

The overall transformation is ${\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{N}}_2{\mathrm{O}}_2\to {\mathrm{C}}_2{\mathrm{H}}_2{\mathrm{N}}_2\mathrm{O}+{\mathrm{H}}_2\mathrm{O}$. Polyphosphoric acid provides carbonyl activation and an acidic medium. P${}_4$O${}_{10}$ acts as a strong dehydrating agent, consuming water and maintaining the condensation-driving environment. Neither nitrogen is expelled, and the oxygen retained in the heterocycle originates from a carbonyl rather than an inserted reagent oxygen.

The cyclic amino sugar equilibrates with its open-chain $\alpha$-amino aldehyde. Two such units condense head-to-tail: each amino group adds to the other unit's aldehyde, followed by dehydration to the cyclic bis-imine/dihydropyrazine system. Formula accounting identifies the observed intermediate:This corresponds to ${\mathrm{C}}_{12}{\mathrm{H}}_{22}{\mathrm{N}}_2{\mathrm{O}}_8$, so the accumulating intermediate has lost two waters but has not yet acquired the fully aromatic pyrazine oxidation state. The unchanged portions of both carbon chains become the substituents on opposite ring carbons.

Dehydrogenative aromatization gives B, retaining both hydroxylated side chains and releasing H${}_2$: the intermediate loses two hydrogen atoms to reach ${\mathrm{C}}_{12}{\mathrm{H}}_{20}{\mathrm{N}}_2{\mathrm{O}}_8$, mass 320. A competing elimination of the hydroxyl group immediately adjacent to the ring in one side chain, with loss of a ring-adjacent proton, gives an exocyclic unsaturated intermediate. Proton transfers shift that unsaturation into the ring and leave a deoxygenated side-chain methylene. This dehydrative aromatization gives A, formally $322-18=304$, rather than requiring a separate unexplained reducing agent. Both pathways gain aromatic stabilization, while only the dehydrogenative branch requires H${}_2$ release. The acid/base proton-transfer steps can proceed through several tautomeric representations; mass balance distinguishes the two net branches.

The thioamide first undergoes sulfur alkylation at the bromomalonate carbon, displacing bromide. Intramolecular attack of nitrogen on one ester carbonyl and ethanol loss produce a five-membered thiazolinone-type intermediate. Tautomerization gives ethyl 2-(3-fluorophenyl)-4-hydroxythiazole-5-carboxylate. For unambiguous atom assignment, write the ring in order as S1–C2(aryl)–N3–C4(OH)–C5(CO${}_2$Et): the thioamide carbon becomes C2, its nitrogen becomes N3, the attacked ester carbonyl becomes C4 and the original bromomalonate methine becomes C5.

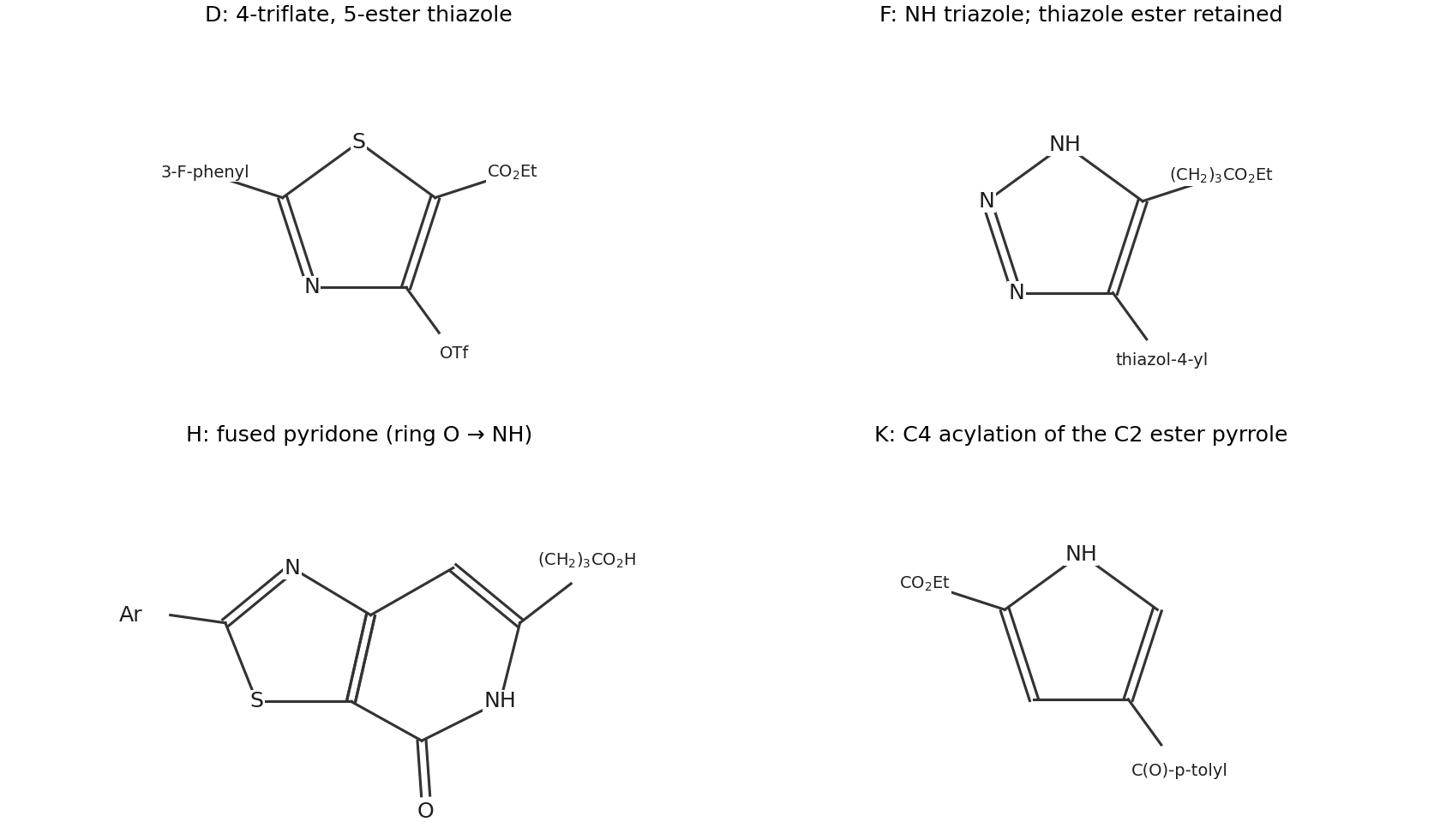

Thus the correctly numbered intermediate is ethyl 2-(3-fluorophenyl)-4-hydroxythiazole-5-carboxylate. Triflic anhydride activates the hydroxyl oxygen; triethylamine removes its proton to give D = ethyl 2-(3-fluorophenyl)-4-(trifluoromethanesulfonyloxy)thiazole-5-carboxylate. This aryl triflate undergoes the subsequent palladium-catalysed alkynyl coupling at C4. The explicit ring atom mapping prevents interchanging the 4-hydroxy and 5-ester positions.

The acidic ethanolic step converts the terminal carboxylic acid to its ethyl ester, leaving the pre-existing thiazole ester. Azide then adds across the alkyne by 1,3-dipolar cycloaddition, followed by protonation at work-up. F contains an NH-1,2,3-triazole replacing the alkyne, with the thiazole and $(\mathrm{C}{\mathrm{H}}_2{)}_3\mathrm{C}{\mathrm{O}}_2\mathrm{Et}$ attached to its two carbon atoms. The thiazole's own CO${}_2$Et group remains.

The formula check is decisive:One can represent the cycloaddition with cyclic movement of the azide resonance-form electrons and the alkyne $\pi$ electrons into the two new C–N bonds. Alkali azide initially gives a triazolide; aqueous work-up provides the NH. Interchanging formal 4/5 labels for the carbon substituents in an N-unsubstituted triazole does not establish a separate permanently fixed N-substituted regioisomer.

KOH hydrolyses the thiazole ethyl ester to a carboxylate; acidification gives the acid. Silver(I) then activates the neighbouring alkyne towards intramolecular six-membered O-cyclization. The carboxylate oxygen attacks the alkyne carbon farther from the thiazole, so the new ring follows carbonyl C–O–distal alkyne C–proximal alkyne C–thiazole C4–thiazole C5. A vinyl-silver intermediate is protonated to give the fused pyrone G.

The remote terminal carboxylic acid survives. Ester hydrolysis changes E's formula by $-{\mathrm{C}}_2{\mathrm{H}}_4$ to ${\mathrm{C}}_{16}{\mathrm{H}}_{12}\mathrm{FN}{\mathrm{O}}_4\mathrm{S}$; the subsequent addition across the alkyne changes connectivity without altering that formula. This distinguishes the lactonizing carboxyl group at thiazole C5 from the side-chain acid, which is not the group closing the observed fused ring.

H is the fused pyridone analogue of G: replace the pyrone ring oxygen by NH, retaining its carbonyl and the remote carboxylic acid. Ammonia adds to the electron-poor pyrone system, opening its lactone/enol-ether framework into an amino-containing unsaturated acyl intermediate. Proton transfers permit intramolecular closure through nitrogen and loss of water, giving the conjugated pyridone/lactam ring. Acid work-up restores the neutral acid and the preferred neutral lactam representation.

The net atom change is $+\mathrm{NH}-\mathrm{O}$, soexactly matching H. Merely forming a carboxamide from the terminal acid would remove a different oxygen and leave the pyrone oxygen intact; it would not explain the characteristic pyrone-to-pyridone ring transformation.

TODO — user-deferred biology. This biological subquestion is intentionally left unsolved under the current scope.

TODO — user-deferred biology. This biological subquestion is intentionally left unsolved under the current scope.

TODO — user-deferred biology. This biological subquestion is intentionally left unsolved under the current scope.

TODO — user-deferred biology. This biological subquestion is intentionally left unsolved under the current scope.

TODO — user-deferred biology. This biological subquestion is intentionally left unsolved under the current scope.

K is ethyl 4-(4-methylbenzoyl)-1H-pyrrole-2-carboxylate. AlCl${}_3$ activates the aroyl chloride to an acylium-like electrophile. Pyrrole attacks through C4, forming a sigma complex; deprotonation restores aromaticity and work-up releases the ketone from its Lewis-acid complex.

Unsubstituted pyrrole normally favours an $\alpha$ position, but the ester at C2 changes the regioselectivity. Attack at C5, or at C3, permits important sigma-complex contributors with positive charge at the ester-bearing C2, which is strongly destabilized by the electron-withdrawing ester. C4 substitution avoids that particularly unfavourable contributor. The C2 ester therefore directs the acylation towards C4, overriding the simple unsubstituted-pyrrole rule. Combining the starting ester with a p-toluoyl group while replacing a ring hydrogen gives ${\mathrm{C}}_{15}{\mathrm{H}}_{15}\mathrm{N}{\mathrm{O}}_3$, as required.

Sulfuryl chloride converts the aryl thiol into an electrophilic sulfur reagent, conveniently represented as $\mathrm{ArSCl}$ after chlorination and dehydrogenation. Triethylamine traps the generated acid. The pyrrole's two $\alpha$ positions are already occupied; its less deactivated remaining carbon, C4, attacks electrophilic sulfur, displacing chloride. Loss of the C4 proton restores the aromatic ring and gives the C4 arylthio-substituted pyrrole.

The net new bond is C(pyrrole)–S(aryl). Sulfur is retained from the thiol and becomes a thioether; the transformation is not sulfonylation by transfer of sulfuryl chloride's SO${}_2$ group. Possible disulfide formation during thiol chlorination does not change the electrophilic-sulfenylation logic of the final ring substitution.

Silver carbonate promotes deprotonation of the methylene group in methyl isocyanoacetate, giving the nucleophilic carbon $\mathrm{Me}{\mathrm{O}}_2\mathrm{C}-\mathrm{C}{\mathrm{H}}^{-}-\mathrm{N}\equiv \mathrm{C}$. It adds to the alkyne carbon farther from the electron-withdrawing sulfone. This creates the new bond between the future pyrrole C2 and methyl-bearing C3 and leaves the vinyl anion at the sulfone-bearing carbon, future C4.

The vinyl anion then attacks the terminal carbon of the isocyanide intramolecularly, closing a five-membered ring with atom sequence C2–C3–C4–C5–N. Proton transfers place one of the starting methylene hydrogens on nitrogen and the other on C5, giving an aromatic pyrrole. The product has CO${}_2$Me at C2, methyl at C3 and the retained arylsulfonyl group at C4. This is an addition–cyclization–aromatization sequence: the isocyanide contributes both ring nitrogen and the otherwise unsubstituted ring carbon, rather than acting as a cyanide leaving group.
