Past exam of the mathematics course of the year 1 of the natural sciences course of the University of Cambridge / 2025 / Paper 2 / 17 / a

The divergence of the position vector field is $\nabla \cdot \mathbf{r}=3$. At height $z$, the horizontal cross-section is a disk of area $\pi (1-z^2)$. By the divergence theorem, the outward flux integral is three times the enclosed volume:ThereforeA direct check separates the two pieces of the surface integral. On the unit sphere, the outward unit normal is $\mathbf{r}$, so $\mathbf{r}\cdot \mathbf{n}=1$ and the curved contribution is $2\pi (z_0+1)$. On the top disk, $\mathbf{n}={\mathbf{e}}_z$, giving $\pi z_0(1-z_0^2)$. Their sum is the same flux.

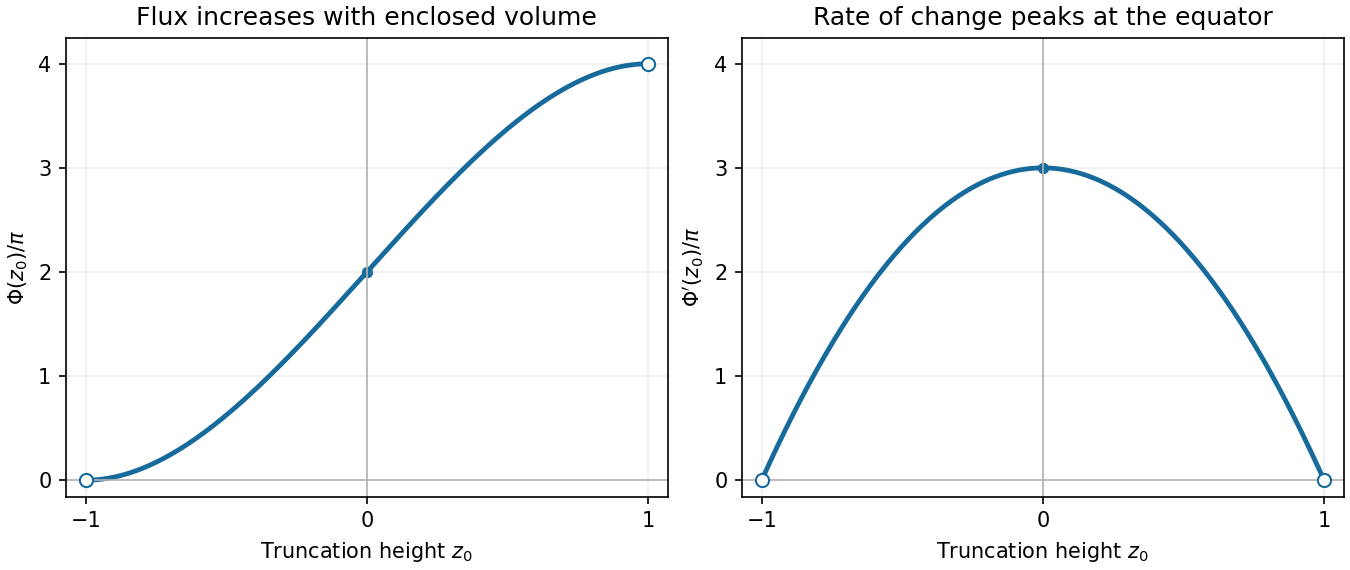

Differentiate the flux:On $-1<z_0<1$, $\Phi$ is strictly increasing. Its limiting endpoint values are $\Phi (-1)=0$ and $\Phi (1)=4\pi$, and $\Phi (0)=2\pi$. It has horizontal limiting tangents at the endpoints, curves upward for $z_0<0$, curves downward for $z_0>0$, and has an inflection point at zero.

The derivative graph is a downward-opening parabola, approaching zero at both endpoints and attaining its maximum $3\pi$ at $z_0=0$.
