Past exam of the mathematics course of the year 2 of the natural sciences course of the University of Cambridge / 2016 / Paper 1 / 9 / b

Introduce a constant Lagrange multiplier $\lambda$ for the fixed arc length. Up to an irrelevant constant term, the augmented functional isIt has no explicit $x$ dependence, so the Beltrami identity givesFor the hanging minimum choose $k>0$. Writing $y_0=-\lambda$, this becomes $1+y^{\prime 2}=(y-y_0{)}^2/k^2$. Its nonconstant smooth solution isOne may verify it without dividing by $y^{\prime }$ at the lowest point: the full Euler-Lagrange equation gives $(y+\lambda )y^{\prime \prime }=1+y^{\prime 2}$, which the expression satisfies everywhere. The branch with negative $k$ is the inverted stationary chain rather than the hanging minimum. The catenary minimizes the integral of height along a fixed-length curve, so the positive branch is also the global minimum, not merely a stationary candidate.

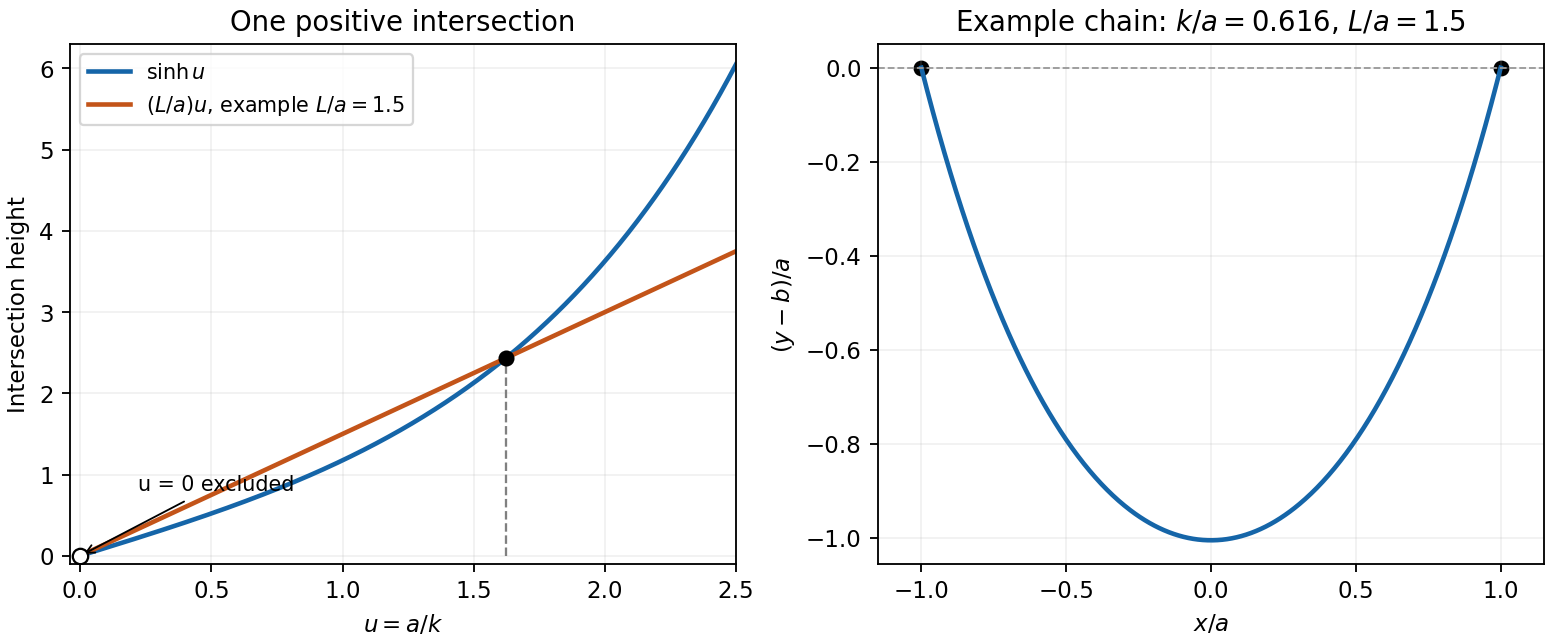

Equal endpoint heights implyso $x_0=0$. The height condition then gives $y_0=b-k\cosh (a/k)$ and the hanging catenary isSince $\sqrt{1+y^{\prime 2}}=\cosh (x/k)$, its length fixes $k$ throughFor the requested graphical argument, put $u=a/k>0$ and $q=L/a>1$. Intersections of $Y=\sinh u$ with $Y=qu$ determine the solution. Near zero the line has larger slope, while the hyperbolic sine eventually grows faster. Its slope $\cosh u$ increases strictly, so after turning upwards relative to the line it can cross it only once. The intersection at $u=0$ is excluded: it corresponds to infinite $k$ and the limiting length $L=a$.

More explicitly, $h(u)=\sinh u/u$ has derivative $(u\cosh u-\sinh u)/u^2>0$, because the numerator vanishes at zero and has derivative $u\sinh u>0$. Since $h(0+)=1$ and $h(u)\to \infty$, every $q>1$ yields exactly one positive $u$, hence exactly one positive $k$.
