Past exam of the quantum, atomic and molecular physics course of the University of Oxford / 2016 / 3 / c / Solution

Define $\sigma (\omega )$ as the emission cross section for an upper-level atom, averaged over the participating sublevels, and let $W=\sigma I/(\hslash \omega )$. Detailed balance gives the upward stimulated rate per lower-level atom as $rW$, where $r=g_2/g_1$. With $D=N_2-r{N}_1$ the complete laser rate equations areAdding them eliminates the internal transitions. Therefore steady state has $N_1=R_2{\tau }_1$ even when the radiation is strong. Substitution into the upper equation givesOne net stimulated transition changes the beam energy by $\hslash \omega$, so the coefficient of optical gain for intensity is $\alpha (\omega ,I)=\sigma (\omega )D$. At line center, with ${\sigma }_0=\sigma ({\omega }_{21})$,Here ${\alpha }_0$ is the unsaturated intensity optical gain per length, which may be negative, and $I_s$ is the intensity at which its magnitude is halved in this model with homogeneous broadening. The cancellation of ${\tau }_1$ from $I_s$ follows from exclusive upper-to-lower decay and constant upper-state pumping. Keeping $N_1=A{\tau }_1{N}_2$ in the stimulated problem would discard the stimulated feeding term and give an incorrect saturation scale. Other decay branches or different pump constraints lead to different expressions.

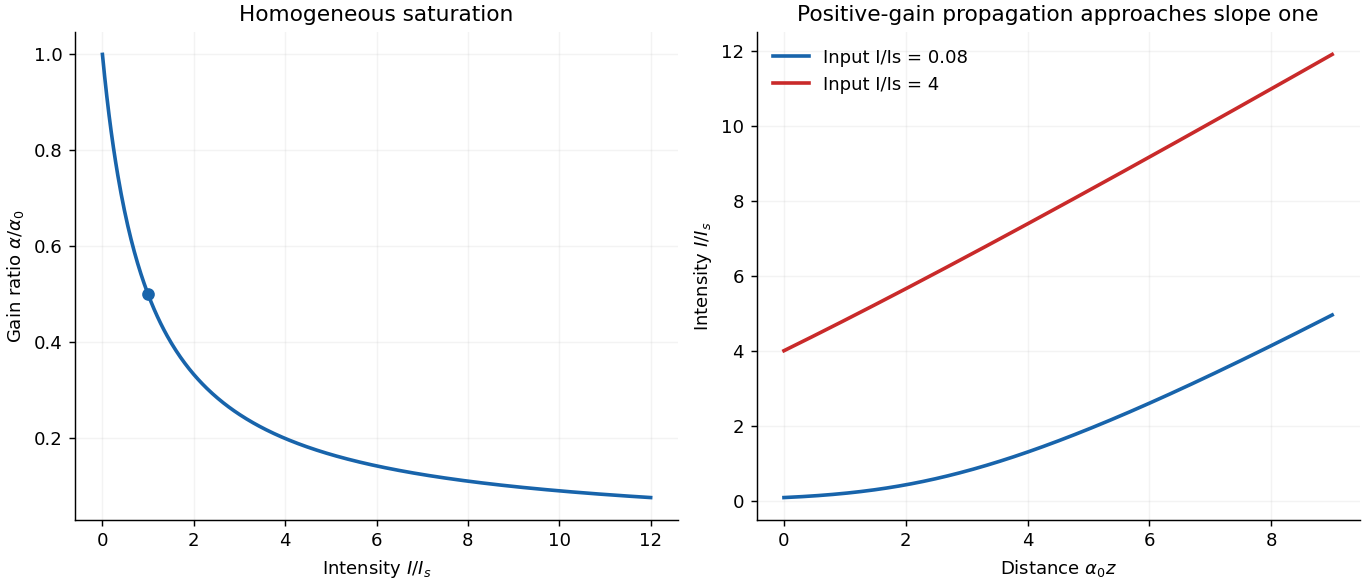

For a traveling beam with uniform pump, no additional loss and local steady populations,If ${\alpha }_0>0$ and $I\gg I_s$, the increment becomes $dI/dz\simeq {\alpha }_0{I}_s=\hslash {\omega }_{21}{R}_2(1-rA{\tau }_1)$, approximately constant. Intensity then grows linearly, rather than exponentially, with distance while that strong-saturation regime persists. Negative ${\alpha }_0$ gives saturable absorption and a decreasing beam.
